| 1 | Clods crushing and soil re-compaction zone. The roller gently crushs clods and ensures final soil compaction to fully restore soil capillarity. The intensive soil water capillarity to the surface ensures uniform plants emergence even in the dry season. |
Cambridge rollers are designed for additional pre-sowing tillage, especially in heavy dry conditions.
Cambridge rollers are used for leveling field surface, crushing soil clods and restoration soil capillarity. The machine can be used also after sowing. Working operation performed in this way increases seed emergence uniformity and subsequently acceleration of vegetation.
Cambridge rollers are designed for additional pre-sowing tillage, especially in heavy dry conditions.
Cambridge rollers are used for leveling field surface, crushing soil clods and restoration soil capillarity. The machine can be used also after sowing. Working operation performed in this way increases seed emergence uniformity and subsequently acceleration of vegetation.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.
Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
| Technical parameters | Units | Cambridge CV 6 | Cambridge CV 9 |
|---|---|---|---|

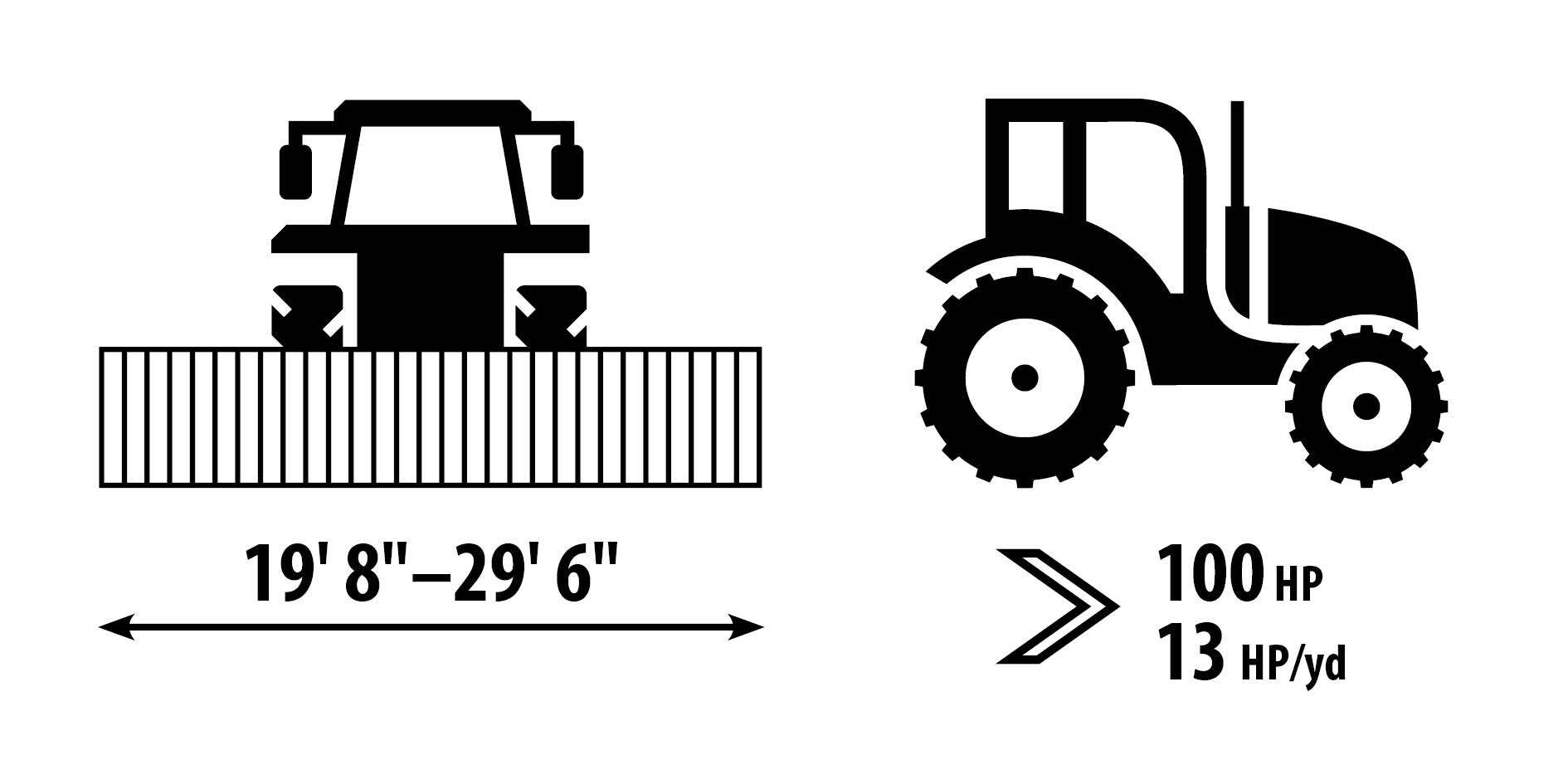

| Working width | ft. | 19' 8" | 29' 6" |
| Transport width | ft. | 7' 10" | 7' 10" |
| Transport height | ft. | 5' 3" | 5' 3" |
| Total machine length | ft. | 13' 5" | 22' 4" |
| Number of segments – smooth Number of segments – geared |
pcs | 58 55 |
88 83 |
| Working performance | ac/h | 14.8 | 22.2 |
| Towing vehicle 1 | kW HP |
75 100 |
90 125 |
| Working speed | mph | 5─9 | 5─9 |
| Maximum transport speed 2 | mph | 9 | 9 |
| Maximum slope availability | ° | 11 | 11 |
| Dimension of tire - transport | 10,0 / 75 - 15,3 | 10,0 / 75 - 15,3 | |
| Number of hydraulic circuits / pressure | bar | 1 / 200 | 1 / 200 |
| Number of quick-coupling devices / type | 2 / ISO 12,5 | 2 / ISO 12,5 | |
| Tractor hitch requirement | upper-level suspension of the tractor | upper-level suspension of the tractor | |
| Machine weight | lb. | 5,952 | 7,937 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
