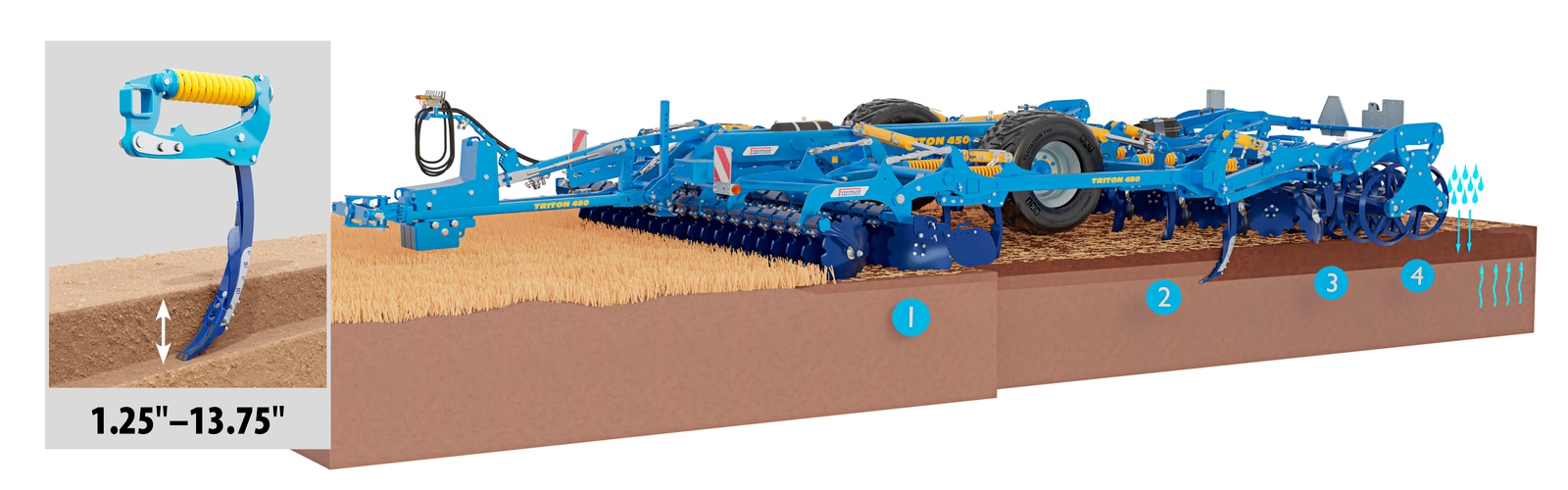

| 1 | Full-surface tillage zone. The double-row disk section with aggressive geometry ensures perfect full-surface undercut to the depth of 0–4.75" with intensive mixing of crop residues. The disk section also spreading well crop residues over the surface. |

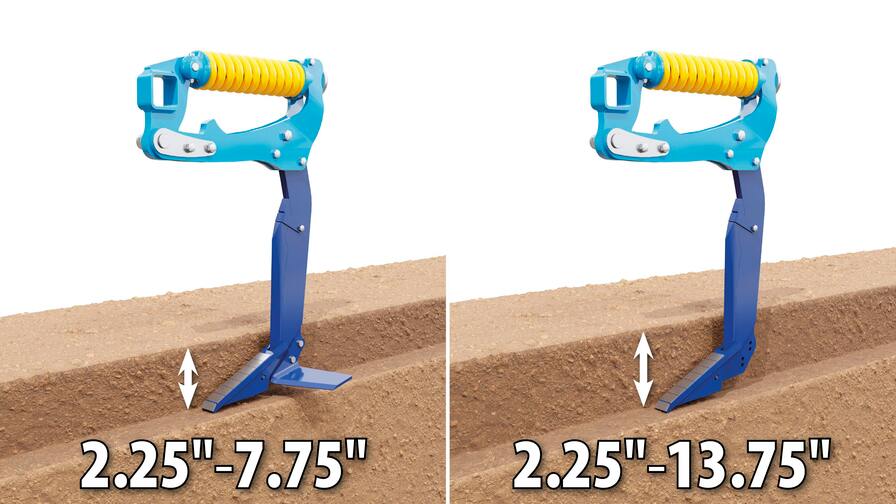

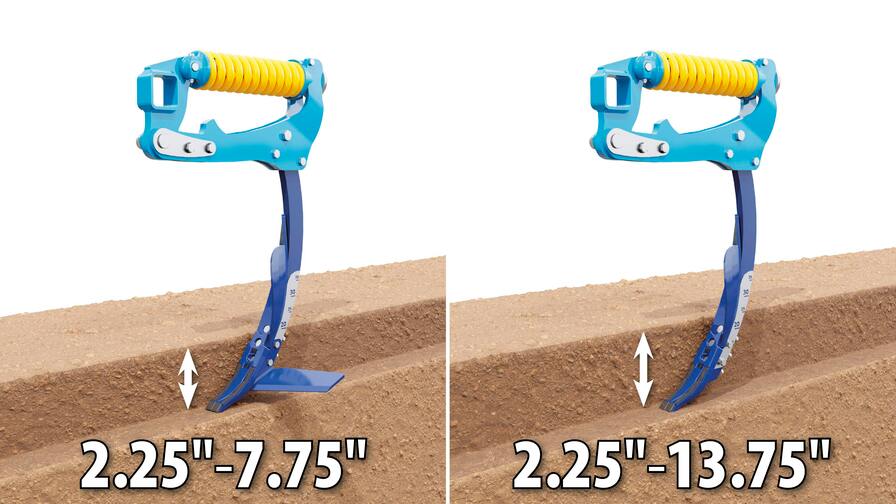

| 2 | Tillage zone. The tillage depth has a wide range of 1.25"–13.75". Full-surface undercut wings can be used for tillage from 2.25" to 7.75". Shanks with optimized geometry in two rows ensure deep zone tillage to increase water infiltration. |
| 3 | Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 4 | Clods crushing and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface. |
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.
Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps, that everybody can perform.

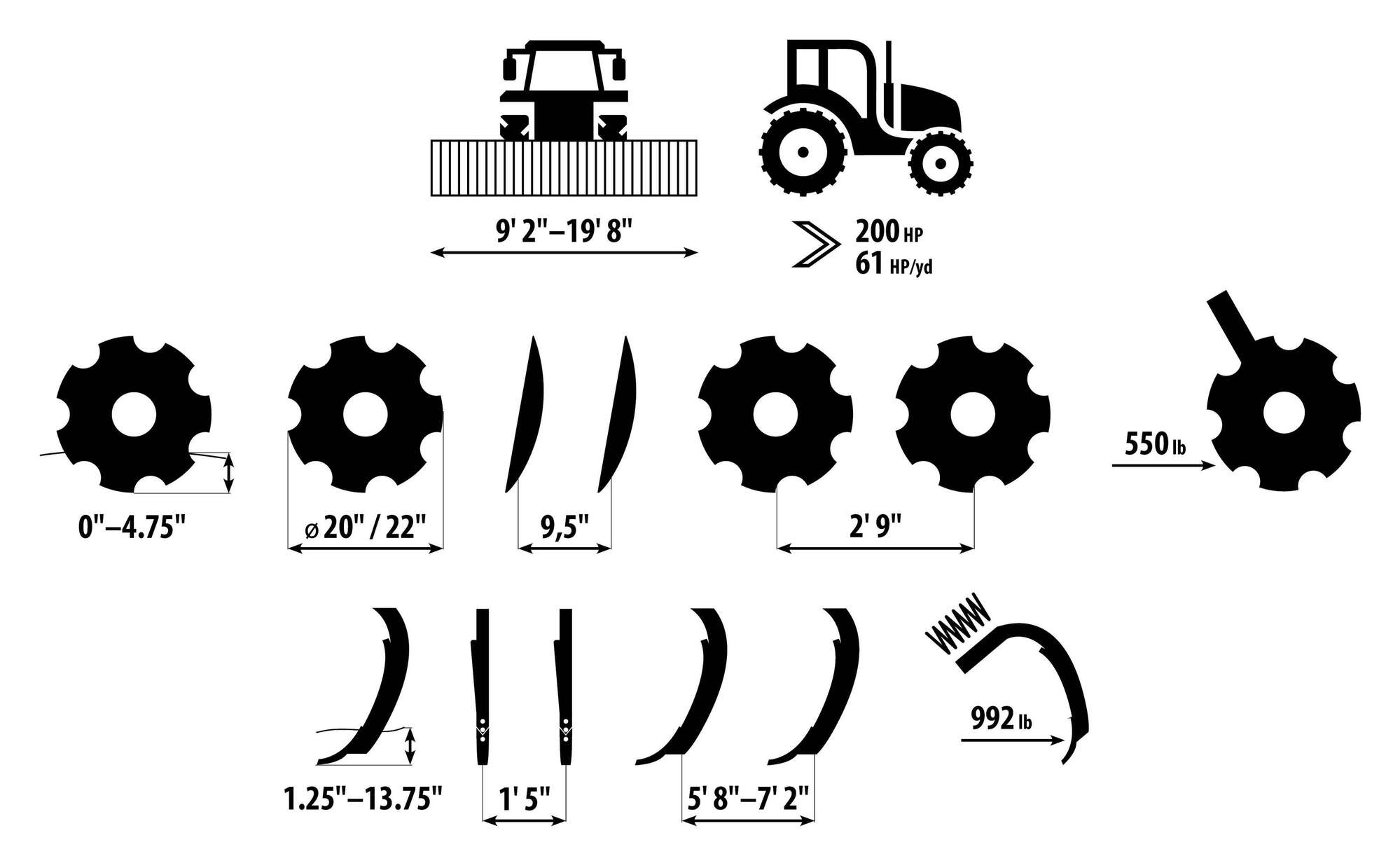

| Technical parameters | Units | Triton 300 P | Triton 400 PS | Triton 450 PS | Triton 600 PS |
|---|---|---|---|---|---|
| Working width | ft. | 9' 10" | 9' 10" | 14' 9" | 19' 8" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 5' 11" | 11' 1" | 12' 11" | |
| Total machine length 2 | ft. | 31' | 31' 2" | 31' 4" | |
| Working depth | in. | 1.25"–13.75" | 1.25"–13.75" | 1.25"–13.75" | 1.25"–13.75" |
| Number of shares | pcs | 7 | 10 | 11 | 15 |
| Number of disks | pcs | 22 | 38 | 50 | |
| Disk diameter | in. | 20" / 22" | 20" / 22" | 20" / 22" | 20" / 22" |
| Number of share rows | pcs | 2 | 2 | 2 | 2 |
| Share spacing | ft. | 1' 5" | 1' 5" | 1' 5" | 1' 5" |
| Share row spacing | ft. | 5' 8" | 7' | 7' 2" | |
| Number of disk rows | pcs | 2 | 2 | 2 | 2 |
| Disk spacing | in. | 9,5" | 9,5" | 9,5" | 9,5" |
| Disk row spacing | ft. | 2' 9" | 2' 9" | 2' 9" | 2' 9" |

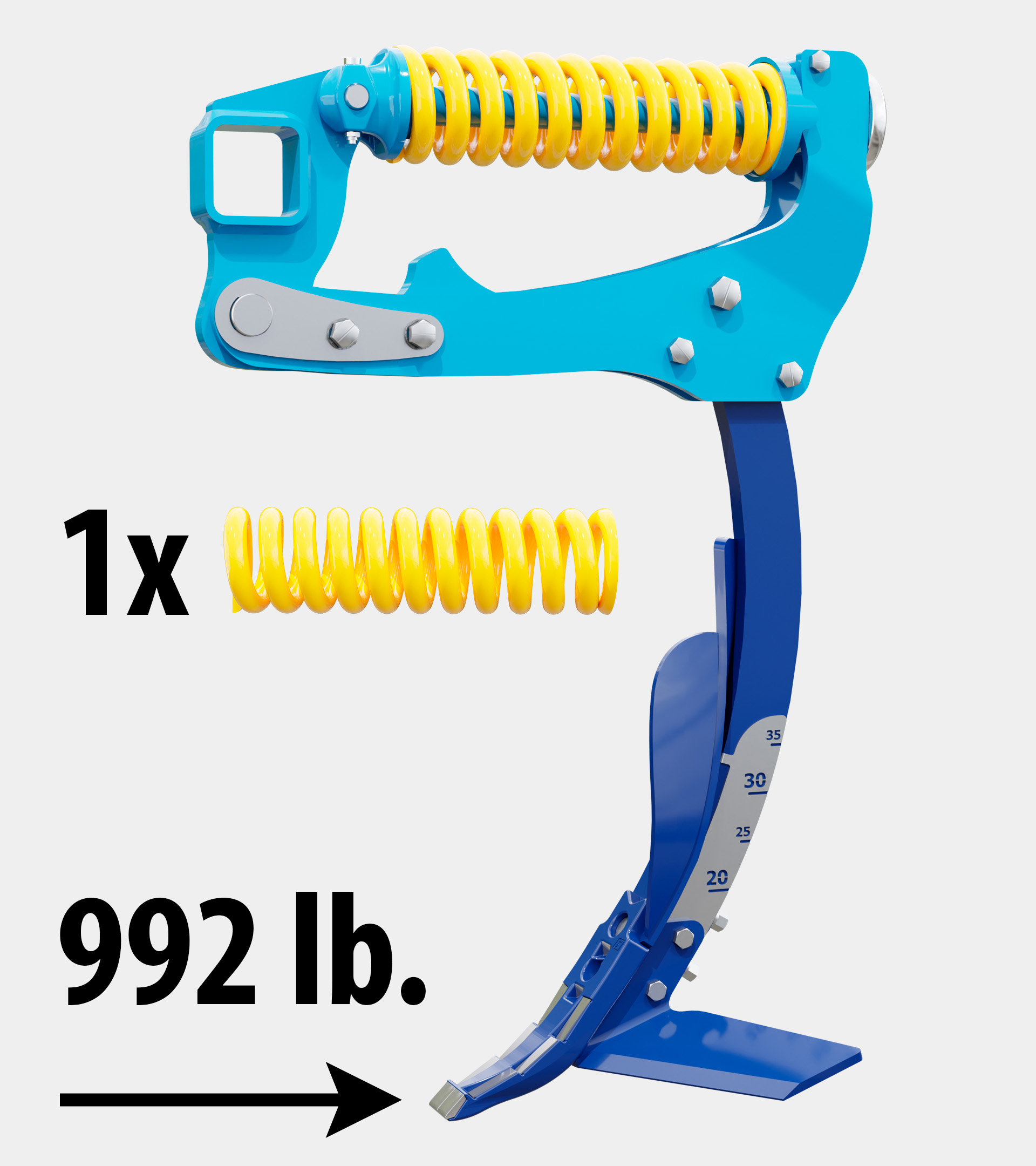

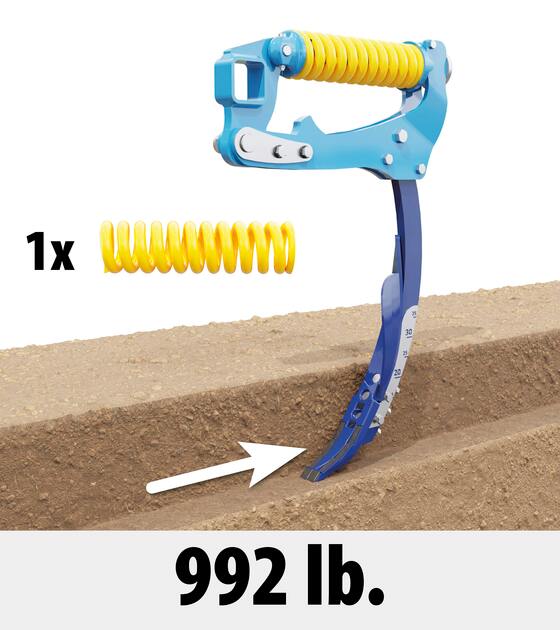

| Release force of shares | lb. | 992 | 992 | 992 | 992 |
| Frame clearance | ft. | 2' 11" | 2' 11" | 2' 11" | 2' 11" |
| Diameter of leveling disks | ft. | 1' 6" | 1' 6" | 1' 6" | 1' 6" |
| Working performance | ac/h | 5.4─8.4 | 7.9─11.9 | 8.9─13.3 | 11.9─17.8 |
| Towing vehicle 1 | kW HP |
150─235 200─315 |
225─350 300─450 |
350─460 450─600 |
|
| Working speed | mph | 5─8 | 5─8 | 5─8 | 5─8 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 |
| Dimensions of tire – transport | 19.0/45-17 | 19.0/45-17 | 550/45-22,5 | 550/45-22,5 | |
| Brake type / distribution 3 | air / two-line | air / two-line | air / two-line | air / two-line | |
| Required pressure 3 | kPa | 5,5 | 5,5 | 5,5 | 5,5 |
| Number of hydraulic circuits / pressure | bar | 4 / 200 | 5 / 200 | 5 / 200 | 5 / 200 |
| Number of hydro-couples / type | 8 / ISO 12,5 | 10 / ISO 12,5 | 10 / ISO 12,5 | 10 / ISO 12,5 | |
| Tractor hitch requirement | TPH cat. 3; bottom hitch K80; lug Ø 2", 2.75" | ||||
| Machine weight 2 | lb. | 10,362 | 17,857 | 22,487 | |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 For the machine version with a double roller (DVR).
3 Alternative to hydraulic brake / operating pressure of 130 ± 5 bar
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
PS - semi-mounted foldable machine
| Diameter | 23" |
| Weight | 530 lbs./yd |
| Diameter | 27"/27" |
| Weight | 820 lbs./yd |
| Diameter | 23" |
| Weight | 482 lbs./yd |
| Diameter | 27" |
| Weight | 422 lbs./yd |
| Diameter | 24" |
| Weight | 241 lbs./yd |
| Diameter | 27"/27" |
| Weight | 700 lbs./yd |
Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Roller | Tube-shaped TRS |
Double ring DRR |
LTX | Disk SDR |
|---|---|---|---|---|
| Crumbling | ●●○○ | ●●●○ | ●●○○ | ●●●○ |
| Stamping | ●●●○ | ●●●● | ●●●● | ●●●● |
| Depth guiding | ●●●○ | ●●●● | ●●●● | ●●●● |
| Resistance against clogging | ●○○○ | ●●●● | ●●●○ | ●●●○ |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●○○○ | ●●●● | ●●●● | ●●●● |
| Heavy soils | ●●○○ | ●●●● | ●●●● | ●●●● |
| Medium soils | ●●●○ | ●●●● | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● | ●●●○ | ●●●○ |
| Roller | VR | Double V-ring DVR |
|---|---|---|
| Crumbling | ●●●○ | ●●●○ |
| Stamping | ●●●● | ●●●● |
| Depth guiding | ●●●● | ●●●● |
| Resistance against clogging | ●●●● | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● |
| Heavy soils | ●●●● | ●●●● |
| Medium soils | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● |
| Chisel width | 3" |
| Chisel thickness | 0.5" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 100-200 % |
| Share width | 3" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share service life | + 150-400 % |
| Share width | 3" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share service life | + 200-500 % |
| Chisel width | 1.5" |
| Chisel thickness | 1" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 100-200 % |
| Diesel fuel consumption | - 10 % |
Sowing of fine seeds.
Divides 1 tractor circuit into 3 circuits.
