Combined cultivator TRITON HEAVY

• Excellent solution for heavy soils
• Low pulling requirement
• High throughflow of the soil and crop residue
• Efficient cutting and even mixing of crop residue into the processed soil layer
• Deep zone tillage with minimal clods formation

Possibility of fertilization by granular fertilizer

Scheme of fertilizer placing in two horizons

Scheme of fertilizer placing in two horizons

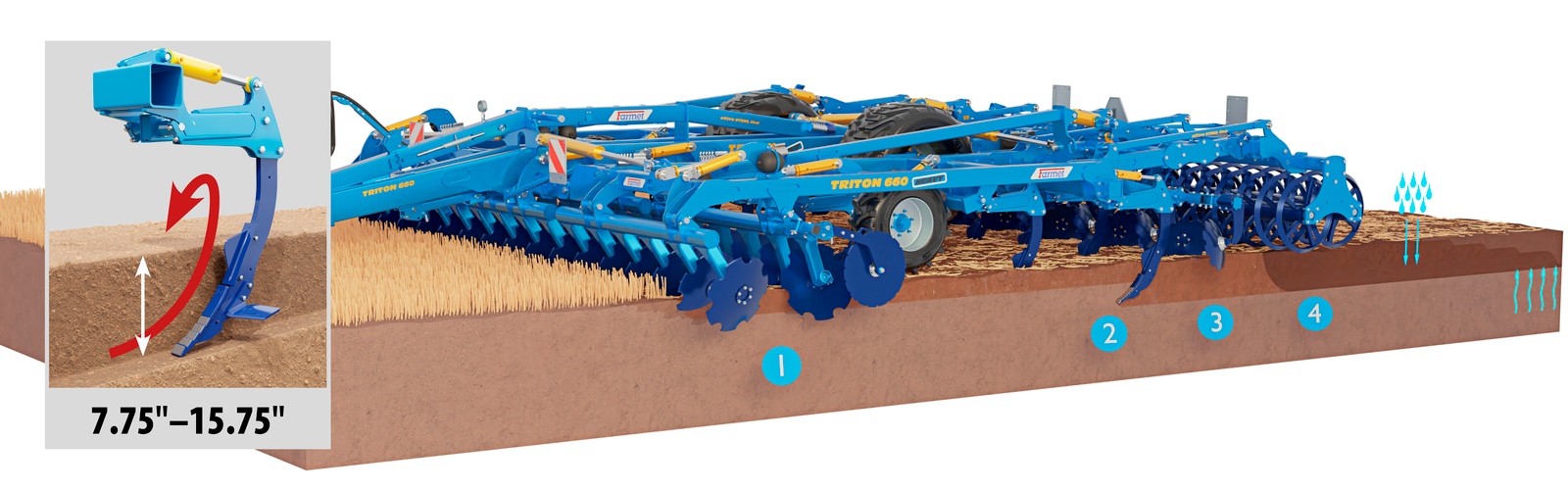

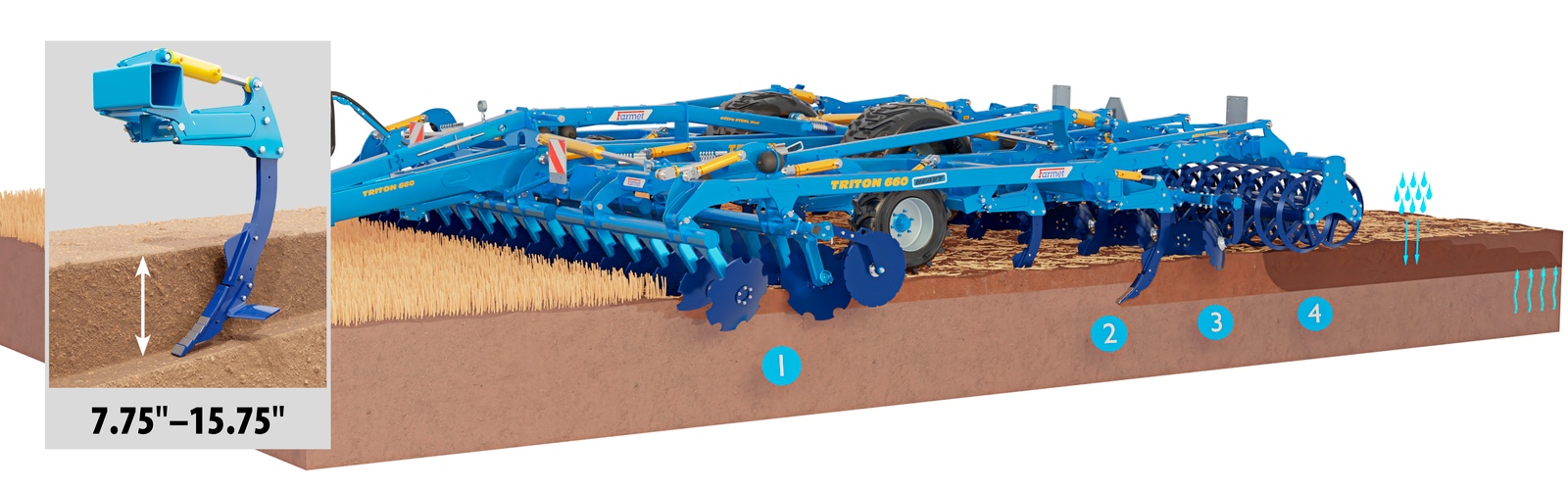

Combined cultivator Triton 300 P HEAVY

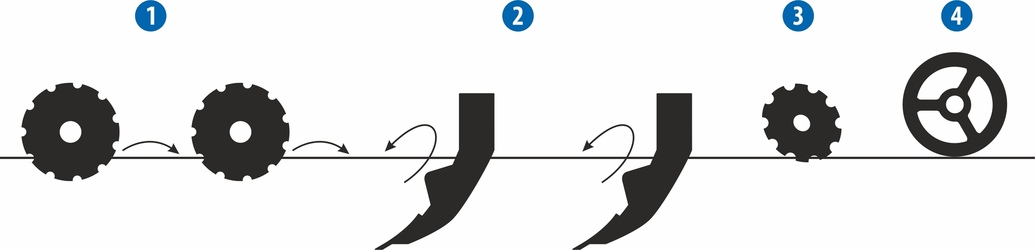

1. The discs with the diameter Ø 24.5"/ 26.75" arranged in two rows undercut soil.
2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
3. The levelling discs for perfect levelling of surface.
4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

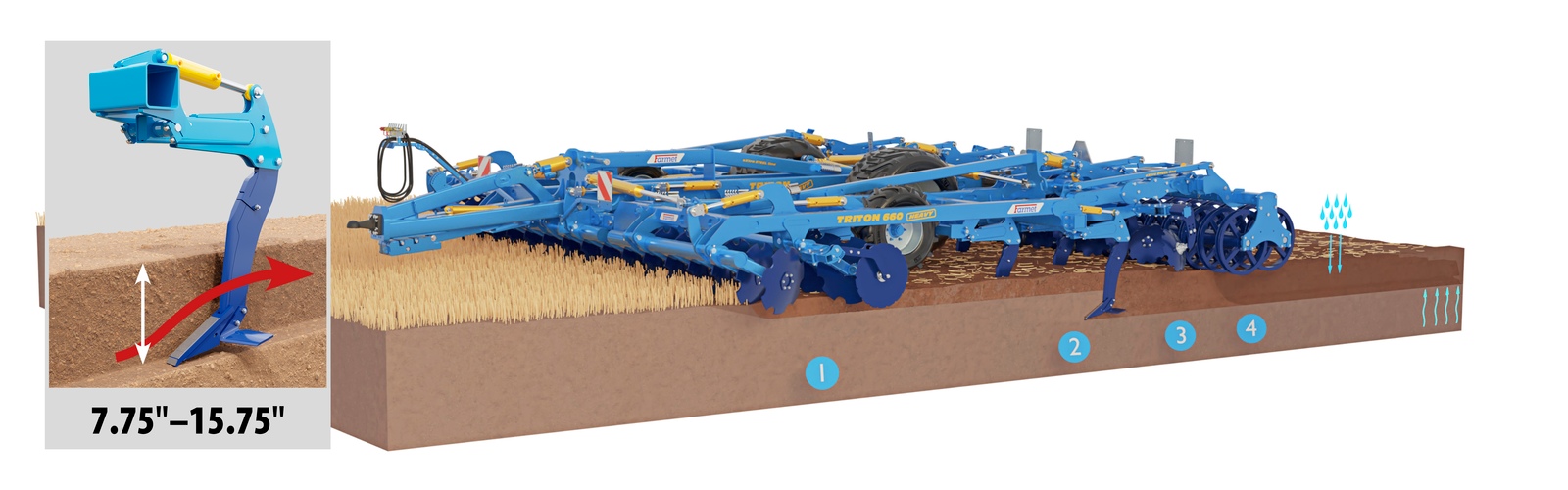

Combined cultivator Triton 660 PS HEAVY

1. The discs with the diameter Ø 24.5"/ 26.75" arranged in two rows undercut soil.
2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
3. The levelling discs for perfect levelling of surface.
4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Aggressive geometry of disks + all-round sharpened disks → excellent penetration even in hard and overdried soil.

____________________________________________________________________________________________________

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame from high-strength steels.

Large disk units

Very high release force due to large disk units.

Extreme durability of working units

The time-tested tines are made of high-strength abrasion-resistant steels and they are equipped with carbide plates at the point of tine. The top part of the tine can be supplemented with other carbide plates or tungsten carbide weld deposits to extend the lifespan even more.

Rubber leveling disks placement

Durable and maintenance-free protection of the levelling discs.

Maintenance-free bearings

Maintenance-free disks placement ensuring machine operation without additional lubrication.

Large transport axle with brakes

For safe and quick machines transport on public roads.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps, that everybody can perform.

• Minimum adjustment points.
• Minimum lubrication points.

Hydraulic setting the working depth of disk section

Easy and quick setting the working depth of disks by demarcation washers at hydraulic cylinder.

Depth adjustment

Easy working depth adjustment according to the owerview table by demarcation washers on the roller piston rods.

Hydraulic setting the working depth of shanks when working without rear rollers

Easy setting the working depth by demarcation washers of axle hydraulic cylinder when working without rear rollers.

Hydraulic setting the leveling disks

Easy and quick setting the disks comfortably from tractor cab even during work in a field.

Setting the left side deflector

Easy setting the side deflector by a pin – for perfect connection between each passes.

Setting the right side deflector

Easy setting the side deflector by a pin – for perfect connection between each passes.

Setting side leveling disks

Side leveling disks are easily adjustable by a pin – for accuracy connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² For the machine version with a double roller (DVR).
³ Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
⁴ When using the electro-hydraulic circuit distributor Hydrtotronic.
⁵  Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

We are constantly improving and innovating our machines/products to provide the best possible solutions for current technological trends and to meet customers’ requirements. For this reason, some of the offered products may be produced differently than they are presented on our website. Binding specifications/parameters of a machine will be confirmed when ordering.
