| 1 | Clods crushing and soil re-compaction zone. The roller gently crushes the clods and ensures the final compaction of the seedbed so the soil capillarity is fully restored. The intensive soil water capillarity to the surface ensures even plant emergence even in the dry season. |
Additional crushing crosskill rollers aggregated to the rear hinge TPH of the seedbed combinator Kompaktomat are in widespread use for more intensive processing of the soil, especially heavy soil.
During transportation the rollers are carried and therefore maneuverability of the machine is not reduced at all.

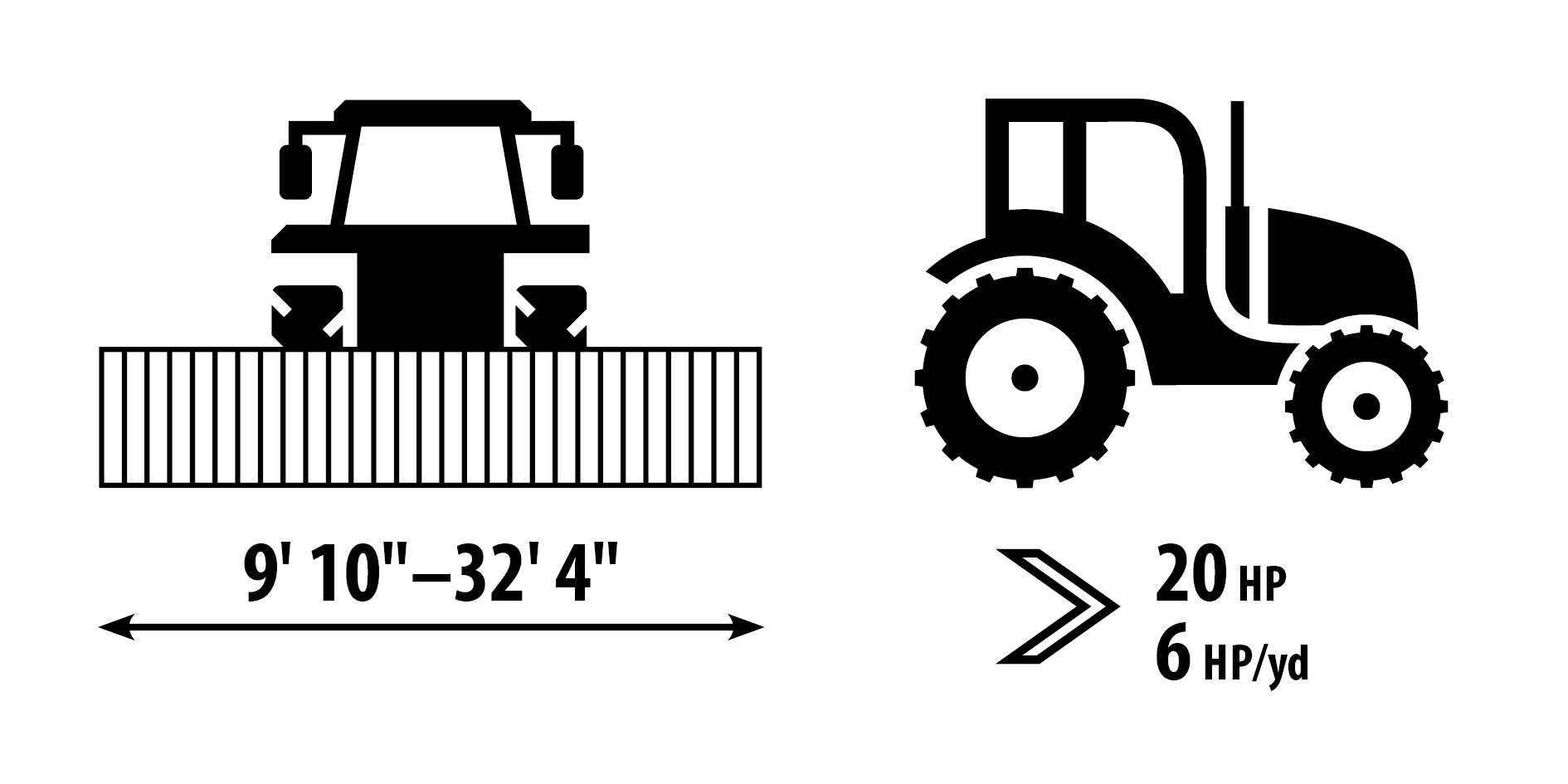

Also folding to the working position is derived from the circuit of machine unfolding, so that the work with the Kompaktomat machine with additional rollers is very simple. The additional rollers are offered with the working width of 9' 10"–32' 4".
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
The advantage of this machine is its multipurpose ness and adjustability bringing high variability of work.
Example of attachment behind the Kompaktomat machine into TPH category 2.
The advantage of this machine is its multipurpose ness and adjustability bringing high variability of work.
Example of attachment behind the Kompaktomat machine into TPH category 2.
| Technical parameters | Units | DV 300 N | DV 400 NS | DV 450 NS | DV 500 NS |
|---|---|---|---|---|---|
| Working width | ft. | 9' 10" | 13' 1" | 14' 9" | 16' 5" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 3' 5" | 5' 5" | 6' 2" | 7' |
| Total machine length | ft. | 4' 11" | 4' 11" | 4' 11" | 4' 11" |
| Number of wheels | pcs | 24 | 34 | 40 | 44 |
| Diameter of crosskill wheels | ft. | 1' 4" | 1' 4" | 1' 4" | 1' 4" |
| Working performance | ac/h | 5.4─7.9 | 7.4─9.9 | 8.6─11.1 | 7.4─12.4 |
| Towing vehicle 1 | kW HP |
15 20 |
20 27 |
23 31 |
25 34 |
| Working speed | mph | 6─9 | 6─9 | 6─9 | 6─9 |
| Maximum transport speed 2 | mph | 12 | 12 | 12 | 12 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 1 / 200 | 1 / 200 | 1 / 200 | |
| Number of quick-coupling devices / type | 2 / ISO 12,5 | 2 / ISO 12,5 | 2 / ISO 12,5 | ||
| Tractor hitch requirement | TPH cat. 2 | TPH cat. 2 | TPH cat. 2 | TPH cat. 2 | |
| Machine weight | lb. | 1,235 | 2,326 | 2,502 | 2,767 |
| Technical parameters | Units | DV 600 NS | DV 700 NS | DV 800 NS | DV 1 000 NS 3 |
|---|---|---|---|---|---|
| Working width | ft. | 19' 8" | 22' 11" | 26' 3" | 32' 4" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 8' 7" | 10' 2" | 11' 8" | 12' 4" |
| Total machine length | ft. | 4' 11" | 4' 11" | 4' 11" | 7' 3" |
| Number of wheels | pcs | 52 | 60 | 68 | 81 |
| Diameter of crosskill wheels | ft. | 1' 4" | 1' 4" | 1' 4" | 1' 4" |
| Working performance | ac/h | 8,6─14,8 | 11,1─17,3 | 13,6─19,8 | 21─24,7 |
| Towing vehicle 1 | kW HP |
30 39 |
35 46 |
40 52 |
50 65 |
| Working speed | mph | 6─9 | 6─9 | 6─9 | 6─9 |
| Maximum transport speed 2 | mph | 12 | 12 | 12 | 12 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 1 / 200 | 1 / 200 | 1 / 200 | 1 / 200 |
| Number of quick-coupling devices / type | 2 / ISO 12,5 | 2 / ISO 12,5 | 2 / ISO 12,5 | 2 / ISO 12,5 | |
| Tractor hitch requirement | TPH cat. 2 | TPH cat. 2 | TPH cat. 2 | TPH cat. 2 | |
| Machine weight | lb. | 3,086 | 3,527 | 3,880 | 5,622 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
3 Contact Farmet a.s. if you have a requirement about direct tractor aggregation.
N - carried machine
NS - carried foldable machine
