| 1 | Full-surface tillage zone. The double-row disk section with aggressive geometry ensures excellent full-surface undercut to depth 2.25"–7" with intensive mixing of crop residues. The disk section is also spreading well crop residues over the field surface. |
| 2 | The deflectors behind the disks increase soil crushing and crop residue incorporation. |
| 3 | Clods crushing and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface. |
Disk cultivator Diskomat has a very wide array of use in various tillage technologies . It is suitable both for classical stubble cultivation post-harvest to various depth up to 7" and for various types of other tillage.
A great advantage of the machine conception is the generally known leveling effect, so the disk cultivator is also suitable for pre-sowing tillage when emphasis is put on good land leveling and quality tillage.
Disk cultivator Diskomat is unique in the overall construction and design as well as in the solution of the individual technical nodes and the use of special material technologies. That provides the machine with very compact dimensions (mainly for transport on the public road), very low weight and its favourable transfer to working units and particularly very low maintenance requirements. The machine construction meets the requirements for safety and requirements for the approval of operation on the public road.
Great emphasis is put on the overall design and ergonomics of the disk machine. All adjusting nodes are easily accessible to the operator and meet strict safety requirements. There are very low maintenance requirements of the machine. When compared to competitive machines, the number of lubrication points and lubrication frequency are significantly minimized – most nodes are completely maintenance-free during the whole lifespan of the machine.
Disk cultivator Diskomat has a very wide array of use in various tillage technologies . It is suitable both for classical stubble cultivation post-harvest to various depth up to 7" and for various types of other tillage.
A great advantage of the machine conception is the generally known leveling effect, so the disk cultivator is also suitable for pre-sowing tillage when emphasis is put on good land leveling and quality tillage.
Disk cultivator Diskomat is unique in the overall construction and design as well as in the solution of the individual technical nodes and the use of special material technologies. That provides the machine with very compact dimensions (mainly for transport on the public road), very low weight and its favourable transfer to working units and particularly very low maintenance requirements. The machine construction meets the requirements for safety and requirements for the approval of operation on the public road.
Great emphasis is put on the overall design and ergonomics of the disk machine. All adjusting nodes are easily accessible to the operator and meet strict safety requirements. There are very low maintenance requirements of the machine. When compared to competitive machines, the number of lubrication points and lubrication frequency are significantly minimized – most nodes are completely maintenance-free during the whole lifespan of the machine.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.
Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.
The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

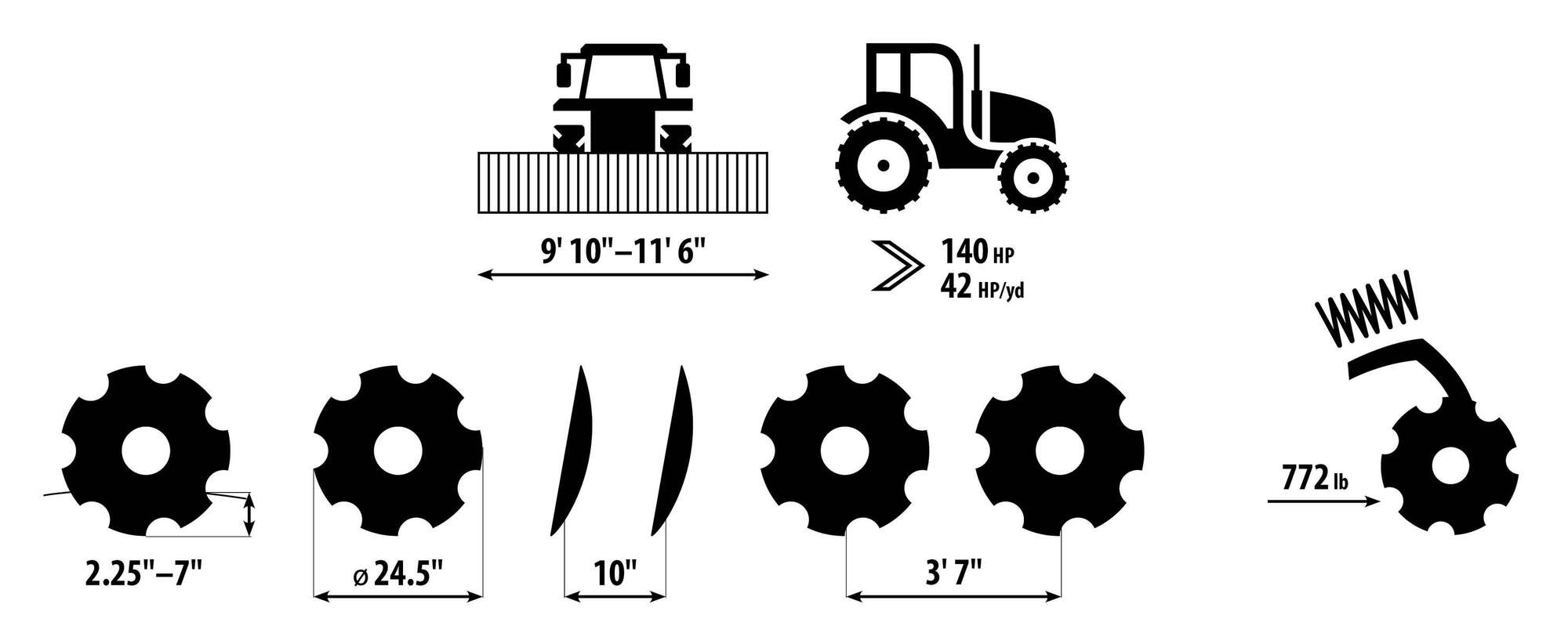

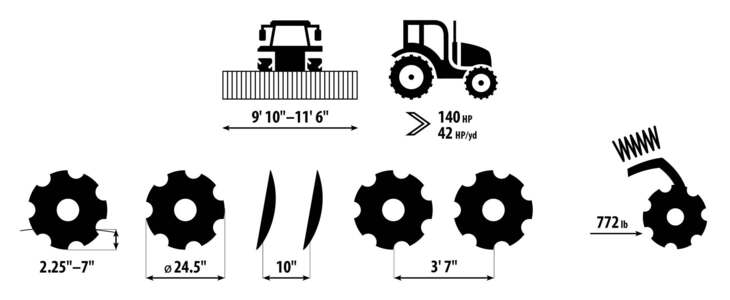

| Technical parameters | Units | Diskomat 3 N | Diskomat 3,5 N |
|---|---|---|---|
| Working width | ft. | 9' 10" | 11' 5" |
| Transport width | ft. | 9' 10" | 11' 5" |
| Transport height | ft. | 5' 3" | 5' 3" |
| Total machine length | ft. | 10' 9" | 10' 9" |
| Working depth | in. | 2.25"–7" | 2.25"–7" |
|
Number of disks – front row |
pcs | 12 12 |
14 14 |
| Diameter of disks | in. | 24.5" | 24.5" |
| Working performance | ac/h | 7.4–11.1 | 8.6–13 |
| Towing vehicle 1 | kW HP |
105–158 140–165 |
120–180 160–240 |
| Working speed | mph | 6–9 | 6–9 |
| Maximum transport speed 3 | mph | 12 | 12 |
| Maximum slope availability | ° | 6 | 6 |
| Tractor hitch requirement | TPH cat. 3 | TPH cat. 3 | |
| Machine weight 2 | lb. | 5,291 | 5,732 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine weight with double roller.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
N - mounted machine
| Diameter | 23" |
| Weight | 530 lbs./yd |
| Diameter | 16"/12" |
| Weight | 298 lbs./yd |
| Diameter | 23" |
| Weight | 482 lbs./yd |
| Diameter | 20" |
| Weight | 386 lbs./yd |
| Diameter | 24" |
| Weight | 241 lbs./yd |
| Diameter | 24" |
| Weight | 422 lbs./yd |
Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Roller | Tube-shaped TRS |
Double DR |
Ring RR |
LTX |
|---|---|---|---|---|
| Crumbling | ●●○○ | ●●●○ | ●●●○ | ●●○○ |
| Stamping | ●●●○ | ●●●○ | ●●●● | ●●●● |
| Depth guiding | ●●●○ | ●●●● | ●●●● | ●●●● |
| Resistance against clogging | ●○○○ | ●●●○ | ●●●● | ●●●○ |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●○○○ | ●●○○ | ●●●● | ●●●● |
| Heavy soils | ●●○○ | ●●●● | ●●●● | ●●●● |
| Medium soils | ●●●○ | ●●●● | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● | ●●●● | ●●●○ |
| Roller | Disk SDR |
VR |
|---|---|---|
| Crumbling | ●●●○ | ●●●○ |
| Stamping | ●●●● | ●●●● |
| Depth guiding | ●●●● | ●●●● |
| Resistance against clogging | ●●●○ | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● |
| Heavy soils | ●●●● | ●●●● |
| Medium soils | ●●●● | ●●●● |
| Light soils | ●●●○ | ●●●● |
Sowing of fine seeds.
