Disk cultivator SOFTER NS

Tillage up to 5" with full-surface undercut and mixing

Disk cultivator Softer

Technology

1	Full-surface tillage zone. The double-row disk section with aggressive geometry ensures perfect full-surface undercut to depth of 1.5"–5" with intensive mixing of crop residues. The disk section also spreading well crop residues over the field surface.
2	Clods crushing and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

Technics

Disk cultivator Softer N/NS

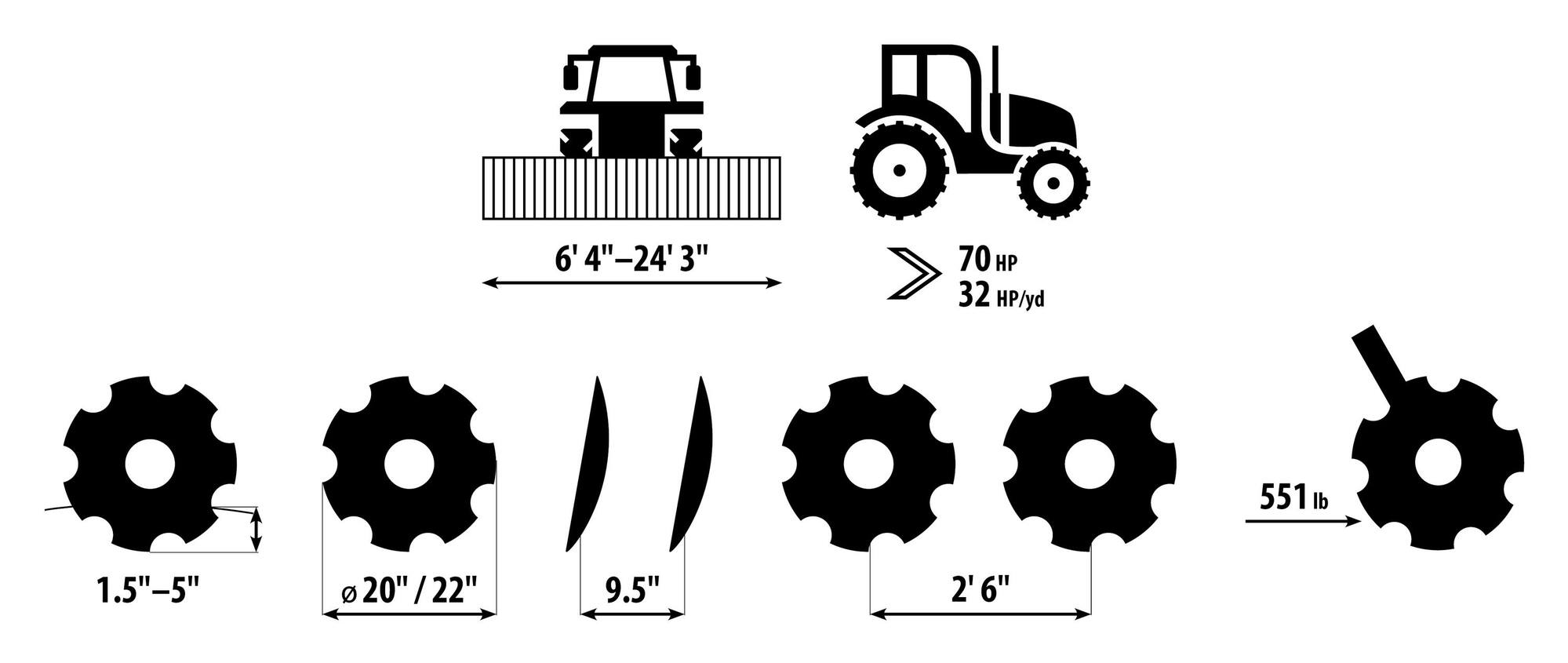

Disks Ø 20"/ Ø 22" arranged in two rows will undercut the ground. Working depth is 1.5"–5".
Clods are crumbled by the rear roller.
The additional Micro Drill machine for planting crops that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Disk cultivator Softer N/NS

Disks Ø 20"/ Ø 22" arranged in two rows will undercut the ground. Working depth is 1.5"–5".
Clods are crumbled by the rear roller.

Disks with notched circumference

Disks with the diameter 20" / 22" are arranged in two rows. In case of contact with an obstruction, each disk is individually effectively protected by rubber suspension.

The disks are mounted in maintenance-free bearings with excellent service life. Optimal disks geometry ensures high-quality work with superior productivity and high percentage of incorporated crop residues. The disks maintains constant cutting angle as it wears. The disk 9.5" spacing ensures good flow through of crop residues.

Disks with the diameter 20" / 22" are arranged in two rows. In case of contact with an obstruction, each disk is individually effectively protected by rubber suspension.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

Maintenance-free disk bearings.
Maintenance-free rubber suspension.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Maintenance-free disk bearings

Maintenance-free disk bearings ensuring machine operation without additional lubrication.

Maintenance-free rubber suspension

Durable and maintenance-free rubber suspension for perfect follow ground contouring with protection against overload.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum adjustment points.
Minimum lubrication points.
No angles adjustments or transpose of disks.

Smooth connection between each passes

Outer disk is individually deep-adjustable, which allows smooth connection between each passes.

Depth adjustment

Easy working depth adjustment by the pins on the coupling rods of rollers at disk cultivators Softer 4.5 NS and Softer 6 NS. (substitutable by hydraulic control – optional)

Depth adjustment

Easy working depth adjustment by the pins on the coupling rods of rollers at disk cultivators Softer 4.5 NS and Softer 6 NS. (substitutable by hydraulic control – optional)

Depth adjustment

Easy working depth adjustment by the pins on the roller beams at Softer 3 N.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Skilful when working in the field due to a short compact design.
Low operating costs due to light machine construction without need extra weight stacks.
Superior self-cleaning capabilities of the space between the disk and the disk arm.

All-round sharpened disk

Easier disk penetration into the ground.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of the Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

SynCult Manure Applicator

Complete set of additional equipment for the Softer NS Disk Cultivator for full-surface manure application.

More information about SynCult Manure Applicator >

Parameters

Technical parameters	Units	Softer 2,5 N	Softer 3 N	Softer 3,5 N	Softer 4 N
Working width	ft.	8' 4"	9' 10"	11' 1"	13' 1"
Transport width	ft.	8' 4"	9' 10"	11' 1"	14' 5"
Transport height	ft.	4' 8"	4' 8"	4' 8"	5' 4"
Total machine length	ft.	9'	9'	9'	9' 2"
Working depth	in.	1.5"–5"	1.5"–5"	1.5"–5"	1.5"–5"
Number of disks – front row Number of disks – rear row	pcs	10 10	12 12	14 14	17 16
Diameter of disks	in.	20" / 22"	20" / 22"	20" / 22"	20" / 22"
Working performance	ac/h	6.2–9.4	7.4–11.1	8.6–13.1	9.9─14.8
Towing vehicle ¹	kW HP	65–100 90–140	80–120 110–165	90–140 120–190	110–160 150–215
Working speed	mph	6–9	6–9	6–9	6–9
Maximum transport speed ⁴	mph	16	16	16	16
Maximum slope availability	°	11	11	11	11
Tractor hitch requirement		TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 3
Machine weight ²	lb.	3,968	4,365	5,071	5,952

Technical parameters	Units	Softer 4,5 NS	Softer 5 NS	Softer 6 NS	Softer 8 NS
Working width	ft.	14' 8"	16' 3"	19' 5"	24' 3"
Transport width	ft.	9' 10"	9' 10"	9' 10"	9' 10"
Transport height	ft.	8' 2"	9'	10' 8"	13' 1"
Total machine length	ft.	9'	9'	9'	9'
Working depth	in.	1.5"–5"	1.5"–5"	1.5"–5"	1.5"–5"
Number of disks – front row Number of disks – rear row	pcs	19 18	21 20	25 24	31 30
Diameter of disks	ft.	20" / 22"	20" / 22"	20" / 22"	20" / 22"
Working performance	ac/h	11.1–16.7	12.3–18.5	14.8–22.2	19.8–29.7
Towing vehicle ¹	kW HP	120–180 160–240	130–190 175–255	150–225 200–300	200–300 270–405
Working speed	mph	6–9	6–9	6–9	6–9
Maximum transport speed ⁴	mph	16	16	16	16
Maximum slope availability	°	11	11	11	11
Number of hydraulic circuits / pressure ³	bar	1(2) / 200	1(2) / 200	1(2) / 200	1(2) / 200
Number of hydro-couples / type ³		2(4) / ISO 12.5	2(4) / ISO 12.5	2(4) / ISO 12.5	2(4) / ISO 12,5
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	lb.	7,055	7,606	8,598	10,516

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ By default, 1 folding circuit, but optional hydraulic control of rollers, then 2 circuits.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine

Optional

Photo gallery

Video

Files

User manual

Disk cultivator Softer

Disk cultivator Softer 3 N

Disk cultivator Softer 4,5 NS

Disk cultivator Softer 4,5 NS & Syncult

Disk cultivator Softer 5 NS & Syncult

Accessories

Rollers

Disk roller SDR

Diameter	23"
Weight	530 lbs./yd

Double roller DR

Diameter	16"/12"
Weight	298 lbs./yd

LTX roller

Diameter	23"
Weight	482 lbs./yd

Ring roller RR

Diameter	20"
Weight	386 lbs./yd

Tube roller TRS

Diameter	24"
Weight	241 lbs./yd

V roller VR

Diameter	24"
Weight	422 lbs./yd

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Ring RR	LTX
Crumbling	●●○○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●○	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●○	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	VR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●○	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●○	●●●●
