Disk cultivator SOFTER PRO

High performance and quality work

• High working speed up to 9 mph.
• Symmetrically arranged two rows of notched disks for reliable penetration into the ground, leveling and intensive mixing.
• Working disk angle and down-pressure to each disk ensure uncompromising penetration even to heavy and over-dried soils and perfect processed profile undercut.
• High-quality rubber suspension for optimal working disk angles.
• Accuracy deep guiding with optimal soil compaction.

Disk cultivator Softer PRO

1. Possibility to install front tools: Flexi-cut for effective crop residue sizing or Flexi-board for leveling soil surface.

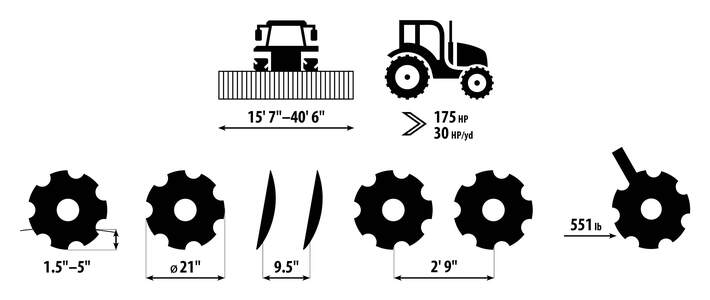

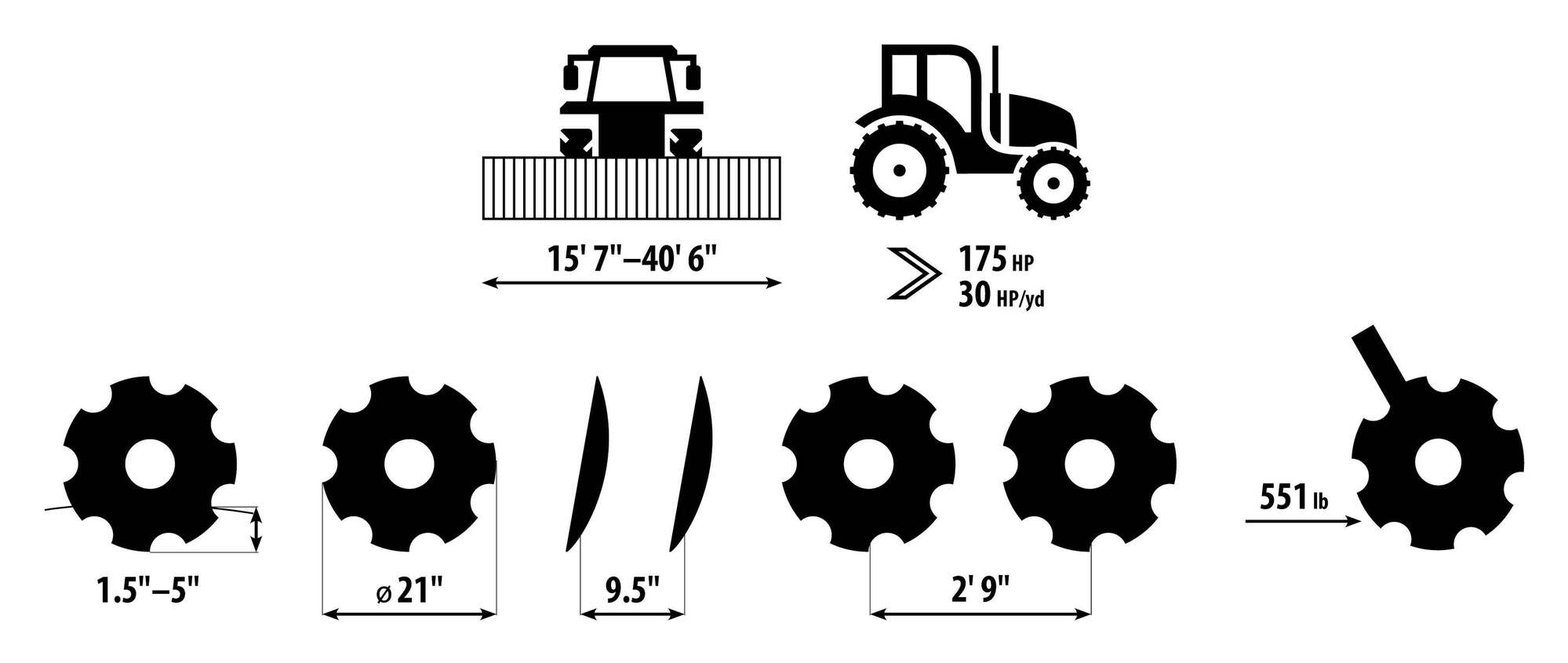

2. Disks with Ø 21", symmetrically arranged in two rows, undercut the ground. The working depth is 1.5"–5".
3. Clods are crushed by the rear roller.

Disks with sharpened all-round

Disks with the diameter 21" are arranged in two rows. In case of contact with an obstruction, each disk is individually effectively protected by rubber suspension.

The disks penetrate into the ground perfectly and also sizing crop residues.

The disks are mounted in maintenance-free bearings with excellent service life. Optimum disks geometry ensures high-quality work with superior productivity and high percentage of incorporated crop residues. The disks maintains constant cutting angle as it wears. The disk 9" spacing ensures good flow through of crop residues.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

• Maintenance-free disk bearings.
• Maintenance-free rubber suspension.

Massive transport axle with brakes

Controlled from the tractor cab.

Maintenance-free disk bearings SKF

Maintenance-free disk bearings ensuring machine operation without additional lubrication.

Maintenance-free rubber suspension

Durable and maintenance-free rubber suspension for perfect follow ground contouring with protection against overload.

One disk - one shank

The individual placement of each disk on a separate tine allows higher pressure and better penetration into the soil, eliminates clogging and does not transmit shocks to the bearings of adjacent disks.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.

• Minimum adjustment points.
• Minimum lubrication points.

Hydraulic depth adjustment

The working depth of the disks can be conveniently adjusted hydraulically directly from the tractor cab.

Safe machine control

Intuitive adjustment and operation.

Easy side deflector adjustment

Accuracy smooth connection between each passes.

Flexi-cut / Flexi-board hydraulic control

Controlled from tractor cab, can be changed during operation.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

• Skilful when working in the field due to a short and compact design.
• Low operating costs due to light machine construction without need extra weight stacks.
• Superior self-cleaning capabilities of the space between the disk and the disk arm.

Aggressive disk angle

Ensures full-surface undercut at any working depth.

All-round sharpened disk

Easier disk penetration into the ground.

Transport position

A unique folding system enabling the machine with 40' 6" working span to be folded to 9' 10" transport width and 13' 1" height and thus complies with the regulations for vehicles operation on the public road.

Symmetrical arrangement of disks

The symmetrical arrangement of the disks eliminates lateral forces transmitted to the tractor.

Automatic side frame down-pressure

Side frames with hydraulic pressure perfectly follow uneven terrain.

Depth gauge

Easy to read during work from tractor cab.

Front working tools

Front working tools can be fixed in front of the work disks. Choose between Flexicut cutting rollers or Flexiboard front levelling bar.

High machine throughput

Hook shanks increase the machine flow through.

Flipping transport axle

The flipping transport axle increases the pressure of the cultivating disks.

Rollers in one row

Rollers in one row ensure soil compaction even in the corners and edges of the field and the possibility of fast turning on the headlands directly on the rollers.

Stable during transporting on the roads

The rigid solid construction of the main frame and axle makes the machine very stable during transport. Pneumatic twin-hose brakes ensure a high degree of safety for fast efficient road transport.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ According to the machine equipment.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
