Modular seed drill FALCON PRO

Falcon PRO: Pre-processing disk section for full surface soil processing

Falcon PRO: Front roller + Pre-processing disk section for full surface soil processing

Falcon PRO: Pre-processing 4-row chisel section for full-surface soil processing

Falcon PRO: Pre-processing 3-row chisel section, spacing of 10" / 12" / 13" for STRIP-TILL technology

Falcon PRO: Pre-processing 3-row chisel section, spacing of 10" / 12" / 13" for STRIP-TILL technology

Falcon PRO: Preprocessing coulter section for full-surface soil tillage

Falcon PRO: Preprocessing coulter section for full-surface soil tillage

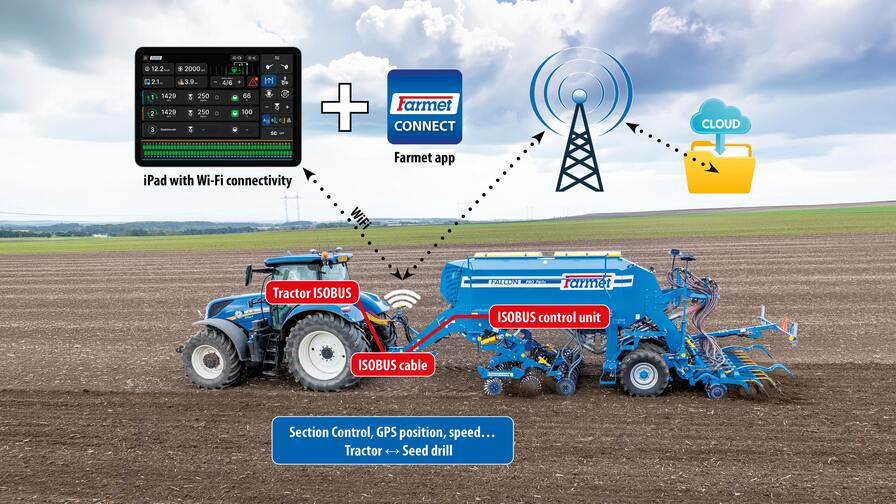

Fully electronic control and checking of seed drill functions

• a clear terminal communicating via ISObus network with the tractor and the machine
• dozens of control sensors on the whole seed drill
• electrically driven dosing device with fully automatic seeding control according to the current working speed
• high accurate reading of working speed by a radar or a special GPS antenna
• possibility of independent control of more dispensers seed/fertilizer
• optoelectronic control of seed flow to each coulter with a possibility of high accurate counting every single grain in a real time for automatic seeding correction
• possibility of fully automatic switching of every single coulter according to GPS position (section control)
• possibility of variable seed/fertilizer dosing according to application maps according to actual GPS position

Section control

Fully automatic switching of every single coulter according to GPS position

• prevents over-sowing, reduce consumption of expensive seed up to 15 %
• use TC (task controller) of a tractor with which it communicates via ISObus network
• after loading the shape of the land into the system a virtual headland is created
• the sown area is pictured on the tractor terminal

Sowing of more crops in one pass

3 independent hoppers with separate dispenser

Sowing of 3 crops in one pass

Sowing of 3 crops in one pass: grass, pea, lucerne

Sowing of 2 crops in one pass: barley, clover

Planting of wide-row crops

• machine aggregation for planting
• soil pre-processing
• possibility of fertilizer application

Selection of pre-processing section

• any combination with any pre-processing section

• machine aggregation for planting
• soil pre-processing
• possibility of fertilizer application

Selection of pre-processing section

• any combination with any pre-processing section

Examples of possible configurations

Seed drill Falcon 4 PRO Fert+ FIX

A two-chamber hopper for fertilizer and seed with a total volume 6000 liters, pre-processing 3-row chisel section, integrated tire press with arrow pattern, sowing section with coulters spacing 12,5 cm

Seed drill Falcon 6 PRO Fert+

A three-chamber hopper for fertilizer and 2 kinds of seed with a total volume 6000 liters, pre-processing disk section with flexi-board, fertilization disk units, integrated tire press with arrow pattern, section control, sowing section with coulters spacing 12,5 cm

Seed drill Falcon 6 PRO Fert+

A three-chamber hopper for fertilizer and 2 kinds of seed with a total volume 6000 liters, pre-processing 3-row chisel section, integrated tire press with industrial pattern, section control, sowing section with coulters spacing 16,7 cm

Seed drill Falcon 6 PRO

A three-chamber hopper for fertilizer and 2 kinds of seed with a total volume 6000 liters, pre-processing 4-row chisel section, integrated tire press with industrial pattern, sowing section with coulters spacing 16,7 cm

Seed drill Falcon 8 PRO Fert+ QH

A three-chamber hopper for fertilizer and 2 kinds of seed with a total volume 8000 liters, pre-processing disk section with flexi-board, fertilization disk units, integrated tire press with arrow pattern, section control, sowing section suspended on 3-point hitch with a possibility of quick exchange

Seed drill Falcon 8 PRO Fert+

A three-chamber hopper with a total volume 8000 liters + sowing unit Microdrill enables sowing up to 4 different crops or 3 different crops with fertilization, pre-processing disk section, fertilization disk units, integrated tire press with industrial pattern, sowing section with coulters spacing 12,5 cm

High variability of machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Drill coulter

Possibility of adjustment of various sowing depths on even and odd coulters. Independent sowing of two crops.

Divided hopper

Using the possibility of additional fertilization during sowing. Two-chamber hopper with the volume of 170.3 bu. divided in the ratio of 40:60 (fertilizer : seed).

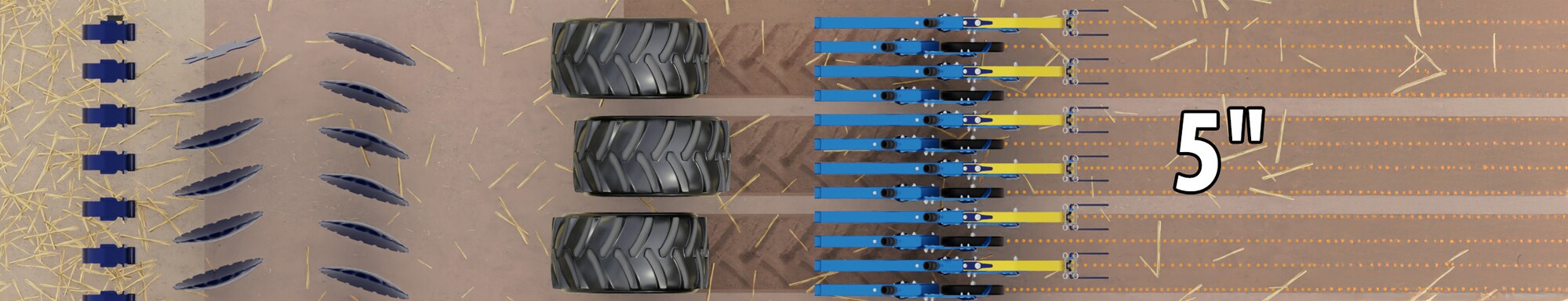

Low pressure on soil

The packer with large low-pressure tyres ensuring low pressure on the soil and excellent tracing. Perfect surface leveling and compaction in front of the drill coulters.

Harrow

The harrow behind the tyre-packer that cleans and partially preparing the sowing bed in front of the drill coulters.

Large hopper

The hopper with a capacity of 113.5 bu. (170.3 bu. possibility of filling from the side) makes work more efficient by reducing the frequency of necessary re-fills.

Falcon PRO Fert+ & Micro Drill

Rugged design

Used high-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

• flexible construction
• maintenance-free placement of the disks
• protection against overload

Excellent follow field contouring

The flexible construction of the frame excellently absorbs shocks and traces the terrain.

Maintenance-free placement of disks

Maintenance-free placement of all disks of the diameter 19" ensuring operation of the machine without the need of additional lubrication.

Maintenance-free placement of coulters

Resistant and maintenance-free rubber mounting of the drill coulters for adaptation to terrain with protection against overload.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

• Easy adjustment of the sowing depth, pressure of coulters and sowing dosage.
• Simple electronic system with intuitive control.
• Minimum of adjustment points.
• Minimum of lubrication points.

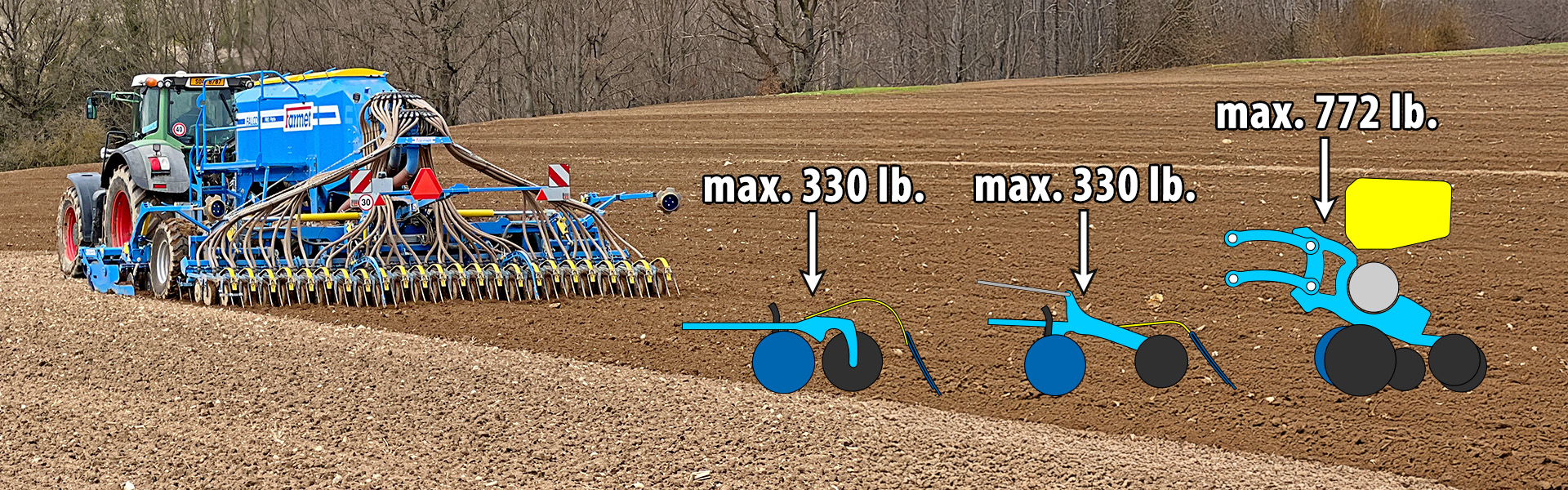

Adjustable pressure of coulters

Hydraulically continuously adjustable pressure of the coulters.

Adjustment of working depth of the front section

Easy adjustment of the working depth of the front section according to the overview table using the distance washers on the piston rods.

Adjustment of sowing depth

Very simple and fast adjustment of the required sowing depth.

Adjustment of side deflectors

Height and longitudinally adjustable side deflectors for superior direction of the processed soil and continuous connection of individual runs.

Pressurized hopper

Easy filling of feeders with seed

A wide and long service footbridge for a safe and comfortable seed refill of the hopper.

Smartly designed machine

Due to the modular system, the machine can be adjusted for many sowing technologies of all common crops. A great advantage is also the possibility of sowing two crops at two different depths during one run.

• The modular system enables to select various sowing technologies.
• The modular system enables quick exchange of working sections as needed.
• Accuracy soil tracing.
• Very low pressure on the soil – large low-pressure tyres = self-cleaning effect, the machine does not create ruts and absorbs shocks.
• The possibility of parallel sowing of two crops at two different depths.

Fertilization units

Fertilization units with granular fertilizer applicators.

Fertilizing disks

Fertilizing disks with granulated fertilizer applicator.

Farmet dispenser

A modern roller dispenser with interchangeable rollers.

Quick-release system (Quick hitch)

Via three-point linkage.

TPH hitch

For quick exchange of sowing sections.

Screw or roller dispenser of fertilizer

Screw dispenser Fert+

Modern screw dispenser. Fertilizer guiding to the fertilization units.

Screw dispenser Fert+

Roller dispenser FertS

Modern roller dispenser with interchangeable rollers. Fertilizer guiding directly to the seed.

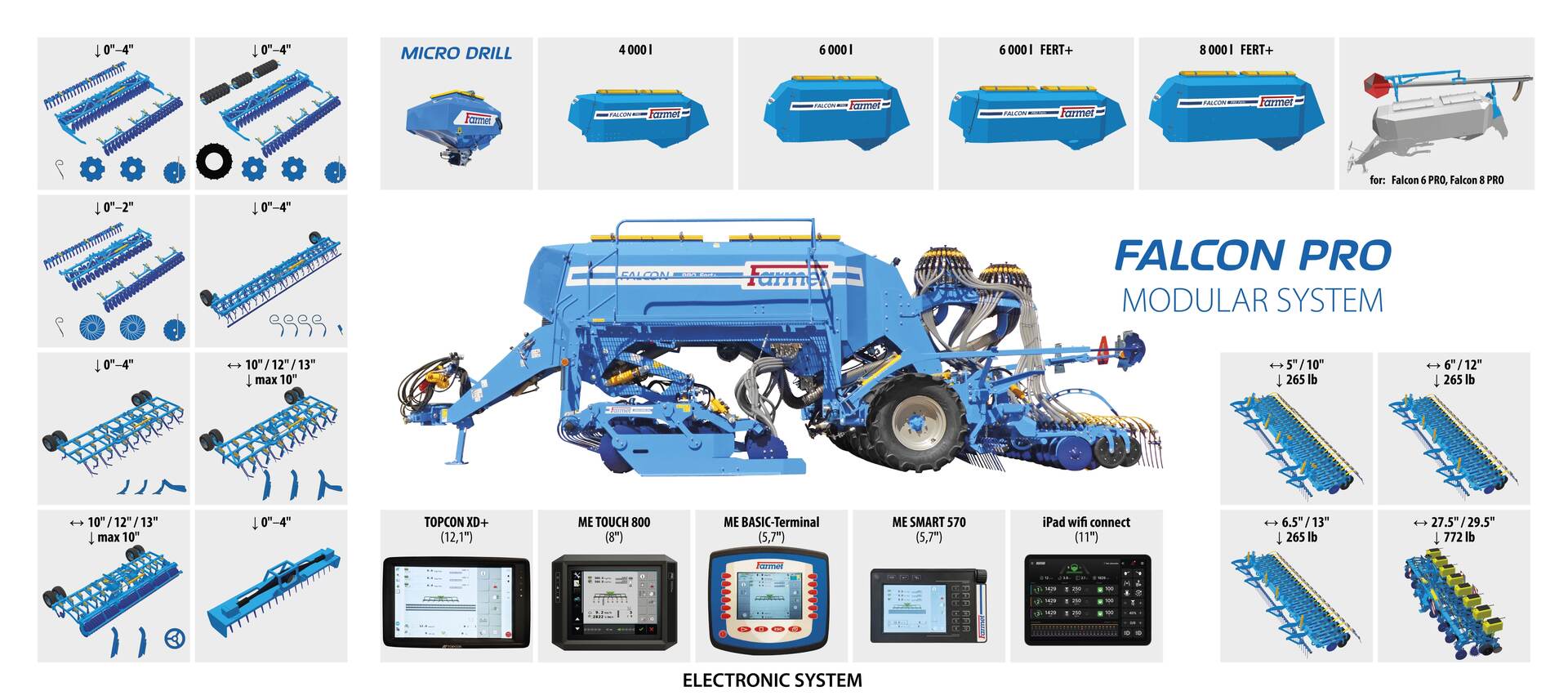

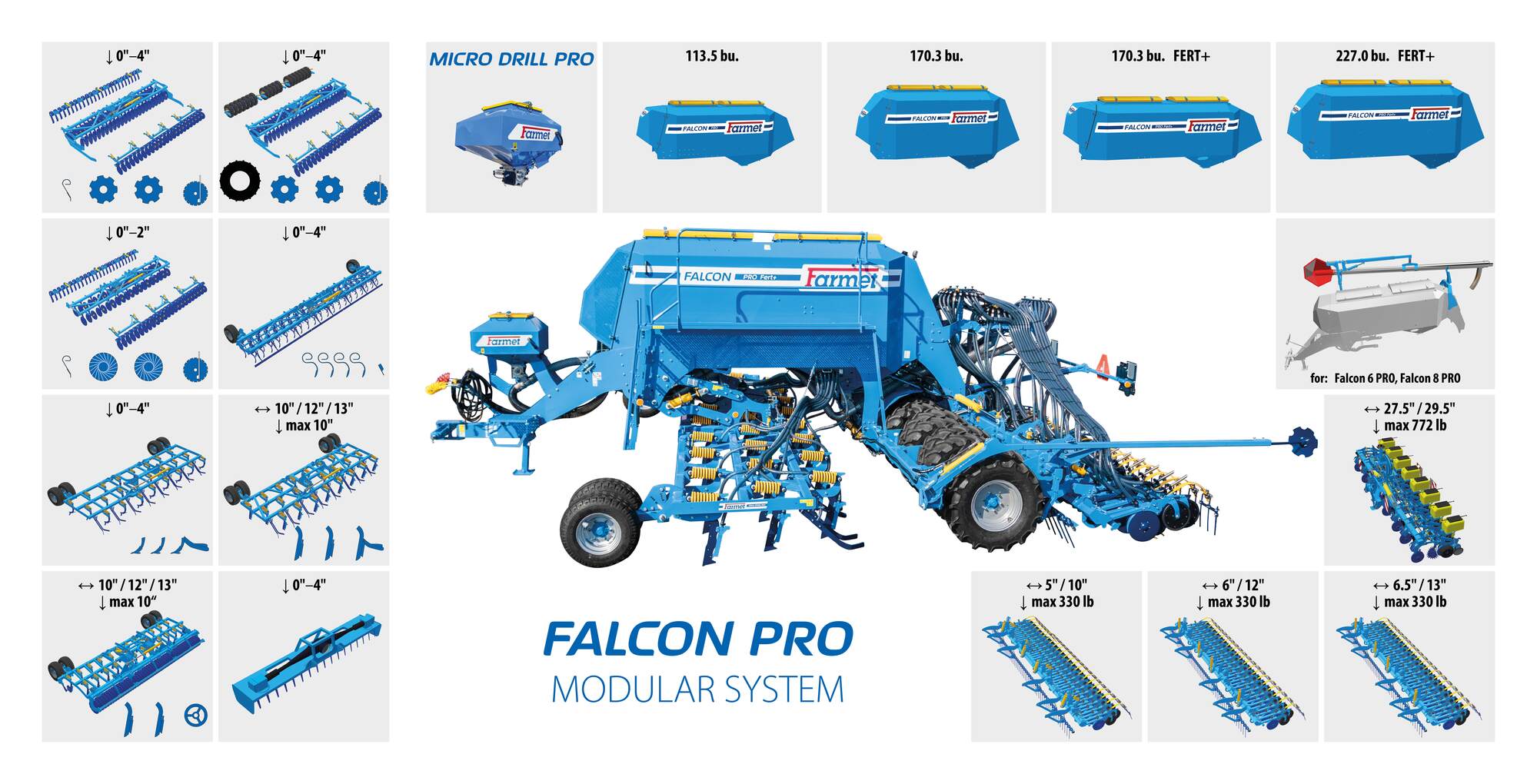

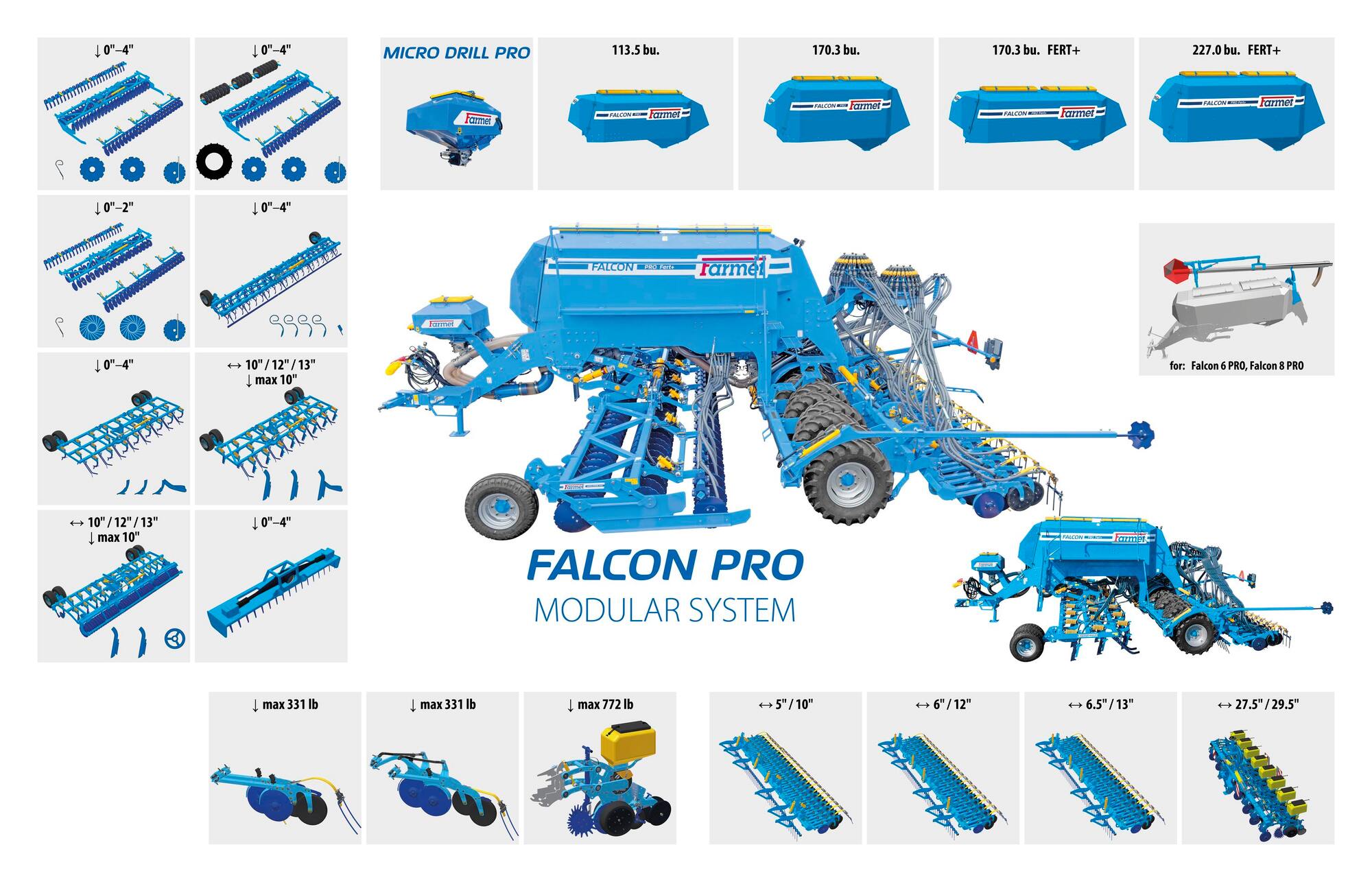

Selection from a wide range of variants of working sections

In each working section you can select from a wide range of variants according to your needs and sowing technology that you want to use. Optionally you can change the hopper, pre-processing section, sowing section and subsection.

Hopper

One-chamber hopper
Simple universal construction for sowing without additional fertilization.

Two-chamber hopper (three-chamber) – with additional fertilization with granulated fertilizers
Two-chamber – sowing with additional fertilization, eventually for simultaneous sowing of covering crops. Three-chamber (divided by a removable partition) – for sowing of two crops with additional fertilization.

Pre-processing section

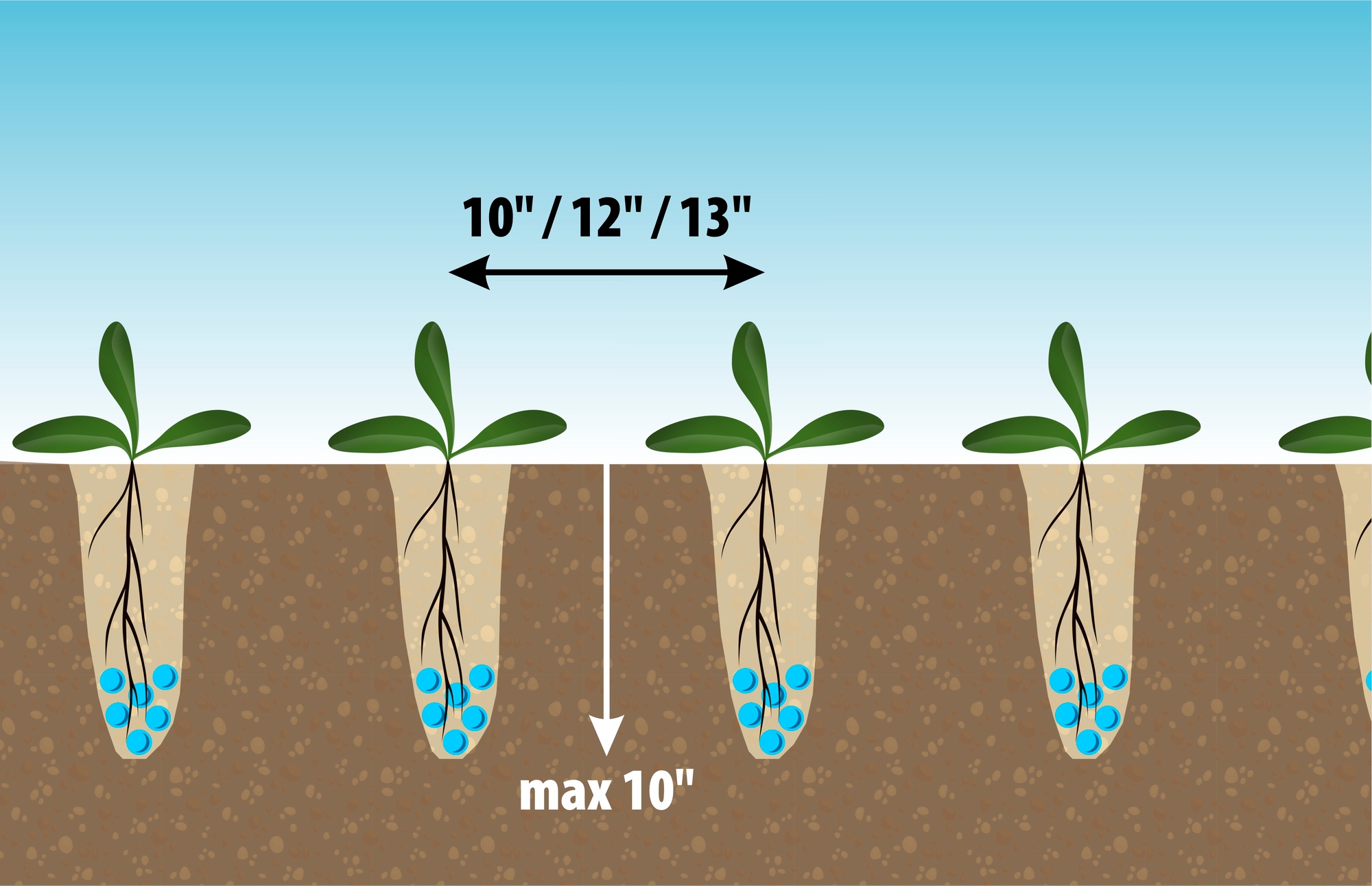

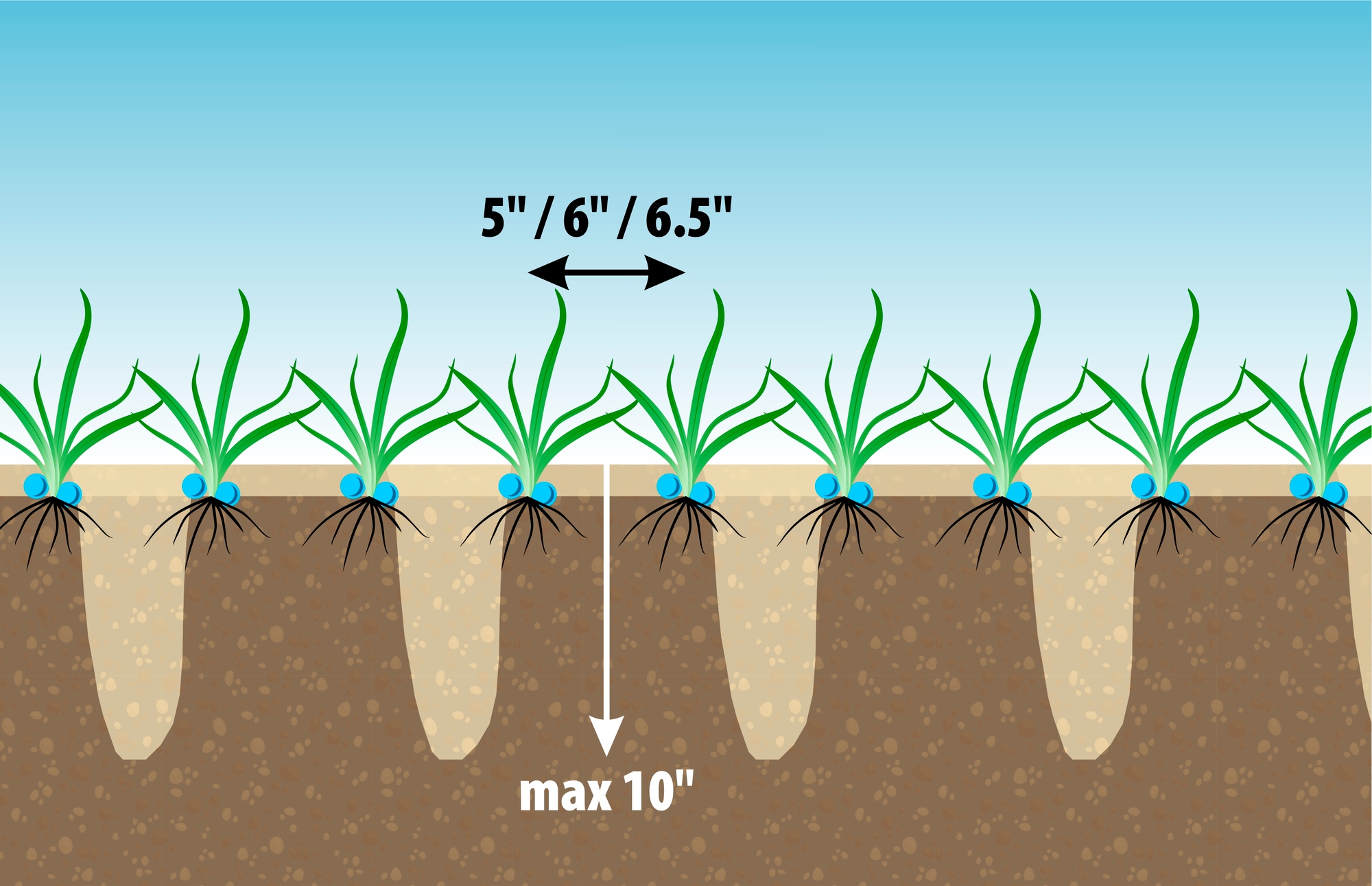

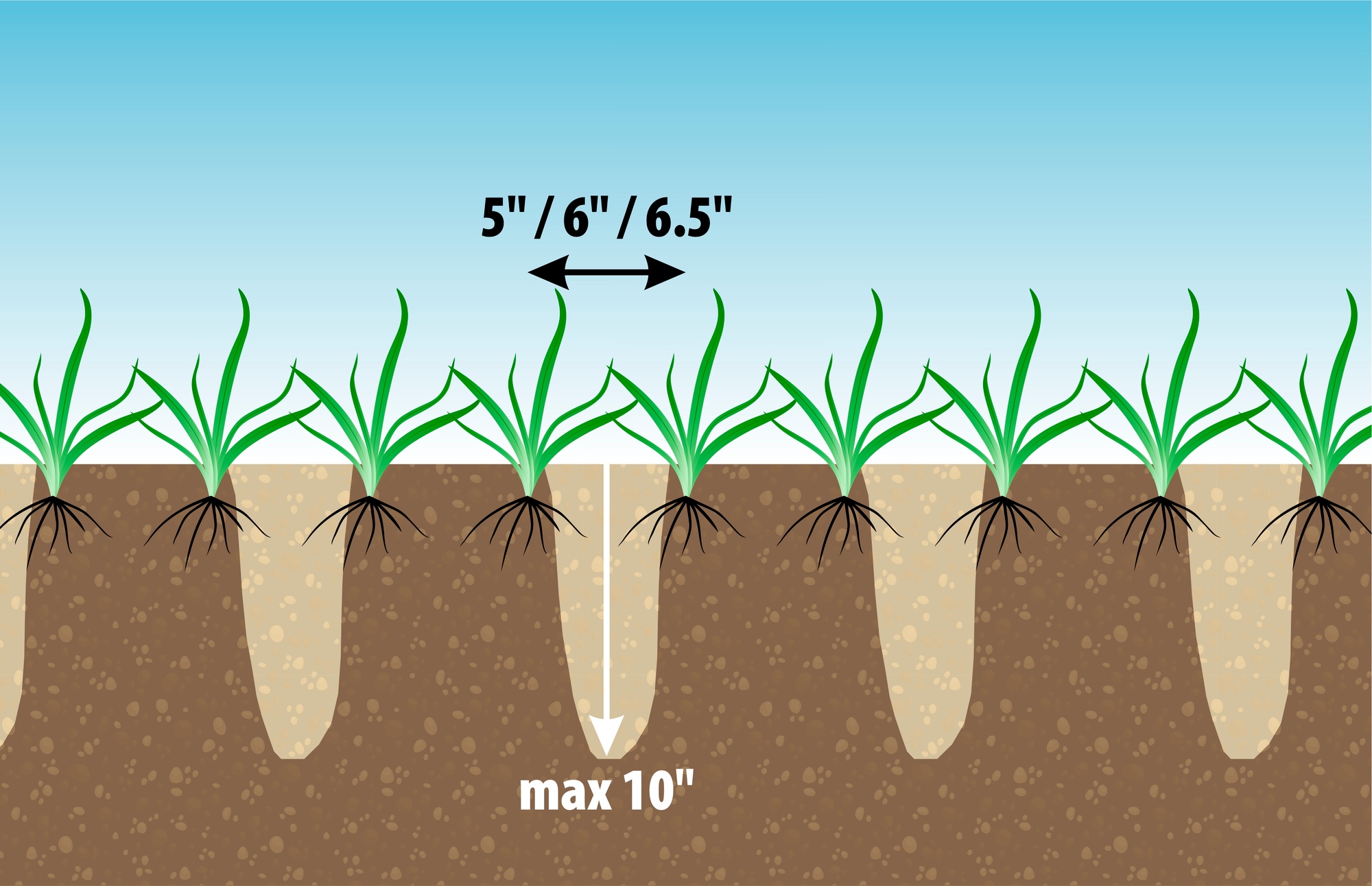

Pre-processing 3-row chisel section, spacing of 10" / 12" / 13" for STRIP-TILL technology
Strip cultivation with the possibility of additional fertilization with granulated fertilizers up to the depth of 250 mm.

Pre-processing 2-row chisel section, spacing of 10" / 12" / 13" for STRIP-TILL technology
Suitable for special technology of strip soil processing and sowing.

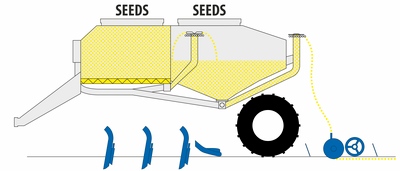

Pre-processing 4-row chisel section for full-surface soil processing
Especially suitable for wet conditions – sowing of spring crops.

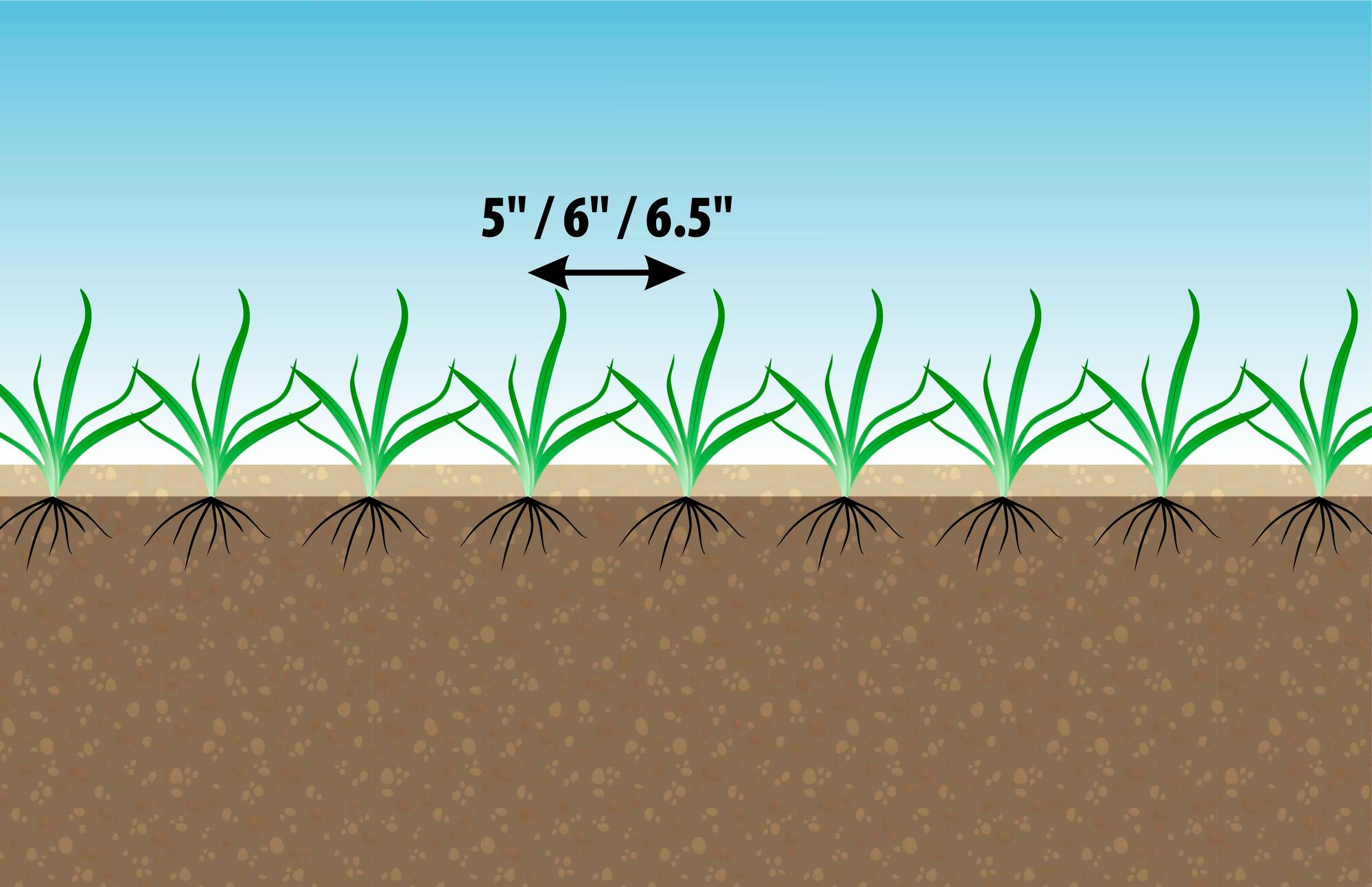

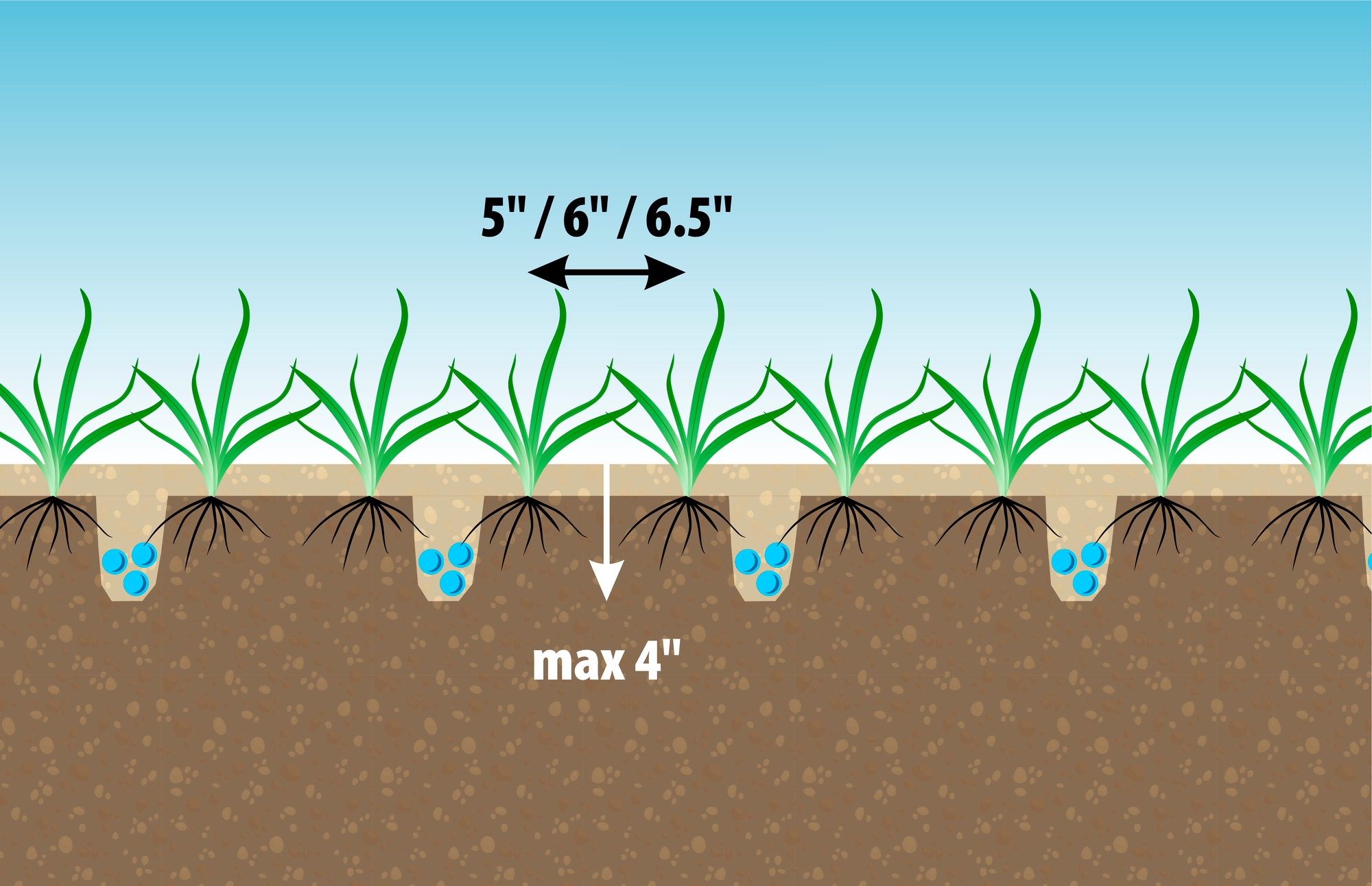

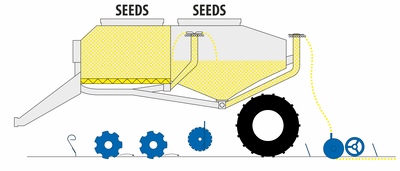

Pre-processing disk section for full-surface soil processing
Universal working section, processing of the soil to the depth of the sowing bed, 4" max.

Rotary harrows
Suitable for accuracy preparation of the sowing bed.

Flexi-board – shovel front leveller
For uniform spreading of clods and plant residues over the whole machine span. Throwing of greater clods under the roller wheels.

Sowing section

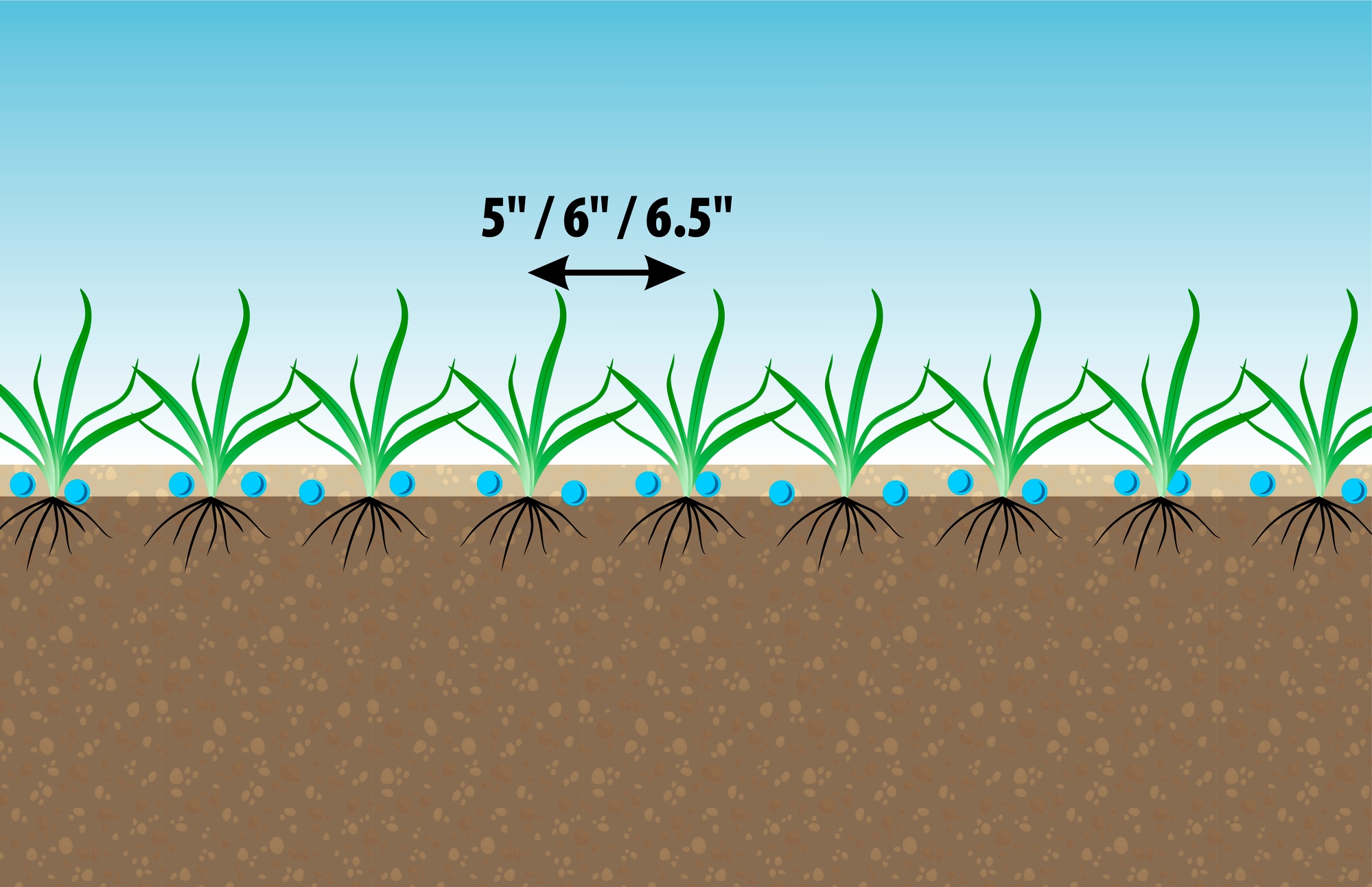

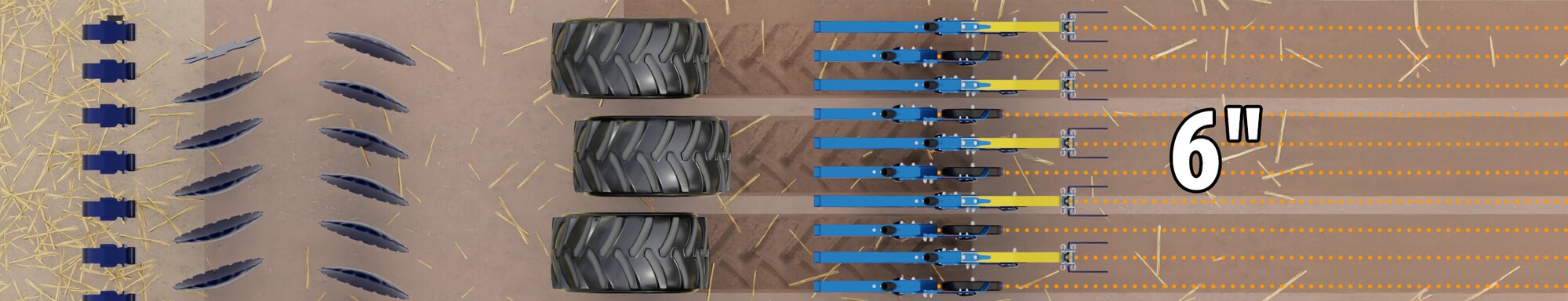

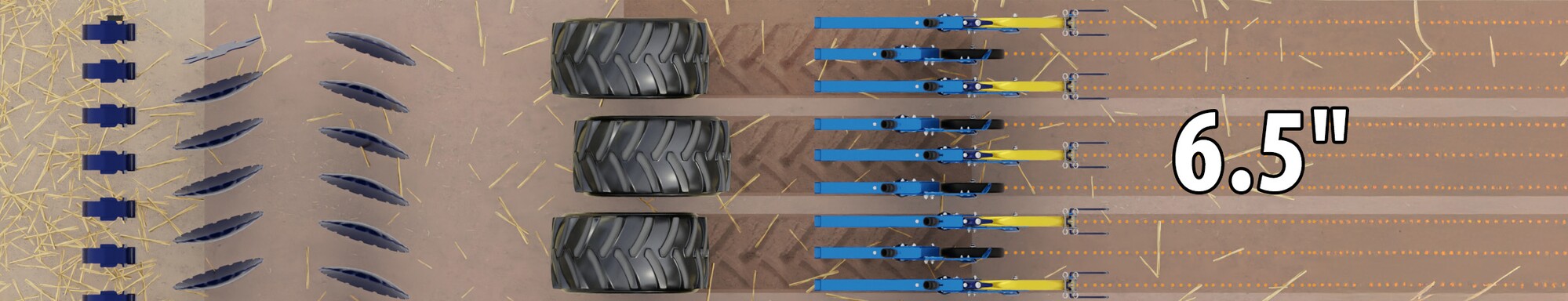

Two disk sowing section (spacing of 5" / 6" / 6.5")
Spacing of 5" / 6" / 6.5" – suitable for sowing of cereals and legumes.

Two disk sowing section (spacing of 10" / 12" / 13")
Spacing of 10" / 12" / 13" – in combination with the pre-processing three-row chisel STRIP TILL section it is suitable for strip processing of the soil, sowing with the possibility of additional fertilization at one line up to the depth of 8". superior for sowing of winter oilseed rape.

Accuracy sowing of wide row crops
For accuracy sowing of wide row crops (maize, sunflower, oilseed rape). With the possibility of additional fertilization from both sides of the row.

Subsection

Disk section for additional fertilization
For additional fertilization with granulated fertilizers. Always between each 2 rows of the crop. Always with two-chamber hopper.

Chisel section for additional fertilization
Integrated in 2(3)-row STRIP-TILL section. Always with two-chamber hopper.

Flexi-board
For uniform spreading of clods and plant residues over the whole machine span. Throwing of greater clods under the roller wheels.

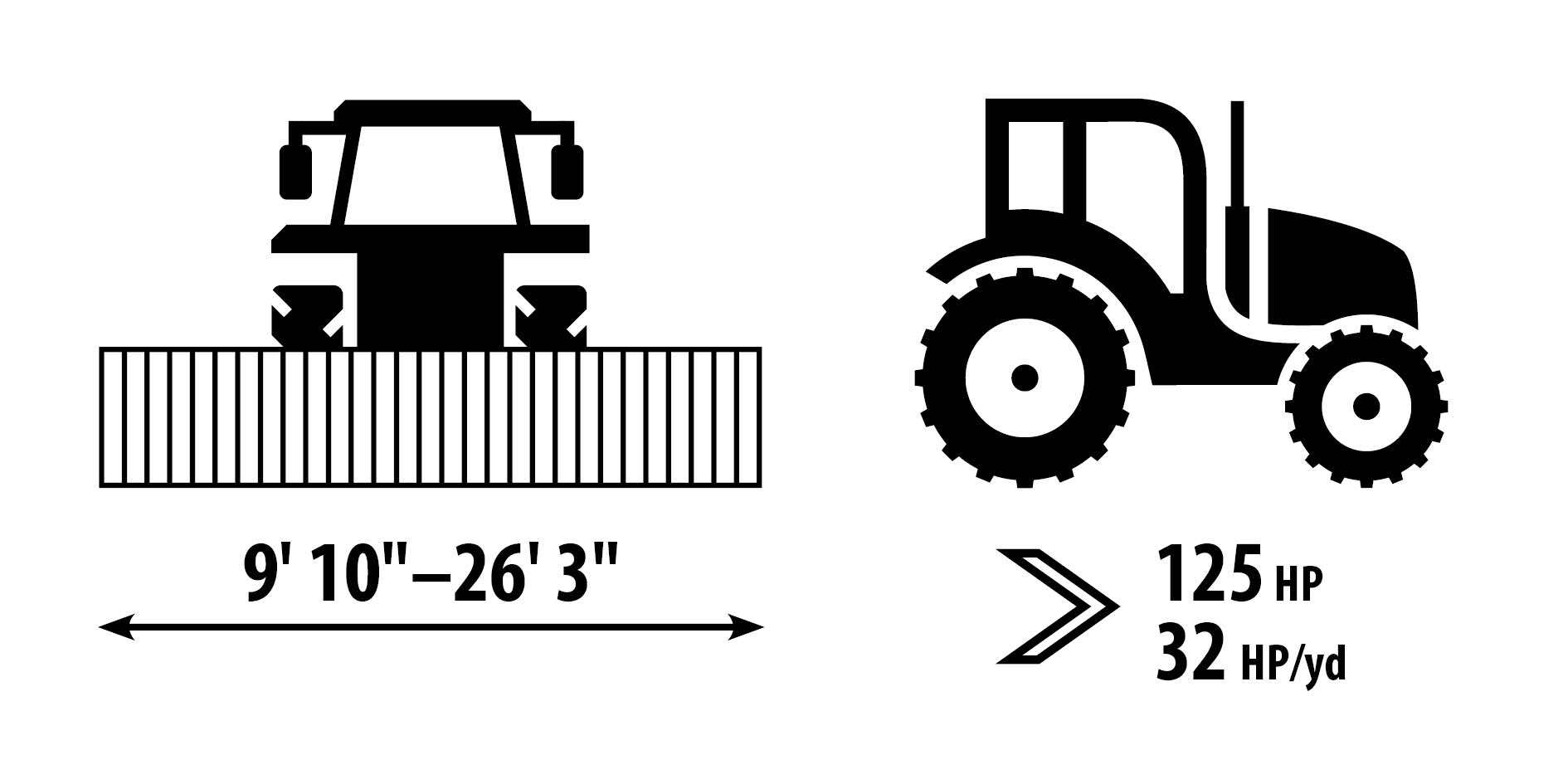

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight according to its equipment.
³ Alternative of the hydraulic brake / operating pressure 130 ± 5 bar.

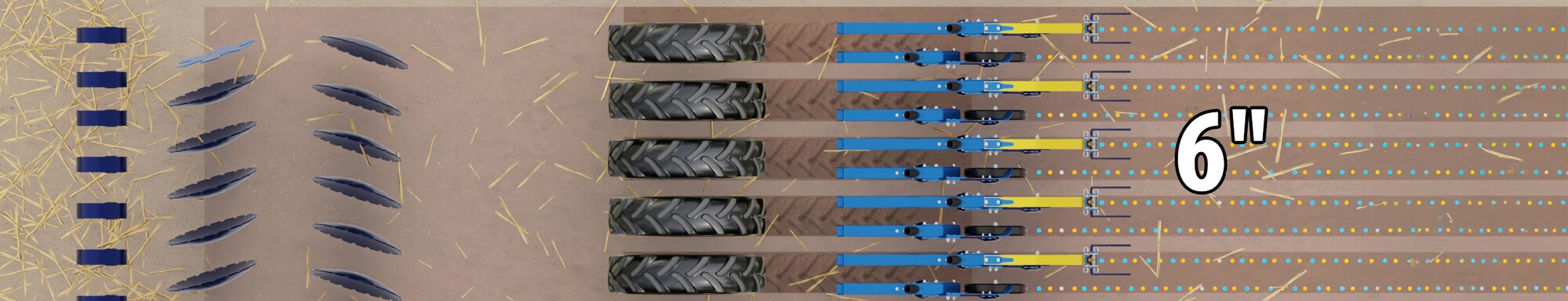

⁴ Falcon 4 PRO and Falcon 8 PRO have the spacing of sowing coulters 6".
⁵ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
