Modular seed wagon FALCON SW

Modular seed wagon Falcon SW Fert+ & Double-disk sowing section

1. Tractor trail cultivators
2. Disk section for additional fertilization
3. Transport axle
4. Double-disk sowing section

Modular seed wagon Falcon SW & Double-disk sowing section

1. Tractor trail cultivators
2. Transport axle
3. Double-disk sowing section

Modular seed wagon Falcon SW & accuracy sowing of wide-row crops

1. Possibility to install an optional pre-processing section
2. Transport axle
3. Optional rear section via TPH

Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of  113.5 bu. / 170.3 bu. (or a two-chamber hopper with the capacity of 170.3 bu. / 227 bu.), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops.

Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.

Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of  113.5 bu. / 170.3 bu. (or a two-chamber hopper with the capacity of 170.3 bu. / 227 bu.), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops.

Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.

Mounted Equipment

Wide seeding section for sowing narrow-row crops

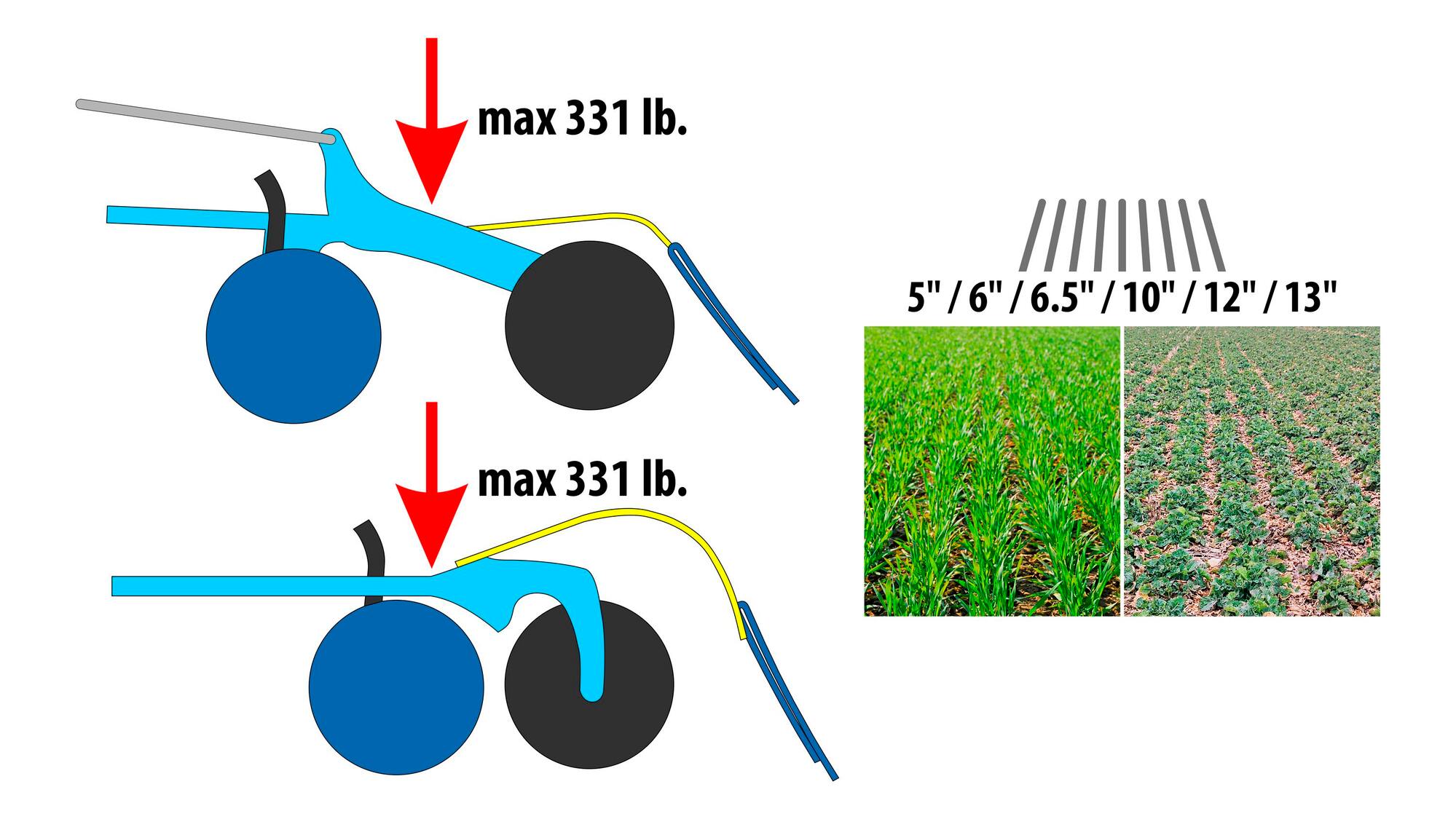

The seeding section is characterised by its simplicity and a wide working width. In connection with Falcon SW, it provides high working capacity for sowing common narrow-row crops (cereals, rape, legumes etc.). At the same time, it allows for independent sowing of two crops. The spacing of the coulters is 5" with an option to switch to 10", or 6" with an option to switch to 12", or 6.5" with an option to switch to 13".

Mounted sowing machine for sowing wide-row crops

The seeding units for sowing wide-row crops (such as corn and sunflower) together with the application of fertilizer from the Falcon SW modular carrier provide sowing as well as fertilizer application in a single operation. The application of the fertilizer is provided by two fertilizer applicators on both sides of the crop. Versions: 6 / 8 rows

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

• Easy setting of the sowing depth, coulter pressure and seeding amount.

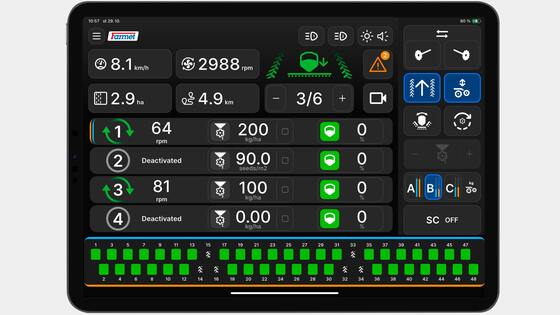

• Simple electronic system with intuitive control.
• Minimum adjustment points.
• Minimum lubrication points.

Excellent follow field contouring

The flexible frame design perfectly absorbs impacts and traces the terrain.

Three-point hitch

An easy aggregation of the rear section via TPH (the sections are easily exchangeable).

Large hopper

Single-chamber hopper

Detail of the front section side fixtures

Possibility to aggregate a front section:

Aggregation with tractor

Aggregation in the bottom arms of TPH.

Two-hose air brakes

Pressurized hopper

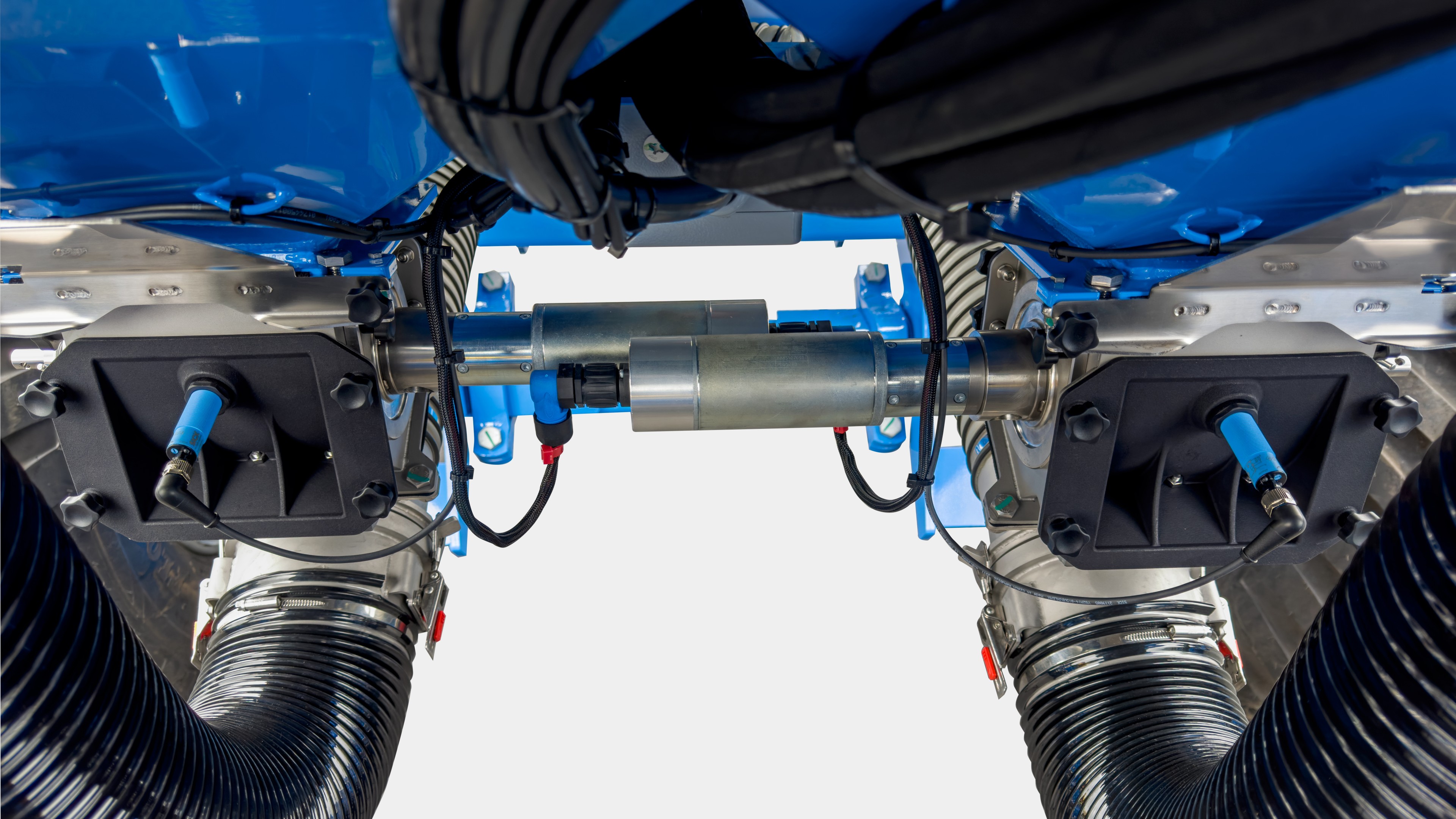

Farmet dispenser

A modern roller dispenser with interchangeable rollers.

Screw or roller dispenser of fertilizer

Screw dispenser Fert+

Modern screw dispenser. Fertilizer guiding to the fertilization units.

Screw dispenser Fert+

Roller dispenser FertS

Modern roller dispenser with interchangeable rollers. Fertilizer guiding directly to the seed.

¹ Hydraulic brake alternative / operating pressure 130 ± 5 bar.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Sowing section: narrow-row sowing (grain, rape)

Sowing section: wide working width sowing (corn, sunflower)

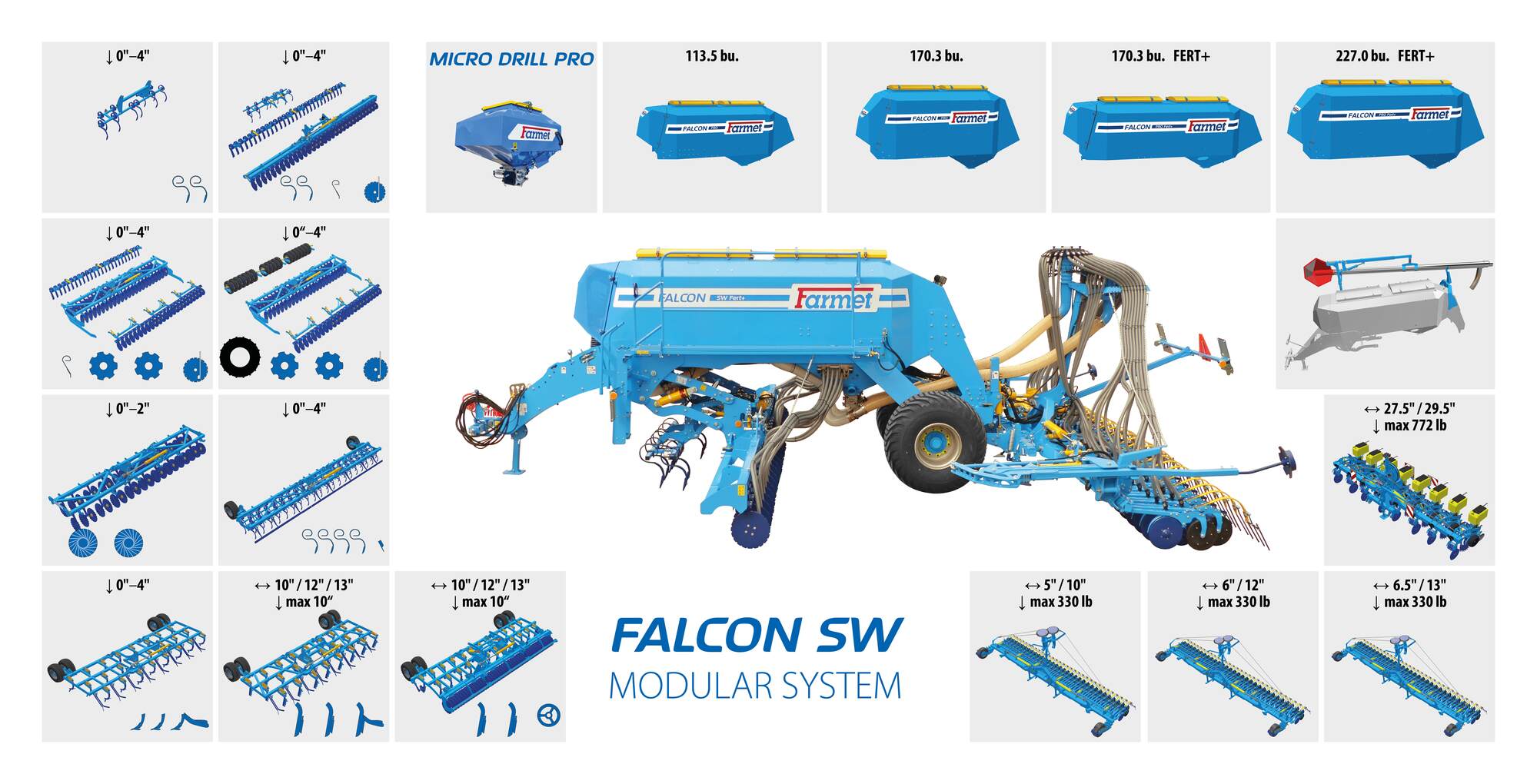

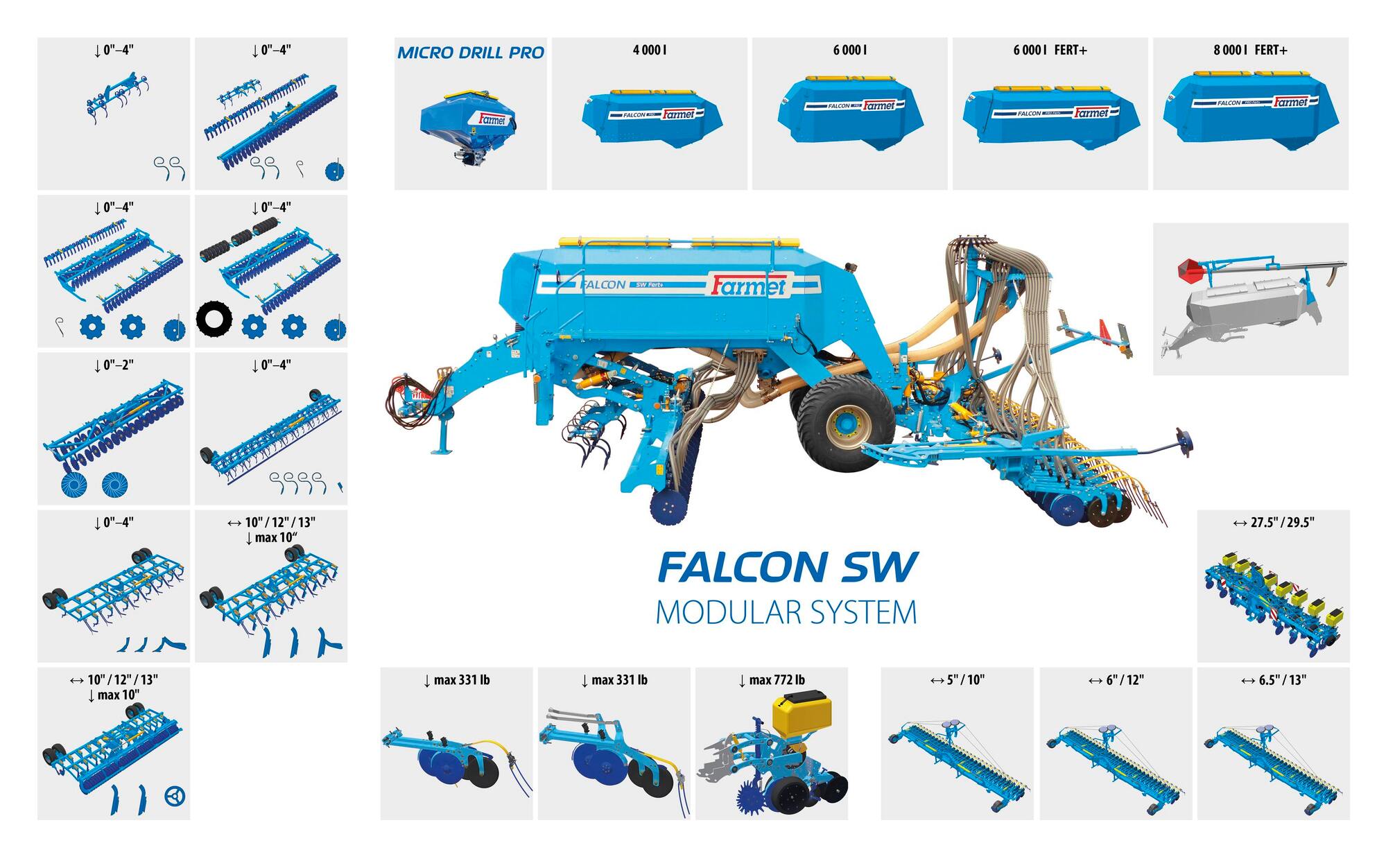

Wide Selection of Working Sections

You can choose from a wide offer of versions in each working section according to the selected sowing or cultivating technology with fertilizer application. You can choose the size of the bin, pre-processing section, sowing section as well as cultivating section.

Hopper

Large hopper
Hopper with capacity of 113.5 bu. / 170.3 bu., a two-chamber hopper with capacity of 170.3 bu. / 227 bu.can be supplied upon request, seeds and fertilizer distribution 60:40.

Rear Section

Connection via three-point hitch, cat. 3.

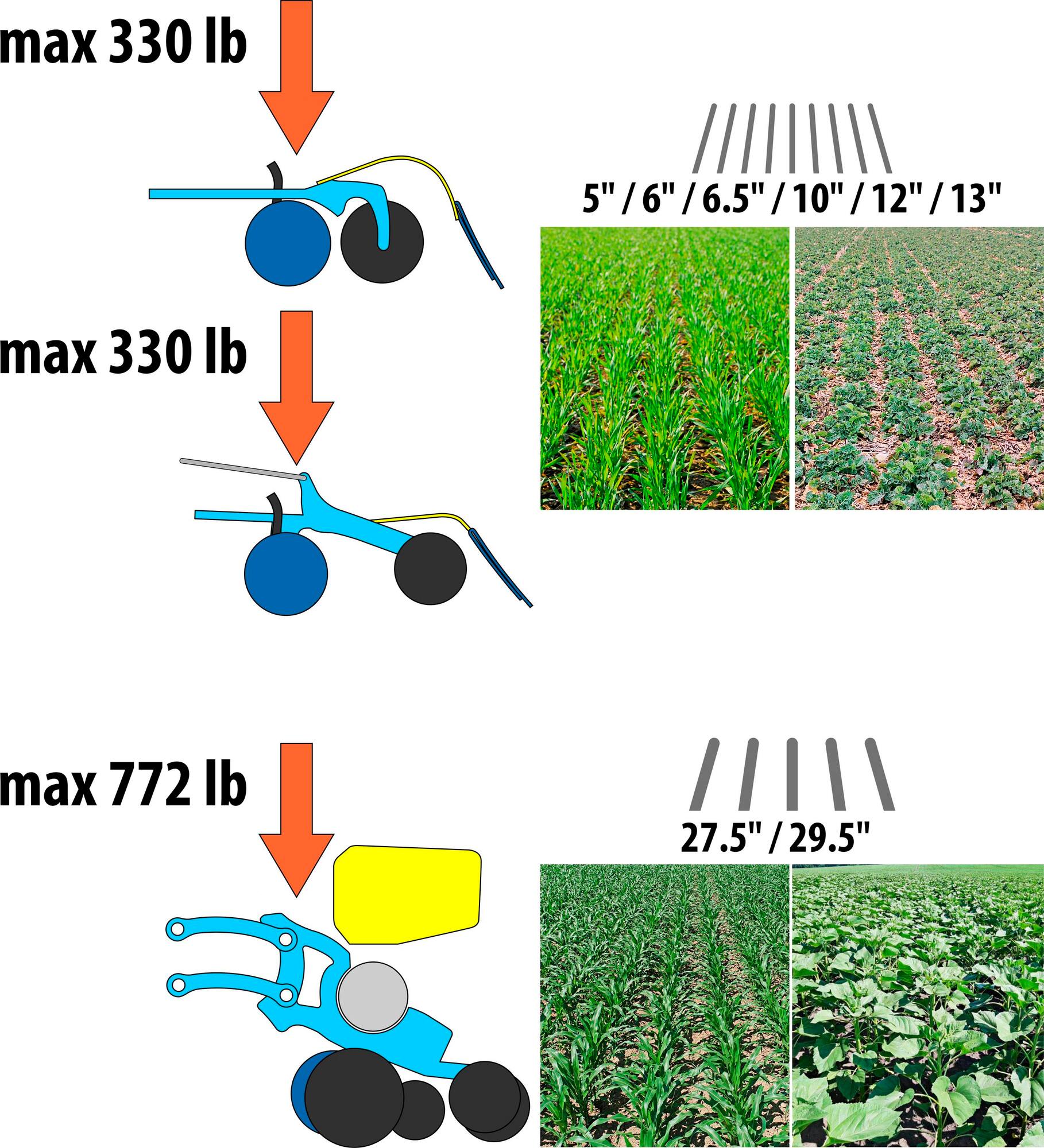

Double-disk sowing section (spacing 5" / 6" / 6.5"), up to the width of 29' 6"
Spacing 5" / 6" / 6.5" – suitable for sowing cereals, legumes

Double-disk sowing section (spacing 10" / 12" / 13"), up to the width of 26' 3"
Spacing 10" / 12" / 13" – in combination with the pre-processing three-row chisel section STRIP TILL, it is suitable for strip soil tillage, sowing with fertilization in a single line up to the depth of 10". Superior for sowing winter rape.

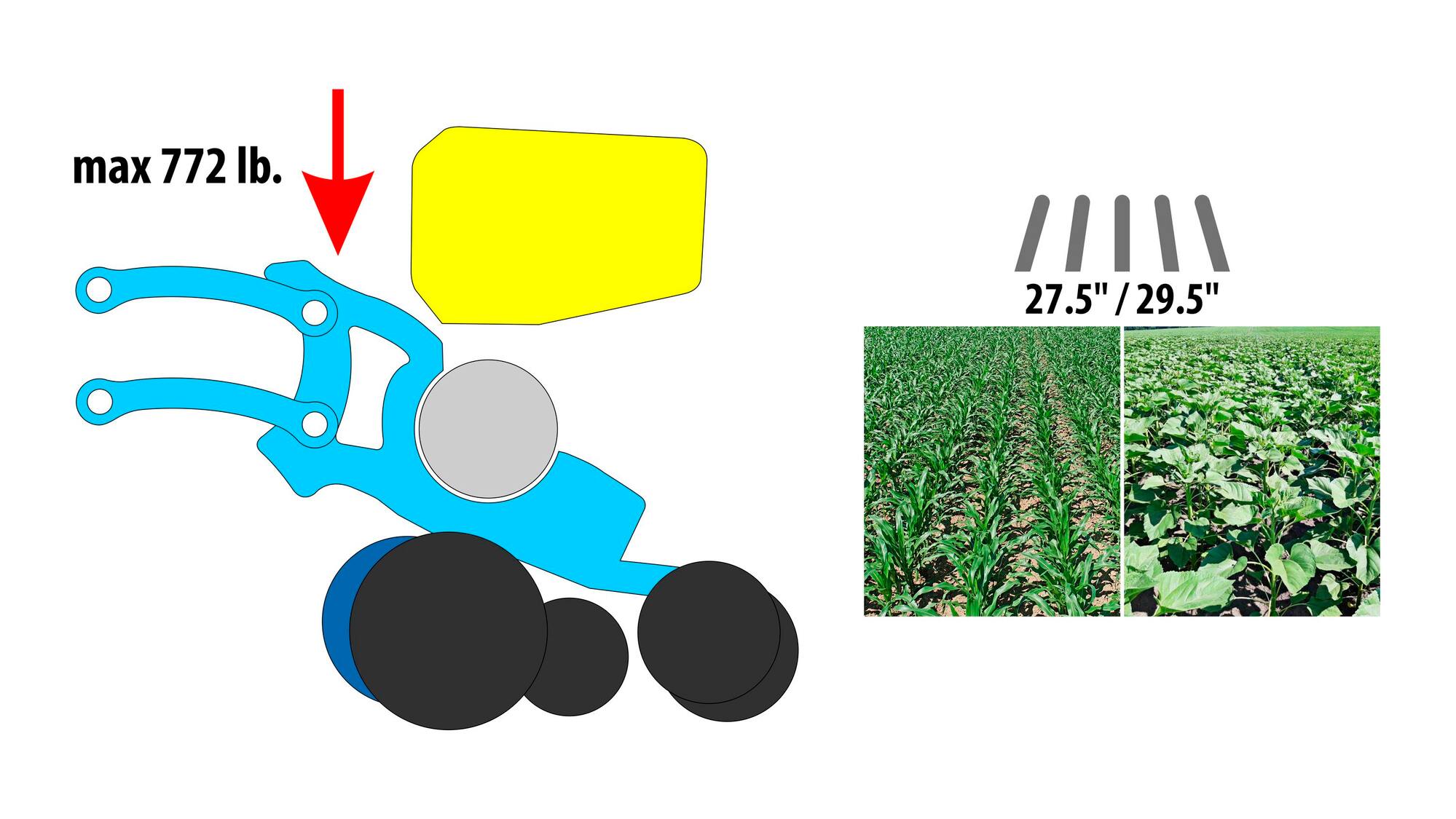

Accuracy sowing of wide-row crops, working width 6 / 8 rows at spacing of 27.5" / 29.5"
For sowing wide-row crops (corn, sunflower). With possibility of fertilization on both sides of the row.

Pre-processing Section

The Falcon SW Modular Seed Drill allows for work without the front pre-processing section. A pre-processing section can be installed upon request.

Pre-processing disk section for full surface soil processing
A universal working section, soil processing up to the seedbed depth, max. 4". Possibility to combine with the front Flexi-board paddle leveller.

Flexi-board – front paddle leveller
For uniform uniformly dispersing of clods and crop residue along the entire machine width.

Pre-processing 4-row chisel section for full-area soil processing
Mainly suitable for wet conditions – sowing spring crops.

Pre-processing 2- row chisel section (spacing 10" / 12" / 13"), for STRIP-TILL technology + disk roller, diameter 23"
Strip-till loosening with the option of additional fertilization using granulated fertilizers up to the depth of 10"

Recommenced Combinations of Falcon SW Modular Seed Drill

	Main Crops	Front Pre-processing Section	Rear Sowing or Processing Section	Additional Fertilization
	cereals legumes	no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section	double-disc sowing section for sowing narrow-row crops (spacing 5" / 6" / 6.5")	YES
	corn sunflower	no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section	precise sowing of wide-row crops (spacing 27.5" / 29.5")	YES
	winter rape	STRIP chisel section (spacing 10" / 12" / 13")	double-disc sowing section with sowing in line of soil processing (spacing 10" / 12" / 13")	YES
