FREYA Seed drill

Wide working widths sowing in processed soil with fertilization

Seed drill Freya

Technology

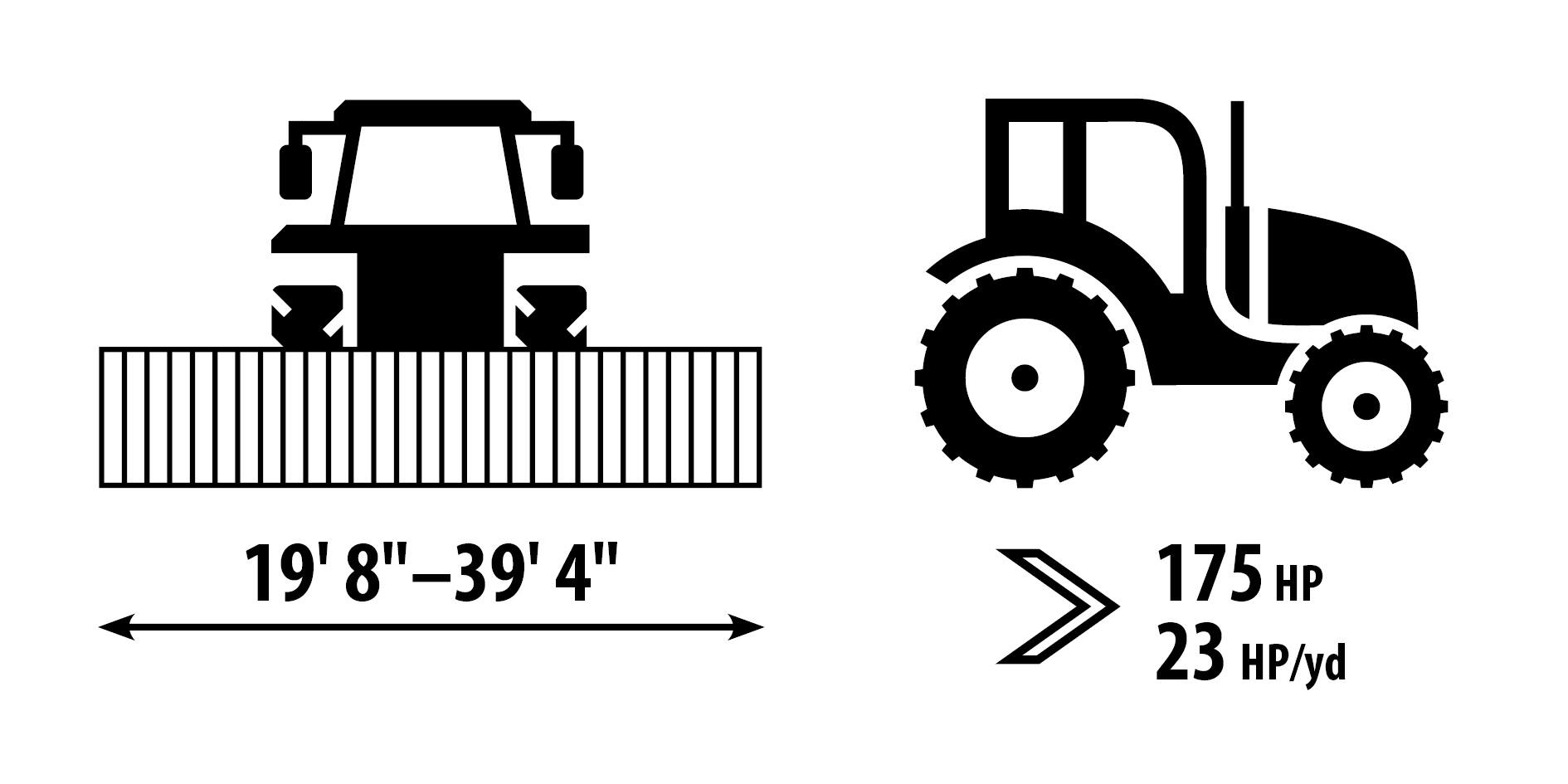

Wide working width up to 39' 4" with sophisticated follow the contour of the field.
Double disk coulters with gauge wheels – down pressure up to 176 lb. on each coulter.
High trash flow of coulters – large spacing of even and odd coulters.
Integrated harrows with individual angle and pressure setting.
Section control – up to 96 sections (each row).

1	Ruts cultivator zone. Perfect ruts cultivation eliminates uneven plant emergence after sowing.
2	Seedbed formation and seed placement zone. The double disk coulters effectively create a compacted seedbed (V-groove) and precisely place the seed to the required depth. Thanks to the high down pressure, up to 70 % of the weight of the machine can be transferred to the coulters. The compacted seedbed and V-groove ensure excellent seed contact with soil and soil water.
3	The side seed press zone. The gauge wheel compresses the V- groove with the seed, causing the seed to squeeze sideways to the soil. There is loosened space above the seed for easy emergence of plants.
4	Seed cover and soil leveling zone. The integrated harrow ensures excellent seed coverage and precise soil surface leveling.

Technics

Seed drill Freya

Transport axle
Double disk sowing section

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

Excellent follow the contour of the field

Flexible frame construction perfectly absorbs shocks and traces the terrain. Thanks to separation of sowing section into 3 parts, the same sowing depth and pressure to all coulters is always maintained.

High performance and quality of work

Freya is a very compact seed drill with a low weight and low traction resistance.
Wide range of working widths 6, 8, 10 and 12 meters.
Thanks to high down pressure of coulters up to 80 kg, the high-quality sowing is ensured even in difficult soil conditions.
The seed drill offers very high efficiency and work productivity with minimal requirements for machine maintenance.
The control and control electronic system is a matter of course.

Rugged design

Large machine axle with flotation tires

Supporting gauge wheels

For precise depth guiding of coulters across the entire working width.

High coulter pressure: up to 176 lb.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

Easy adjustment of the sowing depth, pressure of coulters and sowing dose.
Simple electronic system with intuitive control.
Minimum of adjustment points.
Minimum of lubrication points.

Maintenance free coulters placement

Resistant and maintenance free rubber mounting of the coulters for adaptation to terrain with protection against overload.

Easy filling of hoppers with seed

A wide and long service platform for a safe and comfortable seed refill of the hopper.

Hydraulically controlled markers

Storage box

Even sowing

Thanks to 4 distributor heads the sowing is even in the entire working width even at high doses.

Smartly designed machine

Large hopper

Overpressure, one-chamber hopper with the volume of 90,8-136.2 bu.

Double disk coulters

Thanks to proven construction they penetrate the soil very well even in conditions with a high content of plant residues and, together with the pressure wheel, ensure sowing to the specified depth.

4 metering units

They enable switching off each section in quarters or eights.

Ruts cultivators

Electrically driven metering unit Farmet: Modern roller metering unit with interchangeable rollers

Parameters

Technical parameters	Units	Freya 6	Freya 8	Freya 10	Freya 12
Working width	ft.	19' 8"	26' 3"	32' 9"	39' 4"
Transport width	ft.	9' 10"	9' 10"	9' 10"	9' 10"
Transport height	ft.	9' 10"	9' 10"	9' 10"	9' 10"
Total machine length	ft.	29' 6"	29' 6"	29' 6"	29' 6"
Sowing depth	in.	0"─3.25"	0"─3.25"	0"─3.25"	0"─3.25"
Hopper volume	bu.	90.8	90.8	113.5	113.5
Hopper filling height	ft.	6' 8"	6' 8"	6' 8"	6' 8"
Dimensions of the filling opening without additional fertilization with additional fertilization	ft.	3' 9" x 2' 4' 8" x 2'	3' 9" x 2' 4' 8" x 2'	3' 9" x 2' 4' 8" x 2'	3' 9" x 2' 4' 8" x 2'
Coulters spacing	in.	6" / 5"	6" / 5"	6" / 5"	6" / 5"
Number of drill coulters	pcs	40 / 48	52 / 64	66 / 80	80 / 96
Pressure of drill coulters	lb.	up to 176	up to 176	up to 176	up to 176
Diameter of sowing disk of two-disk coulter / pressure wheel	in.	15" / 13"	15" / 13"	15" / 13"	15" / 13"
Working performance	ac/h	14.8─19.8	19.8─24.7	24.7─32.1	29.7─37.1
Towing vehicle ¹	kW HP	130 175	165 220	195 260	220 295
Working speed	mph	6─12	6─12	6─12	6─12
Maximum slope availability	°	6	6	6	6
Dimension of tire - transport (possibility of choice)		700/50-22,5 850/40R 26,5	700/50-22,5 850/40R 26,5	700/50-22,5 850/40R 26,5	700/50-22,5 850/40R 26,5
Brake type / distribution ³		air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5	8,5
Number of hydraulic circuits / pressure	bar	4 / 200	4 / 200	4 / 200	4 / 200
Number of quick-coupling devices / type		8 / ISO 12,5	8 / ISO 12,5	8 / ISO 12,5	8 / ISO 12,5
Non-pressure return line (5 bar max.)		1 / ISO 20	1 / ISO 20	1 / ISO 20	1 / ISO 20
Oil flow of hydraulic fan	gal/min	7.9─10.6	7.9─10.6	7.9─10.6	7.9─10.6
Oil flow for machine control	gal/min	13.2─15.8	13.2─15.8	13.2─15.8	13.2─15.8
Electric system requirement		12 V DC / 50 A	12 V DC / 50 A	12 V DC / 50 A	12 V DC / 50 A
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	lb.	13,007	14,881	16,755	18,739

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight according to its equipment.

³ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

We constantly improve and innovate our products to provide the best possible solutions for current technological trends and to meet customer requirements. For this reason, some of the offered products may be manufactured differently than shown on the website. Binding specifications and machine parameters will be confirmed upon order.

Optional

Accessories

Display Units

iPad wifi connect

Seed counting and sowing control for each individual coulter.

Equipment
Display Dimensions	11"
Seed Passing Sensor Control	OK
Hopper Level Reading	OK
Fan Speed Reading	OK
Dispenser Speed Reading	OK
Motor Speed Reading	OK
Number of Motors (Dispensing)
Tramline Flap Control	OK
Seed Drill Position Display	OK
Work Lighting Control	OK
Hopper Lighting Control	OK
Marker Control	OK
Pre-emergent Marking Control	OK
Adding Seed Batch during Work	OK
Micro Seeding	OK
Simultaneously Running Screens
Camera Input	OK
GSM Modem	OK

Topcon XD+

Equipment
Display Dimensions	12,1"
Seed Passing Sensor Control	OK
Hopper Level Reading	OK
Fan Speed Reading	OK
Dispenser Speed Reading	OK
Motor Speed Reading	OK
Number of Motors (Dispensing)	3
Tramline Flap Control	OK
Seed Drill Position Display	OK
Work Lighting Control	OK
Hopper Lighting Control	OK
Marker Control	OK
Pre-emergent Marking Control	OK
Adding Seed Batch during Work	OK
Micro Seeding	OK
Simultaneously Running Screens	5
Camera Input	OK
GSM Modem	for a fee

Müller Elektronik: ISOBUS DRILL-Controller

ME TOUCH800®

Equipment
Display Dimensions	8"
Seed Passing Sensor Control	OK
Hopper Level Reading	OK
Fan Speed Reading	OK
Dispenser Speed Reading	OK
Motor Speed Reading	OK
Number of Motors (Dispensing)	3
Tramline Flap Control	OK
Seed Drill Position Display	OK
Work Lighting Control	OK
Hopper Lighting Control	OK
Marker Control	OK
Pre-emergent Marking Control	OK
Adding Seed Batch during Work	OK
Micro Seeding	OK
Simultaneously Running Screens	2
Camera Input	OK
GSM Modem	x

Müller Elektronik: ISOBUS DRILL-Controller

ME SMART570®

Equipment
Display Dimensions	5,7"
Seed Passing Sensor Control	OK
Hopper Level Reading	OK
Fan Speed Reading	OK
Dispenser Speed Reading	OK
Motor Speed Reading	OK
Number of Motors (Dispensing)	3
Tramline Flap Control	OK
Seed Drill Position Display	OK
Work Lighting Control	OK
Hopper Lighting Control	OK
Marker Control	OK
Pre-emergent Marking Control	OK
Adding Seed Batch during Work	OK
Micro Seeding	OK
Simultaneously Running Screens	1
Camera Input	x
GSM Modem	x
