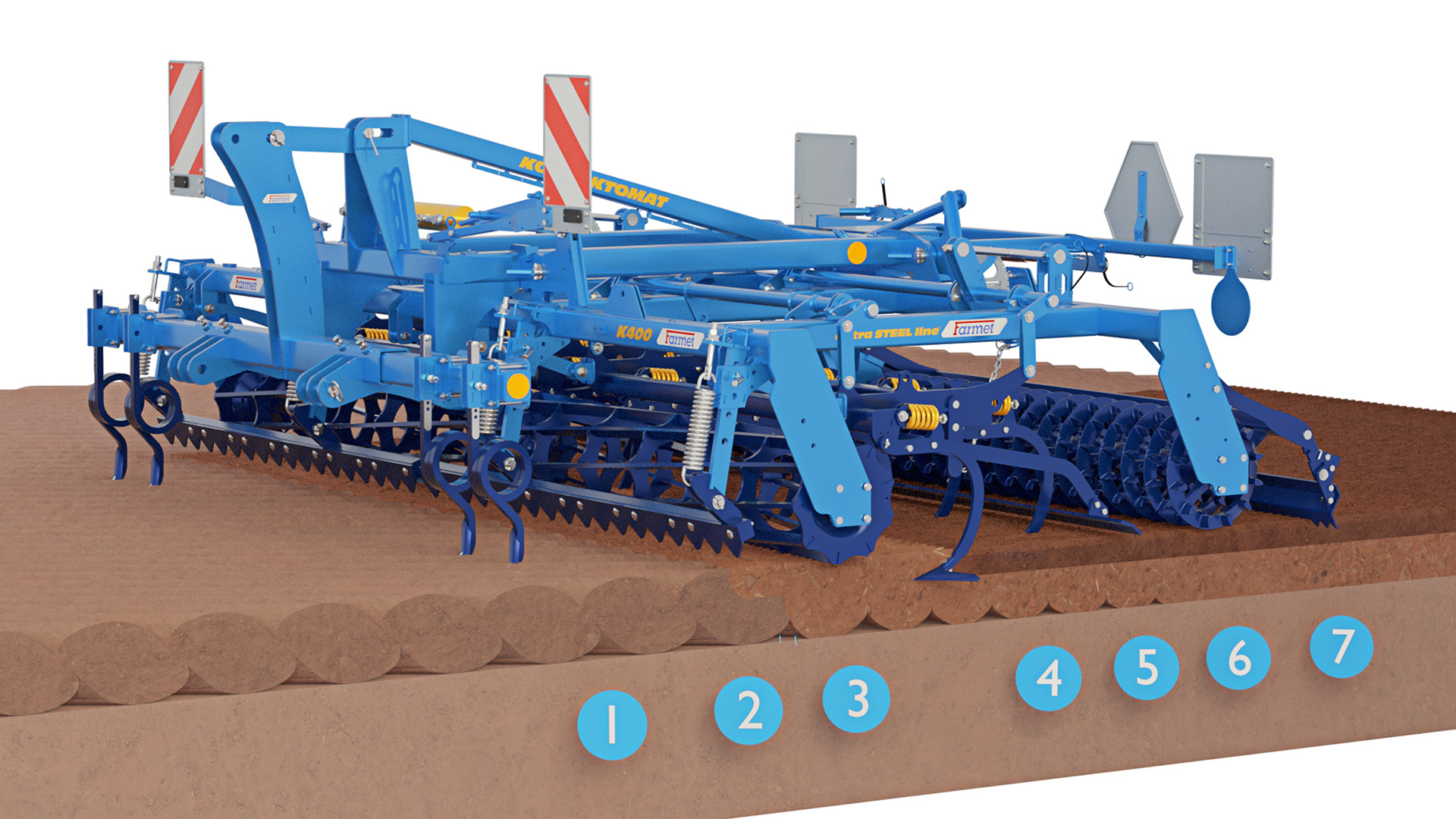

| 1 | Tractor track cultivating zone. Perfect cultivation of the tracks eliminates uneven emergence of plants after sowing. |
| 2 | Basic soil leveling zone. Precisely leveled soil surface allows uniform subsequent consolidation and cultivation the seedbed. |

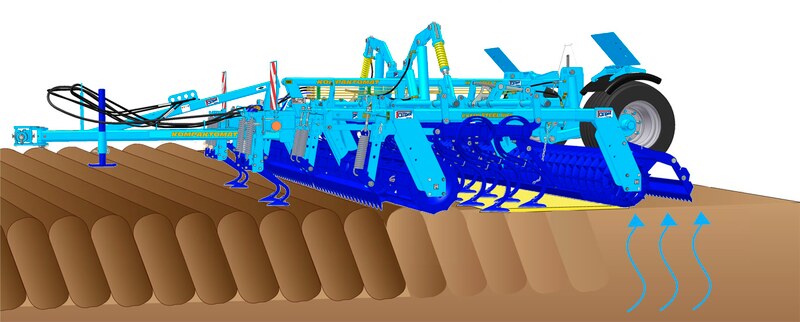

| 3 | Soil pre-consolidation zone by the front roller. The front roller crumbles clods on the surface, but at the same time it consolidates the soil and restores the soil capillarity. |
| 4 | Seedbed zone. The soil is cultivated by the share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-surface undercut and weed control. |
| 5 | Wave-leveling zone behind a share cultivating section. |
| 6 | Rear roller soil consolidation zone. The roller finely crumbles clods and ensures the final consolidation of the seedbed so that the soil capillarity is fully restored. Intensive soil moisture rise ensures good emergence of plants even in the dry season. |
| 7 | Final soil leveling zone. The rear rod ensures a perfect surface level with minimum clods for subsequent sowing. |

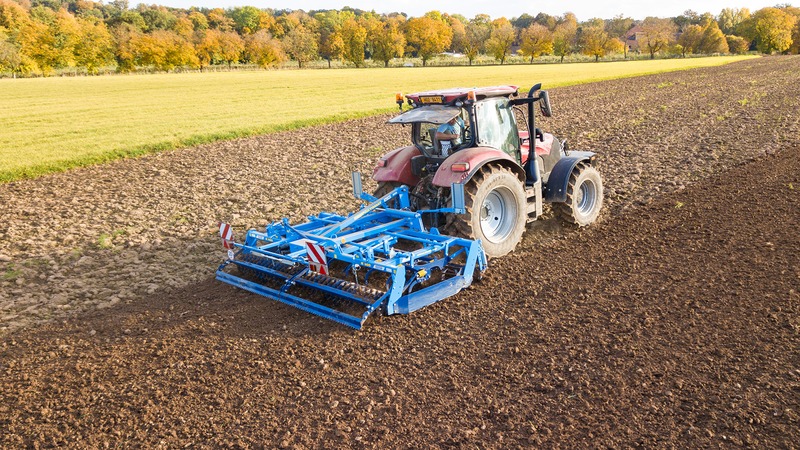

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing. During one run the soil is perfectly tilled to the state required for sowing of crops.
The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed. The land is perfectly leveled also due to leveling bars that can level and spread even high unevenness.
Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after plowing. During one run the soil is perfectly tilled to the state required for sowing of crops.
The advantage of the machine is excellent leveling of the surface, fine crumbling of clods and formation of well-consolidated seedbed. The land is perfectly leveled also due to leveling bars that can level and spread even high unevenness.
Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favorable weight Kompaktomat can prepare the soil after plowing during one run, whereas the soil is tilled not only on the surface, but in the whole horizon.

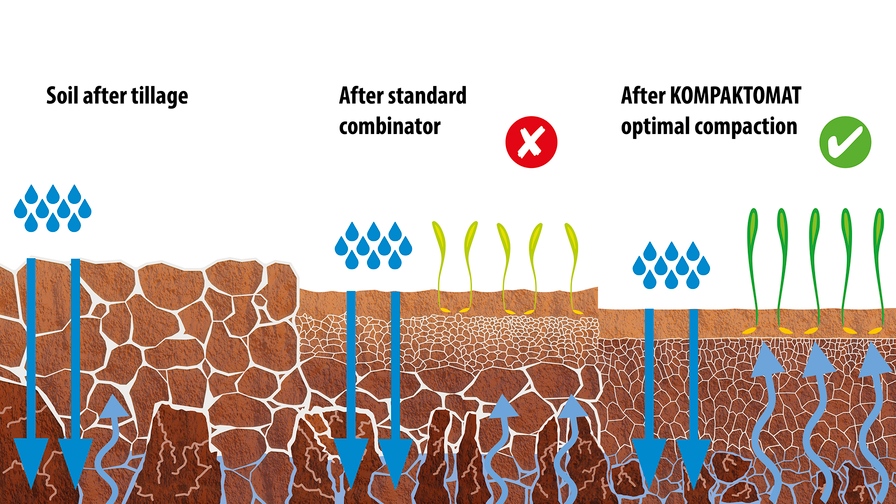

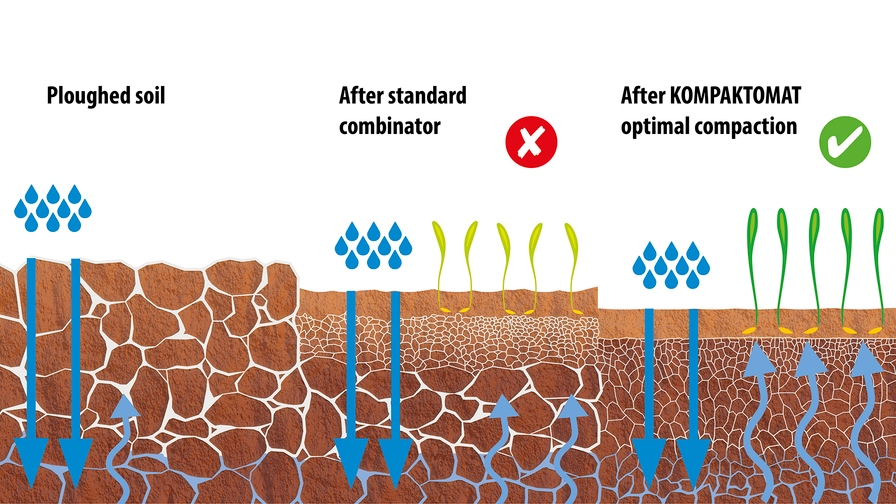

During the run Kompaktomat performs several working operations, during which the surface of the soil is leveled and consolidated to the depth. In the cultivated soil capillarity is restored and in the required depth the seedbed is formed. The clods are finely crumbled.
Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favorable weight Kompaktomat can prepare the soil after plowing during one run, whereas the soil is tilled not only on the surface, but in the whole horizon.
During the run Kompaktomat performs several working operations, during which the surface of the soil is leveled and consolidated to the depth. In the cultivated soil capillarity is restored and in the required depth the seedbed is formed. The clods are finely crumbled.
The control elements of the seedbed combinator are designed in order to achieve maximum safety of workers. Simple but quality construction with minimum maintenance requirements.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
Differences between individual section are described in more detail in the tab Accessory
| Technical parameters | Units | Kompaktomat K 250 N |
Kompaktomat K 300 N |
Kompaktomat K 400 NS |
Kompaktomat K 500 NS |
Kompaktomat K 600 NS |
|---|---|---|---|---|---|---|

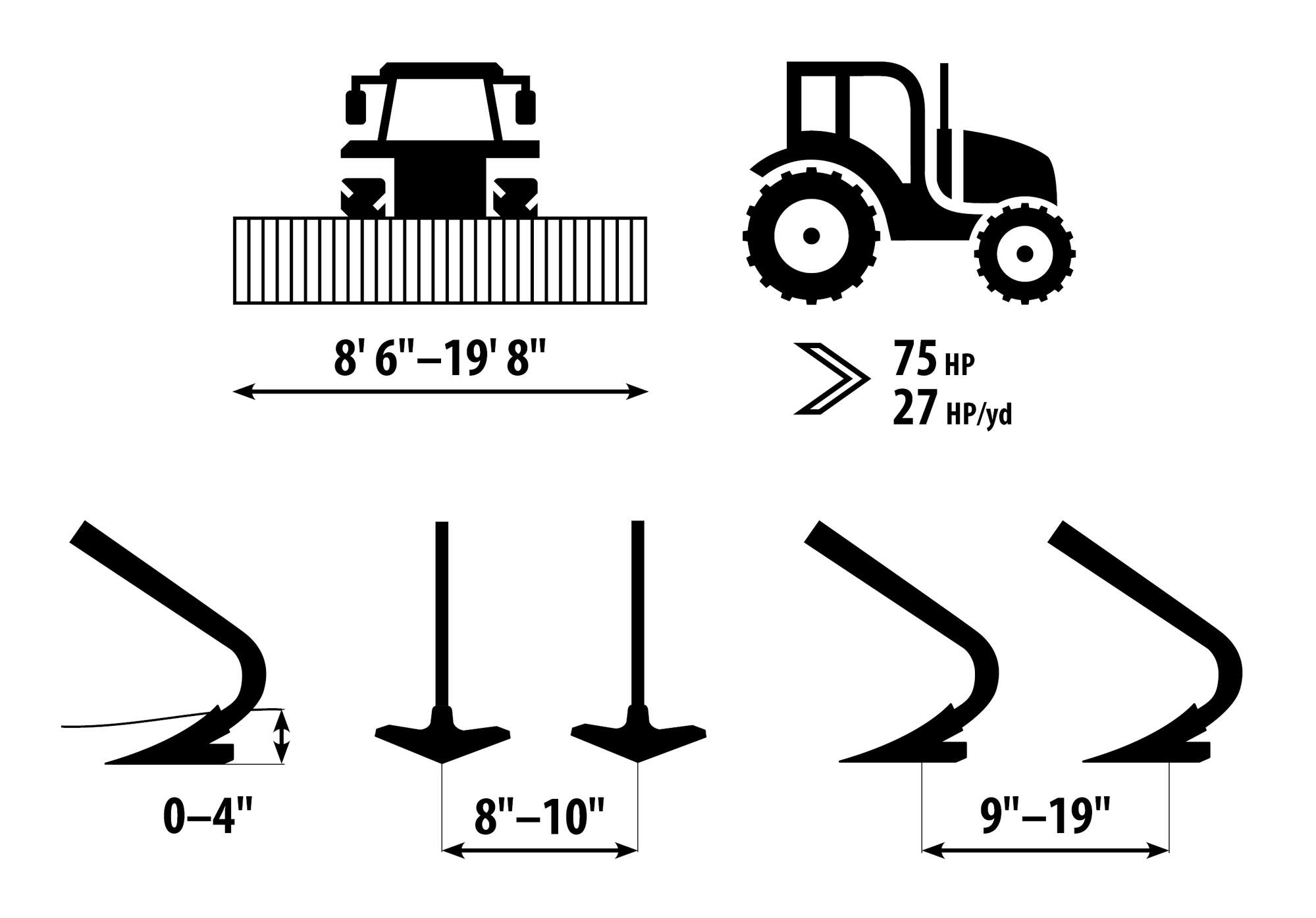

| Working width | ft. | 8' 6" | 9' 10" | 13' 1" | 16' 5" | 19' 8" |
| Transport width | ft. | 8' 6" | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Total machine length | ft. | 8' 8" | 8' 8" | 9' 7" | 10' 6" | 10' 6" |
| Working depth | in. | 0–4" | 0–4" | 0–4" | 0–4" | 0–4" |
| Number of shares – arrow AL Number of shares – chisel CF Number of shares – arrow AP |
pcs | 11 26 11 |
13 30 12 |
18 39 16 |
23 49 23 |
27 59 24 |
| Working performance | ac/h | 4.9–7.4 | 5.4–7.9 | 7.4–9.9 | 12.4–14.8 | 14.8–17.8 |
| Towing vehicle 1 | kW HP |
55 75 |
70 95 |
90 125 |
120 165 |
130 180 |
| Working speed | mph | 6–9 | 6–9 | 6–9 | 6–9 | 6–9 |
| Maximum transport speed 3 | mph | 12 | 12 | 12 | 12 | 12 |
| Maximum slope availability | ° | 11 | 11 | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 0 | 0 | 1–3 / 200 | 1–3 / 200 | 1–3 / 200 |
| Number of hydrocouples / type | pcs | 0 | 0 | 2–6 / ISO 12.5 | 2–6 / ISO 12.5 | 2–6 / ISO 12.5 |
| Tractor hitch requirement | TPH cat. 2 | TPH cat. 2 | TPH cat. 3 | TPH cat. 3 | TPH cat. 3 | |
| Tractor hitch requirement Spacing of lower suspension joints (measured on joint axes) |
ft. | 2' 10" | 2' 10" | 3' 4" | 3' 4" | 3' 4" |
| Tractor hitch requirement Hole diameter of lower suspension joints for machine suspension pins |
in. | 1.25" | 1.25" | 1.5" | 1.5" | 1.5" |
| Tractor hitch requirement Hole diameter of upper suspension joint for machine suspension pin |
in. | 1" | 1" | 1.25" | 1.25" | 1.25" |
| Machine weight 2 | lb. | 2,546 | 3,329 | 5,886 | 6,944 | 7,716 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine variant weight: front bar roller, section AP, rear crosskill roller with leveler.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
N - mounted machine
NS - mounted foldable machine
| Diameter | 16" |
| Weight | 321 lbs./yd |
May be applied as the rear roller only.
Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.
| Diameter | 16" |
| Weight | 446 lbs./yd |
May be applied as the rear roller only.
Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.
| Diameter | 16" |
| Weight | 169 lbs./yd |
May be applied as the front and rear roller.
Quality clod crumbling. Suitable for wet conditions.
| Diameter | 16" |
| Weight | 152 lbs./yd |
May be applied as the front and rear roller.
Quality clod crumbling. Not very suitable for wet conditions.
| Diameter | 16" |
| Weight | 277 lbs./yd |
May be applied as the front and rear roller.
Quality work in all types of soil, good depth guiding, suitable even for more humid soils.
Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Rollers | Crosskill CR |
Double crosskill DCR |
Bar BR |
Spiral bar SB |
Ring RR |
|---|---|---|---|---|---|
| Crumbling | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●○○ |
| Stamping | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●●● |
| Depth guiding | ●○○○ | ●●○○ | ●●●○ | ●●●○ | ●●●● |
| Resistance against clogging | ●●●○ | ●●●● | ●●○○ | ●●●○ | ●●●● |
| Suitability for stony soils | ●●○○ | ●●○○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●○○ | ●●●○ | ●○○○ | ●●●○ | ●●●● |
| Heavy soils | ●●●○ | ●●●● | ●●○○ | ●●○○ | ●●●○ |
| Medium soils | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●●○ |
| Light soils | ●●●● | ●●●● | ●●●● | ●●●● | ●●●○ |
For the AL / AP section.
For the CF section.
For the CF section.
The share section is equipped with arrow shares of the width 10" in two rows. Each of the shares is protected with leaf spring. This share section is suitable for lighter soil conditions without vegetable rest. By default, the height-adjustable coordination bar is located behind the shares.
The share section is equipped with narrow shares of the width 1.5" in four rows. This share section is suitable for soil tillage in spring when it is not desirable to extract wet soil to the surface, or in heavy soils. Behind the shares, the directing bar is placed as standard.
The universal share section is equipped with arrow shares of the width 10" in two rows. The shares are mounted on tine holders with geometry improving the throughflow of vegetable rest. Therefore, this share section is suitable for land with a higher amount of crushed vegetable rest and heavy soils. By default, the height-adjustable coordination bar is located behind the shares.
| Section | AL | AL-L 1 | CF | CF-L 1 | AP | AP-L 1 | AL4 1 |
|---|---|---|---|---|---|---|---|
|
Number of rows of shares (pcs) / |
2 / 400 | 2 / 510 | 4 / 240 | 4 / 265 | 2 / 490 | 2 / 600 | 4 / 270 |
| Leveler behind shares | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● |
| Full-area tillage | ●●●● | ●●●● | ●●○○ | ●●○○ | ●●●● | ●●●● | ●●●● |
| Suitability for light soils | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● |
| Suitability for medium soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●● |
| Suitability for heavy soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●○ |
| Suitability for wet soils | ●●○○ | ●●○○ | ●●●● | ●●●● | ●●○○ | ●●○○ | ●●●○ |
| Resistance against clogging | ●●○○ | ●●○○ | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
1 The section is designed for Kompaktomat LONG. It provides better throughput due to the extended spacing.
Kompaktomat K 500 NS + K 600 NS
The construction of the mounted machine does not allow to place the plow stop directly on the machine. Therefore it is possible to add an additional frame with the plow stop between the tractor and the mounted machine. The construction of the plow stop is added to machine through the three-point linkage.
Kompaktomat K 300 N + K 400 NS
The construction of the mounted machine does not allow to place the plow stop directly on the machine. Therefore it is possible to add an additional frame with the plow stop between the tractor and the mounted machine. The construction of the plow stop is added to machine through the three-point linkage.
Automatically unprotected leveler in the toothed profile. Massive construction for precise smoothing of the rough furrow.
FL = fixed mechanical skid, FH = fixed hydraulic skid.
Automatically unprotected leveler from separate flexible segments. Better clod crumbling.
L = Flexi-board, FB = hydraulic Flexi-board.
Passive leveling of the soil surface behind the rear roller. It can be applied behind all types of rear rollers.
Swing stops for possibility of more aggressive adjustment of the rear leveler.
Active crumbling of remaining clods behind the rear roller.
Active crumbling of remaining clods behind the rear roller.
Increased productivity:
Can also be installed additionally to older machines.
Increased productivity:
Can also be installed additionally to older machines.
