Strip-till cultivator STRIP-TILL

Strip tillage up to 13.75" with fertilizer storage

Strip-till cultivator Strip-Till

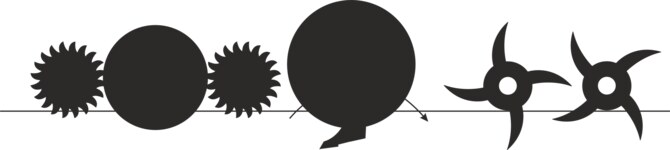

Technology

1	Zone of cutting and uniformly dispersing crop residue. The crop residue is effectively rolled up into inter-rows.
2	Cutting zone. A disk with a perpendicular angle setting cuts through the layer of the soil profile.
3	Tillage and fertilizer placement zone. Tillage to the depth of 7.75"─13.75" using chisels with special geometry ensures the formation of wide tilled strips. Granular fertilizers are placed in these tilled strips into two depths.
4	Strip forming zone. Large side discs ensure efficient forming of loose strips while increasing the quality of crumbling clods.
5	Final clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

Technics

Strip-till cultivator Strip-Till

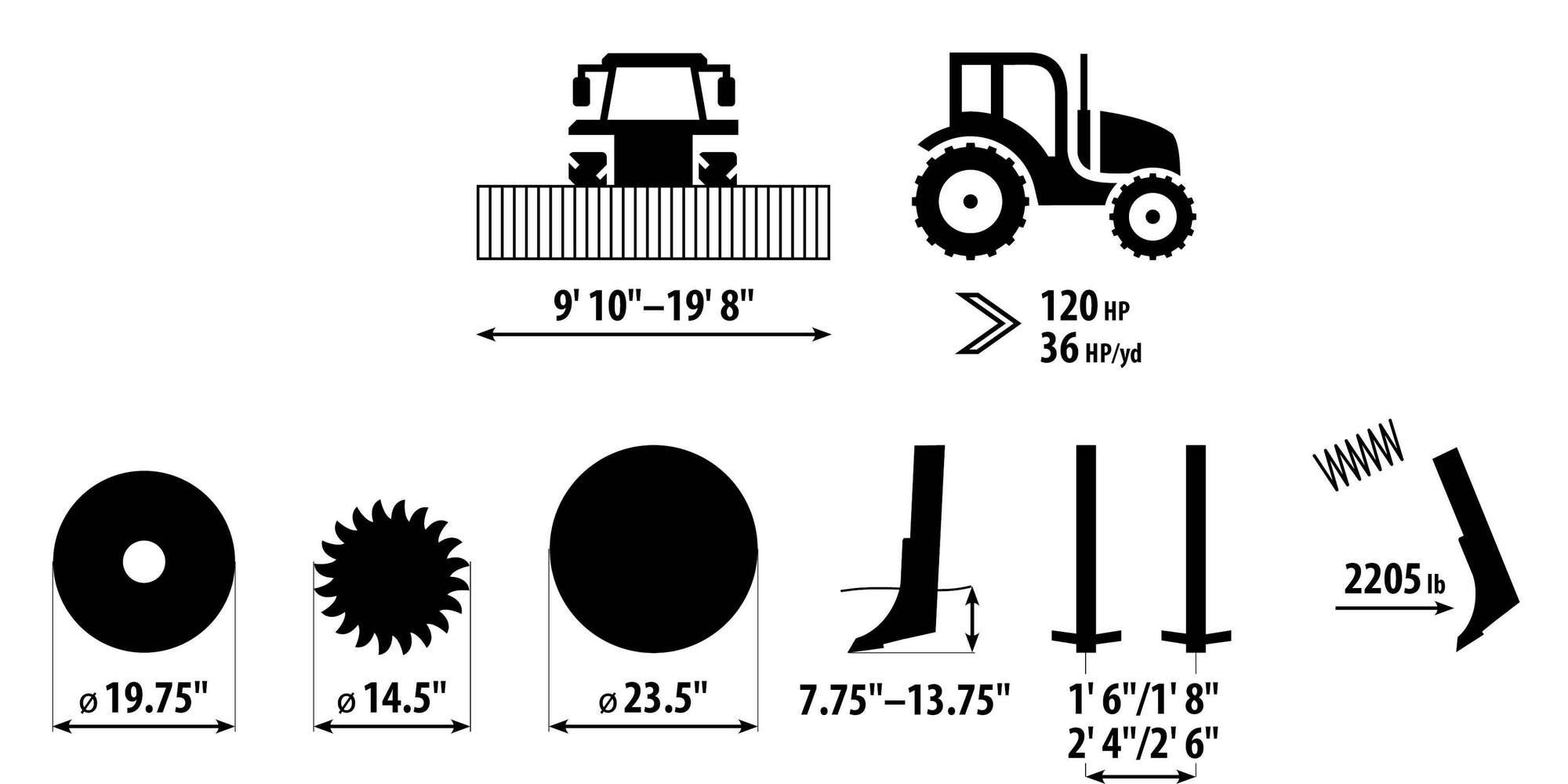

The row cleaner unit Ø 14.5" places crop residue to inter rows.
The front disk Ø 19.5" with the vertical angle cuts through the layer of crop residue.
Rugged shanks with hydraulic protection tills soil in a strip up to the depth of 13.75".
The large side discs Ø 23.5" form tilled strips and improve the quality of crushing clods.
The double rear spiked roller crushes clods and compacts the top layer of the tilled row.

Provides various operations in a single pass – places crop residue into inter rows, tills soil up to the depth of 13.75" where fertilizer can be applied at two depth levels, crushes any potential clods and then compacts the tilled strip.

Soil processing up to the depth of 35 cm

The construction of the frame and working parts is designed for processing soil up to the depth of 35 cm. The robust share enters the depth of soil to loosen it and process it in the form of a strip.

High Performance and Labour Quality

Its design and low tractive resistance allows for high working speed

Its design and low tractive resistance allows for high working speed

Parameters

Technical Parameters	Units	Strip-Till 4	Strip-Till 6	Strip-Till 8	Strip-Till 12 FIX
Working width	ft.	9' 10" (9' 2")	14' 9" (13' 9")	19' 8" (18' 4")	19' 8" (17' 8")
Transport width	ft.	9' 10" (9' 2")	9' 10" (9' 2")	9' 10" (9' 2")	19' 8" (17' 8")
Transport height	ft.	8' 2"	8' 6"	11' 0"	8' 2"
Total length of the machine	ft.	9' 10"	10' 0"	10' 0"	10' 0"
Working depth	in.	7.75"─13.75"	7.75"─13.75"	7.75"─13.75"	7.75"─13.75"
Share spacing	ft.	1' 8" (1' 6") 2' 6" (2' 4")	1' 8" (1' 6") 2' 6" (2' 4")	1' 8" (1' 6") 2' 6" (2' 4")	1' 8" (1' 6")
Number of shares	pcs	4	6	8	12
Working capacity	ac/h	5.9─8.9	8.9─13.3	11.9─17.8	11.9─17.8
Towing vehicle ¹	kW HP	90─150 120─200	135─225 175─300	180─300 235─400	180─300 235─400
Working speed	mph	5─8	5─8	5─8	5─8
Maximum transport speed ³	mph	12	12	12	12
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	lb.	3,638	6,393	8,157	9,832

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Weight without fertilizer distribution and Microdrill.
³ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
