Subsoiler DIGGER

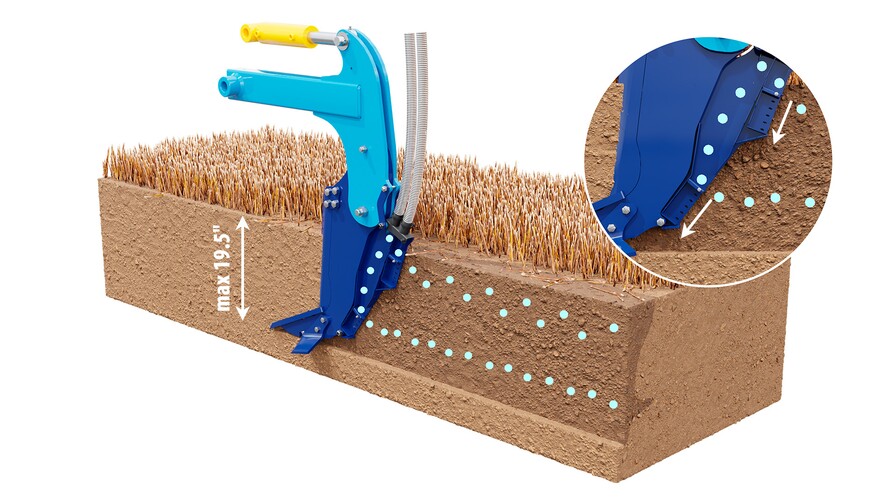

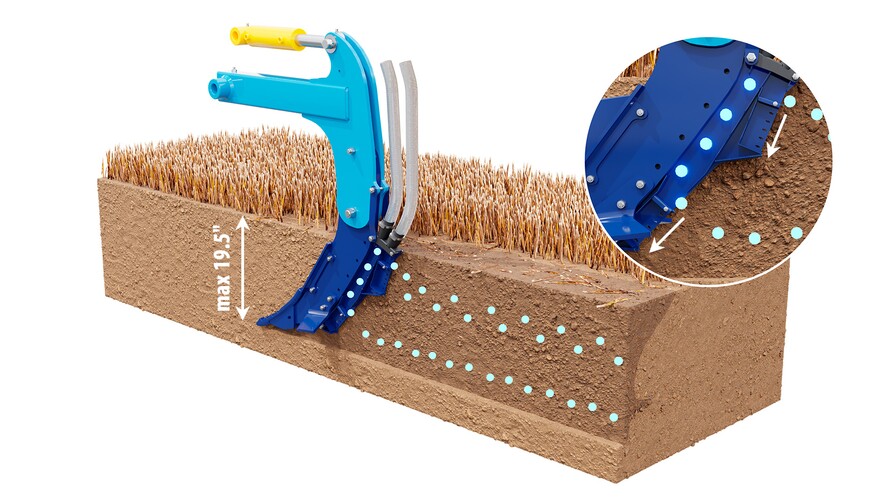

Fertilizer placement

The fertilizer is placed under the surface into processed soil profile in two horizons.

The fertilizer is placed under the surface into processed soil profile in two horizons.

High performance

• The new tine design has a very low traction resistance and enables a high working speed up to 8 mph.
• Tines smoothly penetrate the soil and the soil is loosened without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of the tines under extreme conditions such as marshes, headlands or when plowing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use gauge wheels. The high frame clearance of 2' 6" provides excellent trash flow.

• The new tine design has a very low traction resistance and enables a high working speed up to 8 mph.
• Tines smoothly penetrate the soil and the soil is loosened without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of the tines under extreme conditions such as marshes, headlands or when plowing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use gauge wheels. The high frame clearance of 2' 6" provides excellent trash flow.

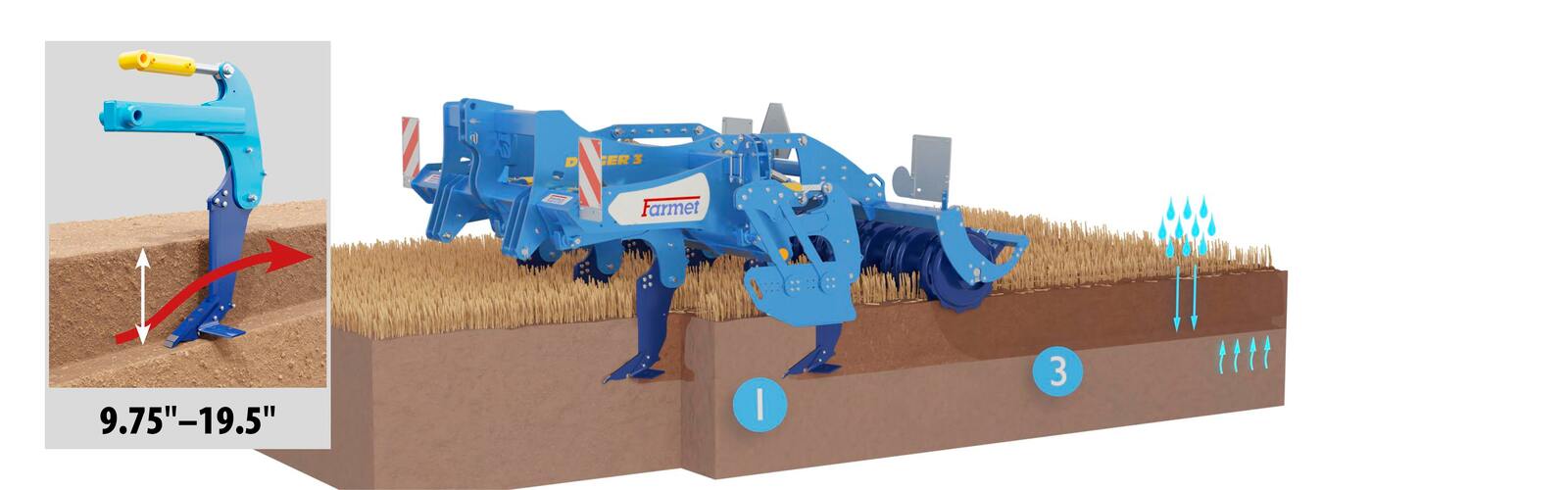

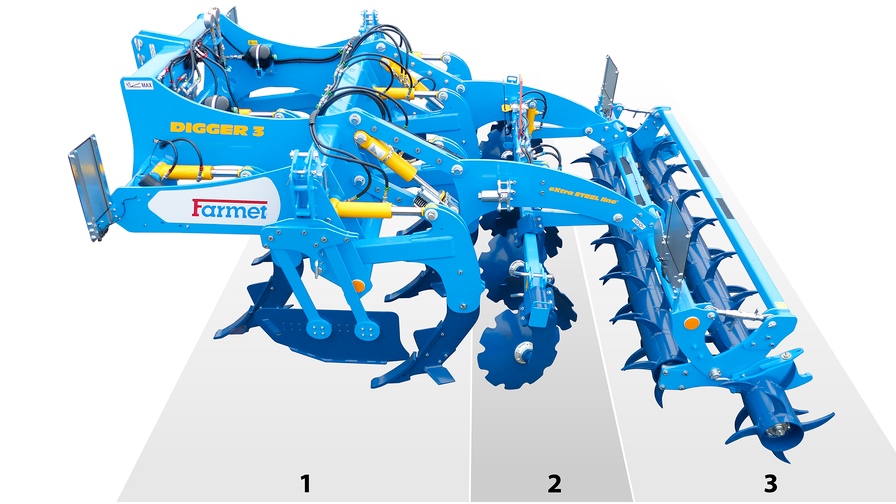

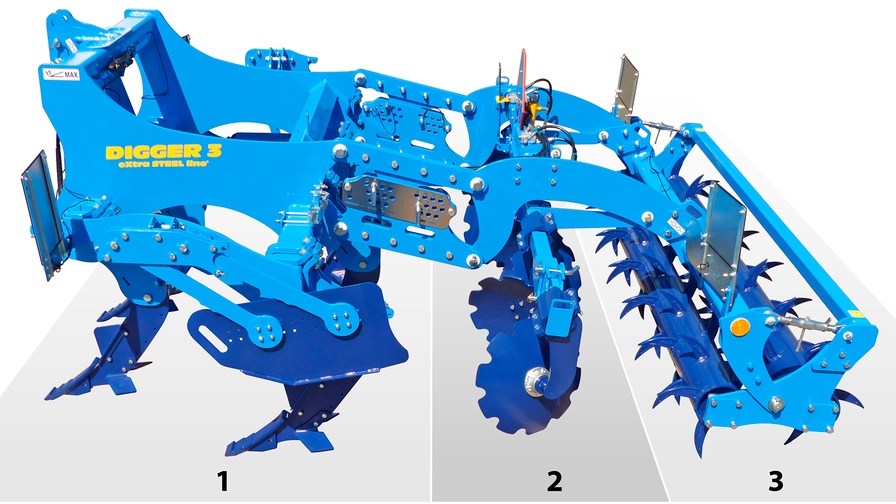

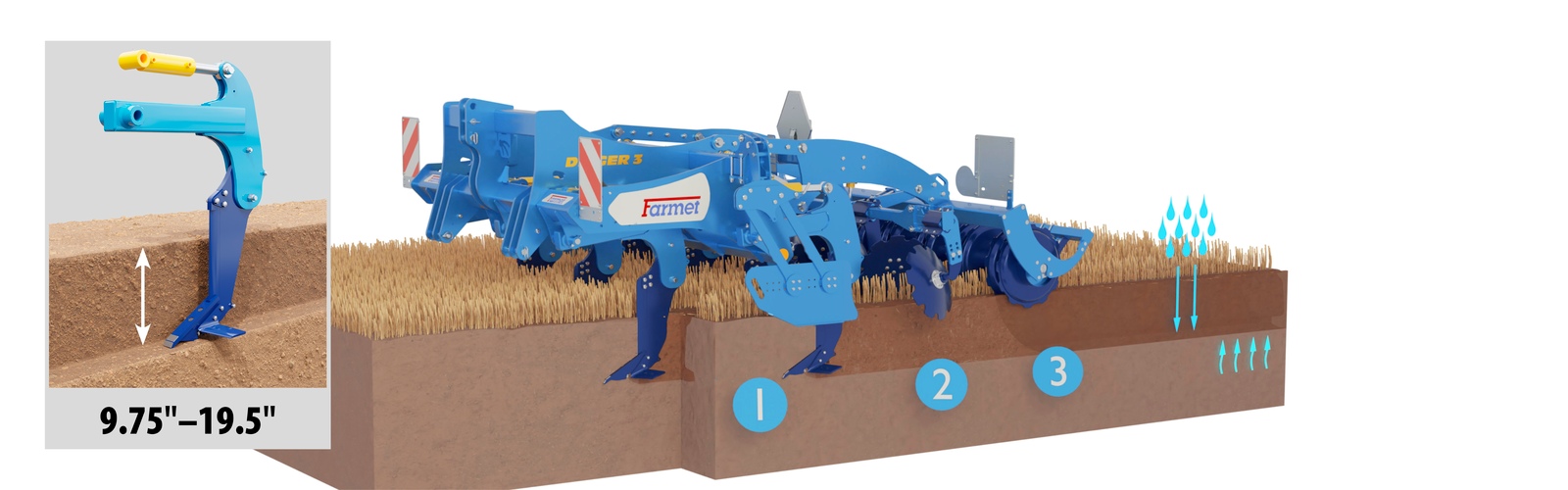

Subsoiler Digger N

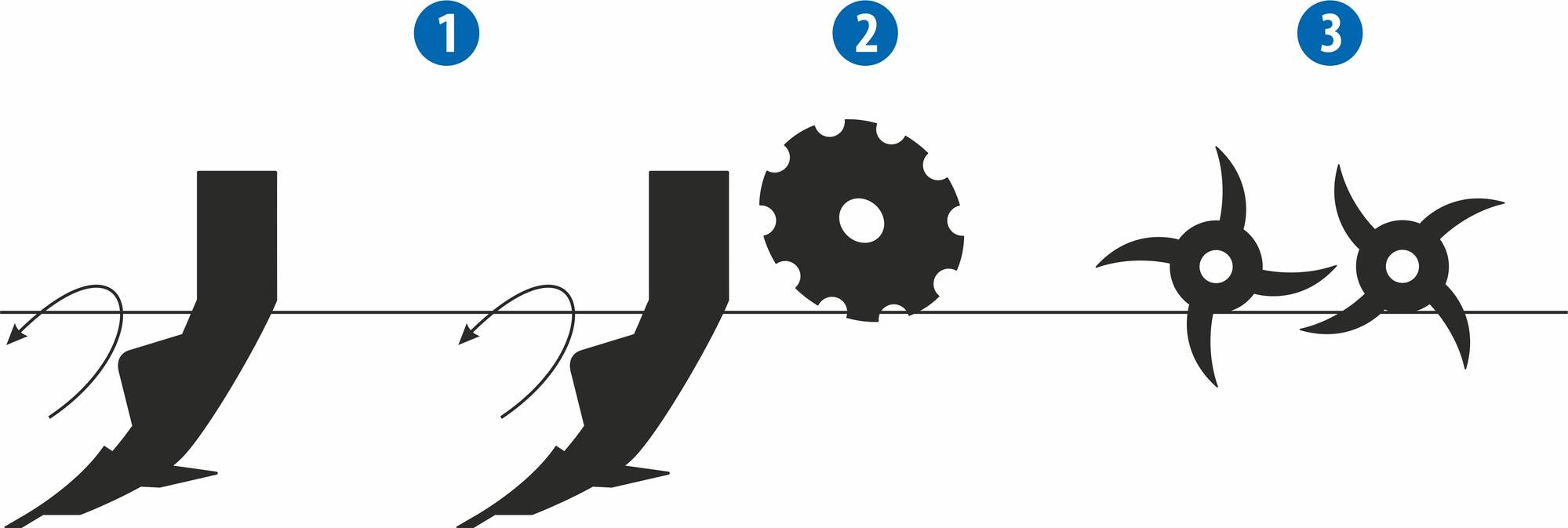

1. Large tines situated in 2 rows for deep loosening 9.75"─19.5".
2. Leveling disks for sizing residue and soil.
3. The rear double spiked roller for smooth finish.

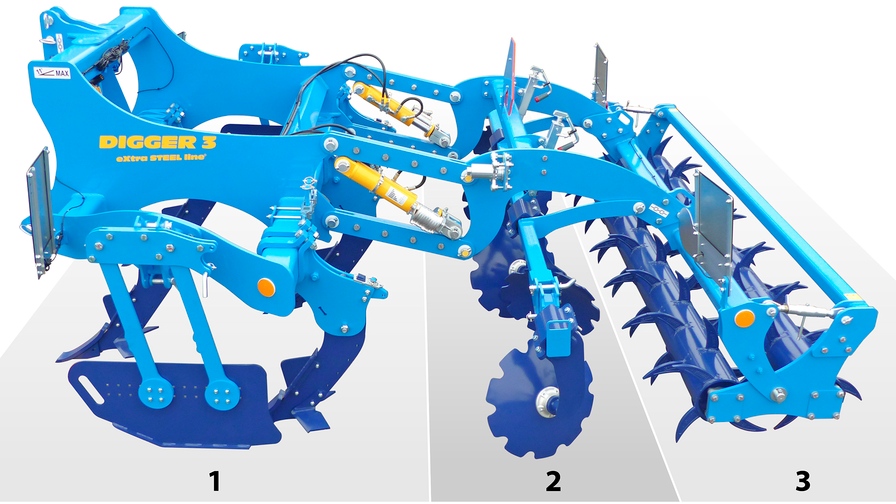

Subsoiler Digger N

1. Large tines situated in 2 rows for deep loosening 9.75"─19.5".
2. Leveling disks for sizing residue and soil.
3. The rear double spiked roller for smooth finish.

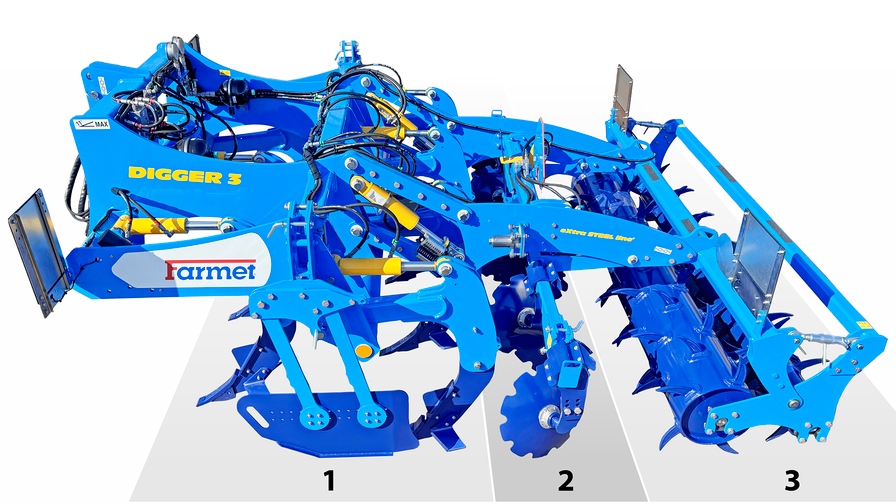

Subsoiler Digger N

1. Large tines situated in 2 rows for deep loosening 9.75"─19.5".
2. Leveling disks for sizing residue and soil.
3. The rear double spiked roller for smooth finish.

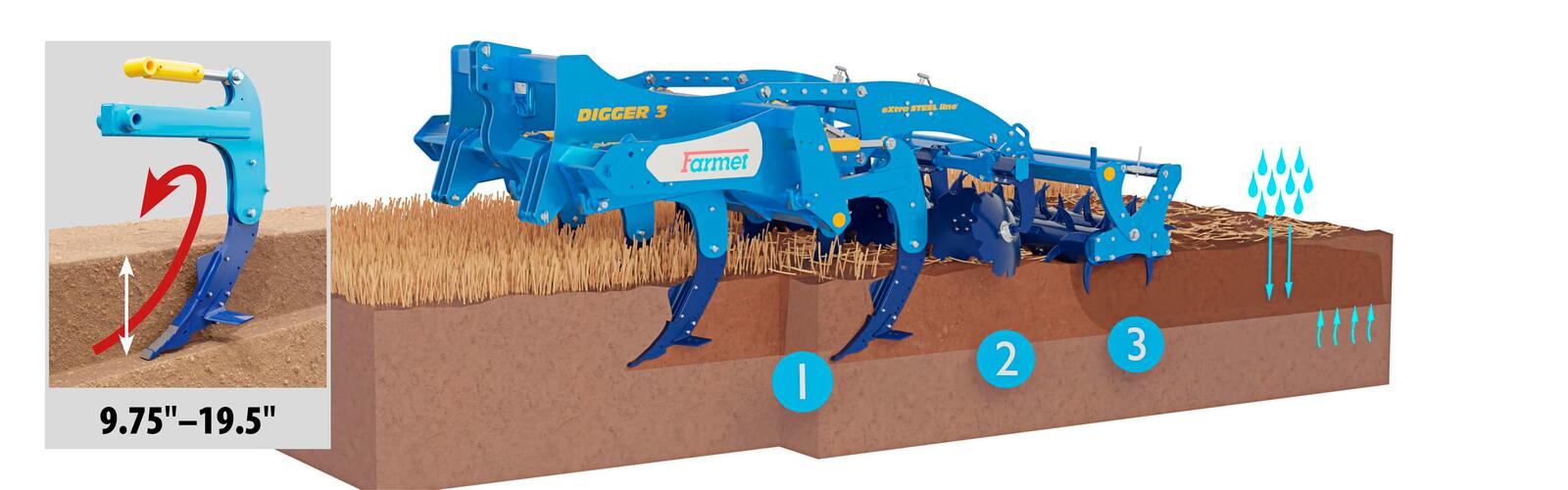

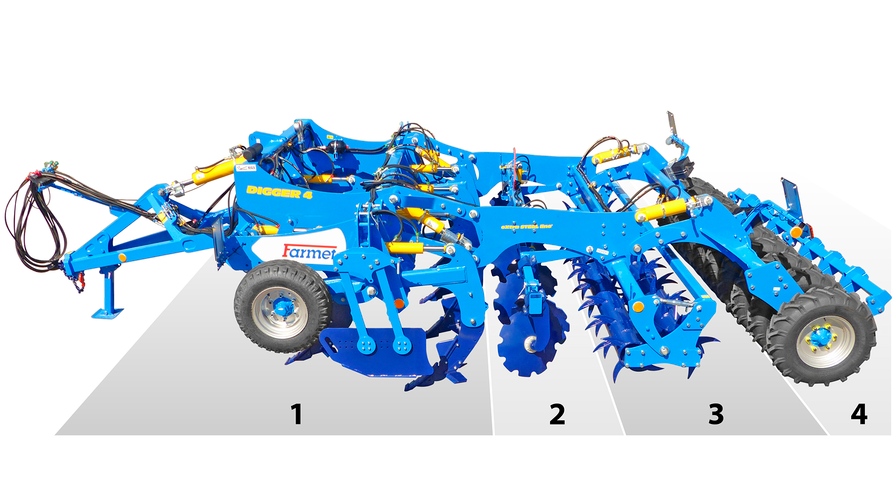

Subsoiler Digger P

1. Large tines situated in 2 rows for deep loosening 9.75"─19.5".
2. Leveling disks for sizing residue and soil.
3. The rear double spiked roller for smooth finish.
4. The packer roller to firm soil, level and smooth finish.

Digger Versions

Machine configuration

Due to different configurations, this machine can meet different requirements according to your needs.  Have a look at the configurations that you can get from us.

Basic versions of the machine

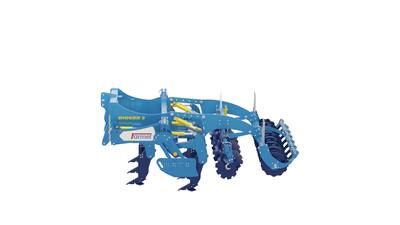

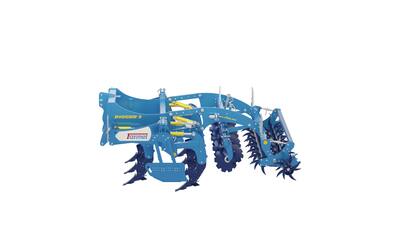

Digger N - Basic configuration

Machine with hydraulic tine protection, with leveling disks.

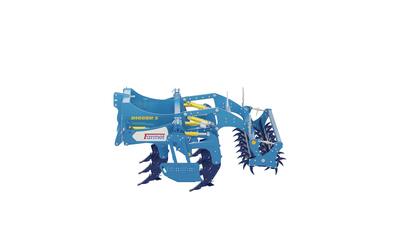

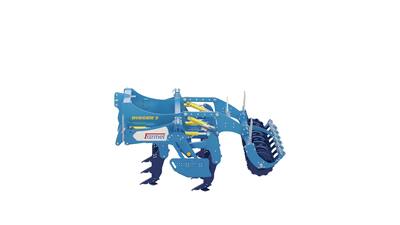

Digger N - Without leveling disks

Machine with hydraulic tine protection, without leveling disks.

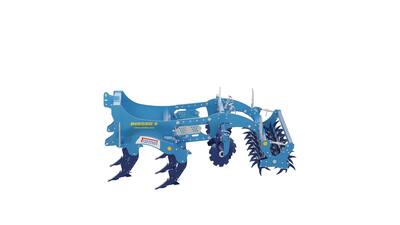

Digger N - Mechanical tine protection

Machine with mechanical tine protection, with leveling disks.

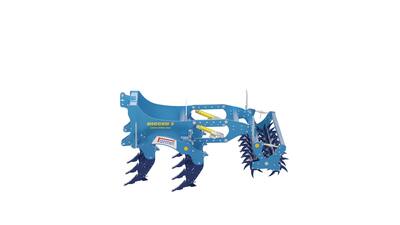

Digger N – Mechanical tine protection without leveling disks

Machine with mechanical tine protection, without leveling disks.

Machine configurations with fertilization in 2 horizons

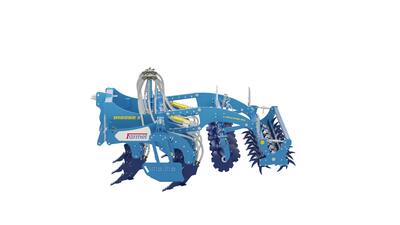

Digger N Fert+

Machine with a front fertilizer hopper and fertilization in 2 horizons

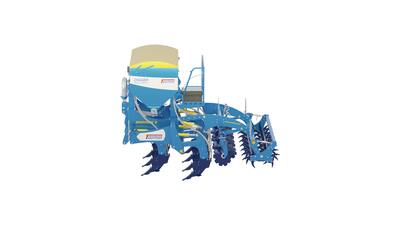

Digger N Fert+ Compact

Machine with an integrated fertilizer hopper and fertilization in 2 horizons

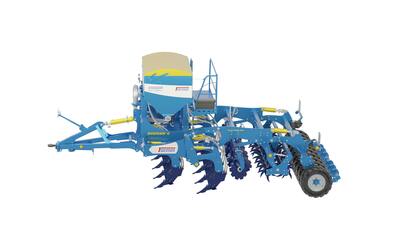

Digger P Fert+ Compact

Semi-mounted version equipped with a drawbar and a rear rubber-tired roller, with an integrated fertilizer hopper and fertilization in 2 horizons

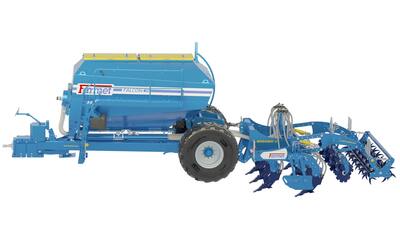

Digger P HW

Semi-mounted version equipped with an additional carrier for the fertilizer hopper with an axle, fertilization in 2 horizons

Robust design

• High-strength refined materials used for crucial nodes to ensure long service life.
• Strongly dimensioned compact and carried frame.
• The chisels are equipped with carbide plates for long service life.

Protection of tines

The tines are hydraulically protected by a release force at the tip of 2,425 lb. or you can choose the configuration with mechanical protection.

Mechanical protection of tines

Version with mechanical tine protection – the safety segment breaks in case of too high resistance.

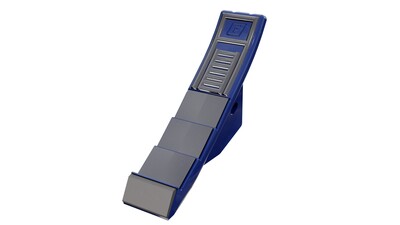

Prolonged service life of chisels

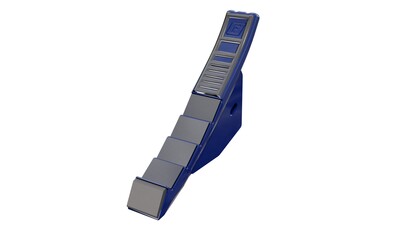

The tips of chisels are equipped with carbide plates for long service life, low wear and tear to maintain optimum geometry.

Leveling disks

The leveling disks direct the processed soil in front of the rear spiked rollers and at the same time provide precise furrow leveling.

Roller

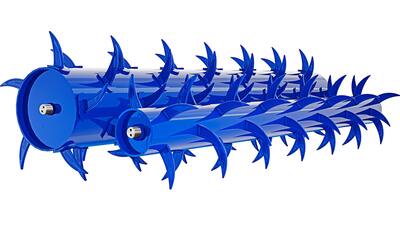

The rear double spiked roller for fine clods crushing maintains the quality of the soil as in the pre-sowing preparation in minimizing technologies or as the primary fall soil tillage for spring crops.

Chisels

The chisels with wings incorporate plant residues very well and the leveling disks together with the double spiked roller perfectly level furrows.

Easy operation

Due to minimum of adjusting points, the operation and subsequent maintenance are very easy steps that anybody can perform.

Depth setting

Easy working depth setting by demarcation washers. In the working position, the machine leans against the rear double spiked roller.

Disks height setting

The height of the leveling discs is set automatically using a parallelogram of the rear roller attachment. The handles for mechanical setting are used for precise tuning.

Hydraulic control of disks

To increase comfort of operator, the machine can be equipped with hydraulic control of the leveling disks. (optional)

Setting of the down pressure

Simple mechanical setting of the down pressure of the first row of the double spiked roller. The down pressure regulates the intensity of clods crushing. The roller is equipped with maintenance-free bearings with high level of covering.

Slight lifting of tines

For locally more compacted soils the front row of tines can be lifted a little bit and thus the machine traction resistance can be temporarily lowered. The slight lifting of tines is advantageous also for simple cleaning of the space among tines.

Position of wings

The vertical position of wings can be adjusted in three positions and thus obtain optimum incorporation of crop residues for various depths of loosening.

Side deflectors

For more precise connection between each passes the machine can be equipped with side deflectors with adjustable height that automatically follow the contour of the field.

Ball valves

For easier disconnection of hydraulic circuits of tines protection, these circuits are equipped with ball valves when the machine is disconnected and stored.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
