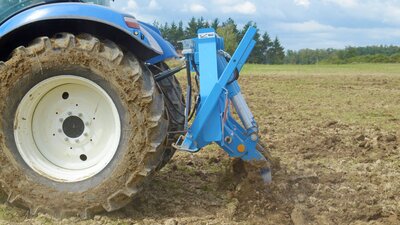

Subsoiler KRTEK

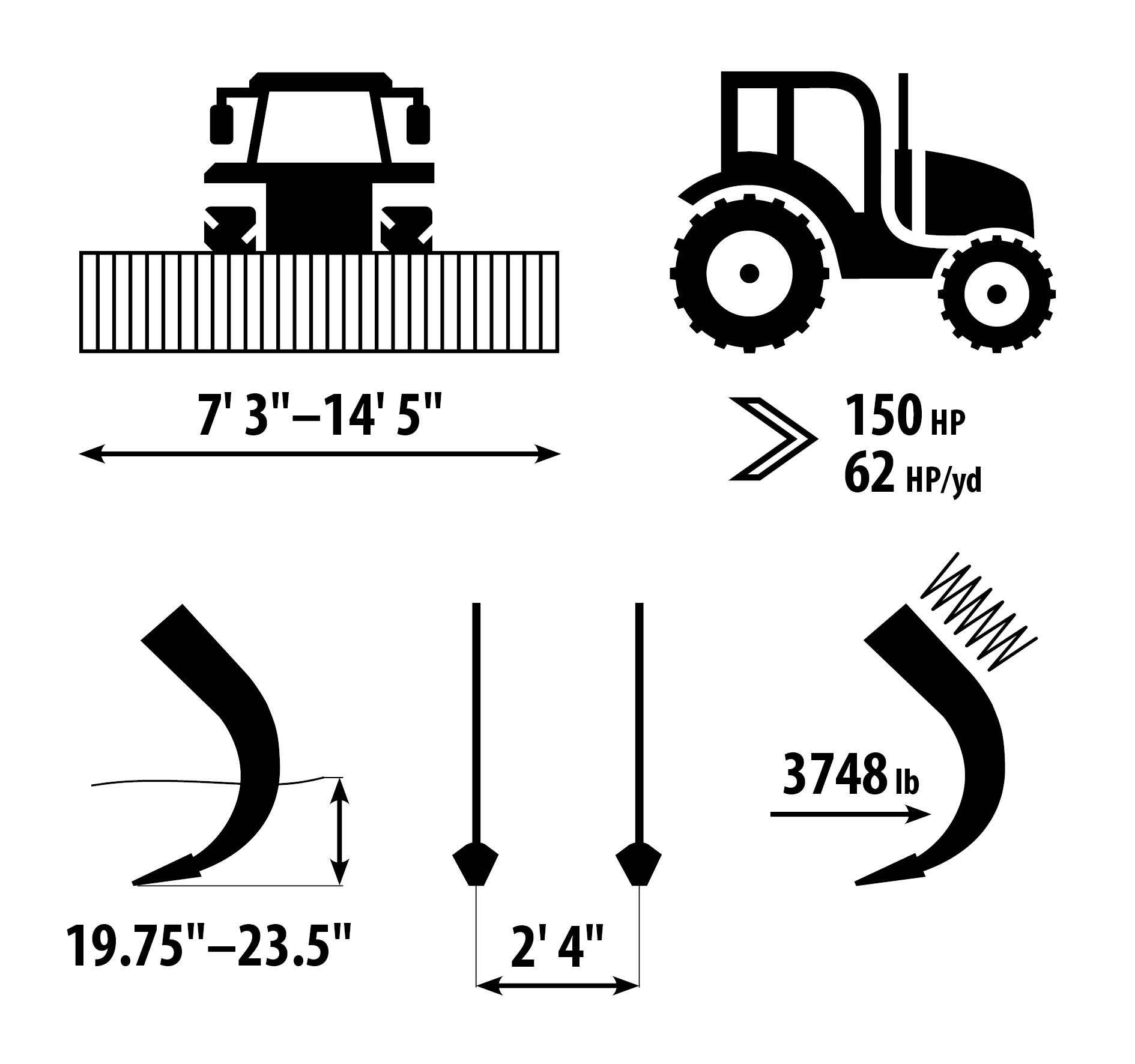

Subsoiler Krtek is designed for deep loosening of soil without mixing it with subsurface layer up to the depth of 23.5".

Higher yields due to significantly better microclimate in soil

The subsoiler is designed for work in all soil conditions which is enabled by hydraulic automatic protection. It does not have to be used every year, when using anti compaction methods, soil is left uncompacted due to the action of water, frost, roots, and micro-organisms. Enables loosening of subsurface layer without risk of mixing of inactive soil with topsoil. For use when it is not possible to prevent excessive compaction of the soil (e.g. after sugar beet). To restore drainage in  waterlogged lands.

High performance

• High working speed up to 8 mph.
• Optimum shape of shanks for safe penetration into the soil without mixing it with biologically inactive soil.
• Superior stability of the machine with possibility of accuracy depth guiding with the use of gauge wheels.

Subsoiler Krtek

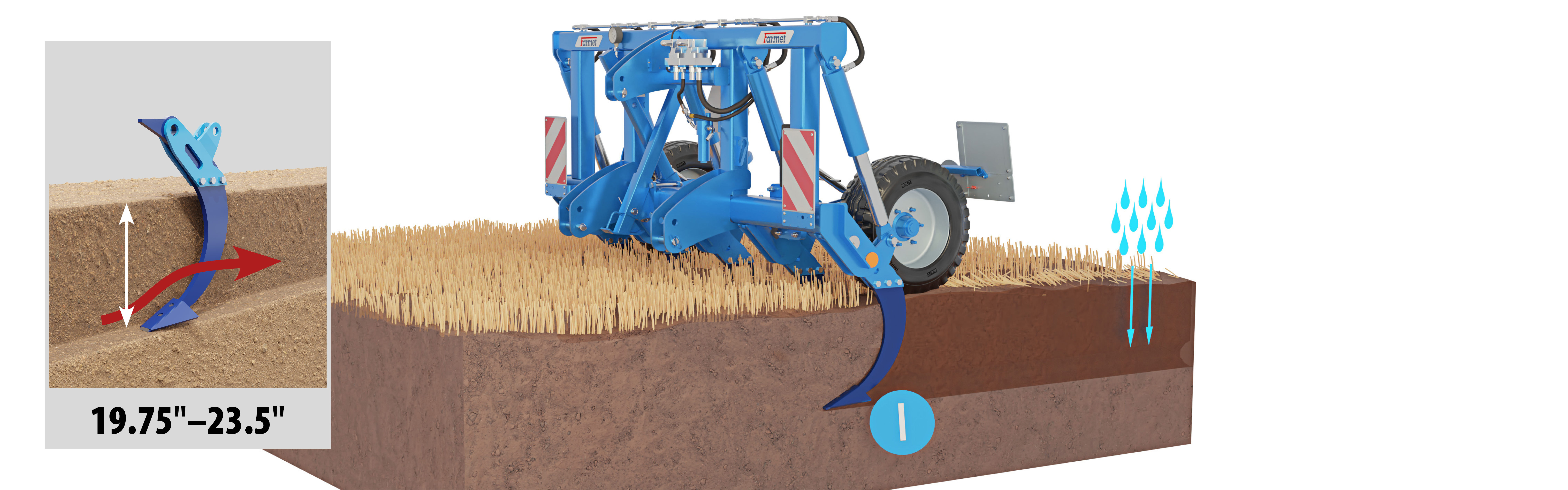

1. Shanks in one row for deep loosening up to the depth of 23.5".
   Hydraulic protection of the working units.
2. Zadní válec zajistí dobré zpětné utužení, rozdrobení hrud a urovnání povrchu pozemku.

Subsoiler Krtek

1. Shanks in one row for deep loosening up to the depth of 23.5".
   Working units are protected by solid rods.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. The frame is heavily designed.

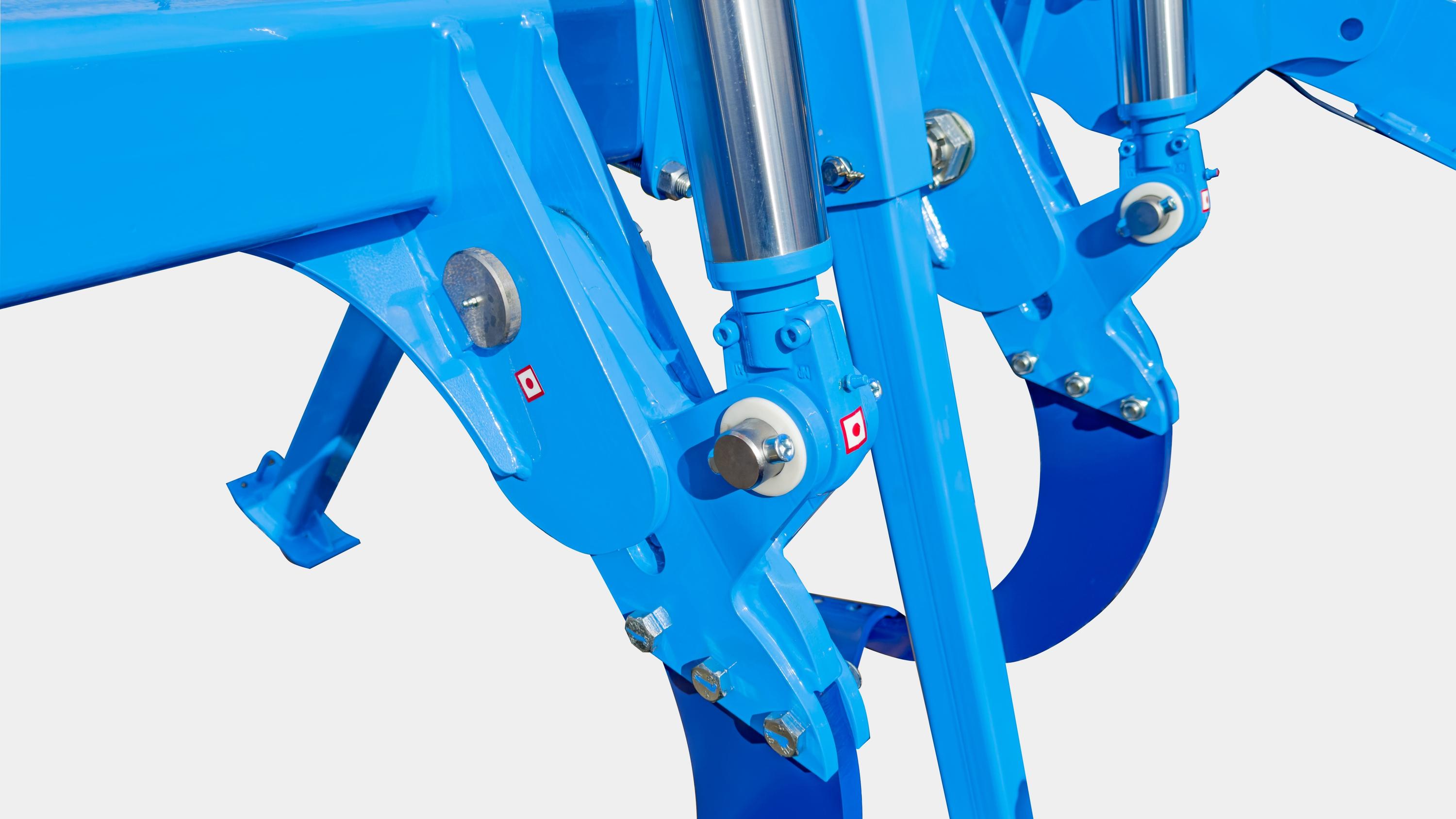

Working units

Working units of an attested design with the option of efficient automatic hydraulic protection, or alternatively with maintenance-free solid rods.

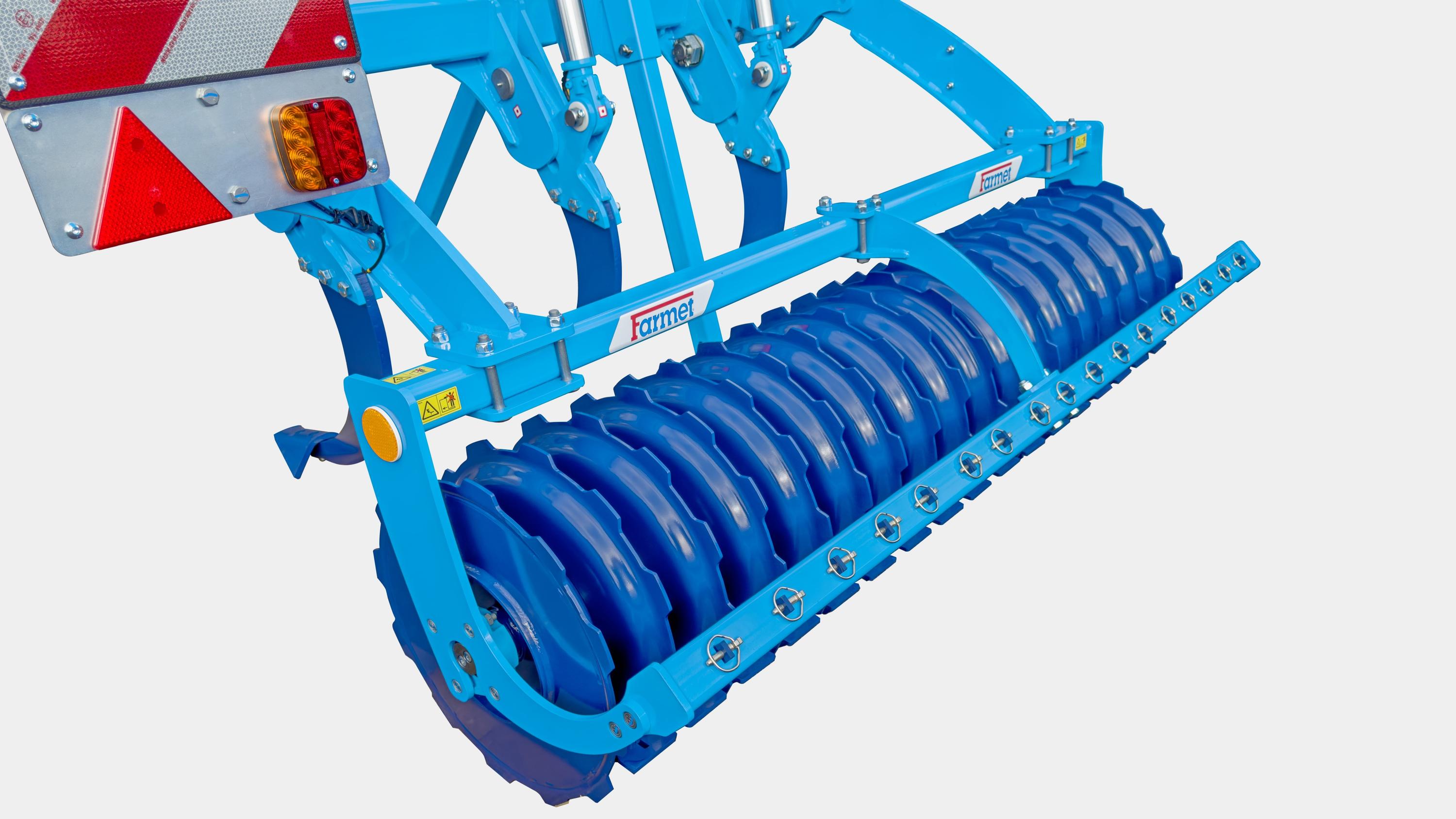

Rear roller

Subsoiler Krtek can be additionally equipped with the rear roll for more precise deep guiding of the machine and crushing of clods. It cannot be combined with gauge wheels. (optional)

Easy operation

Due to minimum of adjusting points the operation and subsequent maintenance are very easy steps that everybody can perform.

Lubrication

Minimum lubrication points.

Working depth adjustment

The working depth is adjusted by the position of the tractor hinge shoulders.

Adjustment of gauge wheels

Easy adjustment of the position of gauge wheels using adjusting screws. (optional)

Adjustment of the roller position

Simple adjustment of the position of the roller using the pin on the slotted piece of the roller. (optional)

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
