| 1 | Leveling soil surface zone. It can be used well in seedbed preparation. |
| 2 | Tillage zone. Tillage depth 1.5"–6". The shanks arranged in four rows with optimized geometry and small final spacing ensure excellent full-surface tillage and intensive soil mixing with crop residues. |
| 3 | Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 4 | Clods crushing and soil re-compaction zone. Optimal soil re-compaction ensures good water infiltration and soil water capillarity to the surface. |
The semi-mounted 4-row tine cultivator Fantom CLASSIC with low pulling requirement and variable tillage depth up to 6".

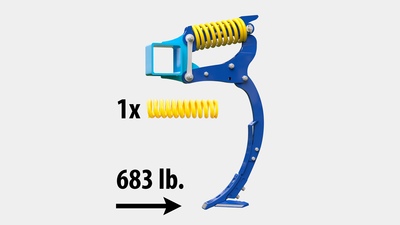

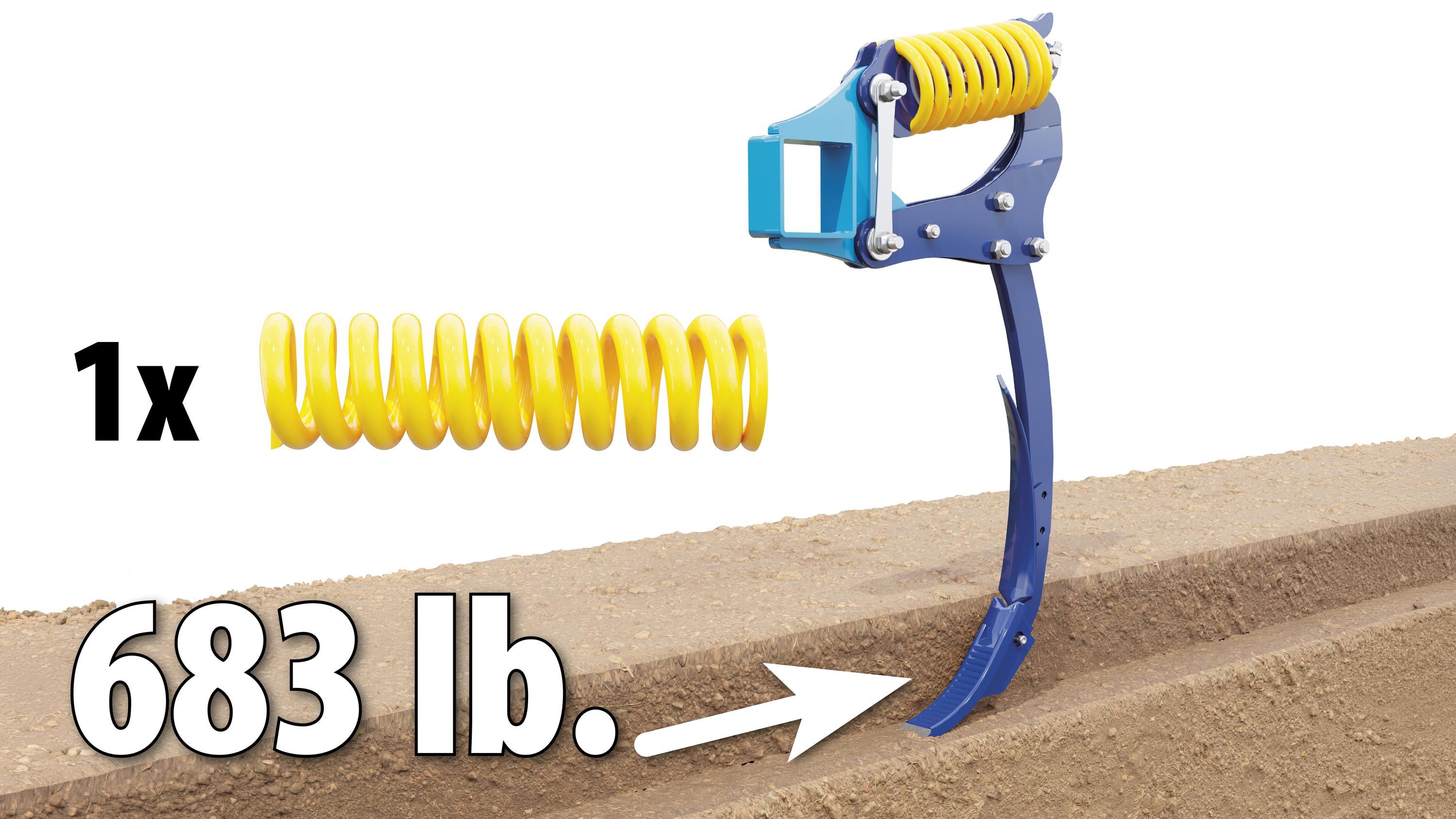

Intensive and fine tillage is enabled due to 7.5" shank spacing. There is a spring protection on shanks with a very high release force of 683 lb. on the shank tip. The cultivator is characterized by consistent working depth even in more extreme conditions.
The semi-mounted 4-row tine cultivator Fantom CLASSIC with low pulling requirement and variable tillage depth up to 6".
Intensive and fine tillage is enabled due to 7.5" shank spacing. There is a spring protection on shanks with a very high release force of 683 lb. on the shank tip. The cultivator is characterized by consistent working depth even in more extreme conditions.
Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

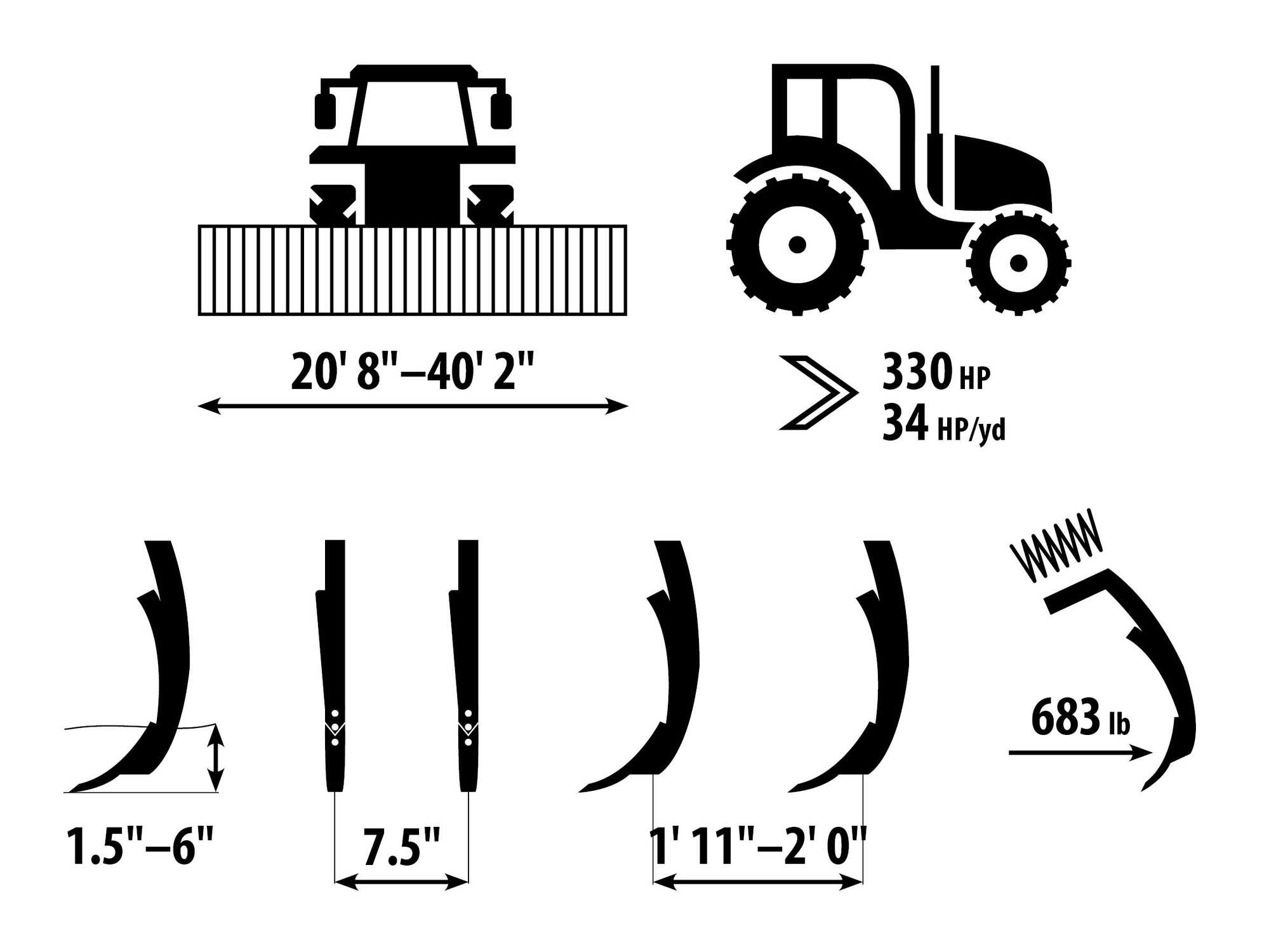

| Technical parameters | Units | Fantom 650 CLASSIC |
Fantom 850 CLASSIC |
Fantom 1250 CLASSIC |
|---|---|---|---|---|
| Working width | ft. | 20' 8" | 28' 0" | 40' 2" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 12' 0" | 13' 1" | 13' 1" |
| Total machine length | ft. | 26' 3" | 28' 6" | 26' 11" |
| Working depth | in. | 1.5"–6" | 1.5"–6" | 1.5"–6" |
| Number of shares | pcs | 33 | 45 | 64 |
| Share spacing | in. | 7.5" | 7.5" | 7.5" |
| Number of share rows | pcs | 4 | 4 | 4 |
| Row spacing | ft. | 1' 11"–2' 0" | 1' 11"–2' 0" | 1' 11"–2' 0" |
| Release force of shares | lb. | 683 | 683 | 683 |
| Frame clearance | ft. | 1' 10" | 1' 10" | 1' 10" |
| Working performance | ac/h | 10.9–17.8 | 16.8–25.2 | 24.7–37.1 |
| Towing vehicle 1 | kW HP |
200–300 270–410 |
245–370 330–500 |
330–440 450–675 |
| Working speed | mph | 5–8 | 5–8 | 5–8 |
| Maximum transport speed 3 | mph | 19 | 19 | 19 |
| Maximum slope availability | ° | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 5 / 200 | 5 / 200 | 5 / 200 |
| Number of hydro-couples / type | 8 / ISO 12,5 | 8 / ISO 12,5 | 8 / ISO 12,5 | |

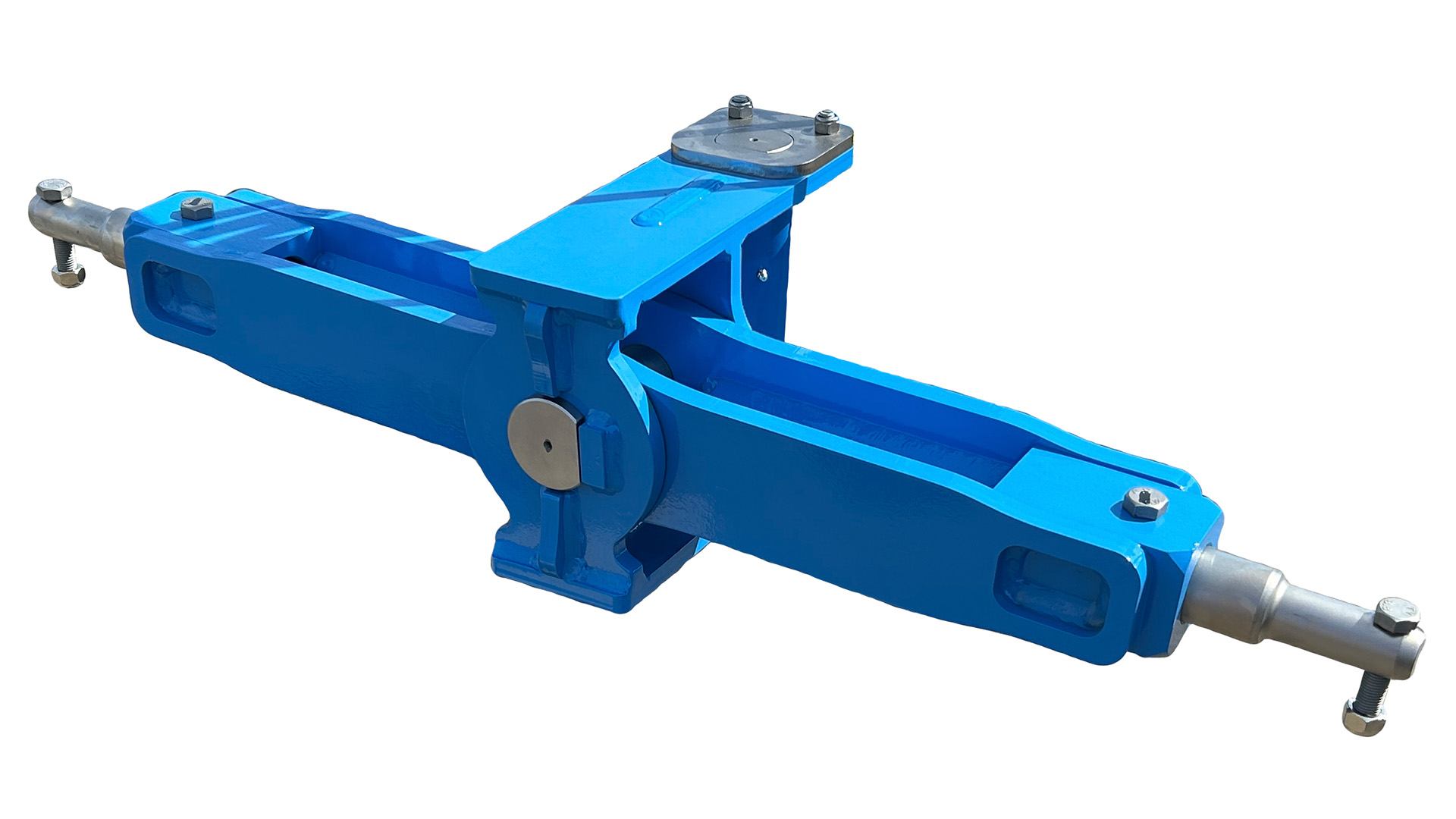

| Tractor hitch requirement | TPH cat. 3; peg Ø 2", 2.75"; hinge K80 | TPH cat. 3; peg Ø 2", 2.75"; hinge K80 | peg Ø 2", 2.75"; hinge K80 | |
| Machine weight 2 | lb. | 15,432 | 19,621 | 27,337 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Depends on the used type of the roller.
3 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
| Diameter | 23" |
| Weight | 530 lbs./yd |
| Diameter | 23" |
| Weight | 482 lbs./yd |
LTX roller cannot be used for Fantom 850 CLASSIC.
| Diameter | 24" |
| Weight | 241 lbs./yd |
| Diameter | 22"/22" |
| Weight | 434 lbs./yd |
Double V-ring cannot be used for Fantom 1250 CLASSIC.
| Diameter | 21"/21" |
| Weight | 470 lbs./yd |
Double ring roller cannot be used for Fantom 1250 CLASSIC.
| Diameter | 24" |
| Weight | 422 lbs./yd |
| Diameter | 20"/20" |
| Weight | 398 lbs./yd |
Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Roller | Tube-shaped TRS |
Double ring DRR |
Double DFR |
LTX |
|---|---|---|---|---|
| Crumbling | ●●○○ | ●●●○ | ●●●○ | ●●○○ |
| Stamping | ●●●○ | ●●●● | ●●●● | ●●●● |
| Depth guiding | ●●●○ | ●●●● | ●●●● | ●●●● |
| Resistance against clogging | ●○○○ | ●●●● | ●●●● | ●●●○ |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●○○○ | ●●●● | ●●●● | ●●●● |
| Heavy soils | ●●○○ | ●●●● | ●●●● | ●●●● |
| Medium soils | ●●●○ | ●●●● | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● | ●●●● | ●●●○ |
| Roller | Disk SDR |
VR | Double V-ring DVR |
|---|---|---|---|
| Crumbling | ●●●○ | ●●●○ | ●●●○ |
| Stamping | ●●●● | ●●●● | ●●●● |
| Depth guiding | ●●●● | ●●●● | ●●●● |
| Resistance against clogging | ●●●○ | ●●●● | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● | ●●●● |
| Heavy soils | ●●●● | ●●●● | ●●●● |
| Medium soils | ●●●● | ●●●● | ●●●● |
| Light soils | ●●●○ | ●●●● | ●●●● |
| Share width | 2" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Hardness of hard facing | up to 60 HRC |
| Share service life | + 400-600 % |
| Chisel width | 2" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share width | 12" |
| Share body width | 1.75" |
| Share thickness | 0.25" |
| Body hardness | up to 55 HRC |
| Carbide plate hardness | up to 92 HRA |
For all-area undercutting
| Chisel width | 2" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 400-600 % |
| Share width | 9" |
| Share thickness | 0.25" |
| Body hardness | up to 55 HRC |
Divides 1 tractor circuit into 3 circuits.
