Tine cultivator FANTOM NS

The Cultivator Fantom N/NS is a mounted machine with three rows of shanks suitable for full-surface post-harvest stubble cultivation with intensive mixing effect.

The complex machine can be used for stubble cultivation and pre-sowing tillage

There is the asymmetric bar harrow for leveling the surface behind shanks. The harrow is characterized by efficient leveling effect and high flow through for crop residues. The cage roller ensures  optimal soil re-compaction  and also accuracy deep guiding of the machine.

Universal machine with a low purchase price and high utility value

Due to its design, the Fantom cultivator is very versatile and can be used both for stubble-cultivation and pre-sowing tillage, as well as for incorporation manure. Low machine weight decreases loading on rear tractors parts during transportation. Due to its simple and rugged design, the Fantom cultivator offers optimal compromise between the purchase price and utility value.

The Cultivator Fantom N/NS is a mounted machine with three rows of shanks suitable for full-surface post-harvest stubble cultivation with intensive mixing effect.

The complex machine can be used for stubble cultivation and pre-sowing tillage

There is the asymmetric bar harrow for leveling the surface behind shanks. The harrow is characterized by efficient leveling effect and high flow through for crop residues. The cage roller ensures  optimal soil re-compaction  and also accuracy deep guiding of the machine.

Universal machine with a low purchase price and high utility value

Due to its design, the Fantom cultivator is very versatile and can be used both for stubble-cultivation and pre-sowing tillage, as well as for incorporation manure. Low machine weight decreases loading on rear tractors parts during transportation. Due to its simple and rugged design, the Fantom cultivator offers optimal compromise between the purchase price and utility value.

High performance

• High working speed up to 8 mph.
• Low pulling requirement and excellent soil mixing due to shanks optimized design.

High work quality

• Accuracy deep guiding with optimal soil compaction.
• Excellent penetration of the shanks into the ground.
• Maintenance-free working units fitted with carbide plates for minimal wear.
• Shanks design ensures high flow through for crop residues.

Tine cultivator Fantom N/NS

1. The soil is cultivated by the shanks arranged in three rows.
2. The soil is compacted by the rear roller.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

Abrasion-resistant steel

The time-tested shanks are made of high-strength abrasion-resistant steels fitted with carbide plates. The variant with hard facings along the guiding increases shanks lifespan even more.

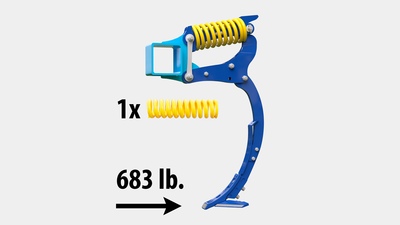

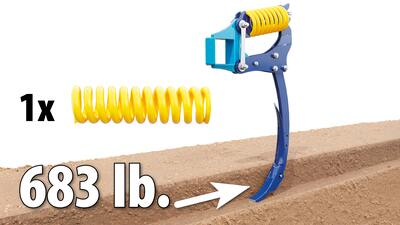

Spring protection

Durable and maintenance-free spring protection with high release force of 683 lb. on shank tip.

Quick clamping system of chisels

The quick clamping system of chisels (wedge, bolt) enables very fast replacement of the chisels without loss risk of the working units.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform. Working depth adjustment or leveling harrows in this case is a simple mechanical adjustment of the machine.

• Minimum lubrication points.
• Minimum adjustment points.

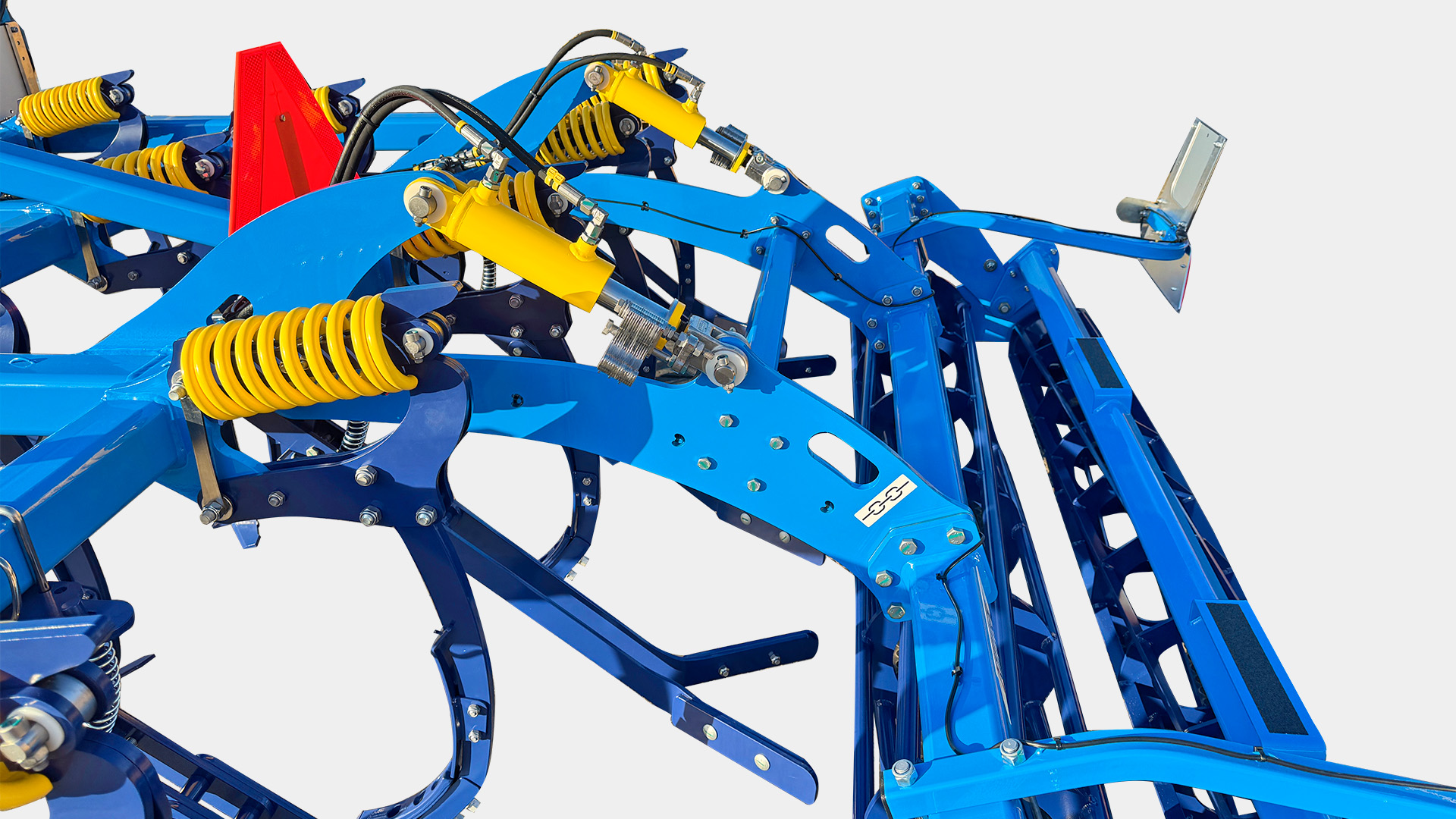

Depth adjustment

Easy working depth adjustment by the pin on the rollers.

Harrows adjustment

Adjustment of leveling harrows by the pin.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

• Skilful when working in the field due to a short and compact design.
• Quiet position of the machine in the field due to a short compact design.
• Possibility to work with folded machine.

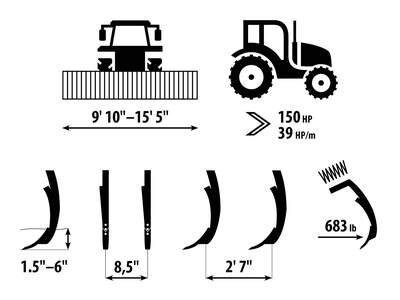

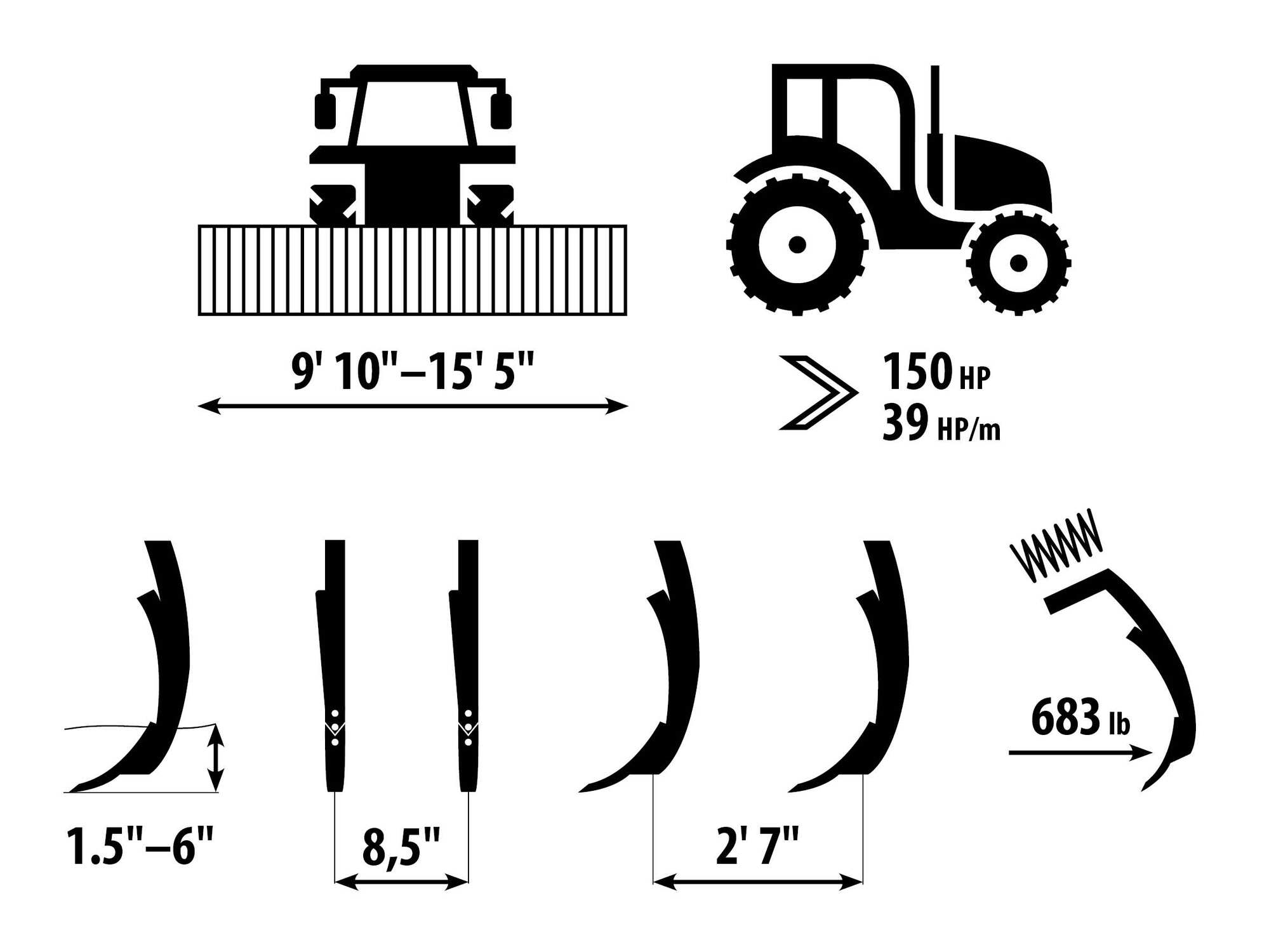

Working width 9' 10"

Work with folded machine.

Working width 15' 5"

Full working width.

Micro Drill seeding unit

The sophisticated machine design allows an installation of the Micro Drill seeding unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

Full-surface stubble tillage

When equipped with sided wings, it can be used for full-surface undercut up to 6" depth.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Machine weight with tube roller.
³ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - carried foldable machine
