| 1 | Leveling soil surface zone. It can be used well in seedbed preparation. |
| 2 | Tillage zone. Tillage depth 1.5"–6". The shanks arranged in five rows with optimized geometry and small final spacing ensure excellent full-surface tillage and intensive soil mixing with crop residues. |

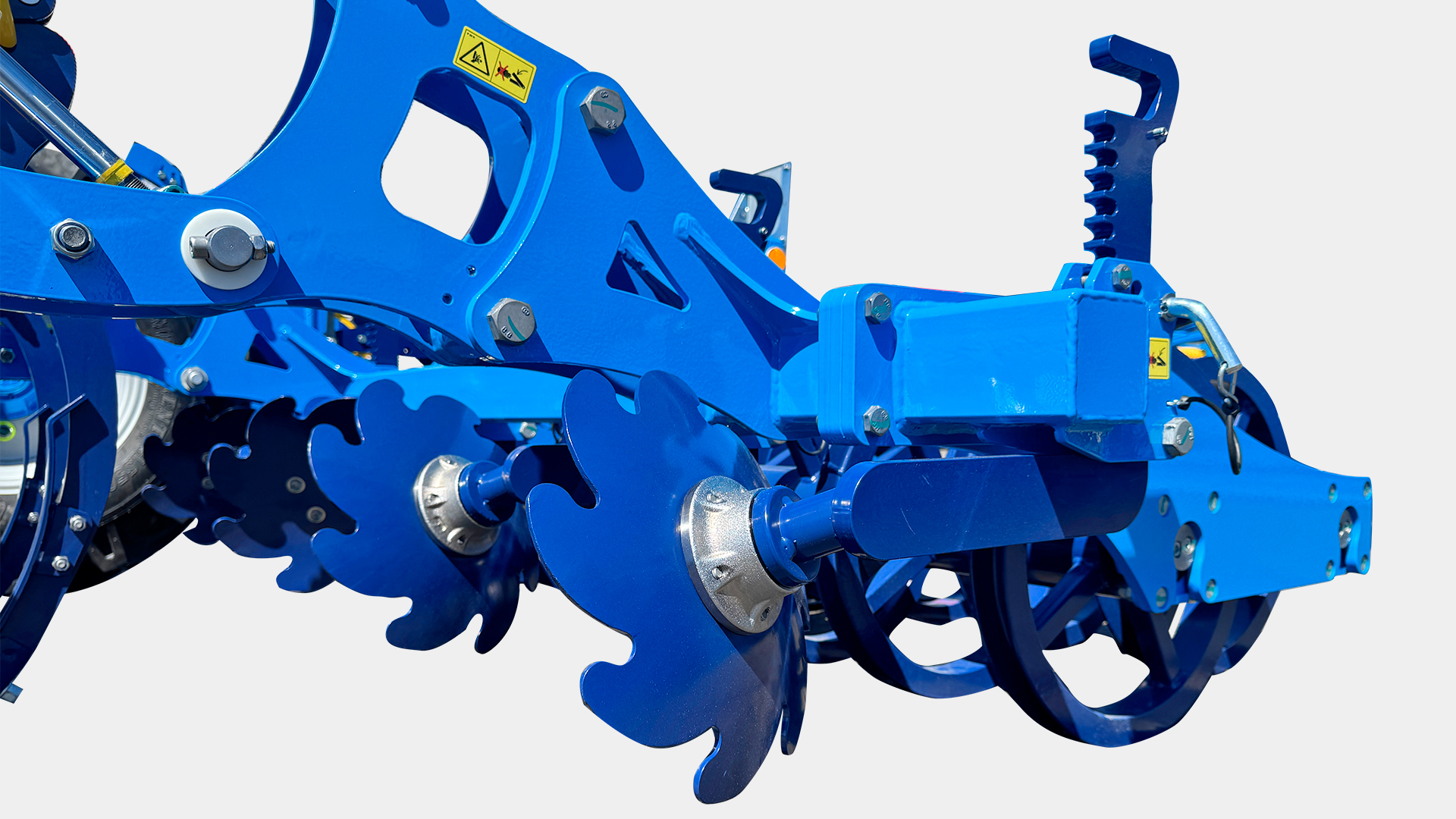

| 3 | Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 4 | Clods crushing and soil re-compaction zone. Optimal soil re-compaction ensures good water infiltration and soil water capillarity to the surface. The rollers can be also easily removed and work without rollers. |
The semi-mounted 5-row modular cultivator Fantom PRO with low pulling requirement and variable tillage depth is suitable for spring, summer and fall work and due to its modularity it can start the spring work very soon since it can handle even more wet soil.
Shanks with 6" spacing are arranged in 5 rows. Due to its optimized spacing in combination with 2' 2" high framework clearance an excellent crop residues flow through and resistance to plugging are achieved. The tapping system of sided wings and chisels enables their easy and fast replacement.
Fantom PRO is equipped with an integrated axle and gauge wheels. Due to this, it is possible to operate the machine without rear accessories (e.g. rollers or harrows). The quick-clamping system is used for attachment of the rear accessories. This way the disconnection or connection is a question a few minutes.
The semi-mounted 5-row modular cultivator Fantom PRO with low pulling requirement and variable tillage depth is suitable for spring, summer and fall work and due to its modularity it can start the spring work very soon since it can handle even more wet soil.
Shanks with 6" spacing are arranged in 5 rows. Due to its optimized spacing in combination with 2' 2" high framework clearance an excellent crop residues flow through and resistance to plugging are achieved. The tapping system of sided wings and chisels enables their easy and fast replacement.
Fantom PRO is equipped with an integrated axle and gauge wheels. Due to this, it is possible to operate the machine without rear accessories (e.g. rollers or harrows). The quick-clamping system is used for attachment of the rear accessories. This way the disconnection or connection is a question a few minutes.
The rear accessories is connected through the parallelogram ensuring perfect follow field contouring and consequently the modular system enables replacement or full disconnection rear rollers and other accessories. Due to the integrated axle, the machine can operate without the rear accessories when the shares or chisels located behind the wheels perform smoothing and tillage of the formed ruts. The integrated axle also ensures good controllability and quick turning during operation and transport as well. The 2' 2" high frame clearance provides optimum flow through and adaptability to field conditions. Quality tillage and mixing soil with subsequent crop residues incorporation with relatively low pulling requirement is ensured by the replaceable shares or chisels. Possible replacement of shares is quick and easy due to the quick-clamping system (wedge or pin).
The rear accessories is connected through the parallelogram ensuring perfect follow field contouring and consequently the modular system enables replacement or full disconnection rear rollers and other accessories. Due to the integrated axle, the machine can operate without the rear accessories when the shares or chisels located behind the wheels perform smoothing and tillage of the formed ruts. The integrated axle also ensures good controllability and quick turning during operation and transport as well. The 2' 2" high frame clearance provides optimum flow through and adaptability to field conditions. Quality tillage and mixing soil with subsequent crop residues incorporation with relatively low pulling requirement is ensured by the replaceable shares or chisels. Possible replacement of shares is quick and easy due to the quick-clamping system (wedge or pin).
Share tips are standardly fitted with carbide plates ensuring prolonged service life and optimal geometry of shanks throughout the lifetime of the machine. There are the leveling disks located behind the shares. The disks ensure leveling the soil surface. To achieve an optimal surface structure and superior re-compaction, there is an option of an appropriate rear roller. Down-pressure of the rollers can be choose – either with the own weight of the connecting device or with the hydraulic force. When the working depth is changed, the down-pressure is automatically adapted so that the soil is compacted with the same force. There are various types of rear rollers. The roller provides re-compaction the soil, crushing clods and leveling the surface. Due to the quick-clamping system it is possible to easily replace the rollers, e.g. for the bar harrows, or operate absolutely without the rear accessories. Re-adjustment of the machine can be performed during operation by the hydraulic circuits.
Share tips are standardly fitted with carbide plates ensuring prolonged service life and optimal geometry of shanks throughout the lifetime of the machine. There are the leveling disks located behind the shares. The disks ensure leveling the soil surface. To achieve an optimal surface structure and superior re-compaction, there is an option of an appropriate rear roller. Down-pressure of the rollers can be choose – either with the own weight of the connecting device or with the hydraulic force. When the working depth is changed, the down-pressure is automatically adapted so that the soil is compacted with the same force. There are various types of rear rollers. The roller provides re-compaction the soil, crushing clods and leveling the surface. Due to the quick-clamping system it is possible to easily replace the rollers, e.g. for the bar harrows, or operate absolutely without the rear accessories. Re-adjustment of the machine can be performed during operation by the hydraulic circuits.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.
Due to minimum adjusting points the operation and subsequent maintenance are very easy steps that anybody can perform.
The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

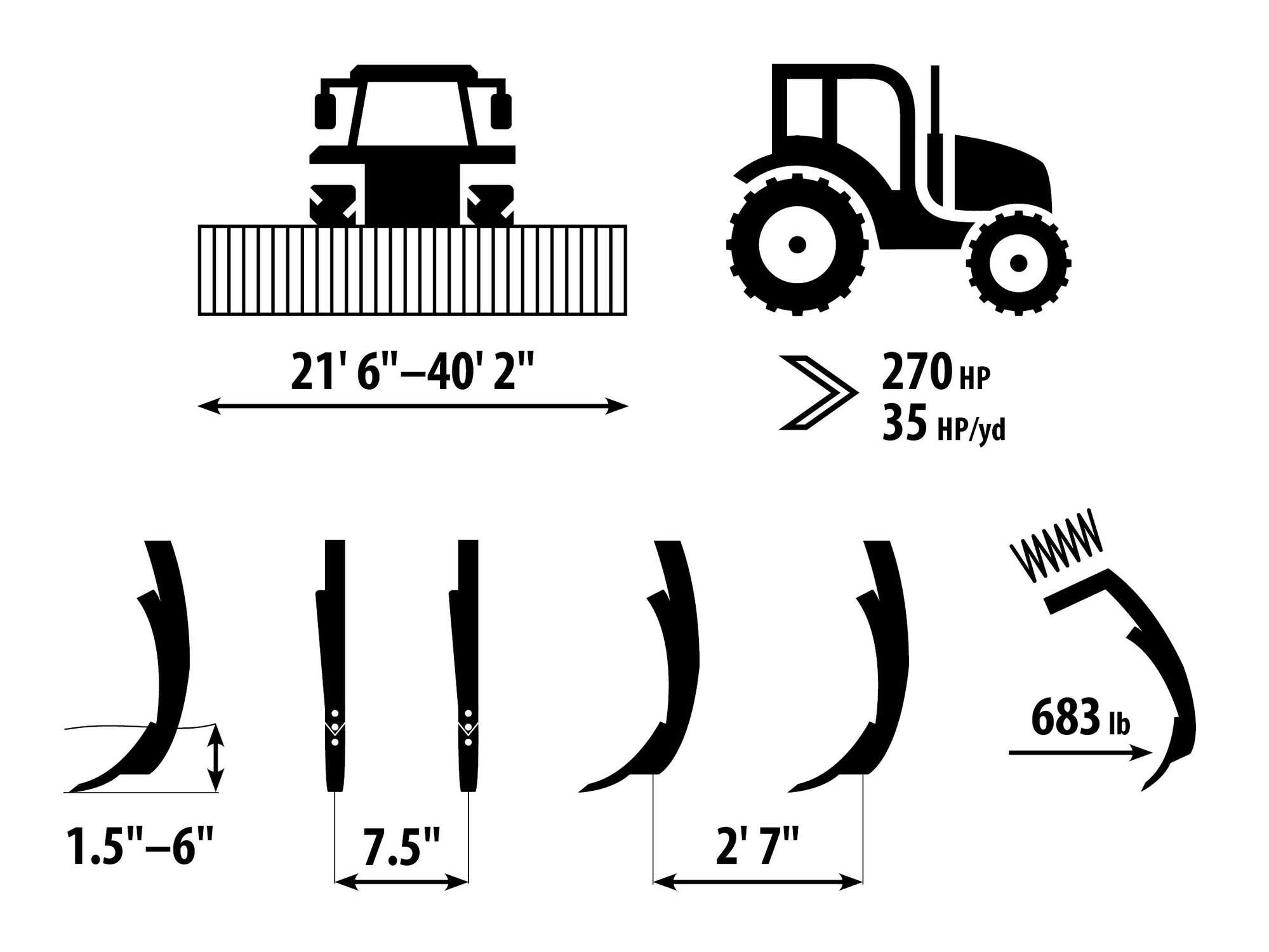

| Technical parameters | Units | Fantom 650 PRO |
Fantom 800 PRO |
Fantom 850 PRO |
Fantom 1050 PRO |
Fantom 1250 PRO |
|---|---|---|---|---|---|---|
| Working width | ft. | 21' 6" | 26' 5" | 27' 8" | 33' 11" | 40' 2" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 11' 8" | 13' 1" | 14' 0" | 12' 2" | 13' 1" |
| Total machine length | ft. | 32' 6" | 32' 6" | 32' 6" | 34' 1" | 34' 1" |
| Working depth | in. | 1.5"–6" | 1.5"–6" | 1.5"–6" | 1.5"–6" | 1.5"–6" |
| Number of shares | pcs | 35 | 43 | 45 | 57 | 67 |
| Share spacing | in. | 7.5" | 7.5" | 7.5" | 7.5" | 7.5" |
| Number of share rows | pcs | 5 | 5 | 5 | 5 | 5 |
| Row spacing | ft. | 2' 7" | 2' 7" | 2' 7" | 2' 7" | 2' 7" |

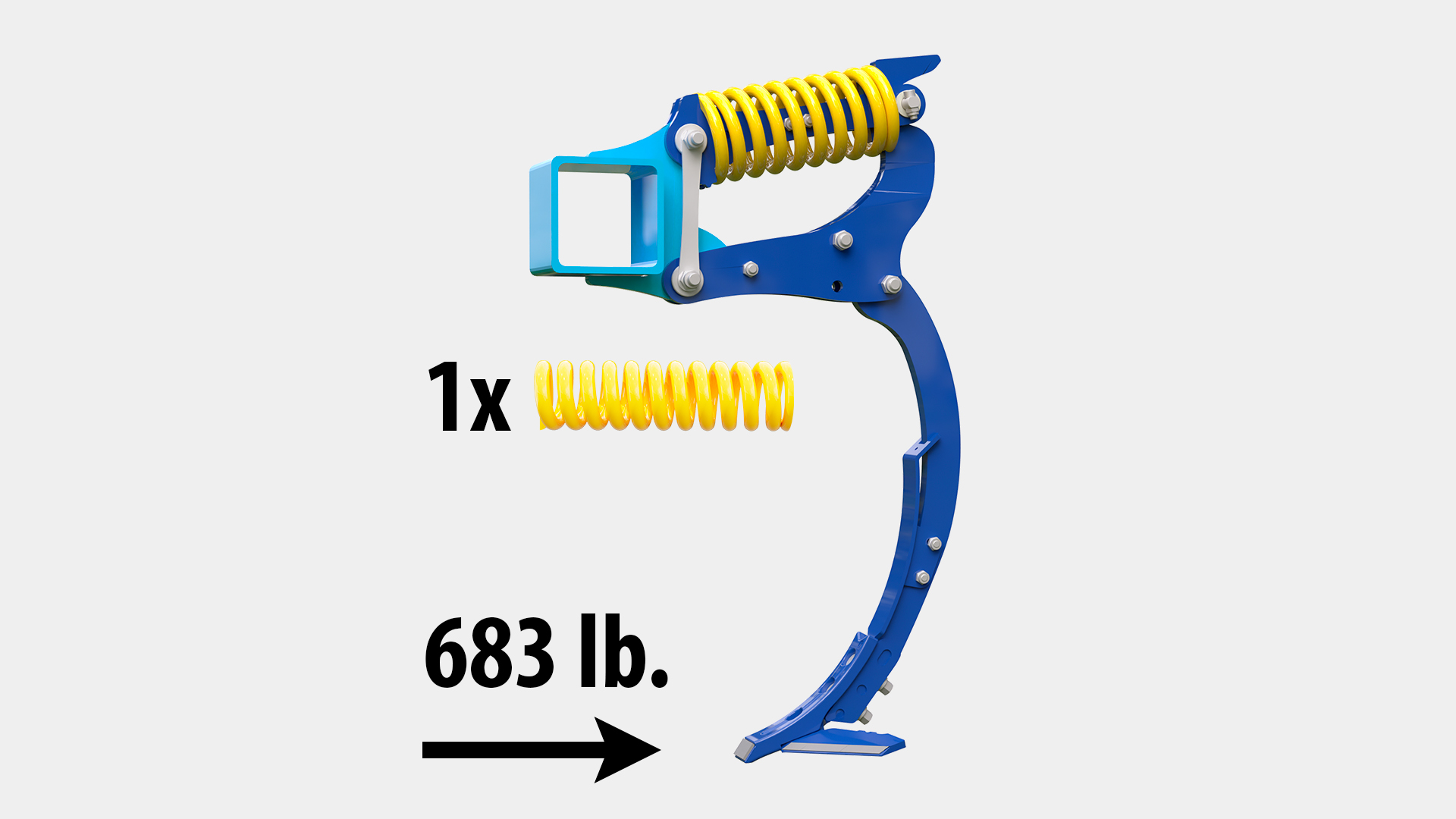

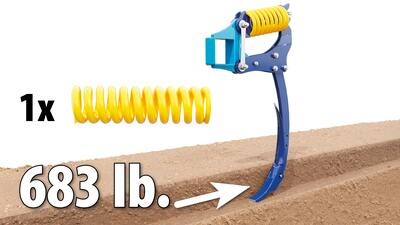

| Release force of shares | lb. | 683 | 683 | 683 | 683 | 683 |
| Number of supporting wheels | pcs | 4 | 6 | 6 | 8 | 8 |
| Number of transport wheels | pcs | 2 | 2 | 2 | 2 | 2 |
| Frame clearance | ft. | 2' 2" | 2' 2" | 2' 2" | 2' 2" | 2' 2" |
| Working performance | ac/h | 12.8–19.3 | 15.8–23.7 | 16.8–25.2 | 20.8–31.1 | 24.7–37.1 |
| Towing vehicle 1 | kW HP |
200–300 270–405 |
230–350 310–475 |
245–370 330–495 |
295–400 400–550 |
400–440 550–675 |
| Working speed | mph | 5–8 | 5–8 | 5–8 | 5–8 | 5–8 |
| Maximum transport speed 4 | mph | 19 | 19 | 19 | 19 | 19 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 5–6 / 200 | 5–6 / 200 | 5–6 / 200 | 5–6 / 200 | 5–6 / 200 |
| Number of quick-coupling devices / type | 12 / ISO 12,5 | 12 / ISO 12,5 | 12 / ISO 12,5 | 12 / ISO 12,5 | 12 / ISO 12,5 | |
| Tractor hitch requirement | TPH cat. 3; pin Ø 2", 2.75"; ball K80 | pin Ø 2", 2.75"; ball K80 | ||||
| Machine weight 2 | lb. | 18,298 | 20,503 | 20,944 | 27,998 | 30,423 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Depends on the used type of the roller.

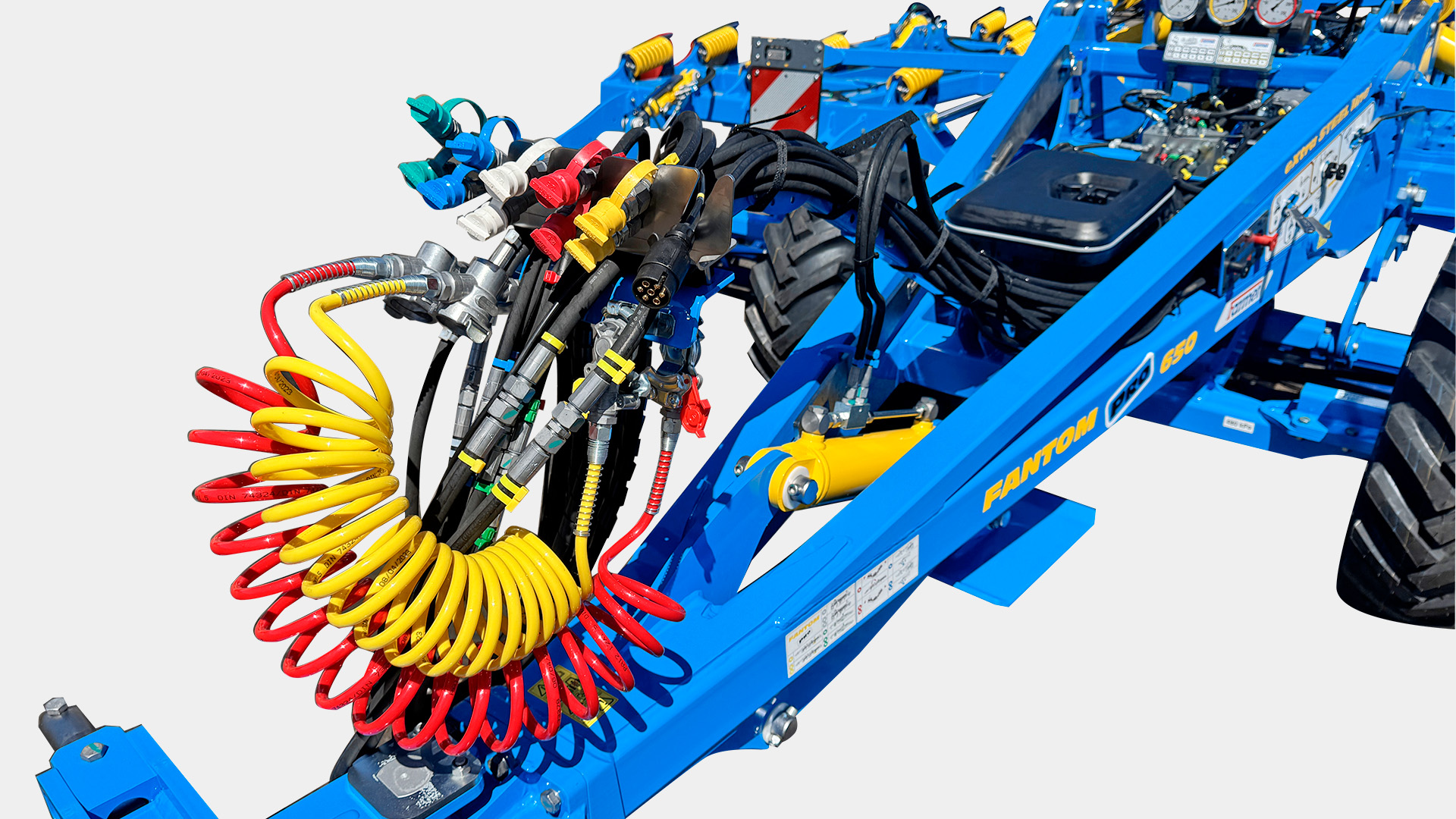

4Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
PRO - the transport axle is placed in front of the rear roller
| Diameter | 21" |
| Weight | 410 lbs./yd |
| Diameter | 20"/20" |
| Weight | 446 lbs./yd |
| Diameter | 20" |
| Weight | 217 lbs./yd |
| Diameter | 22"/22" |
| Weight | 422 lbs./yd |
| Diameter | 20"/20" |
| Weight | 398 lbs./yd |
| Diameter | 20"/20" |
| Weight | 434 lbs./yd |
Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Roller | Double ring DRR |
Double DFR |
Double spiked DSR |
Tube TR |
|---|---|---|---|---|
| Crumbling | ●●●○ | ●●●○ | ●●○○ | ●●○○ |
| Stamping | ●●●● | ●●●● | ●●●○ | ●●●○ |
| Depth guiding | ●●●● | ●●●● | ●●●● | ●●●○ |
| Resistance against clogging | ●●●● | ●●●● | ●●●● | ●○○○ |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● | ●●●● | ●○○○ |
| Heavy soils | ●●●● | ●●●● | ●●●● | ●●○○ |
| Medium soils | ●●●● | ●●●● | ●●●● | ●●●○ |
| Light soils | ●●●● | ●●●● | ●●●○ | ●●●● |
| Roller | Disk SDR |
Double V-ring DVR |
|---|---|---|
| Crumbling | ●●●○ | ●●●○ |
| Stamping | ●●●● | ●●●● |
| Depth guiding | ●●●● | ●●●● |
| Resistance against clogging | ●●●○ | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● |
| Heavy soils | ●●●● | ●●●● |
| Medium soils | ●●●● | ●●●● |
| Light soils | ●●●○ | ●●●● |
| Weight | 151 lbs./yd |
| Diameter | 12" |
| Weight | 138 lbs./yd |
| Harrow | Flexi-board + harrow |
Three-row harrow + Bar roller |
|---|---|---|
| Crumbling | ●●○○ | ●●●● |
| Stamping | ●○○○ | ●○○○ |
| Resistance against clogging | ●●●● | ●●○○ |
| Suitability for stony soils | ●●○○ | ●●○○ |
| Heavy soils | ●●○○ | ●●○○ |
| Medium soils | ●●●● | ●●●○ |
| Light soils | ●●●● | ●●●● |
| Share width | 2" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Hardness of hard facing | up to 60 HRC |
| Share service life | + 400-600 % |
| Chisel width | 2" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share width | 12" |
| Share body width | 1.75" |
| Share thickness | 0.25" |
| Body hardness | up to 55 HRC |
| Carbide plate hardness | up to 92 HRA |
For all-area undercutting
| Chisel width | 2" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 400-600 % |
| Share width | 9" |
| Share thickness | 0.25" |
| Body hardness | up to 55 HRC |
Divides 1 tractor circuit into 3 circuits.
