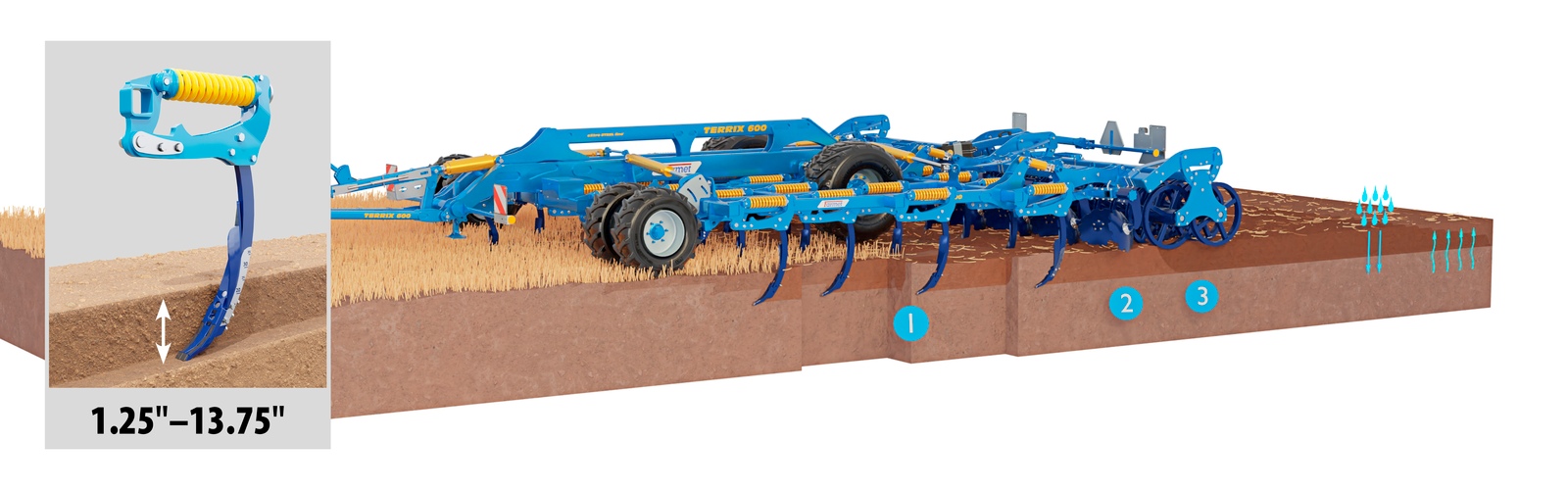

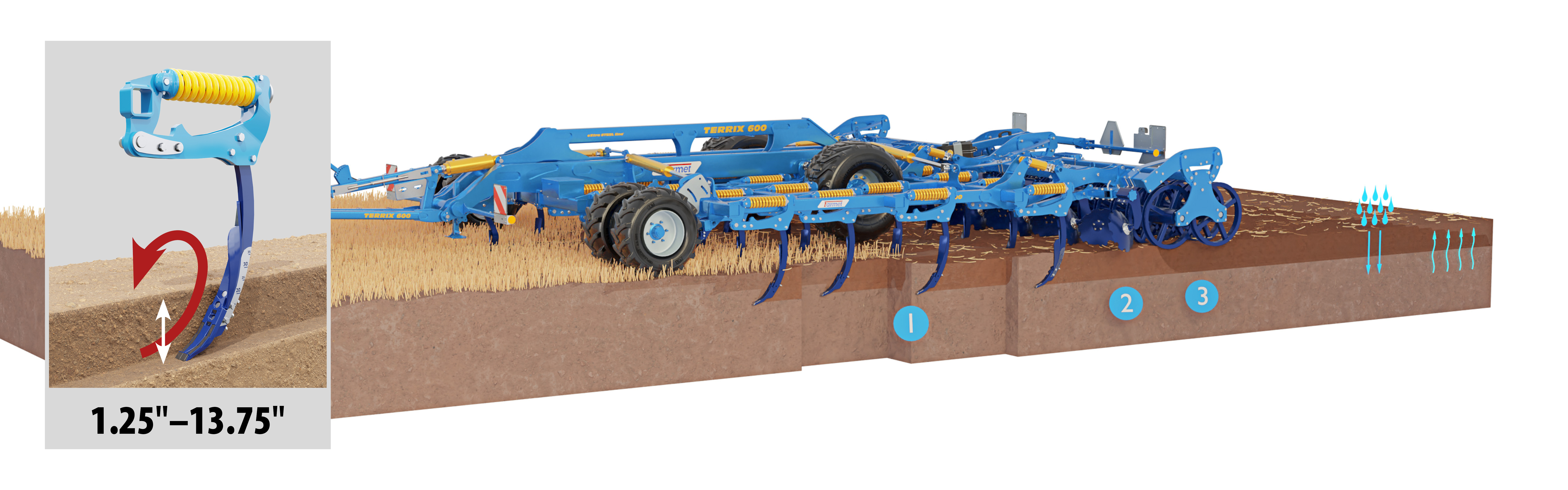

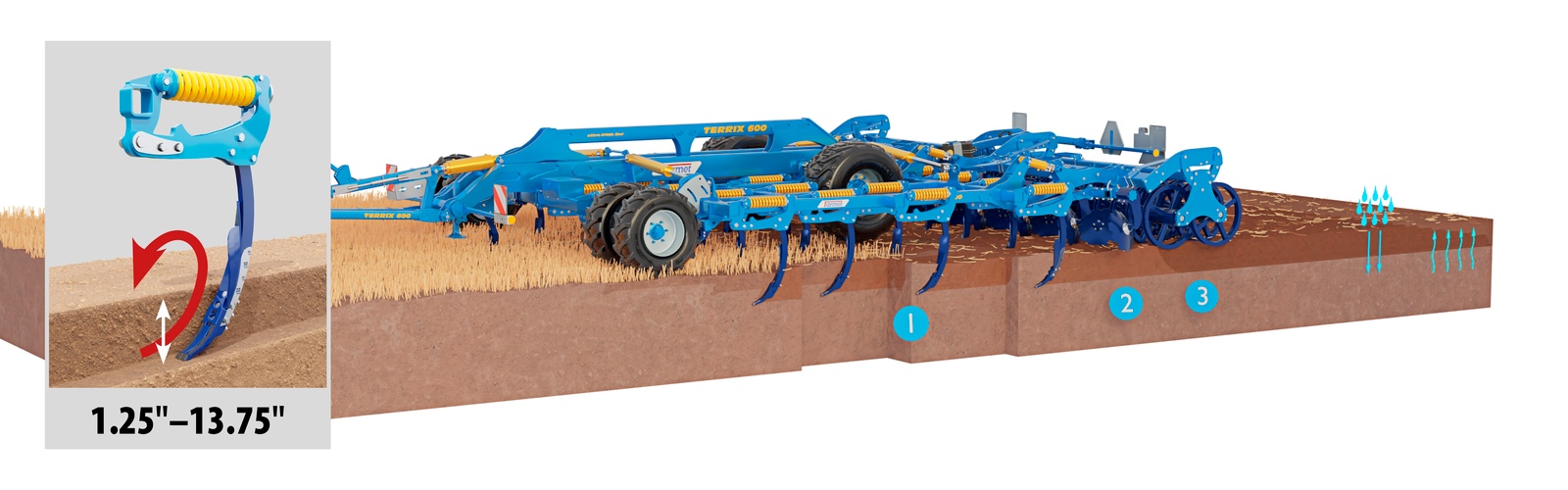

| 1 | Tillage zone. The tillage depth has a wide range of 4"─13.75". Tillage chisels with optimized geometry in four rows ensure very good full-surface tillage and intensive mixing of the soil with crop residues. |
| 2 | Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 3 | Clod crushing and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface. |

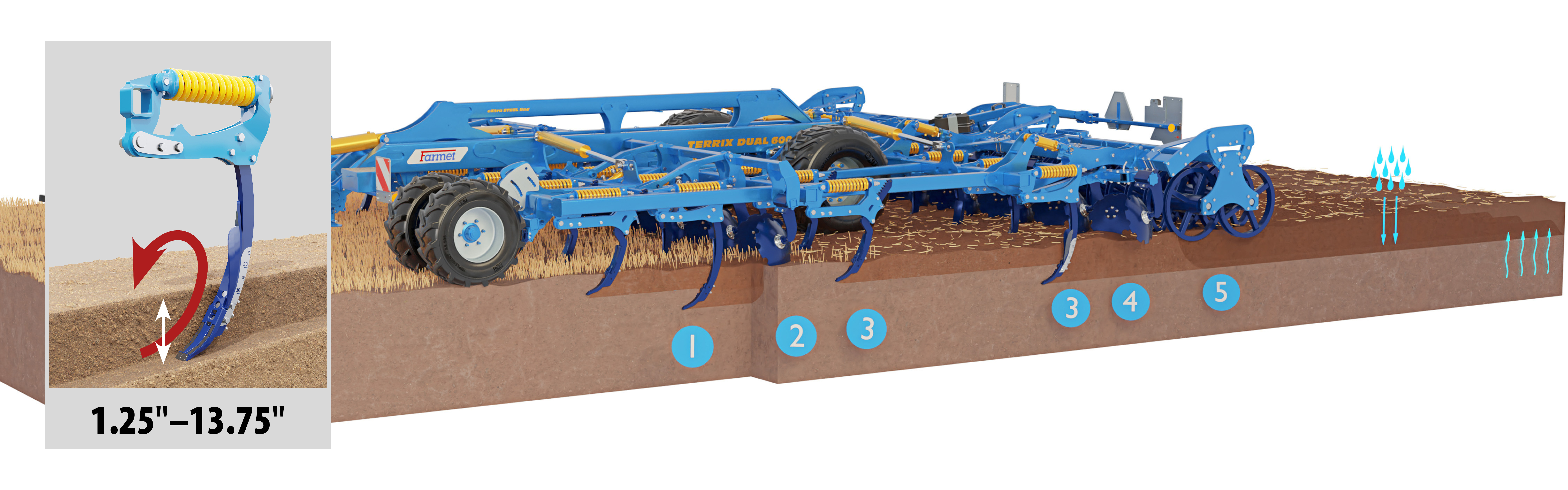

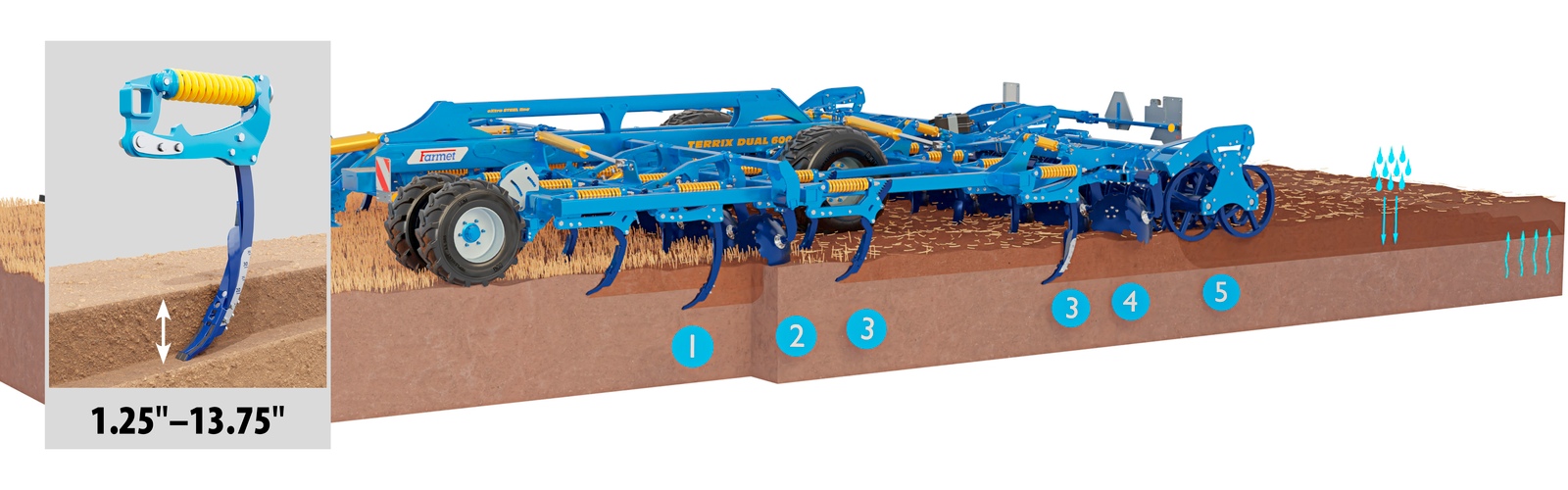

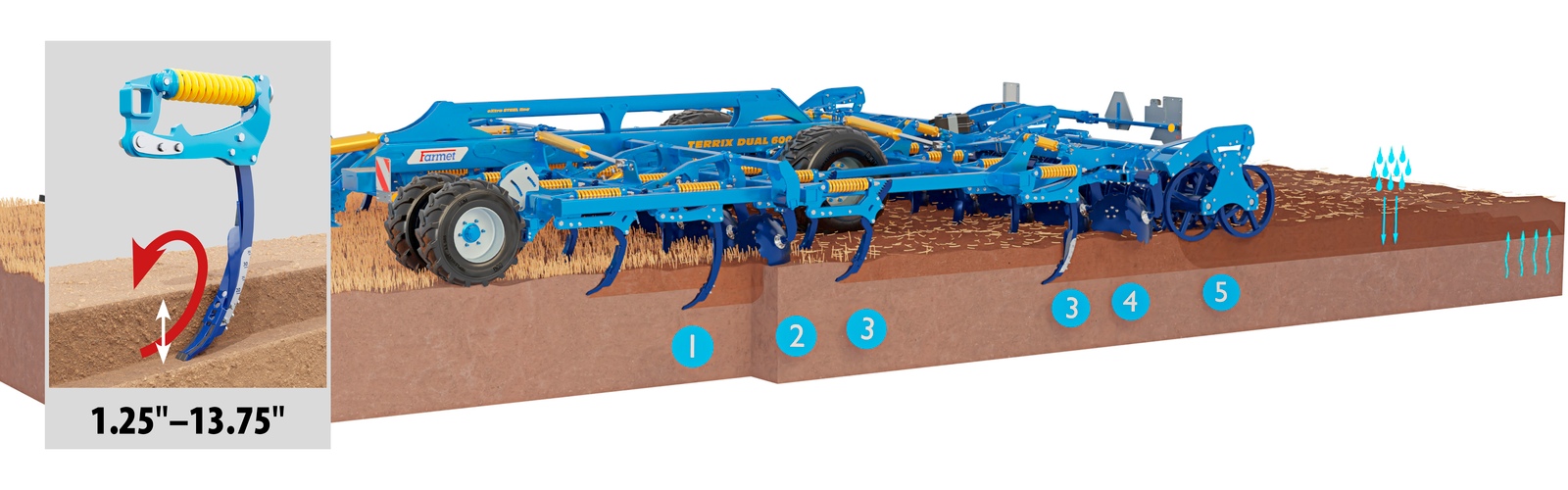

| 1 | First tillage zone. The first and second shank rows are arranged in tandem behind each other. The first row of shanks with optimized shape tills the soil to the depth of 4"-6". The second row of special shanks makes deeper tilled strips of soil behind the first row to the depth of 6"–13.75". |
| 2 | First furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 3 | Second tillage zone. The third and fourth shank rows are arranged in tandem behind each other again and it is tilling the intermediate soil strips behind the first tillage zone. The third shank row tills again soil from 4" to 6". The fourth shank row again makes deeper till strips of soil behind the third row to depth of 6"–13.75". |
| 4 | The second furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues. |
| 5 | Clods crushing and soil compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface. |
High-strength refined materials in conjunction with eXtra STEEL line technology guarantee long life of our machines even in the most extreme conditions.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

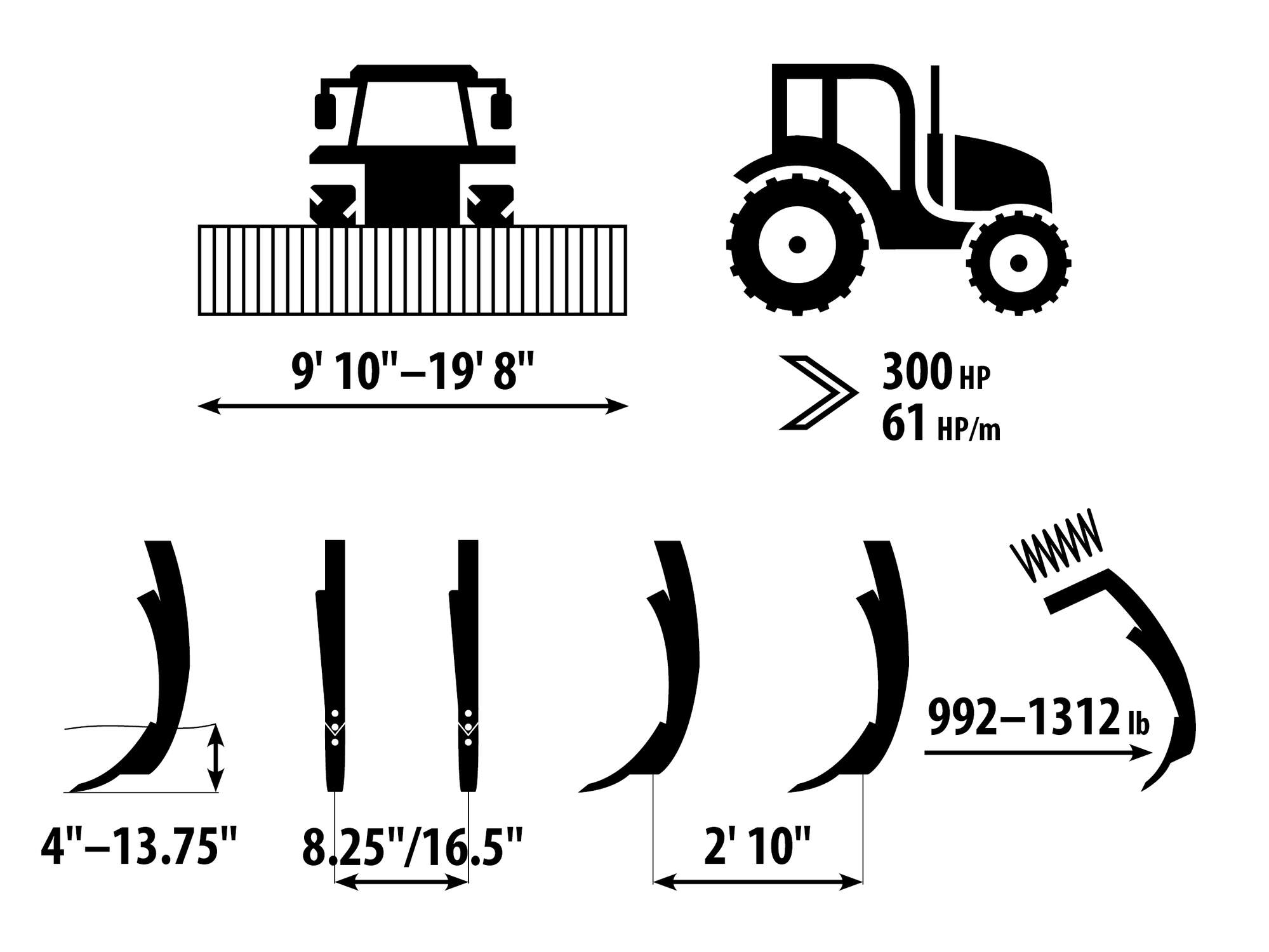

| Technical parameters | Units | Terrix Quatro 450 PS | Terrix Dual 450 PS | Terrix Quatro 600 PS | Terrix Dual 600 PS |
|---|---|---|---|---|---|

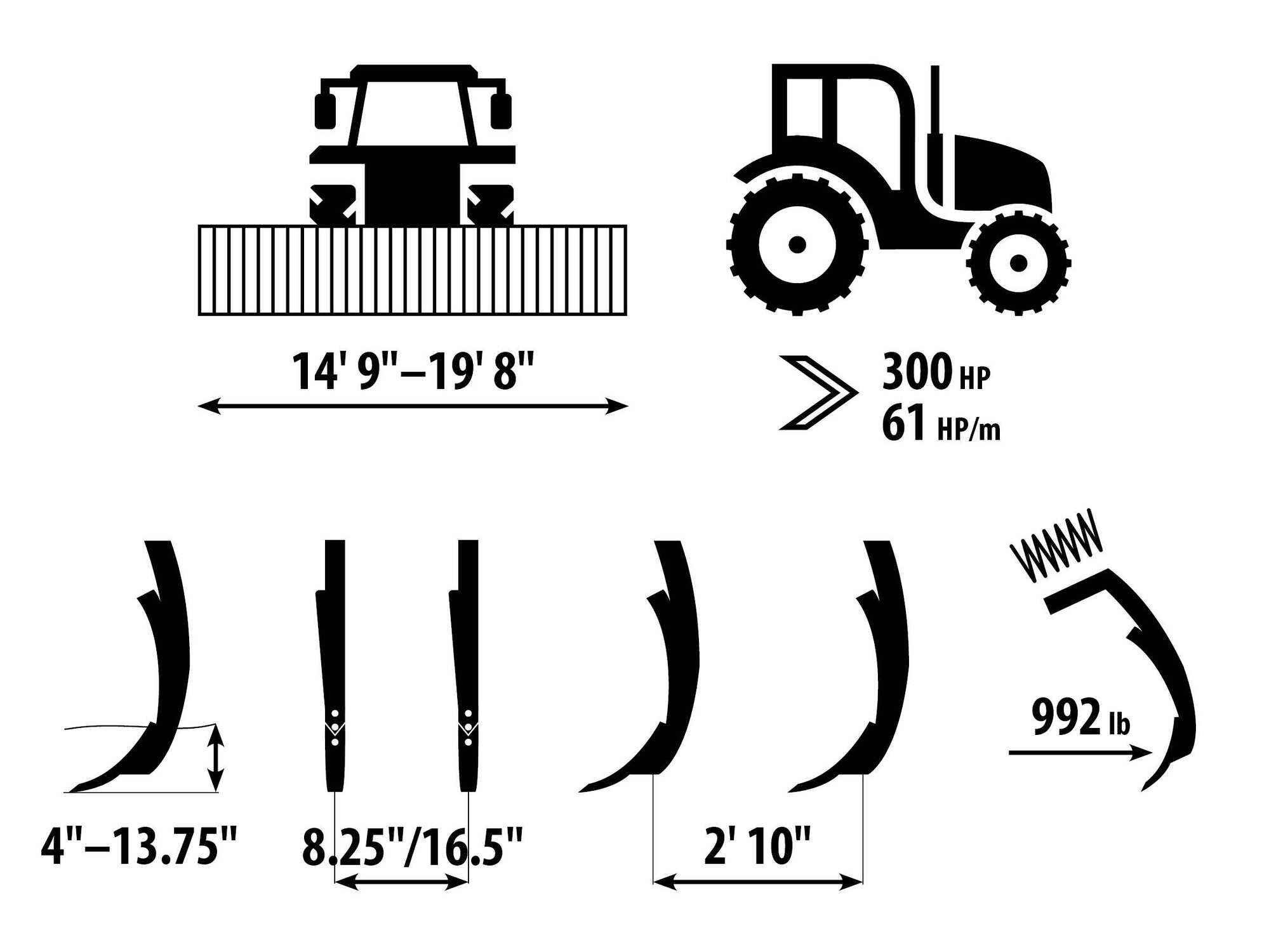

| Working width | ft. | 14' 9" | 14' 9" | 19' 8" | 19' 8" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 10' 11" | 10' 11" | 13' 1" | 13' 1" |
| Total machine length | ft. | 34' 5" | 34' 5" | 34' 5" | 34' 5" |
| Working depth | in. | 4"─13.75" | 4"─13.75" | 4"─13.75" | 4"─13.75" |
| Number of shares | pcs | 23 | 22 | 29 | 30 |
| Share spacing | in. | 8.25" | 16.5" | 8.25" | 16.5" |
| Number of share rows | pcs | 4 | 4 | 4 | 4 |
| Row spacing | ft. | min. 3' 1" | min. 3' 1" | min. 3' 1" | min. 3' 1" |

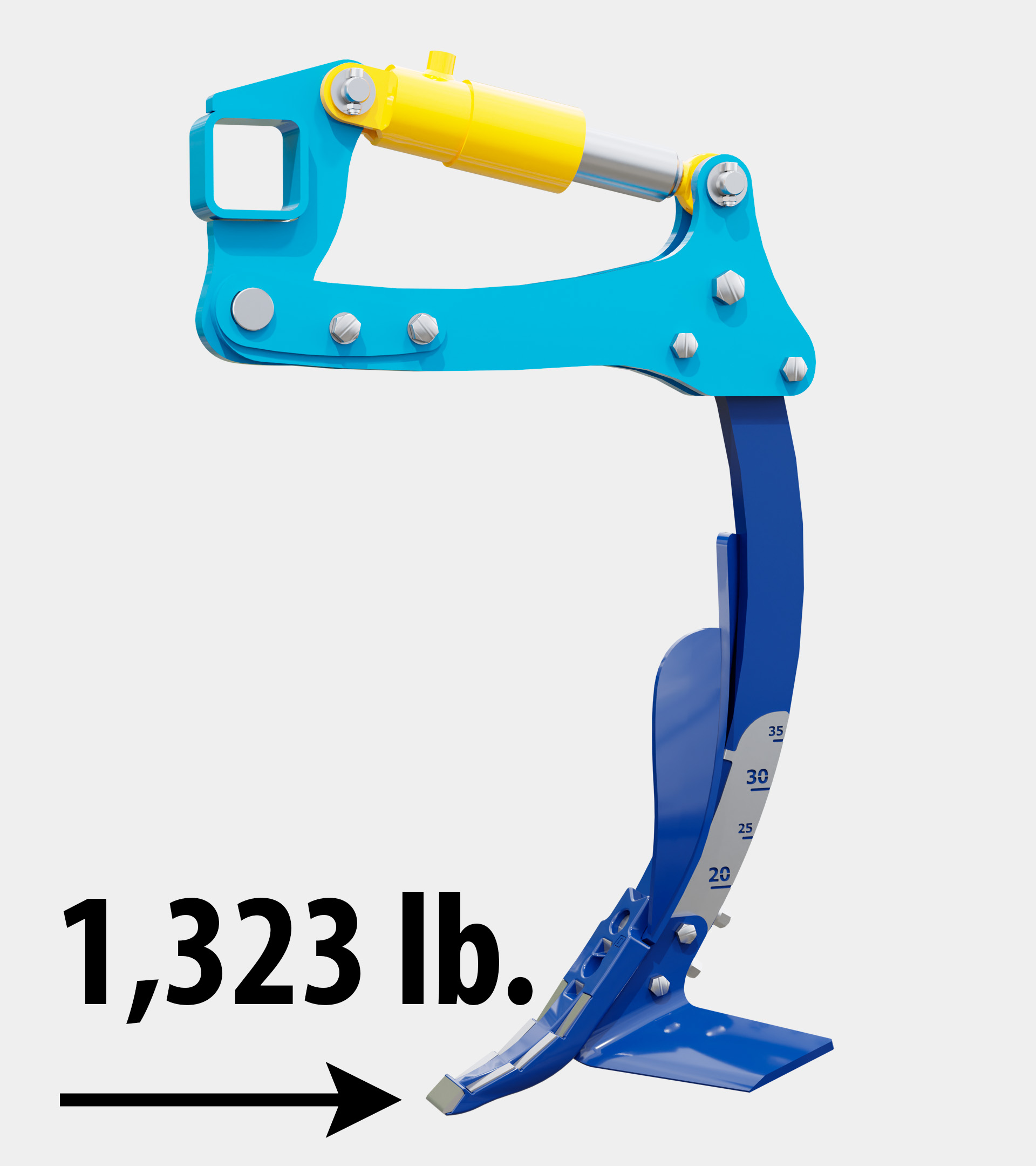

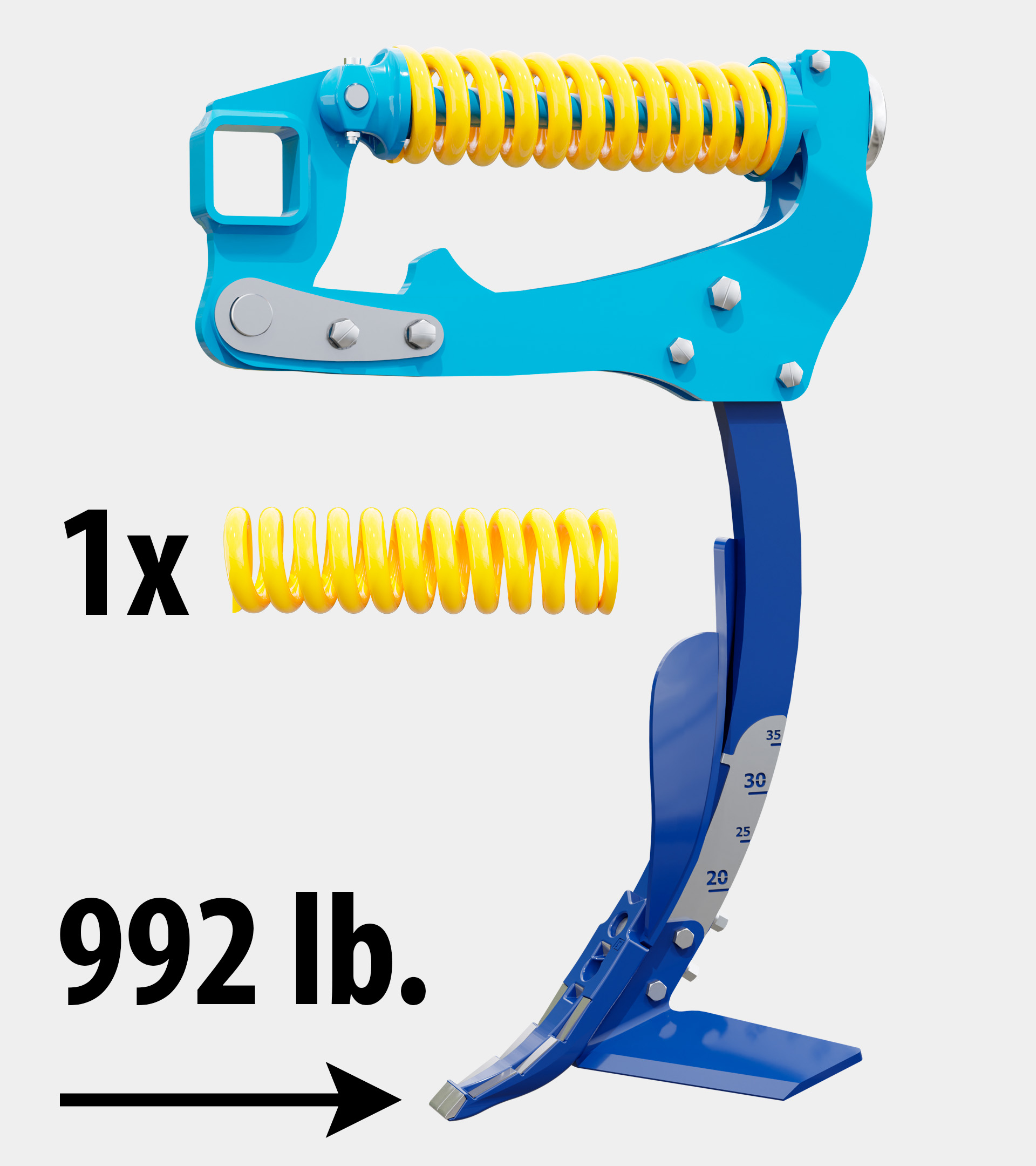

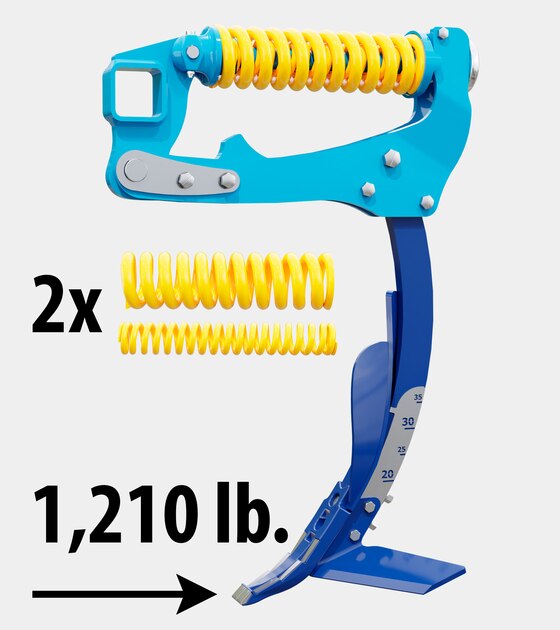

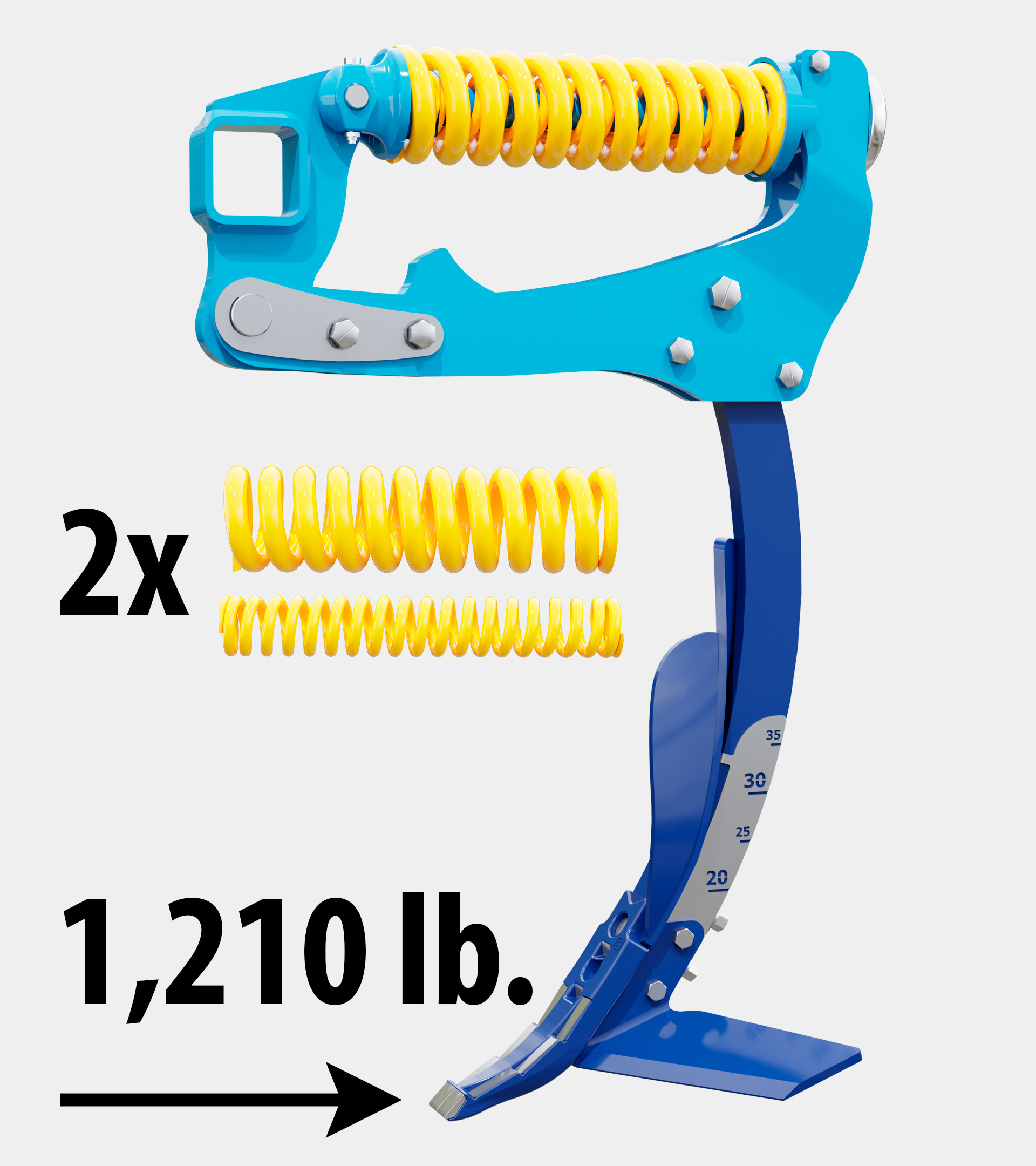

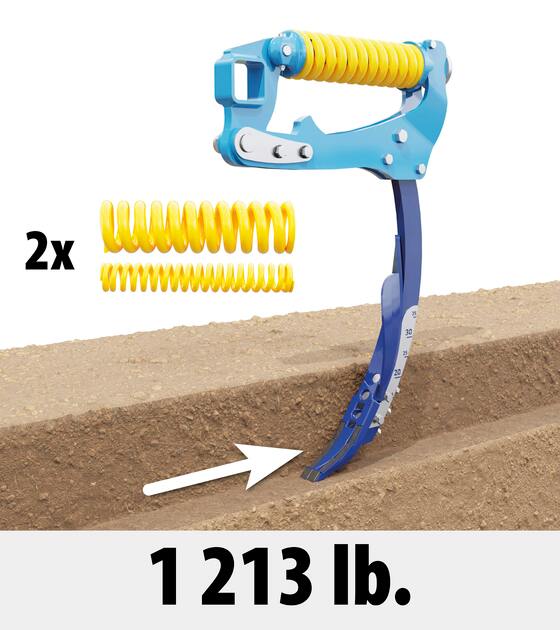

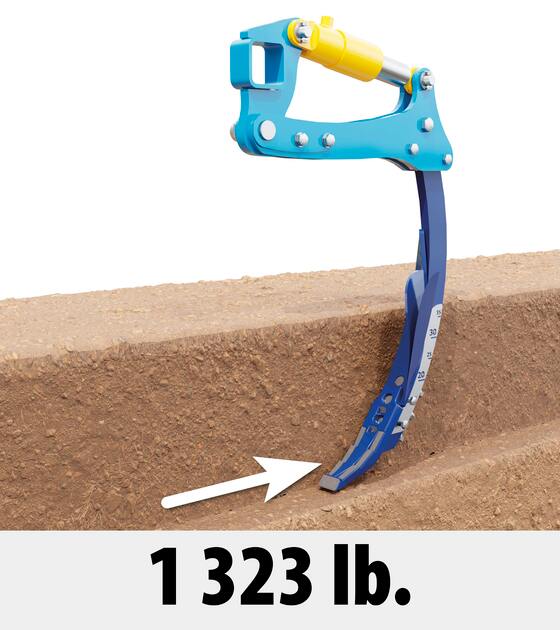

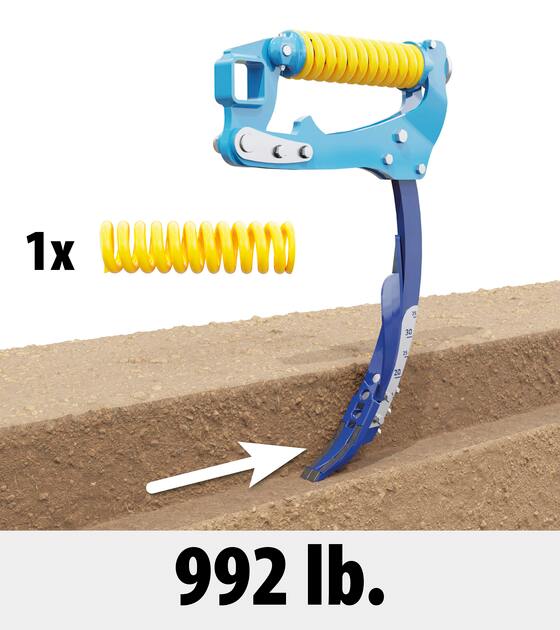

| Release force of shares | lb. | 992 | 992 | 992 | 992 |
| Frame clearance | ft. | 2' 10" | 2' 10" | 2' 10" | 2' 10" |
| Diameter of leveling disks | in. | 16" | 16" | 16" | 16" |
| Working performance | ac/h | 8.9─13.3 | 8.9─13.3 | 11.9─17.8 | 11.9─17.8 |
| Towing vehicle 1 | kW HP |
225─350 300─450 |
225─350 300─450 |
350─460 450─600 |
350─460 450─600 |
| Working speed | mph | 5─8 | 5─8 | 5─8 | 5─8 |
| Maximum transport speed 4 | mph | 19 | 19 | 19 | 19 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 |
| Dimensions of tire – transport | 550/45-22,5 | 19.0/45-17 | 550/45-22,5 | 19.0/45-17 | |
| Brake type / distribution 3, 4 | without / air | without / air | without / air | without / air | |
| Required pressure 3 | kPa | 5,5 | 5,5 | 5,5 | 5,5 |
| Number of hydraulic circuits / pressure | bar | 4+1 / 200 | 4+1 / 200 | 4+1 / 200 | 4+1 / 200 |
| Number of hydro-couples / type | 8 / ISO 12,5 | 8 / ISO 12,5 | 8 / ISO 12,5 | 8 / ISO 12,5 | |
| Tractor hitch requirement | TPH cat. 3 and 4; bottom hitch K80; lug Ø 2", 2.75" | ||||
| Machine weight 2 | lb. | 18,519 | 16,093 | 22,487 | 19,400 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine weight with the LTX roller.
3 Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
PS - semi-mounted foldable machine
| Diameter | 23" |
| Weight | 530 lbs./yd |
| Diameter | 27"/27" |
| Weight | 820 lbs./yd |
| Diameter | 23" |
| Weight | 482 lbs./yd |
| Diameter | 24" |
| Weight | 422 lbs./yd |
| Diameter | 24" |
| Weight | 241 lbs./yd |
| Diameter | 27"/27" |
| Weight | 700 lbs./yd |
Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Roller | Tube-shaped TRS |
Double ring DRR |
LTX | Disk SDR |
|---|---|---|---|---|
| Crumbling | ●●○○ | ●●●○ | ●●○○ | ●●●○ |
| Stamping | ●●●○ | ●●●● | ●●●● | ●●●● |
| Depth guiding | ●●●○ | ●●●● | ●●●● | ●●●● |
| Resistance against clogging | ●○○○ | ●●●● | ●●●○ | ●●●○ |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●○○○ | ●●●● | ●●●● | ●●●● |
| Heavy soils | ●●○○ | ●●●● | ●●●● | ●●●● |
| Medium soils | ●●●○ | ●●●● | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● | ●●●○ | ●●●○ |
| Roller | VR | Double V-ring DVR |
|---|---|---|
| Crumbling | ●●●○ | ●●●○ |
| Stamping | ●●●● | ●●●● |
| Depth guiding | ●●●● | ●●●● |
| Resistance against clogging | ●●●● | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●●● | ●●●● |
| Heavy soils | ●●●● | ●●●● |
| Medium soils | ●●●● | ●●●● |
| Light soils | ●●●● | ●●●● |
| Chisel width | 3" |
| Chisel thickness | 0.5" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 100-200 % |
| Share width | 3" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share service life | + 150-400 % |
| Share width | 3" |
| Share body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Share service life | + 200-500 % |
| Chisel width | 1.5" |
| Chisel thickness | 1" |
| Chisel body hardness | up to 55 HRC |
| Widia plate hardness | up to 92 HRA |
| Chisel service life | + 100-200 % |
| Diesel fuel consumption | - 10 % |
Sowing of fine seeds.
