Tine cultivator TRIOLENT PS

Tillage up to 11.75" with intensive mixing

Tine cultivator Triolent

Technology

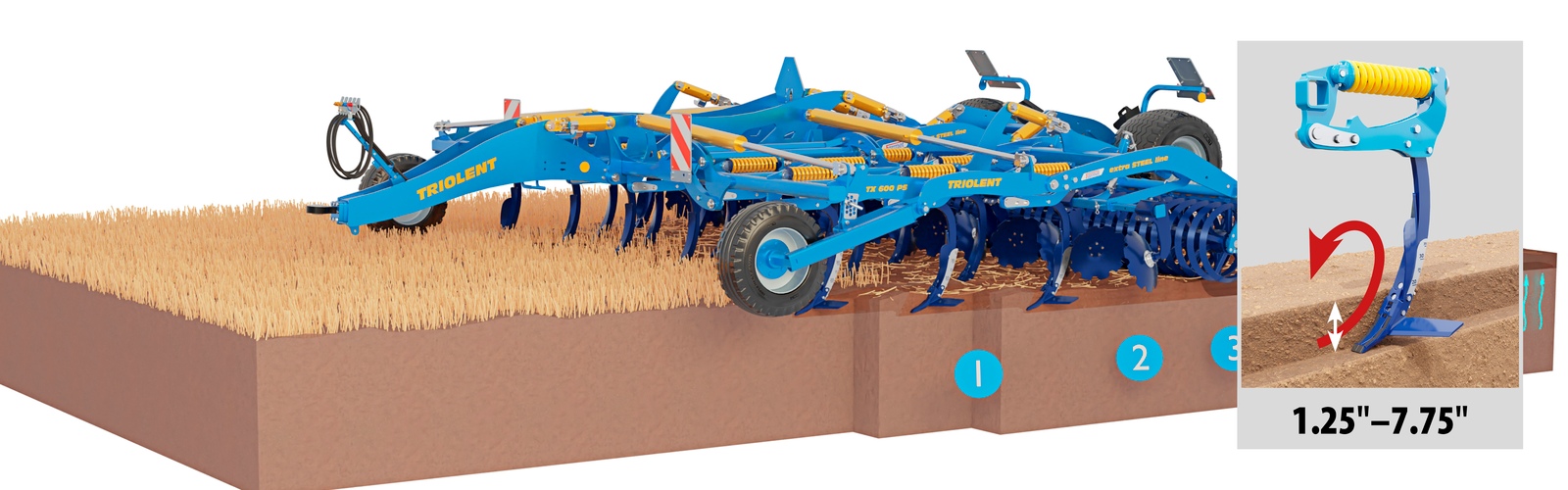

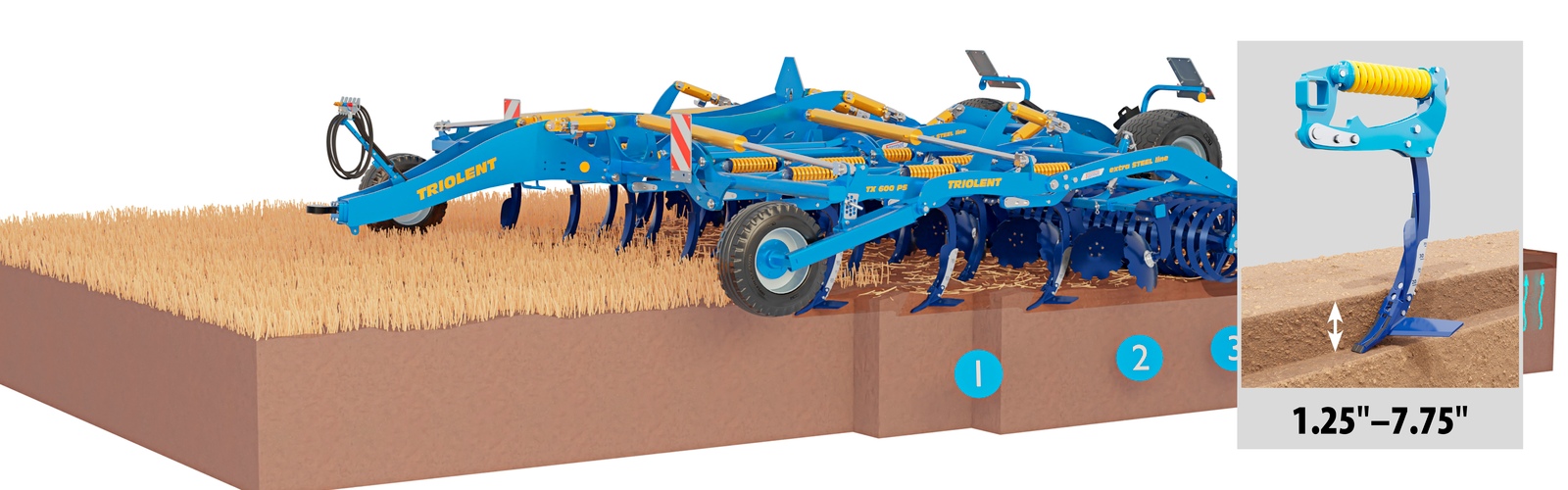

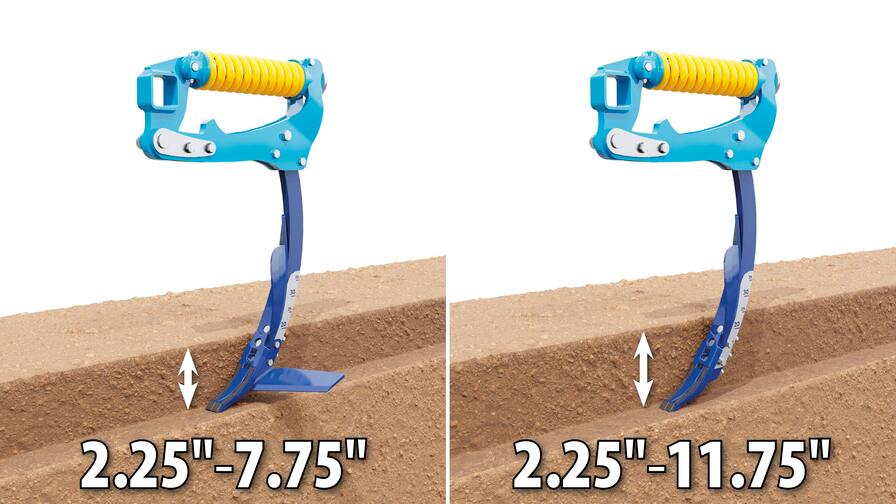

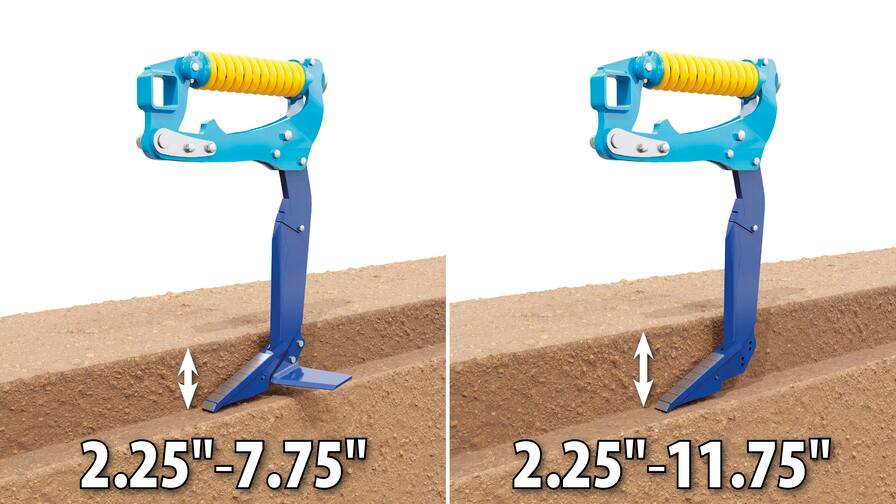

Triolent PS: Stubble cultivation to depth from 2.25" to 7.75"

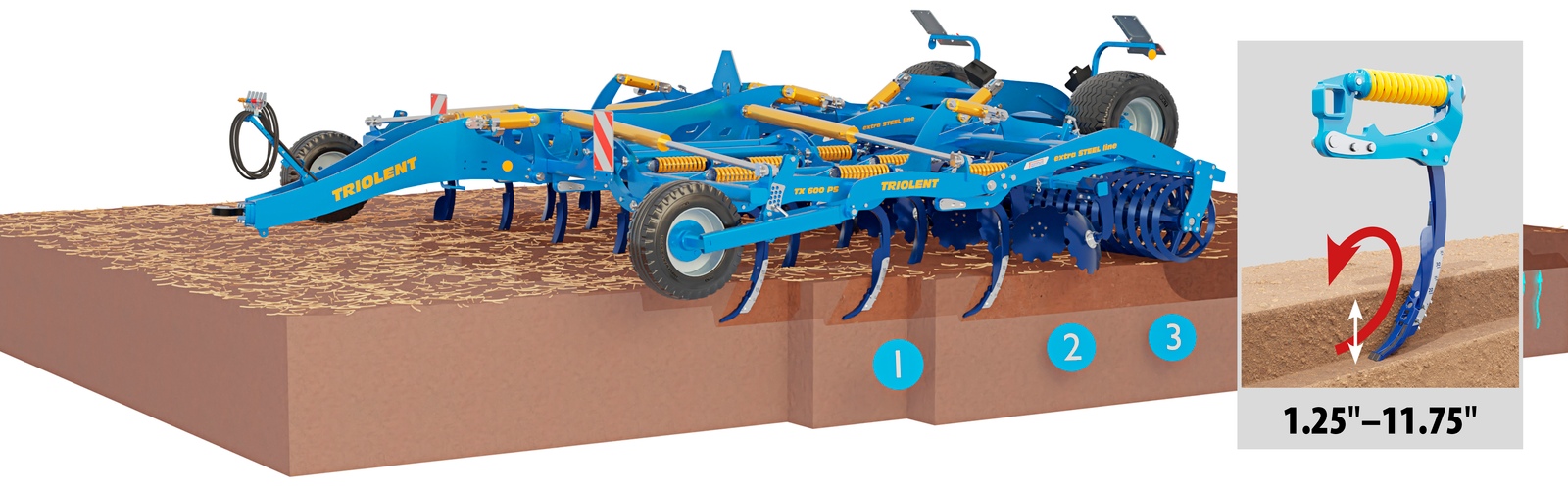

Triolent PS: Tillage to depth of 11.75"

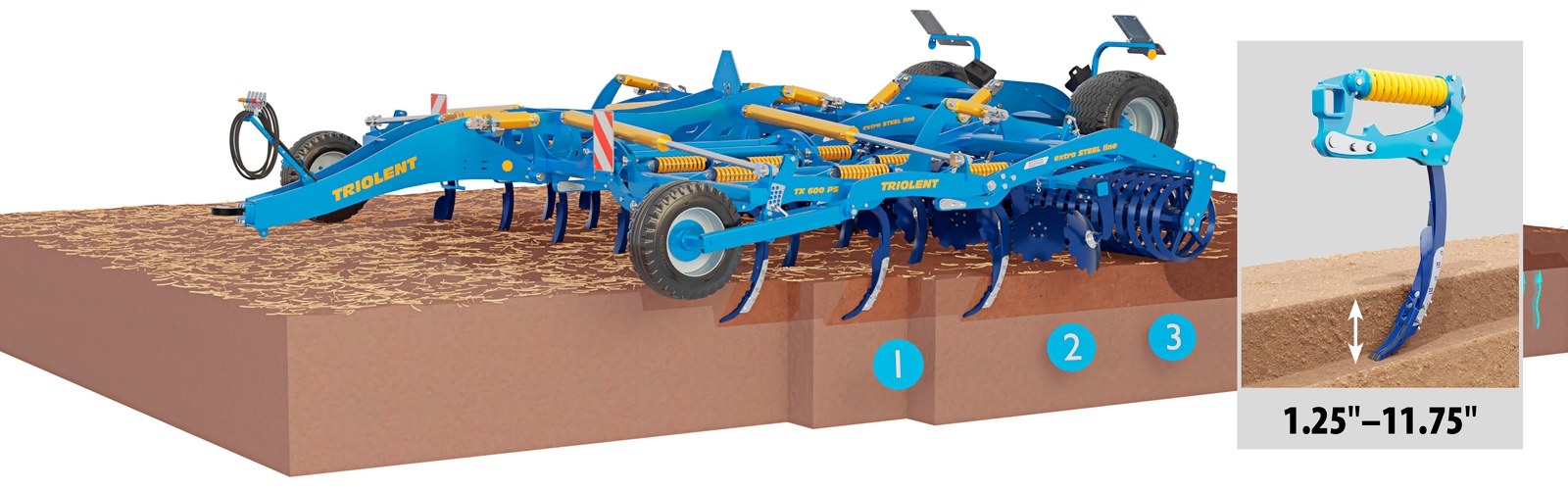

1	Tillage zone. The tillage depth has a wide range of 2.25"–11.75". For tillage from 2.25" to 7.75"can be used wings to full-surface undercut. The shanks arranged in three rows with optimized geometry ensure excellent tillage and intensive mixing soil with crop residues.
2	Furrow-leveling zone. Leveling disks also increase the effect of incorporating crop residues.
3	Clods are crushing and soil compaction zone. Optimum soil recompaction ensures good water infiltration and soil water capillarity to the surface.

Variants of fertilizer placement

The fertilizer is placed under the surface, put in lower part of processed soil profile

One part of the fertilizer is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides

The fertilizer is placed just under the surface + areal to the sides

High performance and quality work

High working speed up to 8 mph.
Low pulling requirement and excellent soil mixing due to shanks optimized design.
Excellent flow through of crop residues.
The spiral shape of shanks upper part for controlled soil flow.
Maintenance-free working units fitted with carbide plates for minimal wear.

High working speed up to 8 mph.
Low pulling requirement and excellent soil mixing due to shanks optimized design.
Excellent flow through of crop residues.
The spiral shape of shanks upper part for controlled soil flow.
Maintenance-free working units fitted with carbide plates for minimal wear.

Technics

Tine cultivator Triolent TX 400 P FIX

Large shanks arranged in 3 rows ensure quality tillage soil and incorporation crop residues.
Leveling disks for perfect leveling surface.
Rear roller to crushing clods, firm soil and smooth field finish.

Tine cultivator Triolent PS

Large shanks arranged in 3 rows ensure quality tillage soil and incorporation crop residues.
Leveling disks for perfect leveling surface.
Rear roller to crushing clods, firm soil and smooth field finish.

Rugged design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most extreme conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels

Abrasion-resistant steel

The time-tested shanks are made of high-strength abrasion-resistant steels.

Incorporation of crop residues

Full-surface stubble cultivation post-harvest with intensive mixing effect. Excellently incorporation crop residues into the soil.

Spring protection

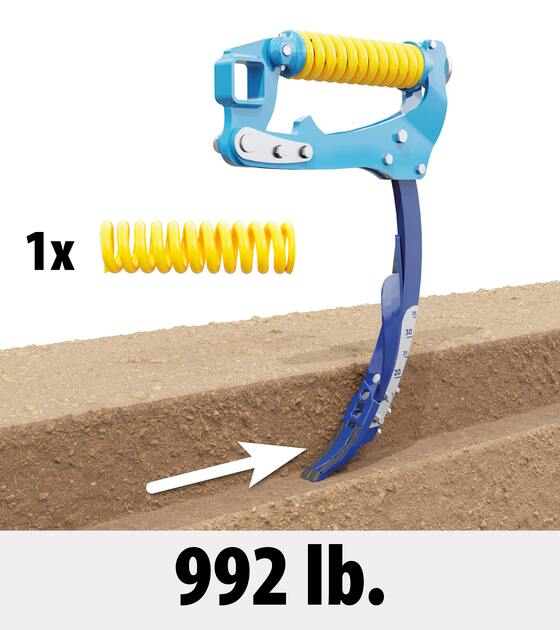

Durable and maintenance-free spring protection with high release force of 992 lb.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Depth adjustment

Easy working depth adjustment of the shanks according to the overview table by the demarcation washers.

Adjustable leveling disks

Height-adjustable leveling disks with easy adjustment, suspended by rubber elements.

Hydraulic setting of levelling discs

Optional equipment. Easy, quick and convenient disc setting from the tractor cabin, also available while working in the field.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Skilful when working in the field due to short and compact design.
Stable due to short design and light axle.

Turning on rollers

Higher stability and quick turning at headlands due to possibility of turning on all rollers.

Suspended leveling disks

Suspended leveling disks for quality leveling soil surface.

Full-surface stubble cultivation

Chisels with wings for full-surface undercut up to 7.75" depth.

Folding system

Patented folding system enabling the machine with 25' 11" working width to be folded to 9' 10" transport width and 13' 1" height and thus complies with the regulations for vehicles operation on the public road.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

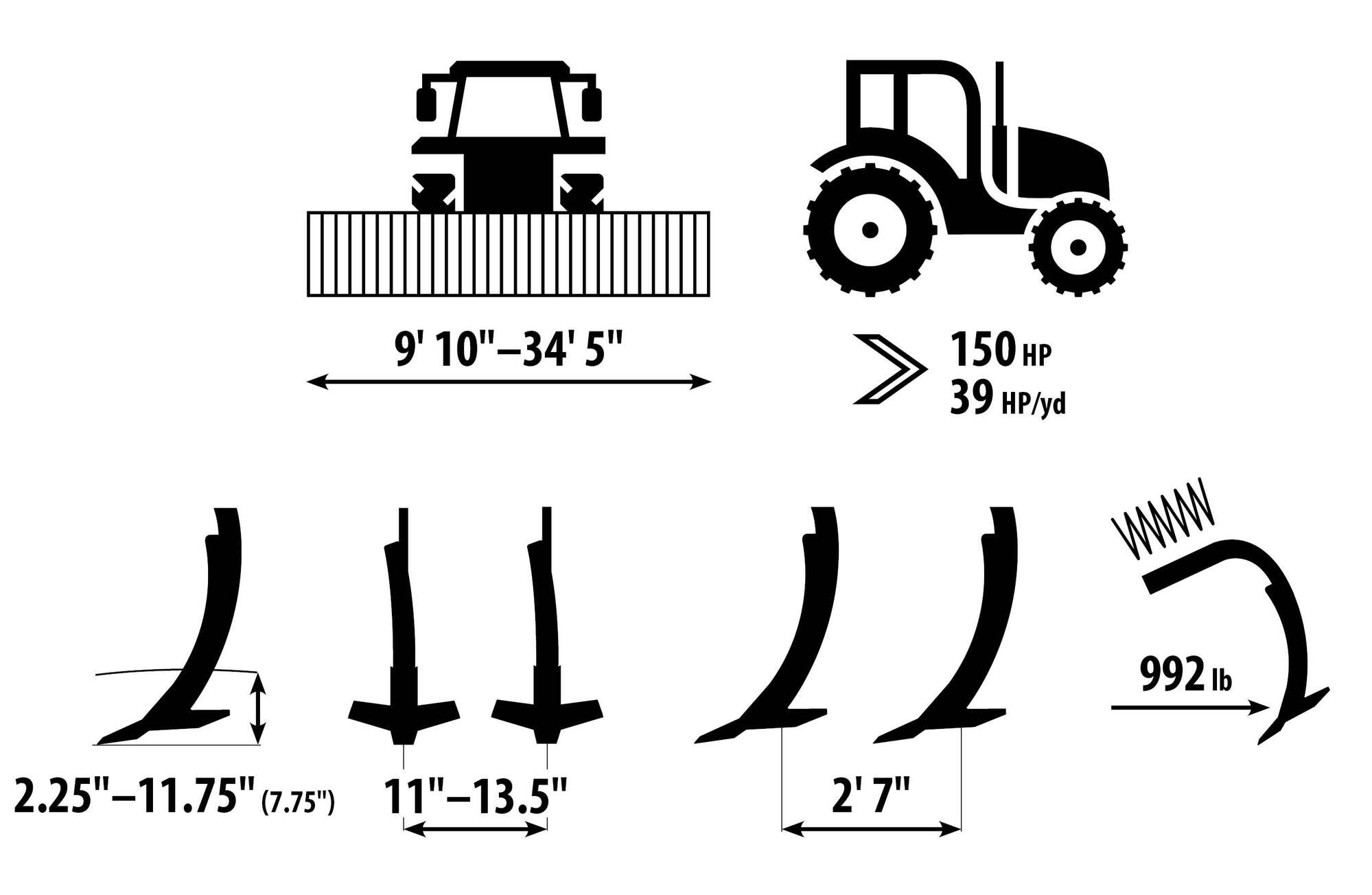

Parameters

Technical parameters	Units	Triolent TX 300 P	Triolent TX 400 P FIX	Triolent TX 470 PS
Working width	ft.	9' 10"	13' 1"	15' 5"
Transport width	ft.	9' 10"	13' 1"	9' 10"
Transport height	ft.	4' 7"	4' 7"	4' 7"
Total machine length	ft.	24' 7"	24' 7"	24' 7"
Working depth	in.	2.25"–11.75"	2.25"–11.75"	2.25"–11.75"
Number of shares	pcs	10	14	16
Share spacing	in.	12"	11"	11.5"
Number of share rows	pcs	3	3	3
Row spacing	ft.	2' 7"	2' 7"	2' 7"
Release force of tines	lb.	992	992	992
Frame clearance	ft.	2' 11"	2' 11"	2' 11"
Diameter of leveling disks	ft.	1' 6"	1' 6"	1' 6"
Working performance	ac/h	5.9–8.9	7.9–11.9	9.4–13.8
Towing vehicle ¹	kW HP	110–165 150–225	125–190 170–255	150–220 200–300
Working speed	mph	5–8	5–8	5–8
Maximum transport speed ⁴	mph	16	16	16
Maximum slope availability	°	6	6	6
Dimension of tire - transport		19.0/45-17	19.0/45-17	19.0/45-17
Brake type / distribution ^3, 4		air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5
Number of hydraulic circuits / pressure	bar	2 / 200	2 / 200	3 / 200
Number of hydro-couples / type		4 / ISO 12,5	4 / ISO 12,5	6 / ISO 12,5
Tractor hitch requirement		TPH cat. 3 and 4; lower hitch K80; eye Ø 1.5", 2", 2.75"
Machine weight ²	lb.	8,267	9,392	10,185

Technical parameters	Units	Triolent TX 600 PS	Triolent TX 800 PS	Triolent TX 1050 PS
Working width	ft.	20' 4"	25' 11"	34' 5"
Transport width	ft.	9' 10"	9' 10"	9' 10"
Transport height	ft.	10' 10"	13' 1"	13' 1"
Total machine length	ft.	24' 7"	24' 7"	24' 7"
Working depth	in.	2.25"–11.75"	2.25"–11.75"	2.25"–11.75"
Number of shares	pcs	19	25	31
Share spacing	in.	13"	12.5"	13.5"
Number of share rows	pcs	3	3	3
Row spacing	ft.	2' 7"	2' 7"	2' 7"
Release force of tines	lb.	992	992	992
Frame clearance	ft.	2' 11"	2' 11"	2'
Diameter of leveling disks	ft.	1' 6"	1' 6"	1' 4"
Working performance	ac/h	11.9–17.8	15.8–23.7	20.8–31.1
Towing vehicle ¹	kW HP	245–370 330–500	295–440 400–600	370–550 500–750
Working speed	mph	5–8	5–8	5–8
Maximum transport speed ⁴	mph	16	16	16
Maximum slope availability	°	6	6	6
Dimension of tire - transport		19.0/45-17	19.0/45-17	550/45-22,5
Brake type / distribution ^3, 4		air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	8,5	8,5	8,5
Number of hydraulic circuits / pressure	bar	3 / 200	3 / 200	3 / 200
Number of hydro-couples / type		6 / ISO 12,5	6 / ISO 12,5	6 / ISO 12,
Tractor hitch requirement		TPH cat. 3 and 4; lower hitch K80; eye Ø 1.5", 2", 2.75"
Machine weight ²	lb.	14,881	16,645	26,014

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ Alternative of the hydraulic brake / operating pressure 130 ± 5 bar.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

Optional

Photo gallery

Video

Files

User manual

Tine cultivator Triolent

Chisel cultivator Triolent TX 470 PS

Chisel cultivator Triolent TX 600 PS

Chisel cultivator Triolent TX 800 PS

Accessories

Rollers

Disk roller SDR

Diameter	23"
Weight	530 lbs./yd

Double ring roller DRR

Diameter	21"/21"
Weight	470 lbs./yd

Double roller DR

Diameter	16"/14"
Weight	397 lbs./yd

LTX roller

Diameter	23"
Weight	482 lbs./yd

Ring roller RR

Diameter	20"
Weight	386 lbs./yd

V roller VR

Diameter	24"
Weight	422 lbs./yd

Double V-ring DVR

Diameter	22"/22"
Weight	434 lbs./yd

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is reconsolidated by the roller and then it is the same way crumbled and leveled.The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Rollers	Double DR	Ring RR	Double ring DRR	LTX
Crumbling	●●●○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●	●●●●
Resistance against clogging	●●●○	●●●●	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●●○○	●●●●	●●●●	●●●●
Heavy soils	●●●●	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Válec	Disk SDR	VR	Double V-ring DVR
Crumbling	●●●○	●●●○	●●●○
Stamping	●●●●	●●●●	●●●●
Depth guiding	●●●●	●●●●	●●●●
Resistance against clogging	●●●○	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●	●●●●
Heavy soils	●●●●	●●●●	●●●●
Medium soils	●●●●	●●●●	●●●●
Light soils	●●●○	●●●●	●●●●

Working tools

Chisel 75 CARBIDE

Chisel width	3"
Chisel thickness	0.5"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %

Chisel 75 MULTICARBIDE

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 MULTICARBIDE PRO

Share width	3"
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Left wing

Right wing

Chisel 40 CARBIDE

Chisel width	1.5"
Chisel thickness	1"
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %
