| 1 | Tractor plow stop zone. Perfect cultivation of the trails eliminate uneven emergence of plants after sowing. |
| 2 | Primary soil leveling zone. A precisely leveled soil surface allows the seedbed to be evenly cultivated. |
| 3 | Cultivating zone. The soil is cultivated by tine section to the set depth. The depth should be the same as the future sowing depth. Narrow arrow shares allow full-surface undercut and weeds control. |
| 4 | Furrow-leveling zone behind a tine cultivating section. |
| 5 | Final soil leveling zone. The rear harrow ensures a perfect leveled surface with minimum clods for subsequent sowing. |
Tine harrow Verso is especially suitable for pre-sowing preparation of the soil after plowing or stubble-cultivation – leveling of the surface and preparation of the seedbed.

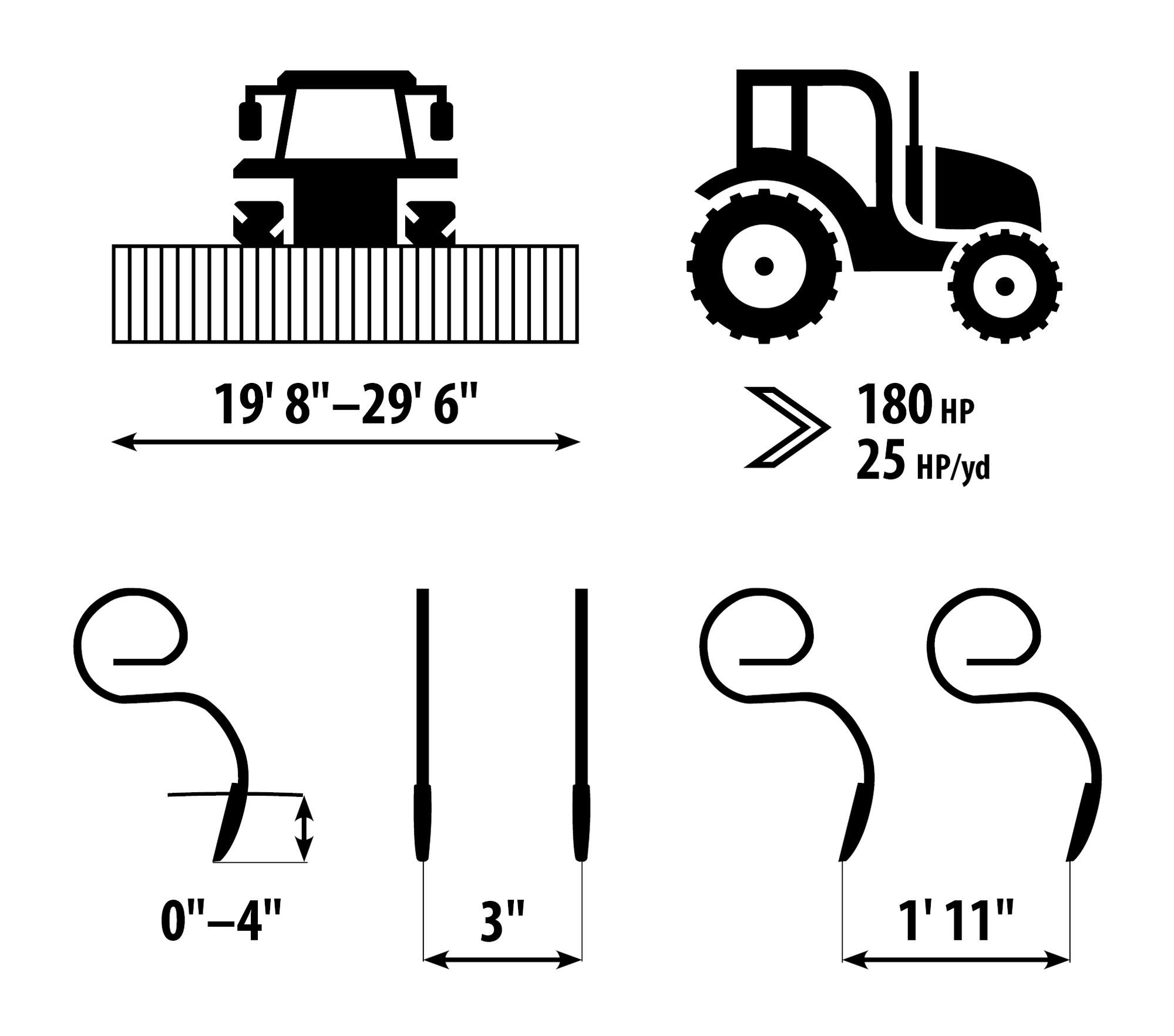

Verso is a semi-mounted 5-row cultivator with low traction resistance and variable tillage depth from 0"–4". Semi-flexible tines with chisels of the width of 1.5" ensure intensive and fine soil tillage. The chisels are semi-flexibly fixed to the frame in the distance rows of 1' 11". with the possibility of deflection in case of an impact on an obstacle.
Tine harrow Verso is especially suitable for pre-sowing preparation of the soil after plowing or stubble-cultivation – leveling of the surface and preparation of the seedbed.
Verso is a semi-mounted 5-row cultivator with low traction resistance and variable tillage depth from 0"–4". Semi-flexible tines with chisels of the width of 1.5" ensure intensive and fine soil tillage. The chisels are semi-flexibly fixed to the frame in the distance rows of 1' 11". with the possibility of deflection in case of an impact on an obstacle.
The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.
Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
| Technical parameters | Units | Verso 6 PS | Verso 7 PS | Verso 8 PS | Verso 9 PS |
|---|---|---|---|---|---|
| Working width | ft. | 19' 8" | 22' 11" | 26' 3" | 29' 6" |
| Transport width | ft. | 9' 10" | 9' 10" | 9' 10" | 9' 10" |
| Transport height | ft. | 10' 4" | 12' 2" | 13' 1" | 15' |
| Total machine length | ft. | 22' 4" | 22' 4" | 22' 4" | 22' 4" |
| Working depth | in. | 0"–4" | 0"–4" | 0"–4" | 0"–4" |
| Number of shares (+trail cultivators) | pcs | 77 (+8) | 91 (+8) | 101 (+8) | 115 (+8) |
| Share spacing | in. | 3" | 3" | 3" | 3" |
| Number of share rows | pcs | 5 | 5 | 5 | 5 |
| Row spacing | ft. | 1' 11" | 1' 11" | 1' 11" | 1' 11" |
| Release force of shares | lb. | variable | variable | variable | variable |
| Frame clearance | ft. | 1' 5" | 1' 5" | 1' 5" | 1' 5" |
| Working performance | ac/h | 19.8─24.7 | 22.2─27.2 | 24.7─29.7 | 27.2─32.1 |
| Towing vehicle 1 | kW HP |
130─195 180─270 |
150─225 205─308 |
160─240 220─330 |
180─270 245─368 |
| Working speed | mph | 5─9 | 5─9 | 5─9 | 5─9 |
| Maximum transport speed 2 | mph | 15.5 | 15.5 | 15.5 | 15.5 |
| Maximum slope availability | ° | 6 | 6 | 6 | 6 |
| Number of hydraulic circuits / pressure | bar | 4 / 200 | 4 / 200 | 4 / 200 | 4 / 200 |
| Number of quick-coupling devices / type | 8 / ISO 12,5 | 8 / ISO 12,5 | 8 / ISO 12,5 | 8 / ISO 12,5 | |
| Tractor hitch requirement | TPH cat. 2 and 3; lower hitch K80; eye Ø 1.5", 2", 2.75" | ||||
| Machine weight | lb. | 7,870 | 8,642 | 8,730 | 9,590 |
| Axle load | lb. | 7,385 | 8,157 | 8,201 | 9,017 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
PS - semi-mounted foldable machine
