Combined cultivator TRITON

Full-surface tillage with zone loosening to 35 cm

Combined cultivator Triton

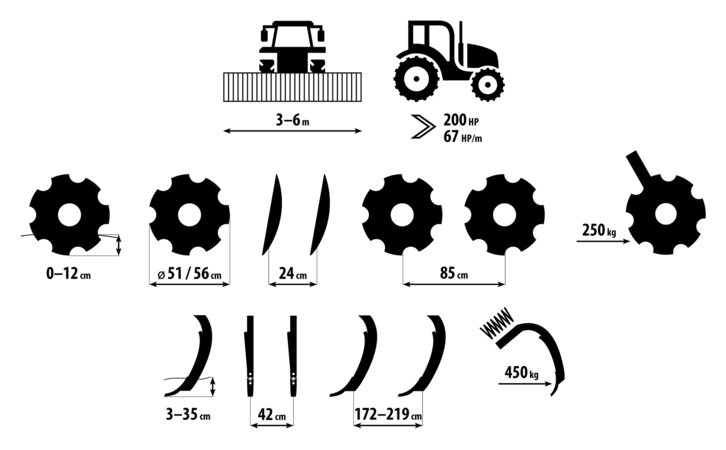

Technology

1	Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to depth of 0–12 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
2	Tillage zone. The tillage depth has a wide range of 3–35 cm. Full-surface undercut wings can be used for tillage from 6 to 20 cm. Tines with optimized geometry in two rows ensure deep zone tillage to increase water infiltration.
3	Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
4	Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

High performance and quality work

Excellent solution for heavy soils
Low pulling requirement
High throughflow of the soil and crop residue
Efficient cutting and even mixing of crop residue into the processed soil layer
Deep zone tillage with minimal clods formation

Technics

Combined cultivator Triton 300 PS

The discs with the diameter Ø 510 / Ø 560 mm arranged in two rows undercut soil.
The massive tines arranged in two rows tillage the soil and incorporate crop residue.
The levelling discs for perfect levelling of surface.
The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Combined cultivator Triton 450 PS

The discs with the diameter Ø 510 / Ø 560 mm arranged in two rows undercut soil.
The massive tines arranged in two rows tillage the soil and incorporate crop residue.
The levelling discs for perfect levelling of surface.
The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Combined cultivator Triton 600 PS

The discs with the diameter Ø 510 / Ø 560 mm arranged in two rows undercut soil.
The massive tines arranged in two rows tillage the soil and incorporate crop residue.
The levelling discs for perfect levelling of surface.
The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Abrasion-resistant steel

The time-tested tines are made of high-strength abrasion-resistant steels and they are equipped with carbide plates at the point of tine. The top part of the tine can be supplemented with other carbide plates or tungsten carbide weld deposits to extend the lifespan even more.

Spring protection of chisels

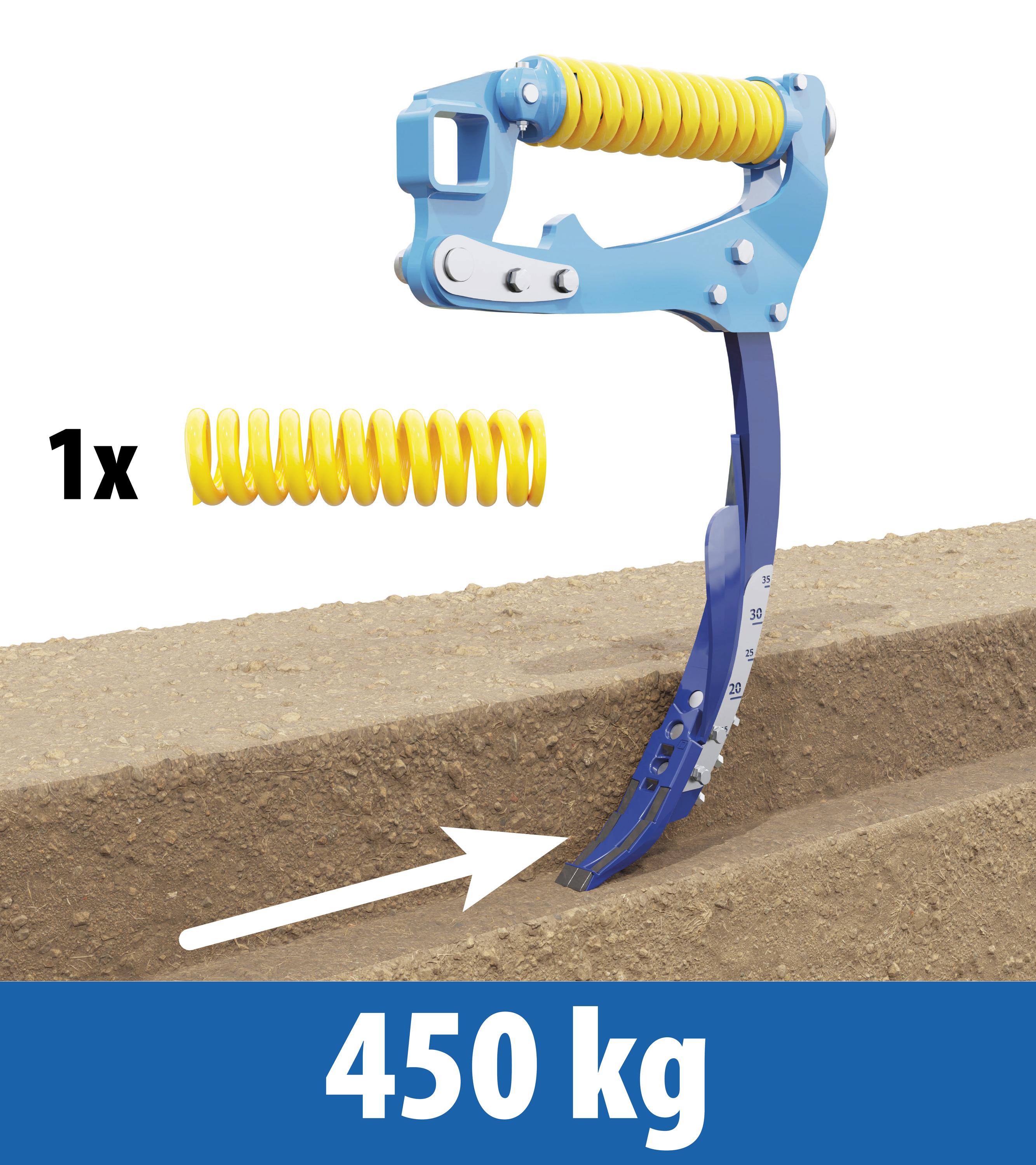

Durable and maintenance-free spring protection of tines with a high release force of 450 kg.

Levelling disc protection

Durable and maintenance-free protection of the levelling discs.

Quick clamping system of rollers

Easy disconnection and connection the rear rollers – possibility of working without the rear rollers.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps, that everybody can perform.

Minimum adjustment points.
Minimum lubrication points.

Chisel working depth adjustment

Easy working depth adjustment of the chisels on rollers by setting washers.

Chisel working depth adjustment

Easy working depth adjustment of the chisels on rollers by setting washers.

Adjustment of the disc rows position

Easy adjustment of the front and rear row discs position. When the front row is lower than the rear row, soil tillage is more aggressive.

Hydraulic adjustment of the levelling discs

Parameters

Technical parameters	Units	Triton 300 P	Triton 400 PS	Triton 450 PS	Triton 600 PS
Working width	mm	3 000	3 000	4 500	6 000
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	1 800		3 370	3 950
Total machine length ²	mm	9 450		9 500	9 550
Working depth	mm	30─350	30─350	30─350	30─350
Number of tines	pcs	7	10	11	15
Number of discs	pcs	22		38	50
Disc diameter	mm	510 / 560	510 / 560	510 / 560	510 / 560
Number of tine rows	pcs	2	2	2	2
Tine spacing	mm	420	420	420	420
Tine row spacing	mm	1 720		2 140	2 190
Number of disc rows	pcs	2	2	2	2
Disc spacing	mm	240	240	240	240
Disc row spacing	mm	850	850	850	850
Release force of tines	kg	450	450	450	450
Frame clearance	mm	880	880	880	880
Diameter of levelling discs	mm	460	460	460	460
Working performance	ha/h	2,2─3,4	3,2─4,8	3,6─5,4	4,8─7,2
Towing vehicle ¹	kW HP	150─235 200─315		225─350 300─450	350─460 450─600
Working speed	km/h	8─12	8─12	8─12	8─12
Maximum slope availability	°	6	6	6	6
Dimensions of tyre – transport		19.0/45-17	19.0/45-17	550/45-22,5	550/45-22,5
Brake type / distribution ³		air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	5,5	5,5	5,5	5,5
Number of hydraulic circuits / pressure	bar	4 / 200	5 / 200	5 / 200	5 / 200
Number of hydro-couples / type		8 / ISO 12,5	10 / ISO 12,5	10 / ISO 12,5	10 / ISO 12,5
Tractor hitch requirement		TPH cat. 3; bottom hitch K80; lug Ø 50, 70 mm
Machine weight ²	kg	4 700		8 100	10 200

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² For the machine version with a double roller (DVR).
³ Alternative to hydraulic brake / operating pressure of 130 ± 5 bar
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - semi-mounted foldable machine

Optional

Photo gallery

Video

Files

User manual

Combined cultivator Triton

Combined cultivator Triton 450 PS

Combined cultivator Triton 600 PS

Accessories

Rollers

Disc roller SDR

Diameter	580 mm
Weight	220 kg/m

Double ring roller DRR

Diameter	680/680 mm
Weight	340 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

V roller VR

Diameter	680 mm
Weight	175 kg/m

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

Double V-ring DVR

Diameter	680/680 mm
Weight	290 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double ring DRR	LTX	Disk SDR
Crumbling	●●○○	●●●○	●●○○	●●●○
Stamping	●●●○	●●●●	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●●	●●●○	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●●●	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●○	●●●○

Roller	VR	Double V-ring DVR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●●	●●●●

Working tools

Disc Ø 560 mm

Chisel 75 CARBIDE

Chisel width	75 mm
Chisel thickness	15 mm
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %

Chisel 75 MULTICARBIDE

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 MULTICARBIDE PRO

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Disc Ø 510 mm

Left wing

Right wing

Chisel 40 CARBIDE

Chisel width	40 mm
Chisel thickness	25 mm
Chisel body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Chisel service life	+ 100-200 %
Diesel fuel consumption	- 10 %
