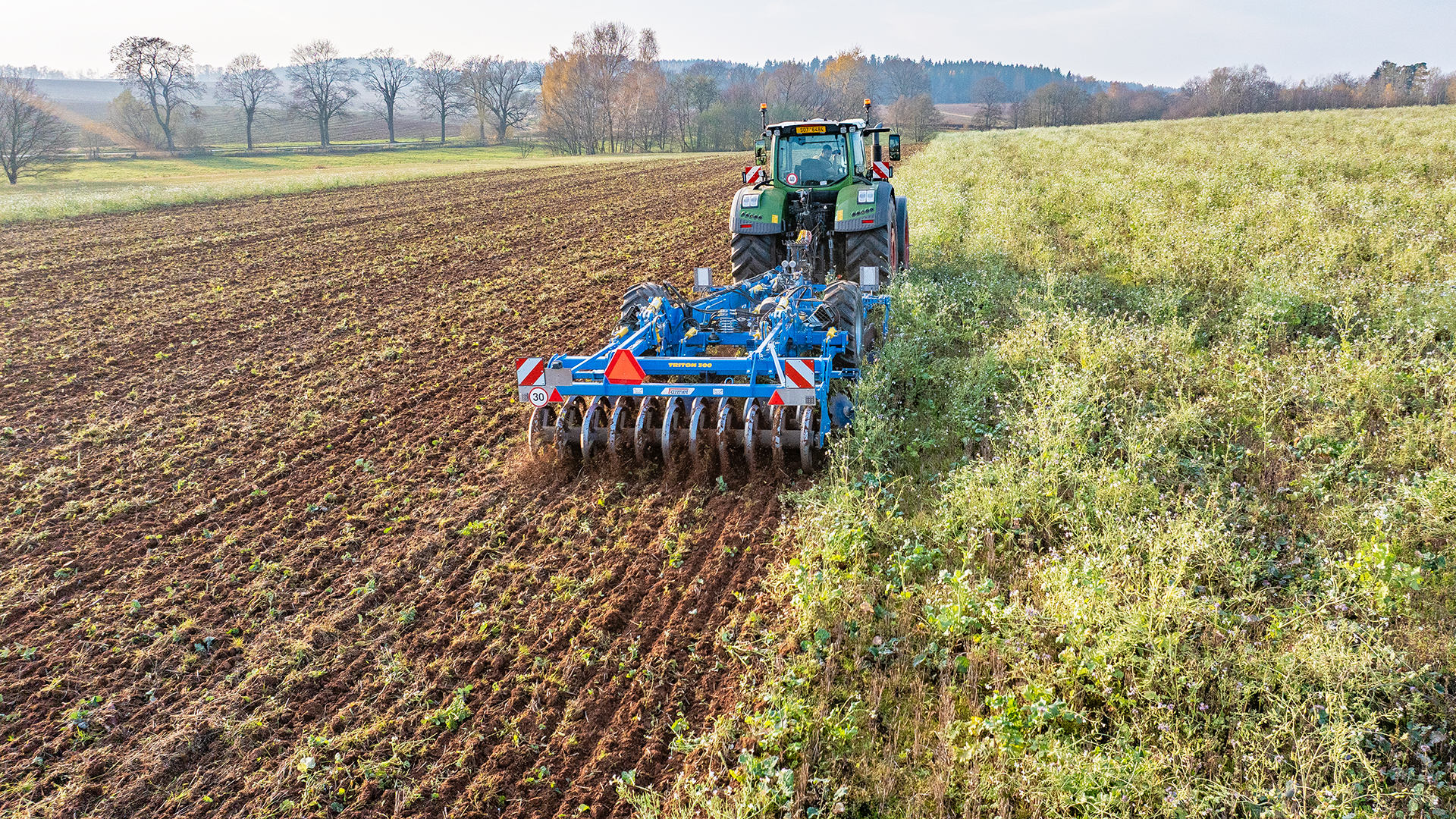

Combined cultivator Triton Heavy

Combined cultivator Triton Heavy



Combined cultivator Triton Heavy

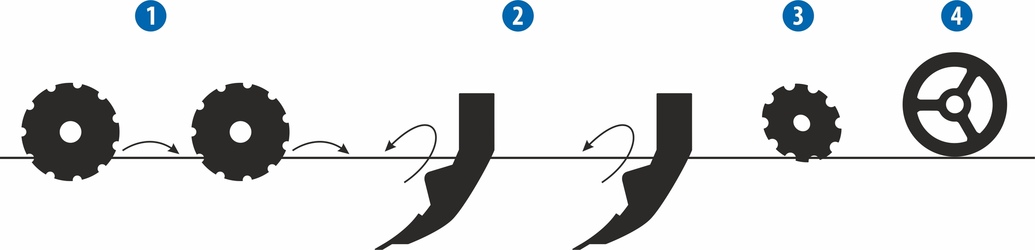

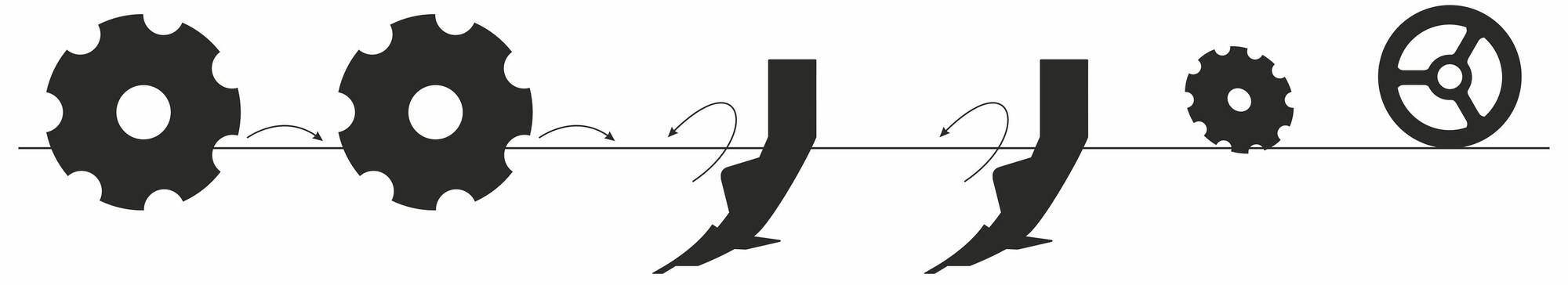

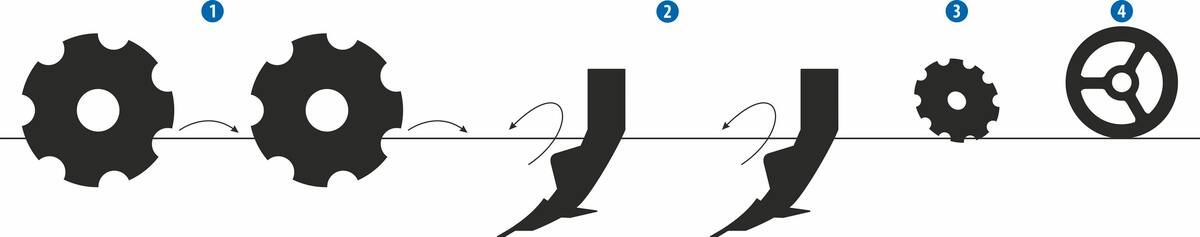

Technology

1 Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to a maximum depth of 18 / 21 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
2 Tillage zone. The depth of tillage up to 40 cm. Tilling chisels with optimized geometry in two rows ensure deep zone loosening for increase of water infiltration.
3 Furrow-levelling zone. Levelling discs also increase the effect of incorporating crop residues.
4 Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.
  • Excellent solution for heavy soils
  • Low pulling requirement
  • High throughflow of the soil and crop residue
  • Efficient cutting and even mixing of crop residue into the processed soil layer
  • Deep zone tillage with minimal clods formation

Possibility of fertilisation by granular fertiliser

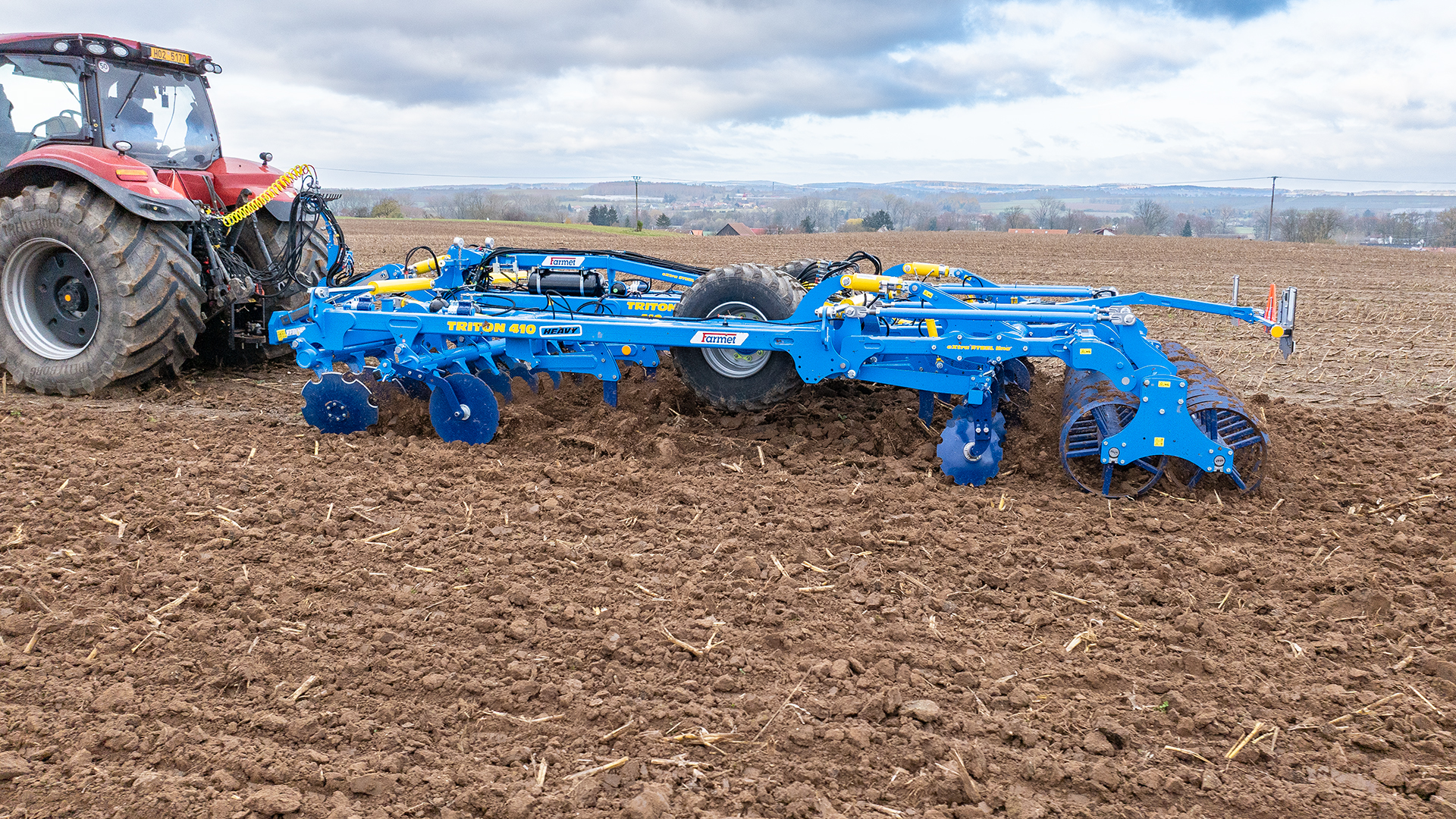

Triton 410 P FIX HEAVY Fert+
Scheme of fertiliser placing in two horizons
Scheme of fertiliser placing in two horizons

Technics

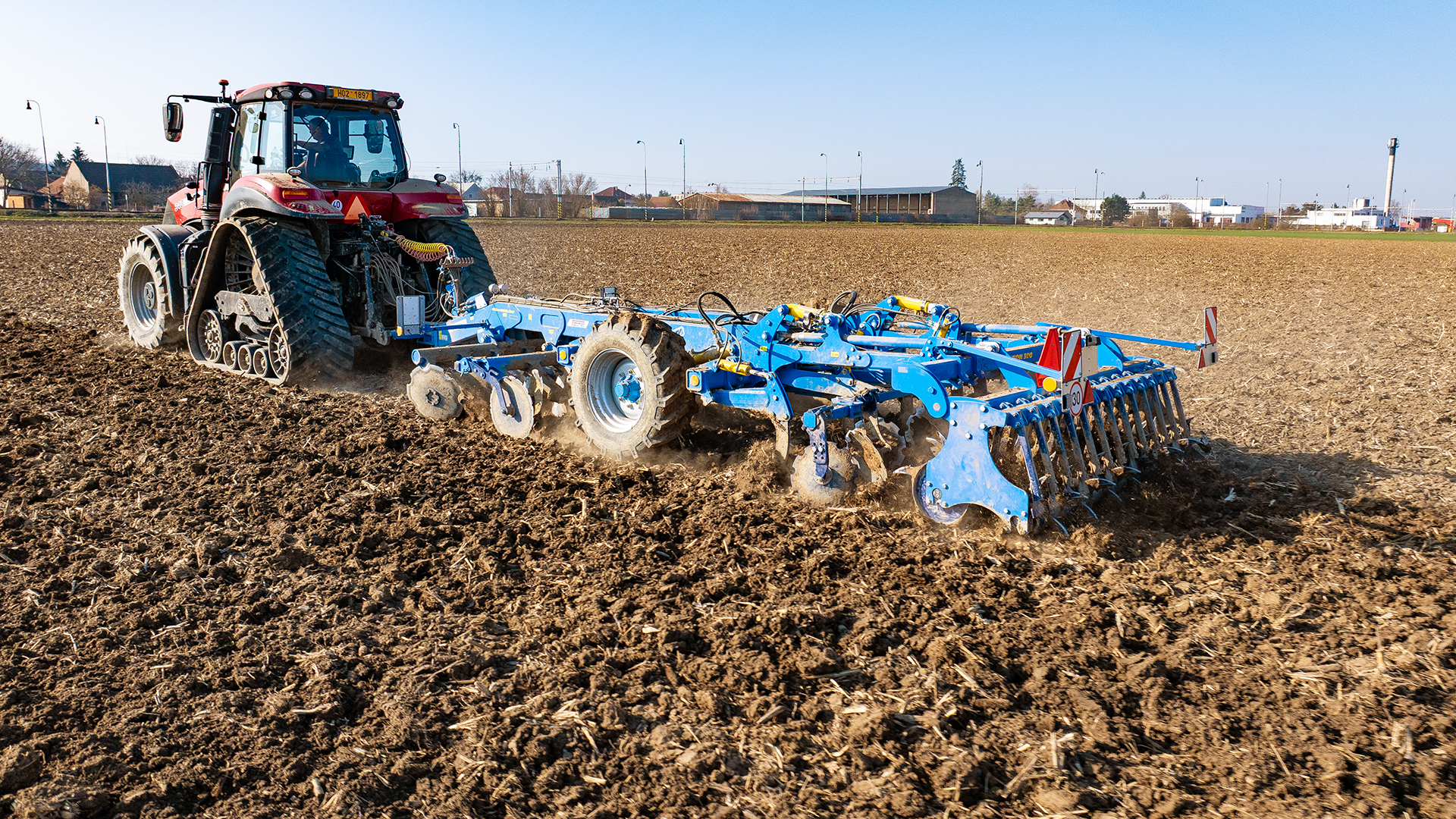

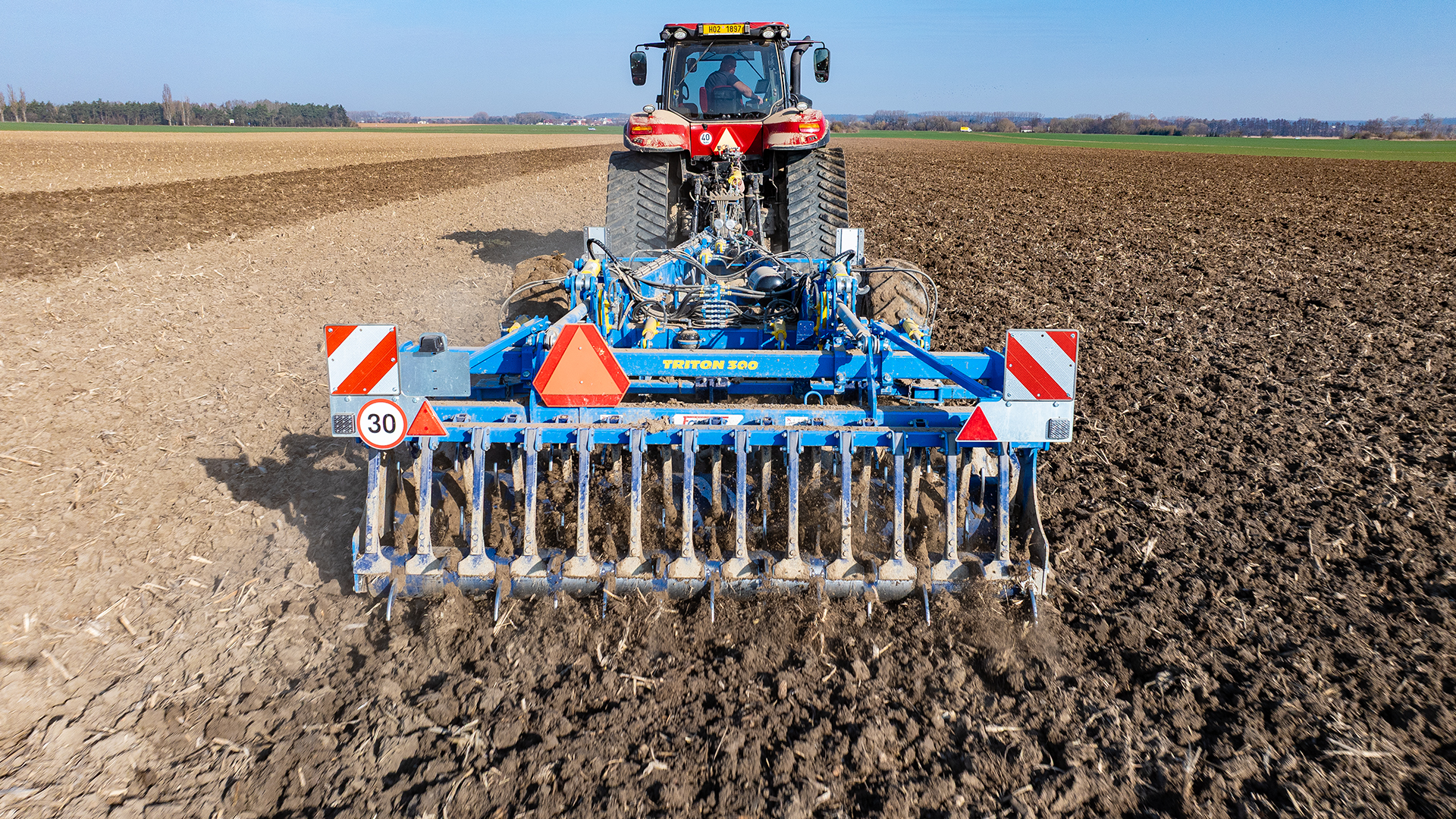

Combined cultivator Triton 300 P HEAVY

  1. The discs with the diameter Ø 620 / 680 mm arranged in two rows undercut soil.
  2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
  3. The levelling discs for perfect levelling of surface.
  4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Combined cultivator Triton 660 PS HEAVY

  1. The discs with the diameter Ø 620 / 680 mm arranged in two rows undercut soil.
  2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
  3. The levelling discs for perfect levelling of surface.
  4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials
High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.
Massive disc units
Very high release force due to massive disc units.
Extreme durability of working units
The time-tested tines are made of high-strength abrasion-resistant steels and they are equipped with carbide plates at the point of tine. The top part of the tine can be supplemented with other carbide plates or tungsten carbide weld deposits to extend the lifespan even more.
Rubber levelling discs placement
Durable and maintenance-free protection of the levelling discs.
Maintenance-free bearings
Maintenance-free discs placement ensuring machine operation without additional lubrication.
Massive transport axle with brakes
For safe and quick machines transport on public roads.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps, that everybody can perform.

  • Minimum adjustment points.
  • Minimum lubrication points.
Hydraulic setting the working depth of disc section
Easy and quick setting the working depth of discs by setting washers at hydraulic cylinder.
Working depth adjustment
Easy working depth adjustment according to the owerview table by the setting washers on the roller piston rods.
Hydraulic setting the working depth of tines when working without rear rollers
Easy setting the working depth by setting washers of axle hydraulic cylinder when working without rear rollers.
Hydraulic setting the levelling discs
Easy and quick setting the discs comfortably from tractor cabin even during work in a field.
Setting the left side deflector
Easy setting the side deflector by a pin – for perfect connection between each passes.
Setting the right side deflector
Easy setting the side deflector by a pin – for perfect connection between each passes.
Setting side levelling discs
Side levelling discs are easily adjustable by a pin – for precise connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.



Parameters

Technical parameters Units Triton 300 P HEAVY Triton 410 PS HEAVY  Triton 410 P FIX HEAVY Fert+
Working width mm 3 000 4 100 4 100
Transport width mm 3 000 3 000 4 100
Transport height mm 1 950 3 000 3 000
Total machine length 2 mm 9 550 9 550 9 550
Hopper volume l  - - 5 000
Fertilizer batch size kg/ha  -  - 70─300
Number of discs pcs 14 20 20
Number of disc rows pcs 2 2 2
Disc row spacing mm 950 950 950
Disc diameter mm 620 / 680 620 / 680 620 / 680
Disc spacing mm 420 420 420
Maximal working depth of discs mm 180 / 210 180 / 210 180 / 210
Number of tilling chisels pcs 7 9 9
Number of chisel rows pcs 2 2 2
Chisel spacing mm 420 420 420
Chisel rows spacing mm 1 280─2 390 1 280─2 390 1 280─2 390
Maximal working depth of chisels mm 400 400 400
Frame clearance mm  920 920 920
Diameter of levelling discs mm 460 460 460
Working performance ha/h 2,4─3,6 3,3─4,9 3,3─4,9
Towing vehicle 1 kW
HP
155─260
210─350
220─290
290─380
220─290
290─380
Working speed km/h 8─12 8─12 8─12
Maximum transport speed 5 km/h 30 30 30
Brake type / distribution 3   air / two-line air / two-line air / two-line
Required pressure 3 kPa 5,5 5,5 5,5
Number of hydraulic circuits / pressure 4 bar 5 (3) / 200 6 (4) / 200 6 (4) / 200
Machine weight 2 kg 5 300 8 100
Technical parameters Units Triton 490 PS HEAVY Triton 580 PS HEAVY  Triton 660 PS HEAVY
Working width mm 4 900 5 800 6 600
Transport width mm 3 000 3 000 3 000
Transport height mm 3 400 3 800 4 000
Total machine length 2 mm 9 550 9 550 9 550
Hopper volume l  -  -
Fertilizer batch size kg/ha  -
Number of discs pcs 24 28 32
Number of disc rows pcs 2 2 2
Disc row spacing mm 950 950 950
Disc diameter mm 620 / 680 620 / 680 620 / 680
Disc spacing mm 420 420 420
Maximal working depth of discs mm 180 / 210 180 / 210 180 / 210
Number of tilling chisels pcs 11 13 15
Number of chisel rows pcs 2 2 2
Chisel spacing mm 420 420 420
Chisel rows spacing mm 1 280─2 390 1 280─2 390 1 280─2 390
Maximal working depth of chisels mm 400 400 400
Frame clearance mm  920 920 920
Diameter of levelling discs mm 460 460 460
Working performance ha/h 3,9─5,9 4,6─7,0 5,4─7,9
Towing vehicle 1 kW
HP
260─340
350─460
310─400
410─540
350─460
450─600
Working speed km/h 8─12 8─12 8─12
Maximum transport speed 5 km/h 30 30 30
Brake type / distribution 3   air / two-line air / two-line air / two-line
Required pressure 3 kPa 5,5  5,5 5,5
Number of hydraulic circuits / pressure 4 bar 6 (4) / 200 6 (4) / 200 6 (4) / 200
Machine weight 2 kg 9 100 10 100 11 800

1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 For the machine version with a double roller (DVR).
3 Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
4 When using the electro-hydraulic circuit distributor Hydrtotronic.
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.


We are constantly improving and innovating our machines/products to provide the best possible solutions for current technological trends and to meet customers’ requirements. For this reason, some of the offered products may be produced differently than they are presented on our website. Binding specifications/parameters of a machine will be confirmed when ordering.

Modulabitily

Accessories

Photo gallery

Video

Files

Accessories

Rollers

Disc roller SDR
Diameter 580 mm
Weight 220 kg/m
Double ring roller DRR
Diameter 540/540 mm
Weight 195 kg/m
Double V-ring DVR
Diameter 600/600 mm
Weight 190 kg/m
LTX roller
Diameter 586 mm
Weight 200 kg/m
Tube roller TRS
Diameter 600 mm
Weight 100 kg/m
V roller VR
Diameter 600 mm
Weight 175 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller Tube-shaped
TRS
Double ring
DRR
LTX
Crumbling ●●○○ ●●●○ ●●○○
Stamping  ●●●○ ●●●● ●●●●
Depth guiding  ●●●○ ●●●● ●●●●
Resistance against clogging ●○○○ ●●●● ●●●○
Suitability for stony soils ●●●○ ●●●○ ●●●○
Suitability for wet soils ●○○○ ●●●● ●●●●
Heavy soils ●●○○ ●●●● ●●●●
Medium soils  ●●●○ ●●●● ●●●●
Light soils  ●●●● ●●●● ●●●○
Roller Disk
SDR
VR Double V-ring
DVR
Crumbling  ●●●○ ●●●○  ●●●○
Stamping ●●●● ●●●● ●●●●
Depth guiding ●●●● ●●●● ●●●●
Resistance against clogging  ●●●○ ●●●● ●●●●
Suitability for stony soils  ●●●○  ●●●○  ●●●○
Suitability for wet soils ●●●● ●●●● ●●●●
Heavy soils ●●●● ●●●● ●●●●
Medium soils ●●●● ●●●● ●●●●
Light soils  ●●●○ ●●●● ●●●●

Working tools

Chisel 75 CARBIDE
Chisel 55 CARBIDE
Chisel 75 MULTICARBIDE PRO
Chisel 50 MULTICARBIDE PRO
Chisel 75 CARBIDE
Chisel width 75 mm
Chisel thickness 15 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Chisel 75 MULTICARBIDE
Share width 75 mm
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 150-400 %
Chisel 75 MULTICARBIDE PRO
Share width 75 mm
Share body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Share service life + 200-500 %
Chisel 40 CARBIDE
Chisel width 40 mm
Chisel thickness 25 mm
Chisel body hardness up to 55 HRC
Widia plate hardness up to 92 HRA
Chisel service life + 100-200 %
Diesel fuel consumption - 10 %
Left wing
Right wing
Disc Ø 620 mm
Disc Ø 680 mm

Variants of hinges

TPH category 3

The pins for TPH category 4 can be exchanged.

Hinge K80 Ø 80 mm
Loop for the lower hinge Ø 50 mm, Ø 70 mm

Optional equipment

Electro-Hydraulic Circuit distributor

Divides 1 tractor circuit into 3 circuits.

Micro Drill

Sowing of fine seeds.

Working units for soil tillage to 35 cm
Working units for soil tillage to 40 cm
