Disc cultivator SOFTER NS

Tillage up to 13 cm with full-surface undercut and mixing

Disc cultivator Softer

Technology

1	Full-surface tillage zone. The double-row disc section with aggressive geometry ensures perfect full-surface undercut to depth of 3.5–13 cm with intensive mixing of crop residues. The disc section also spreading well crop residues over the surface.
2	Clods crumbling and soil re-compaction zone. Optimum soil re-compaction ensures good water infiltration and soil water capillarity to the surface.

Technics

Disc cultivator Softer N/NS

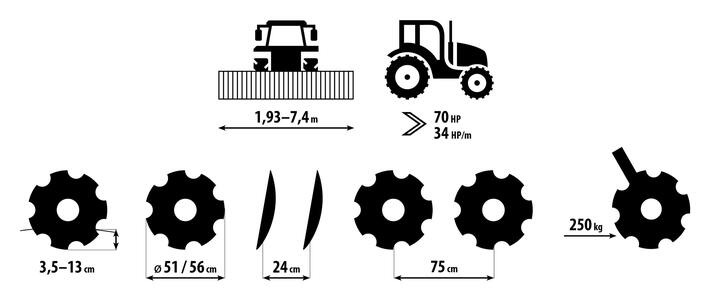

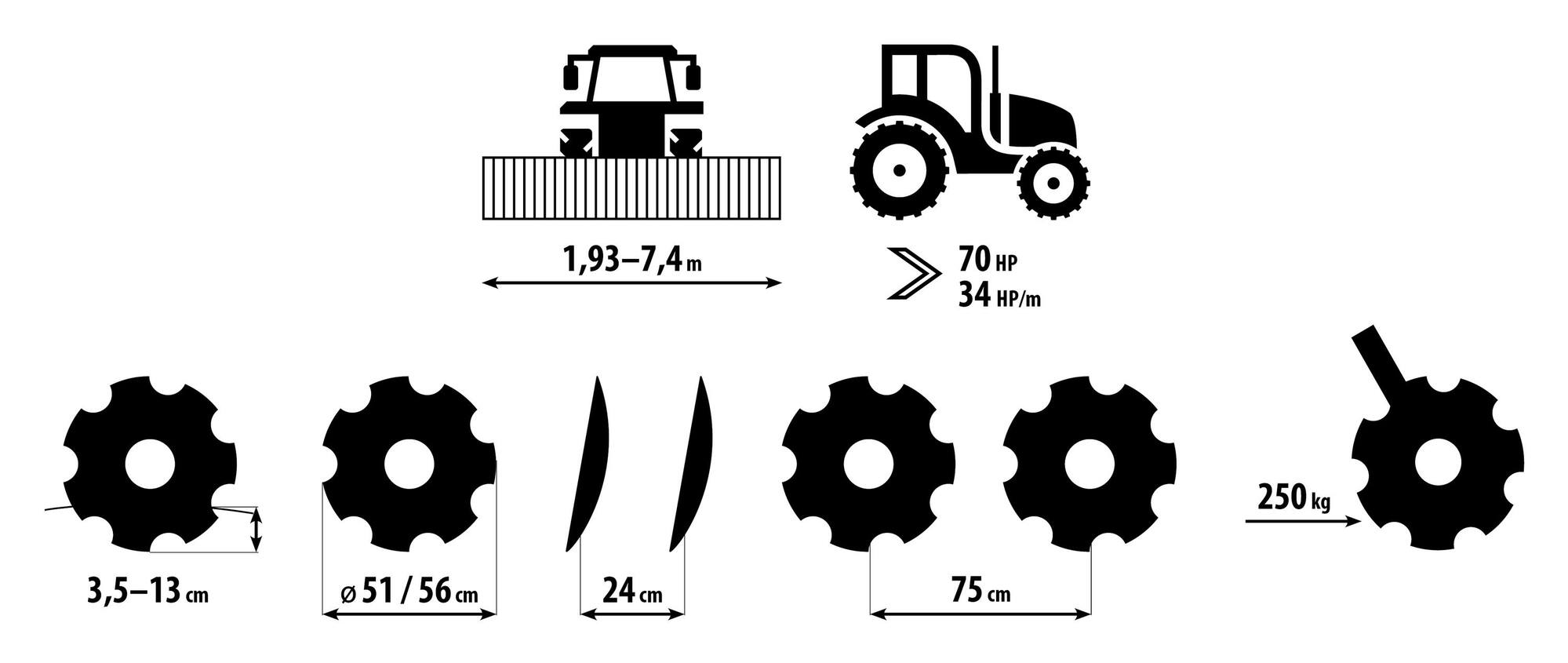

Discs Ø 510 mm / Ø 560 mm arranged in two rows will undercut the soil. Working depth is 3.5–13 cm.
Clods are crumbled by the rear roller.
The additional Micro Drill machine for planting crops that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Disc cultivator Softer N/NS

Discs Ø 510 mm / Ø 560 mm arranged in two rows will undercut the soil. Working depth is 3.5–13 cm.
Clods are crumbled by the rear roller.

Discs with serrated circumference

Discs with the diameter of 510 / 560 mm are arranged in two rows. In case of contact with an obstacle, each disc is individually effectively protected by rubber suspension.

The discs are mounted in maintenance-free bearings with excellent service life. Optimum discs geometry ensures high-quality work with very good productivity and high percentage of incorporated crop residues. The discs retain ideal working angle even with partially worn discs geometry. The disc 24 cm spacing ensures good throughflow of crop residues.

Discs with the diameter of 510 / 560 mm are arranged in two rows. In case of contact with an obstacle, each disc is individually effectively protected by rubber suspension.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Maintenance-free disc bearings.
Maintenance-free rubber suspension.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Maintenance free bearings

Maintenance-free disc bearings ensuring machine operation without additional lubrication.

Maintenance-free rubber suspension

Durable and maintenance-free rubber suspension for terrain adaptation with protection against overload.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum adjustment points.
Minimum lubrication points.
No angles adjustments or transpose of discs.

Smooth connection between each passes

The lateral disc is individually deep-adjustable, which allows smooth connection between each passes.

Processed soil direction

The height and longitudinally adjustable side deflector for ideal processed soil direction.

Working depth adjustment

Easy working depth adjustment by the pins on the coupling rods of rollers at disc cultivators Softer 4.5 NS and Softer 6 NS. (substitutable by hydraulic control – optional)

Working depth adjustment

Easy working depth adjustment by the pins on the roller beams at Softer 3 N.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability work.

Skilful when working in the field due to a short compact design.
Low operating costs due to light machine construction without need extra weight.
Very good self-cleaning capabilities of the space between the disc and the tine.

All-round sharpened disc

Easier disc penetration into the soil.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of the Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

SynCult Manure Applicator

Complete set of additional equipment for the Softer NS Disc Cultivator for full-surface application of manure.

More information about SynCult Manure Applicator >

Parameters

Technical parameters	Units	Softer 2,5 N	Softer 3 N	Softer 3,5 N	Softer 4 N
Working width	mm	2 550	3 000	3 500	3 990
Transport width	mm	2 550	3 000	3 500	4 390
Transport height	mm	1 420	1 420	1 420	1 620
Total machine length	mm	2 750	2 750	2 750	2 800
Working depth	mm	35–130	35–130	35–130	35–130
Number of discs – front row Number of discs – rear row	pcs	10 10	12 12	14 14	17 16
Diameter of discs	mm	510 / 560	510 / 560	510 / 560	510 / 560
Working performance	ha/h	2,5–3,8	3–4,5	3,5–5,3	4─6
Towing vehicle ¹	kW HP	65–100 90–140	80–120 110–165	90–140 120–190	110–160 150–215
Working speed	km/h	10–15	10–15	10–15	10–15
Maximum transport speed ⁴	km/h	25	25	25	25
Maximum slope availability	°	11	11	11	11
Tractor hitch requirement		TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 3
Machine weight ²	kg	1 800	1 980	2 300	2 700

Technical parameters	Units	Softer 4,5 NS	Softer 5 NS	Softer 6 NS	Softer 8 NS
Working width	mm	4 470	4 950	5 910	7 400
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	2 500	2 750	3 250	4 000
Total machine length	mm	2 750	2 750	2 750	2 750
Working depth	mm	35–130	35–130	35–130	35–130
Number of discs – front row Number of discs – rear row	pcs	19 18	21 20	25 24	31 30
Diameter of discs	mm	510 / 560	510 / 560	510 / 560	510 / 560
Working performance	ha/h	4,5–6,75	5–7,5	6–9	8–12
Towing vehicle ¹	kW HP	120–180 160–240	130–190 175–255	150–225 200–300	200–300 270–405
Working speed	km/h	10–15	10–15	10–15	10–15
Maximum transport speed ⁴	km/h	25	25	25	25
Maximum slope availability	°	11	11	11	11
Number of hydraulic circuits / pressure ³	bar	1(2) / 200	1(2) / 200	1(2) / 200	1(2) / 200
Number of hydro-couples / type ³		2(4) / ISO 12,5	2(4) / ISO 12,5	2(4) / ISO 12,5	2(4) / ISO 12,5
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	kg	3 200	3 450	3 900	4 770

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with LTX roller.
³ By default, 1 folding circuit, but optional hydraulic control of rollers, then 2 circuits.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine

Optional

Photo gallery

Video

Files

User manual

Disc cultivator Softer

Disc cultivator Softer 3 N

Disc cultivator Softer 4,5 NS

Disc cultivator Softer 4,5 NS & Syncult

Disc cultivator Softer 5 NS & Syncult

Accessories

Rollers

Disc roller SDR

Diameter	580 mm
Weight	220 kg/m

Double roller DR

Diameter	400/300 mm
Weight	135 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

Ring roller RR

Diameter	520 mm
Weight	160 kg/m

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

V roller VR

Diameter	600 mm
Weight	175 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the tillage is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Ring RR	LTX
Crumbling	●●○○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●○	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●○	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	VR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●○	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●○	●●●●
