Disc cultivator SOFTER PS

High performance and quality of work

• High working speed up to 15 km/h.
• Serrated discs for safe penetration into the soil and intensive mixing.
• Working angle of the discs and down-pressure to each disc ensure uncompromising penetration even to heavy and over-dried soils and perfect undercut of the processed profile.
• High-quality rubber suspension for optimal working angles of the disc.
• Precise deep guiding with optimum soil compaction.

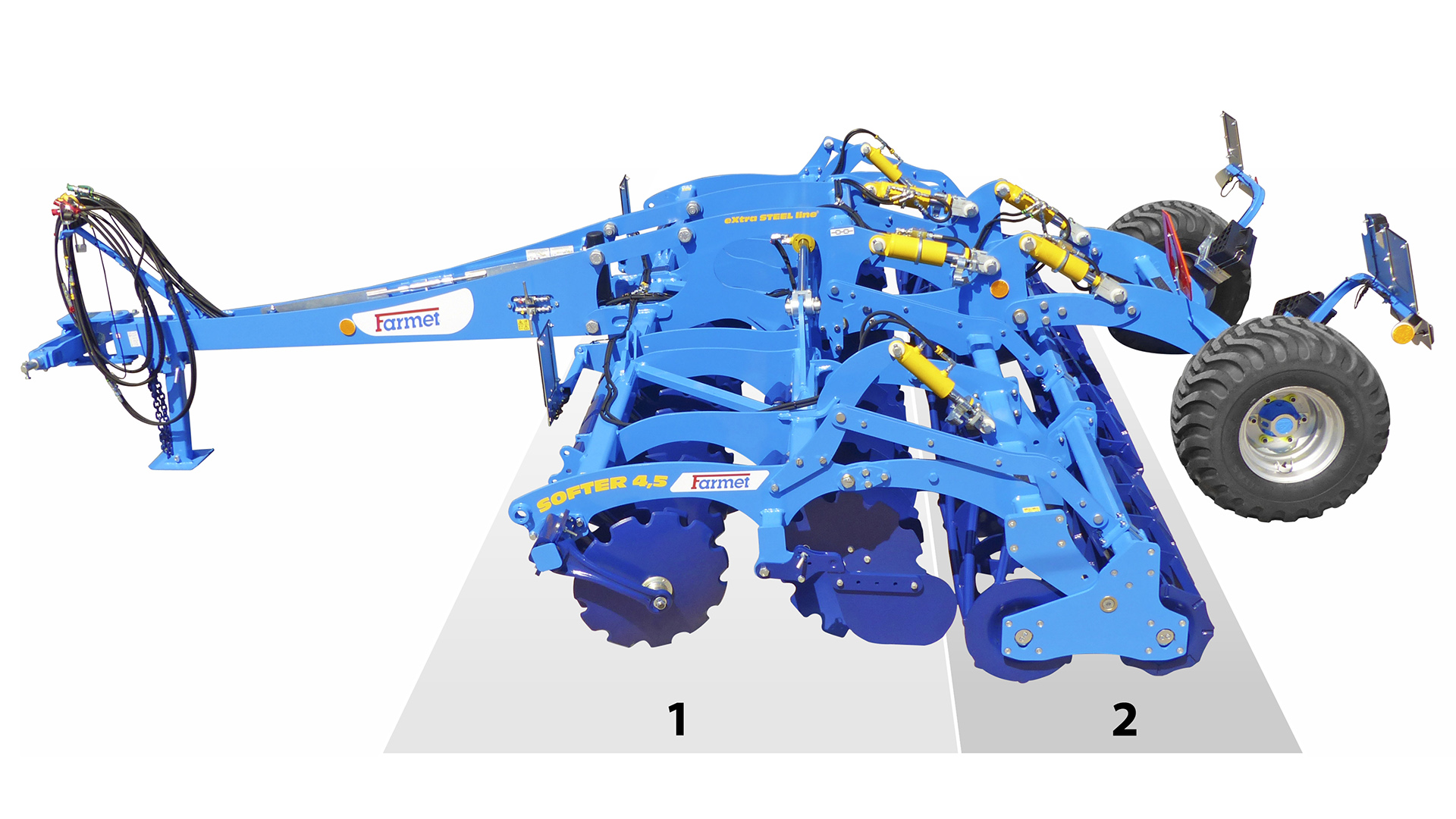

Disc cultivator Softer PS

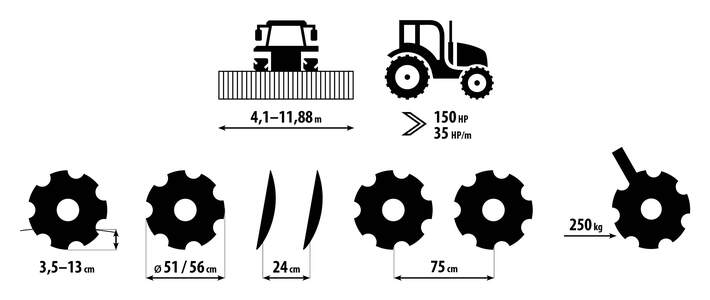

1. Discs Ø 510 mm / Ø 560 mm arranged in two rows will undercut the soil. Working depth is 3.5–13 cm.
2. Clods are crumbled by the rear roller.

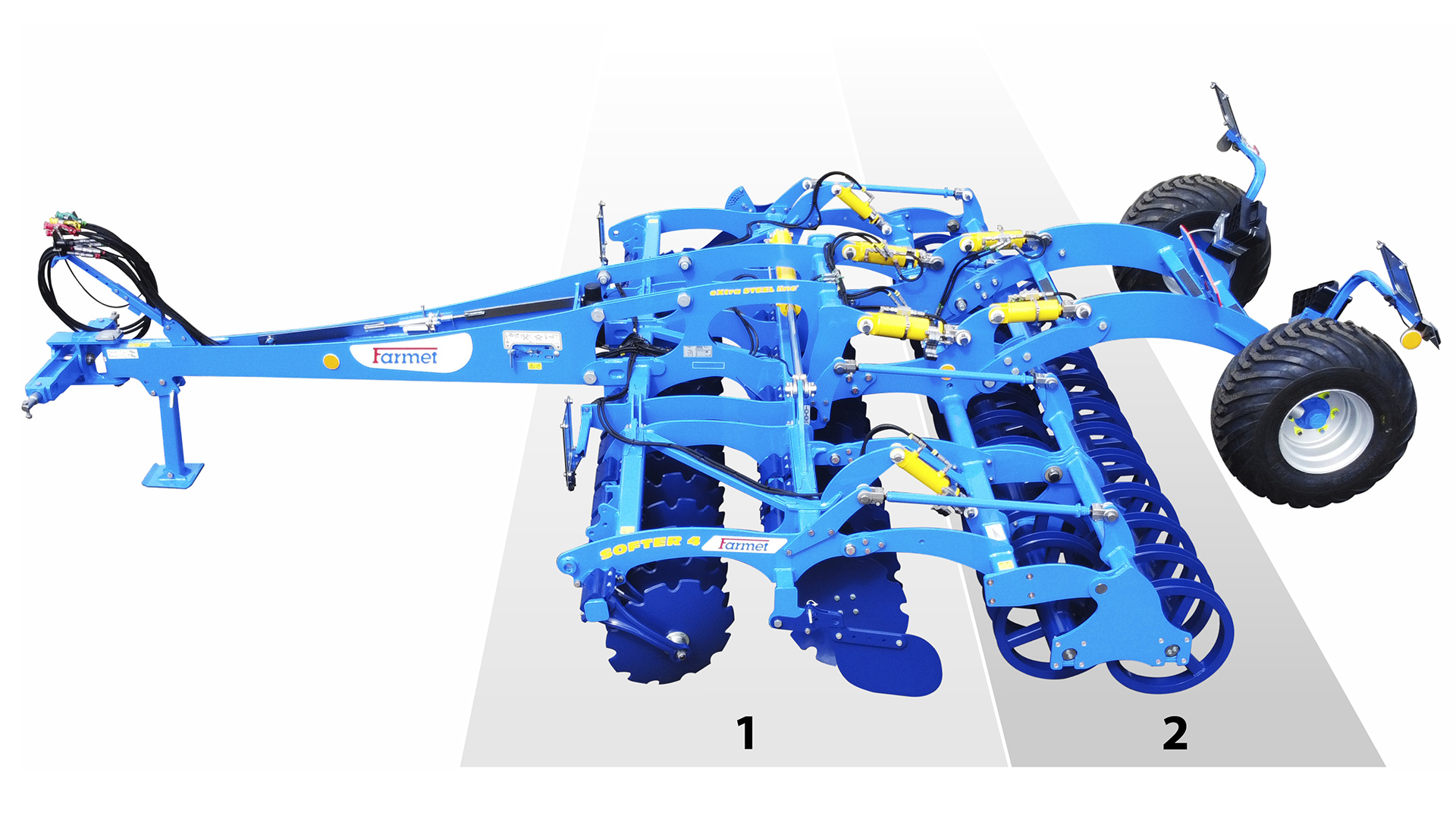

Disc cultivator Softer PS

1. Discs Ø 510 mm / Ø 560 mm arranged in two rows will undercut the soil. Working depth is 3.5–13 cm.
2. Clods are crumbled by the rear roller.
3. The additional Micro Drill machine for planting crops, that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Discs with serrated circumference

Discs with the diameter of 510 / 560 mm are arranged in two rows. In case of contact with an obstacle, each disc is individually effectively protected by rubber suspension.

The discs are mounted in maintenance-free bearings with excellent service life. Optimum discs geometry ensures high-quality work with very good productivity and high percentage of incorporated crop residues. The discs retain ideal working angle even with partially worn discs geometry . The disc 24 cm spacing ensures good throughflow of crop residues.

Discs with the diameter of 510 / 560 mm are arranged in two rows. In case of contact with an obstacle, each disc is individually effectively protected by rubber suspension.

The discs are mounted in maintenance-free bearings with excellent service life. Optimum discs geometry ensures high-quality work with very good productivity and high percentage of incorporated crop residues. The discs retain ideal working angle even with partially worn discs geometry . The disc 24 cm spacing ensures good throughflow of crop residues.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

• Maintenance-free disc bearings.
• Maintenance-free rubber suspension.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.

Maintenance free bearings

Maintenance-free disc bearings ensuring machine operation without additional lubrication.

Maintenance-free rubber suspension

Durable and maintenance-free rubber suspension for terrain adaptation with protection against overload.

Easy operation

Due to minimum adjusting and lubricating points, the operation and subsequent maintenance are very easy steps that anybody can perform.

• Minimum adjustment points.
• Minimum lubrication points.
• No angles adjustments or transpose of discs.

Continuous connection of runs

Individually height-adjustable deflector for smooth connection between each passes.

Direction of the processed soil

The height and longitudinally adjustable side deflector for ideal processed soil direction.

Working depth adjustment

Easy working depth adjustment according to the overview table by the setting washers on the roller piston rods.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability work.

• Skilful when working in the field due to a short and compact design.
• Low operating costs due to light machine construction without need extra weight.
• Very good self-cleaning capabilities of the space between the disc and the tine.

All-round sharpened disc

Easier disc penetration into the soil.

Side frames permanent down-pressure

Automatic terrain tracing and side frames permanent down-pressure in Softer 8 and Softer 11 PS due to hydraulic accumulator.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation of the Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill>

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Machine weight with the heaviest roller.
³ An additional hydraulically controlled supporting leg for the version of the machine with a drawbar attached to the fixed bottom hitch.
⁴ Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
⁵ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
⁶ When selecting the rollers of disc cultivator Softer 11 PS, Softer 12 PS W, first contact the sales representative of the company Farmet a. s.

PS – semi-mounted foldable machine
P FIX – semi-mounted not-folding machine, transport width more than 3 metres
PS W – semi-mounted folding machine, transport width more than 3 metres
