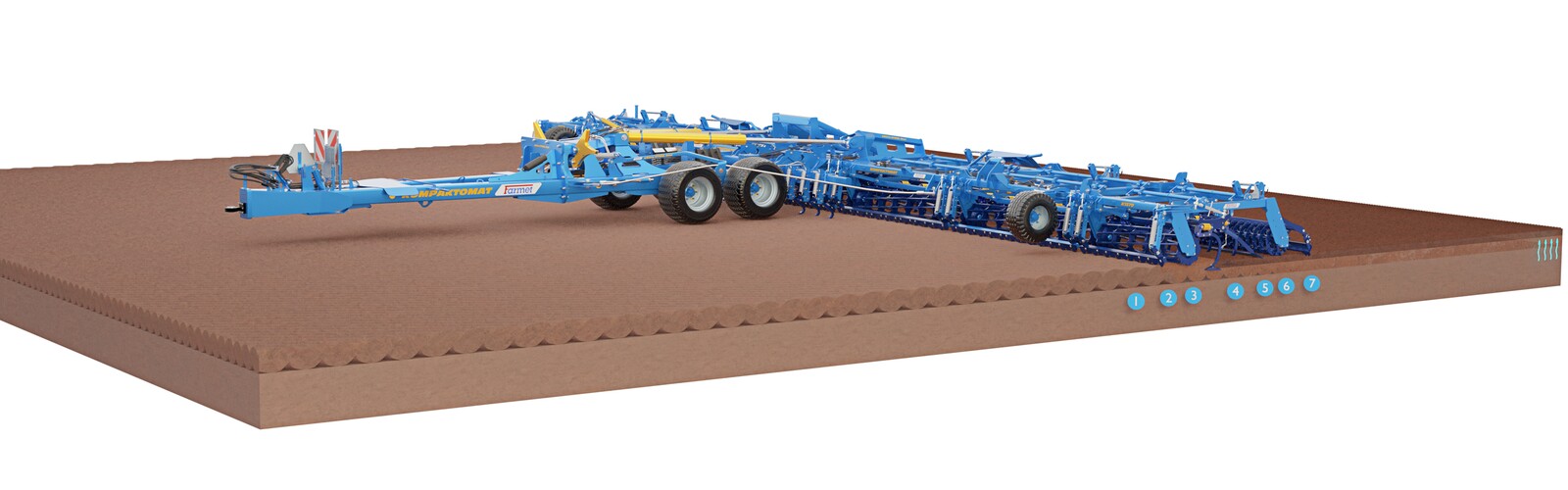

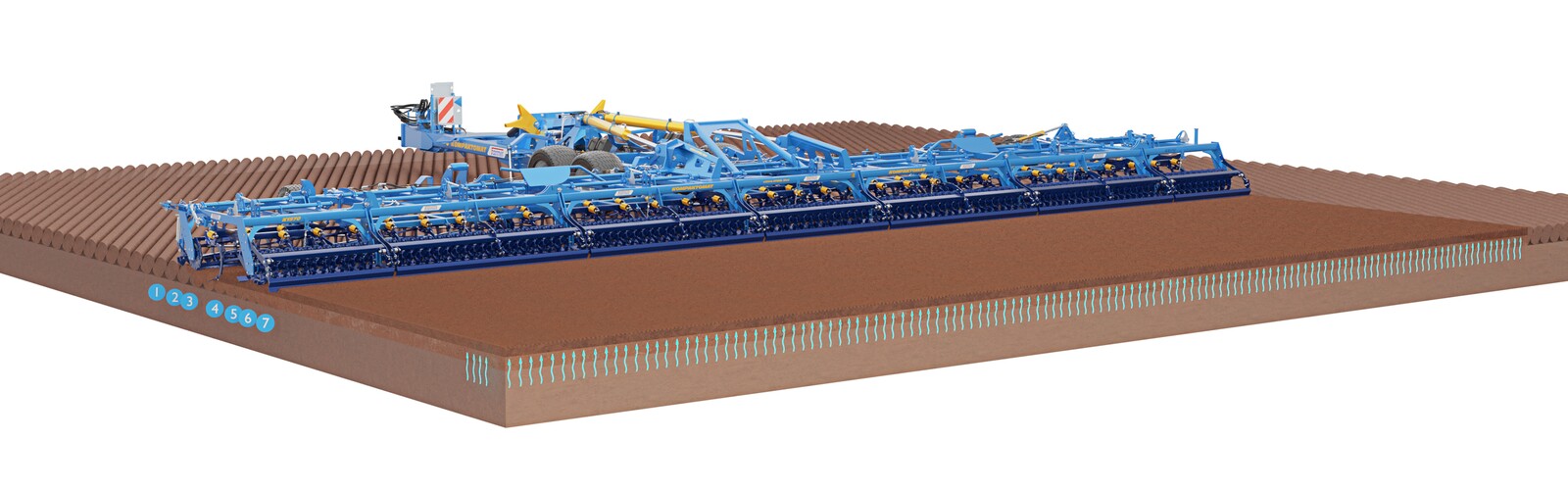

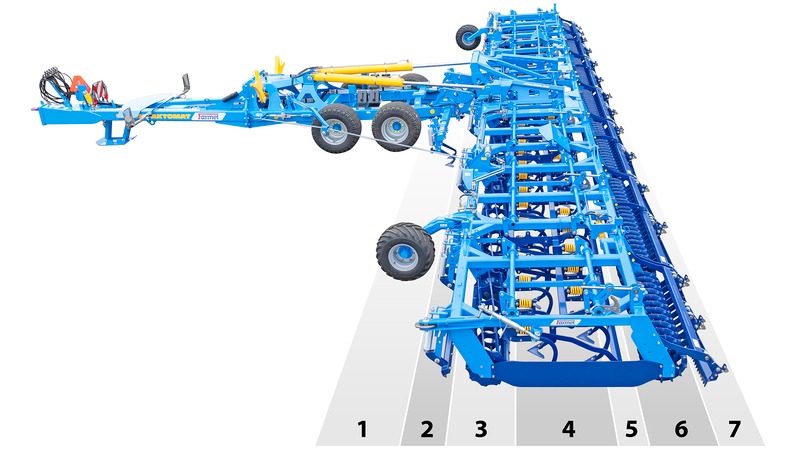

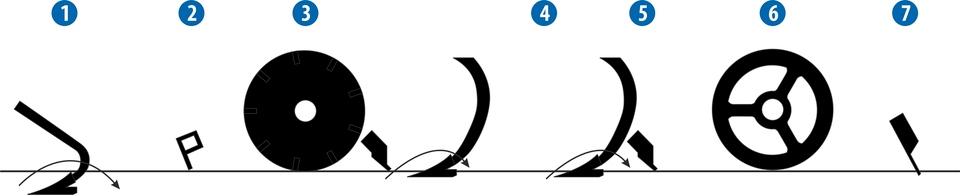

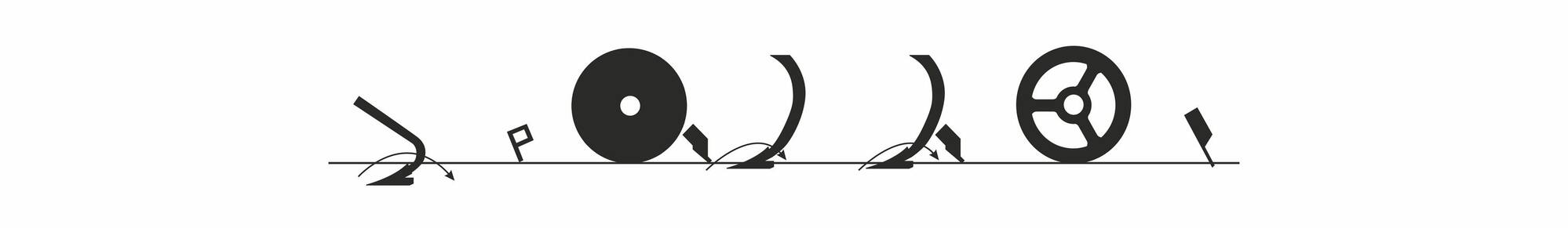

| 1 | Tractor track cultivating zone. Perfect cultivation of the tracks eliminates uneven emergence of plants after sowing. |
| 2 | Basic soil levelling zone. Precisely levelled soil surface allows uniform subsequent compaction and cultivation the seedbed. |
| 3 | The soil pre-compaction zone by the front roller. The front roller crumbles clods on the surface, but at the same time it compacts the soil and restores the soil capillarity. |
| 4 | Seedbed zone. The soil is cultivated by the share section to the set depth. The depth should be the same as the future sowing depth. Duck foot shares allow full-surface undercut and weed control. |
| 5 | Furrow-levelling zone behind a share cultivating section. |

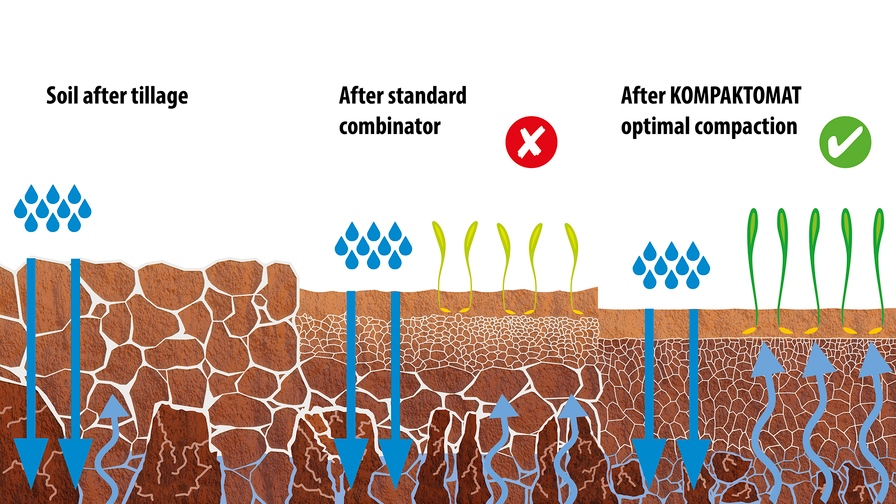

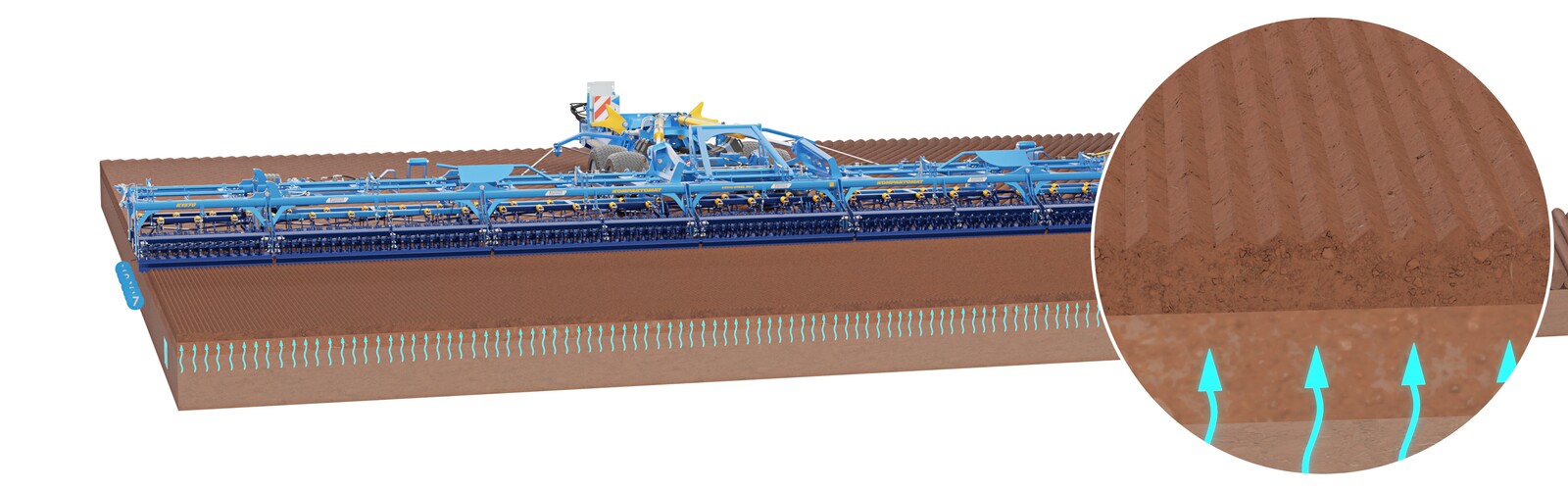

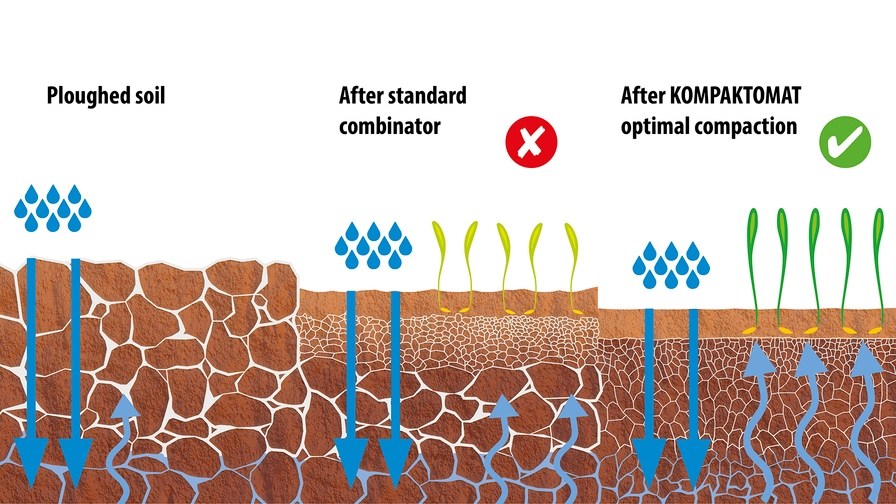

| 6 | Rear roller soil compaction zone. The roller finely crumbles clods and ensures the final compaction of the seedbed so that the soil capillarity is fully restored. Intensive soil water capillarity to the surface ensures good emergence of plants even in the dry season. |
| 7 | Final soil levelling zone. The rear bar ensures a perfect surface level with minimum clods for subsequent sowing. |

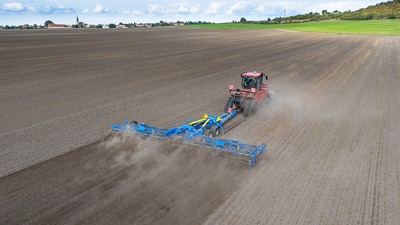

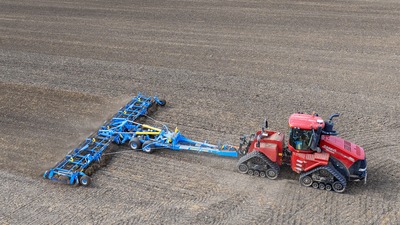

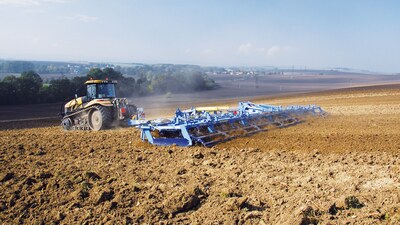

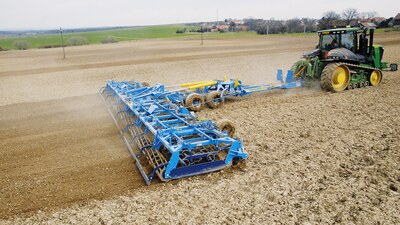

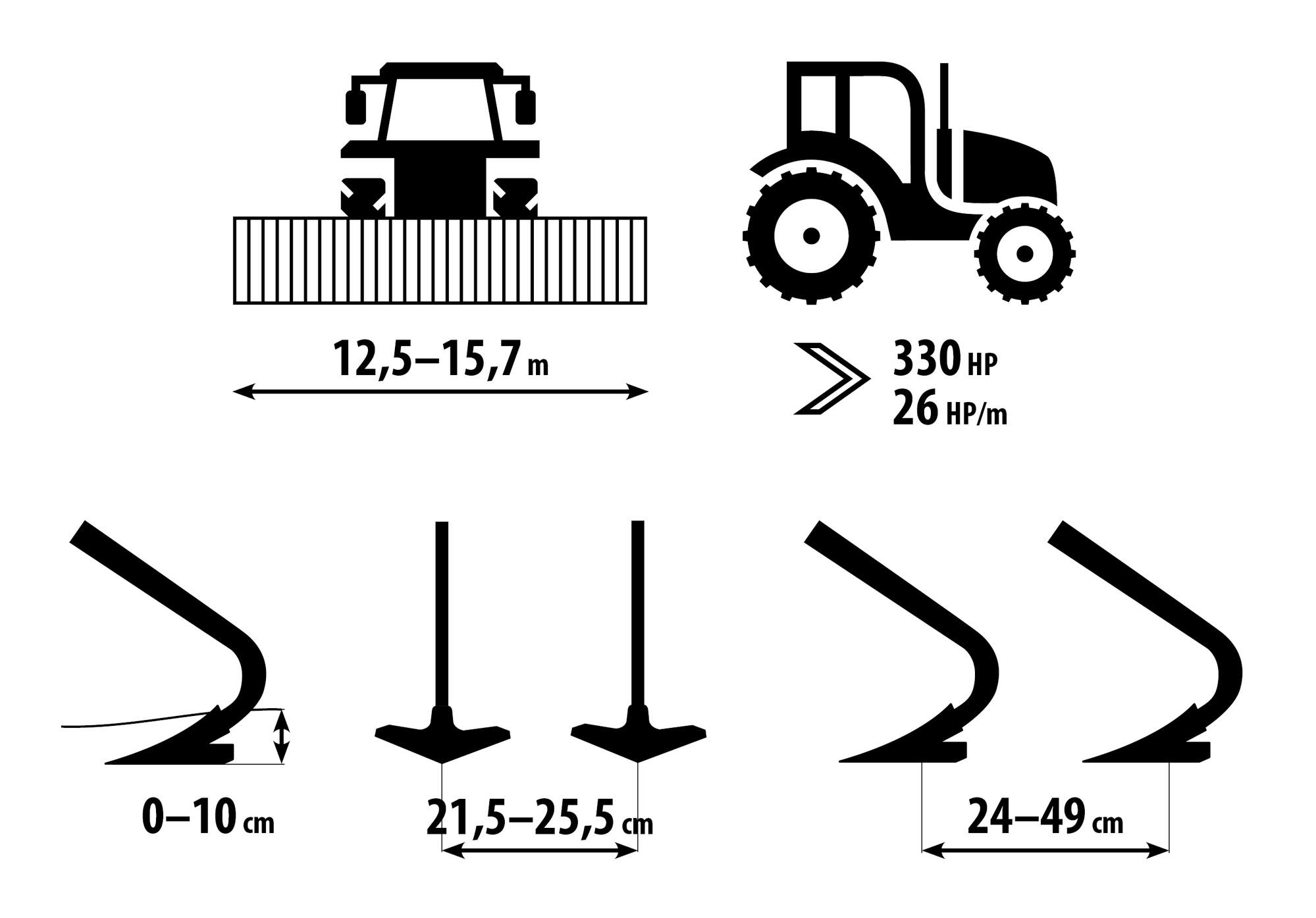

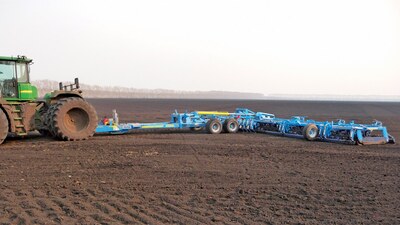

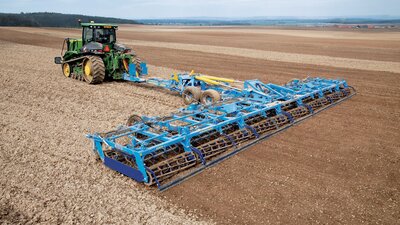

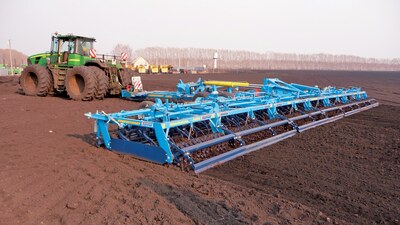

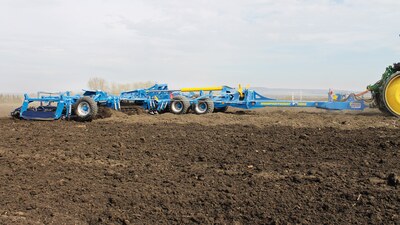

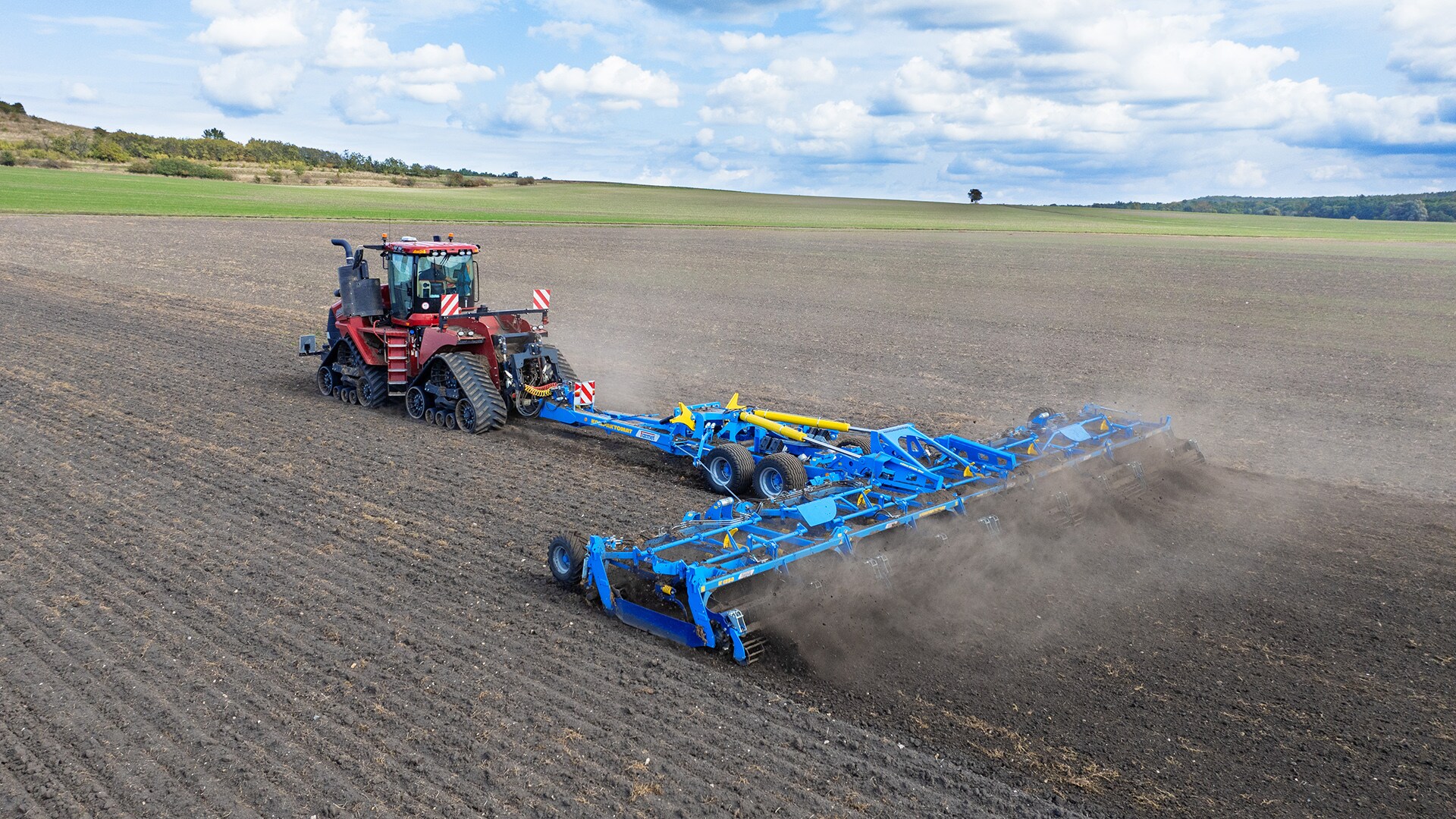

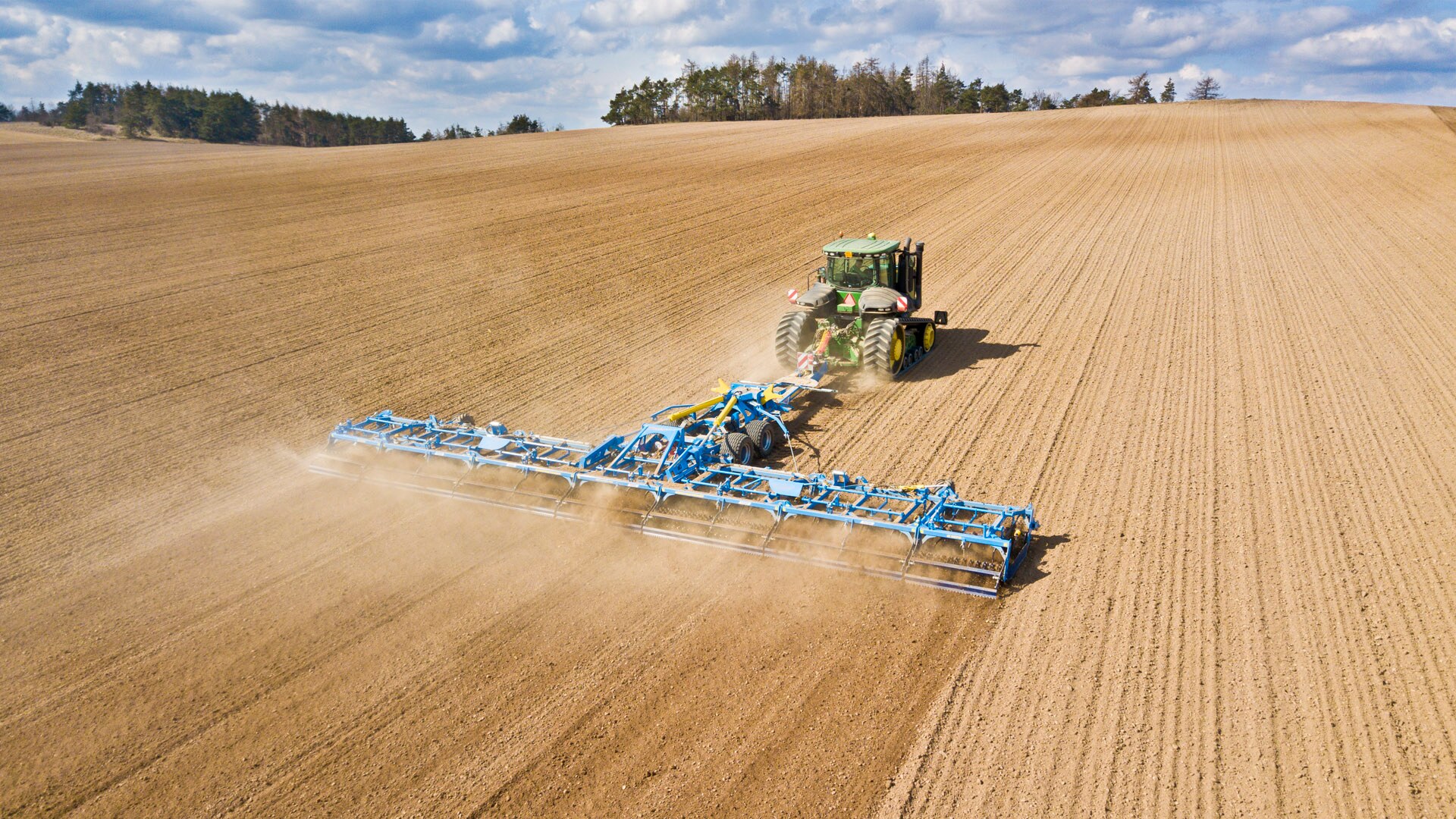

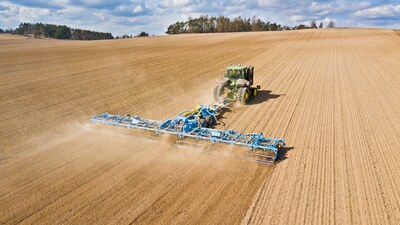

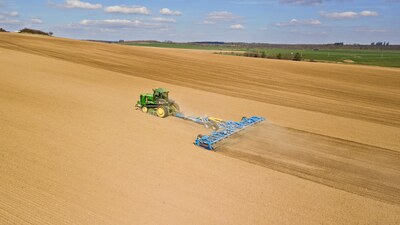

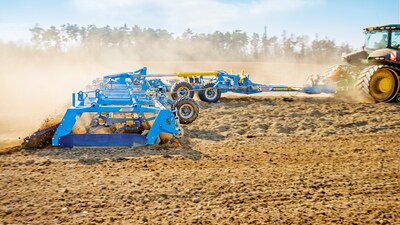

Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after ploughing.
The wide span variant of the Kompaktomat machine is manufactured in the working width of 12.5 m and 15.7 m. It is designed for large agricultural holdings equipped with tractors with power requirement up to 600 HP.
During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted seedbed. The land is perfectly levelled also due to levelling bars that can level and spread even high unevenness.
Seedbed combinators Kompaktomat are time-tested machines designed for seedbed preparation of the soil after ploughing.
The wide span variant of the Kompaktomat machine is manufactured in the working width of 12.5 m and 15.7 m. It is designed for large agricultural holdings equipped with tractors with power requirement up to 600 HP.
During one run the soil is perfectly tilled to the state required for sowing of crops. The advantage of the machine is excellent levelling of the surface, fine crumbling of clods and formation of well-compacted seedbed. The land is perfectly levelled also due to levelling bars that can level and spread even high unevenness.
Due to high working speed, high working performance can be achieved even with lower working span of the Kompaktomat machine. A key consideration here is that due to its well-considered design and favourable weight Kompaktomat can prepare the soil after ploughing during one run, whereas the soil is tilled not only on the surface, but in the whole horizon.
During the run Kompaktomat performs several working operations, during which the surface of the soil is levelled and compacted to the depth. In the cultivated soil capillarity is restored and in the required depth the seedbed is formed. The clods are finely crumbled.

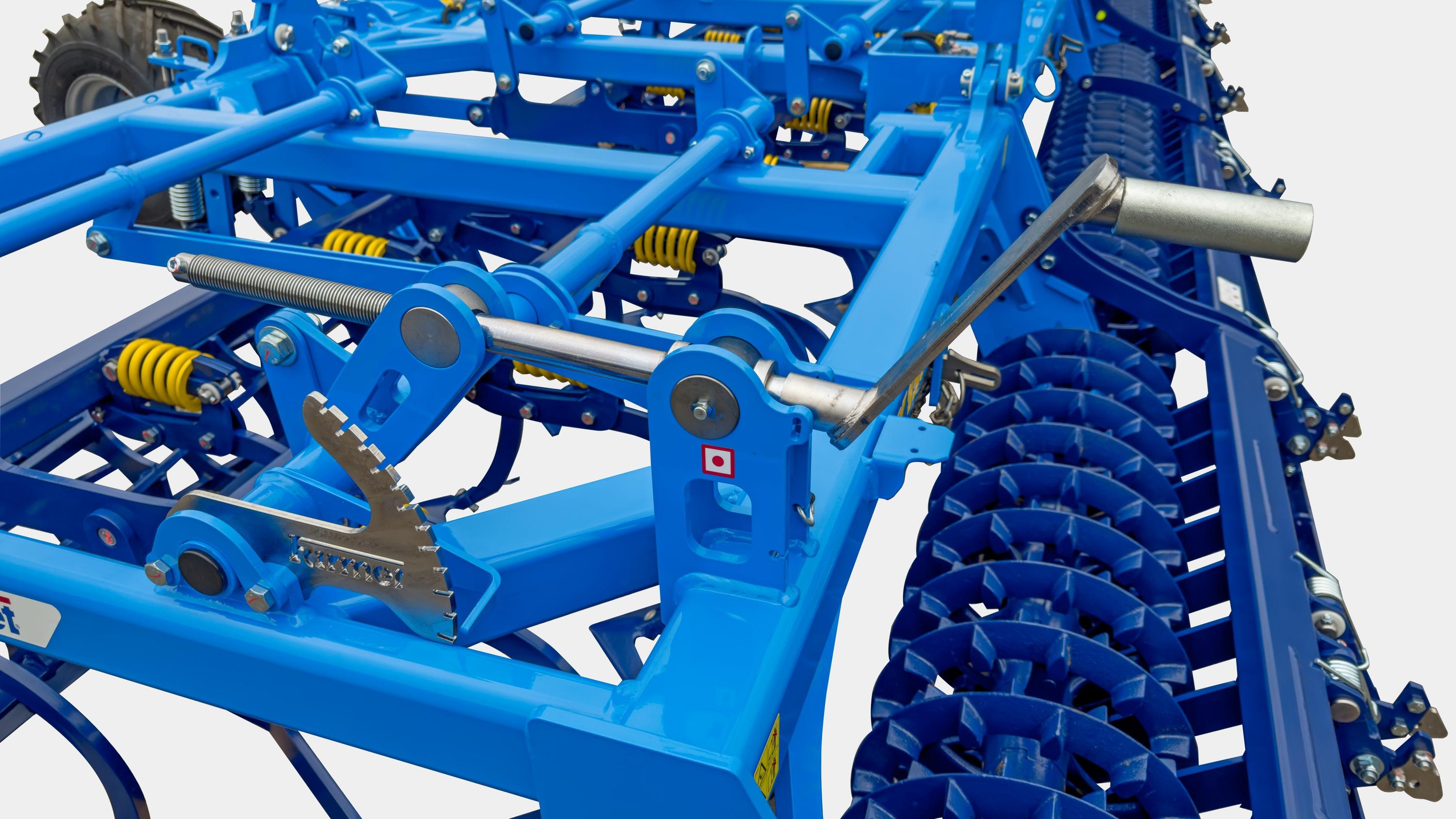

Optionally the combinator can be equipped with hydraulic adjustment of depth of the share section and hydraulic adjustment of the front leveller.
The control elements of the seedbed combinator are designed in order to achieve maximum safety of workers. Simple but quality construction with minimum maintenance requirements.

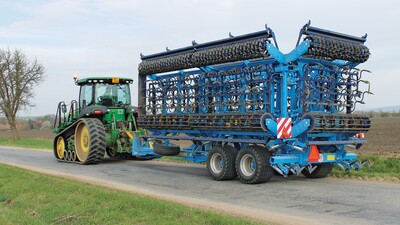

All variants are equipped with folding for transport so that the machine does not exceed the maximum transport width of 3 metres and maximum transport height of 4 metres. Folding is hydraulic and fully automatic.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.
Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.
The advantage of this machine is its multi-purpose and adjustability bringing high variability of work.
The advantage of this machine is its multi-purpose and adjustability bringing high variability of work.
Differences between individual sections are described in more detail in the tab Accessory
| Technical parameters | Units | Kompaktomat K 1250 MAX |
Kompaktomat K 1570 MAX |
|---|---|---|---|
| Working width | mm | 12 500 | 15 700 |
| Transport width | mm | 3 000 | 3 000 |
| Transport height 2 | mm | 3 500 | 3 500 |
| Total machine length 2 | mm | 11 300 | 11 300 |
| Working depth | mm | 0–100 | 0–100 |
| Number of tines – duck foot AL Number of tines – chisel CF Number of tines – duck foot AP |
pcs | 53 119 53 |
67 149 67 |
| Working performance | ha/h | 12–15 | 13–20 |
| Towing vehicle 1 | kW HP |
243 330 |
316 430 |
| Working speed | km/h | 10–14 | 10–14 |
| Maximum transport speed 4 | km/h | 25 | 25 |
| Maximum slope availability | ° | 6 | 6 |
| Dimension of tyre - transport | 19,0/45-17 | 19,0/45-17 | |
| Brake type / distribution 3 | air / two-line | air / two-line | |
| Required pressure 3 | kPa | 8,5 | 8,5 |
| Dimensions of brakes | 300/60 | 300/60 | |
| Number of hydraulic circuits / pressure | bar | 4–6 / 200 | 5–7 / 200 |
| Number of quick-coupling devices / type | 8–12 / ISO 12,5 | 10–14 / ISO 12,5 | |
|
Tractor hitch requirement |
mm | 600–650 | 600–650 |
| Tractor hitch requirement | mm | lower hitch K80; eye Ø 50, 70 mm | |
| Axle load | kg | 4 350 / 4 350 | 5 000 / 5 000 |
| Machine weight 2 | kg | 10 500 | 12 500 |
| Technical parameters | Units | Kompaktomat K 1250 MAX LONG |
Kompaktomat K 1570 MAX LONG |
|---|---|---|---|
| Working width | mm | 12 500 | 15 700 |
| Transport width | mm | 3 000 | 3 000 |
| Transport height 2 | mm | 3 750 | 3 750 |
| Total machine length 2 | mm | 11 550 | 11 550 |
| Working depth | mm | 0–100 | 0–100 |
| Number of tines – duck foot AL Number of tines – chisel CF Number of tines – duck foot AP Number of tines – duck foot AL4 |
pcs | 53 119 53 95 |
67 149 67 118 |
| Working performance | ha/h | 12–15 | 13–20 |
| Towing vehicle 1 | kW HP |
243 330 |
316 430 |
| Working speed | km/h | 10–14 | 10–14 |
| Maximum transport speed 4 | km/h | 25 | 25 |
| Maximum slope availability | ° | 6 | 6 |
| Dimension of tyre - transport | 19,0/45-17 | 19,0/45-17 | |
| Brake type / distribution 3 | air / two-line | air / two-line | |
| Required pressure 3 | kPa | 8,5 | 8,5 |
| Dimensions of brakes | 300/60 | 300/60 | |
| Number of hydraulic circuits / pressure | bar | 4–6 / 200 | 5–7 / 200 |
| Number of quick-coupling devices / type | 8–12 / ISO 12,5 | 10–14 / ISO 12,5 | |
|
Tractor hitch requirement |
mm | 600–650 | 600–650 |
| Tractor hitch requirement | mm | lower hitch K80; eye Ø 50, 70 mm | |
| Axle load | kg | 4 600 / 4 600 | 5 350 / 5 350 |
| Machine weight 2 | kg | 11 200 | 13 500 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
2 Machine variant weight: front bar roller, section AP, rear crosskill roller with leveller.
3 Alternative of the brake type: hydraulic, pressure 130 ± 5 bar (designed for the French market).
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
| Diameter | 400 mm |
| Weight | 133 kg/m |
May be applied as the rear roller only.
Excellent work in light, medium and heavy soils, quality compaction and clod crumbling.
| Diameter | 400 mm |
| Weight | 185 kg/m |
May be applied as the rear roller only.
Excellent work in light, medium and heavy soils, quality compaction and clod crumbling. When compared to crosskill roller, more intense clod crumbling.
| Diameter | 400 mm |
| Weight | 70 kg/m |
May be applied as the front and rear roller.
Quality clod crumbling. Suitable for wet conditions.
| Diameter | 400 mm |
| Weight | 63 kg/m |
May be applied as the front and rear roller.
Quality clod crumbling. Not very suitable for wet conditions.
| Diameter | 400 mm |
| Weight | 115 kg/m |
May be applied as the front and rear roller.
Quality work in all types of soil, good depth guiding, suitable even for more humid soils.
Proper selection of the type of the roller contributing significantly to the final quality of the tillage is very important. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.
| Rollers | Crosskill CR |
Double crosskill DCR |
Bar BR |
Spiral bar SB |
Ring RR |
|---|---|---|---|---|---|
| Crumbling | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●○○ |
| Stamping | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●●● |
| Depth guiding | ●○○○ | ●●○○ | ●●●○ | ●●●○ | ●●●● |
| Resistance against clogging | ●●●○ | ●●●● | ●●○○ | ●●●○ | ●●●● |
| Suitability for stony soils | ●●○○ | ●●○○ | ●●●○ | ●●●○ | ●●●○ |
| Suitability for wet soils | ●●○○ | ●●●○ | ●○○○ | ●●●○ | ●●●● |
| Heavy soils | ●●●○ | ●●●● | ●●○○ | ●●○○ | ●●●○ |
| Medium soils | ●●●● | ●●●● | ●●●○ | ●●●○ | ●●●○ |
| Light soils | ●●●● | ●●●● | ●●●● | ●●●● | ●●●○ |
For the AL / AP section.
For the CF section.
For the CF section.

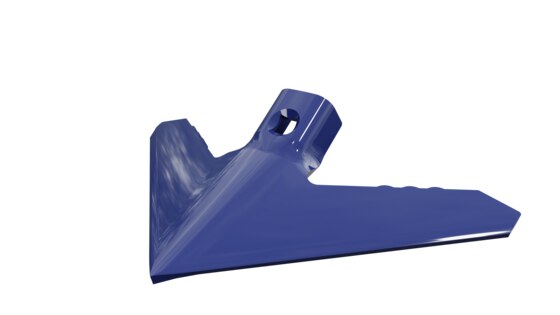

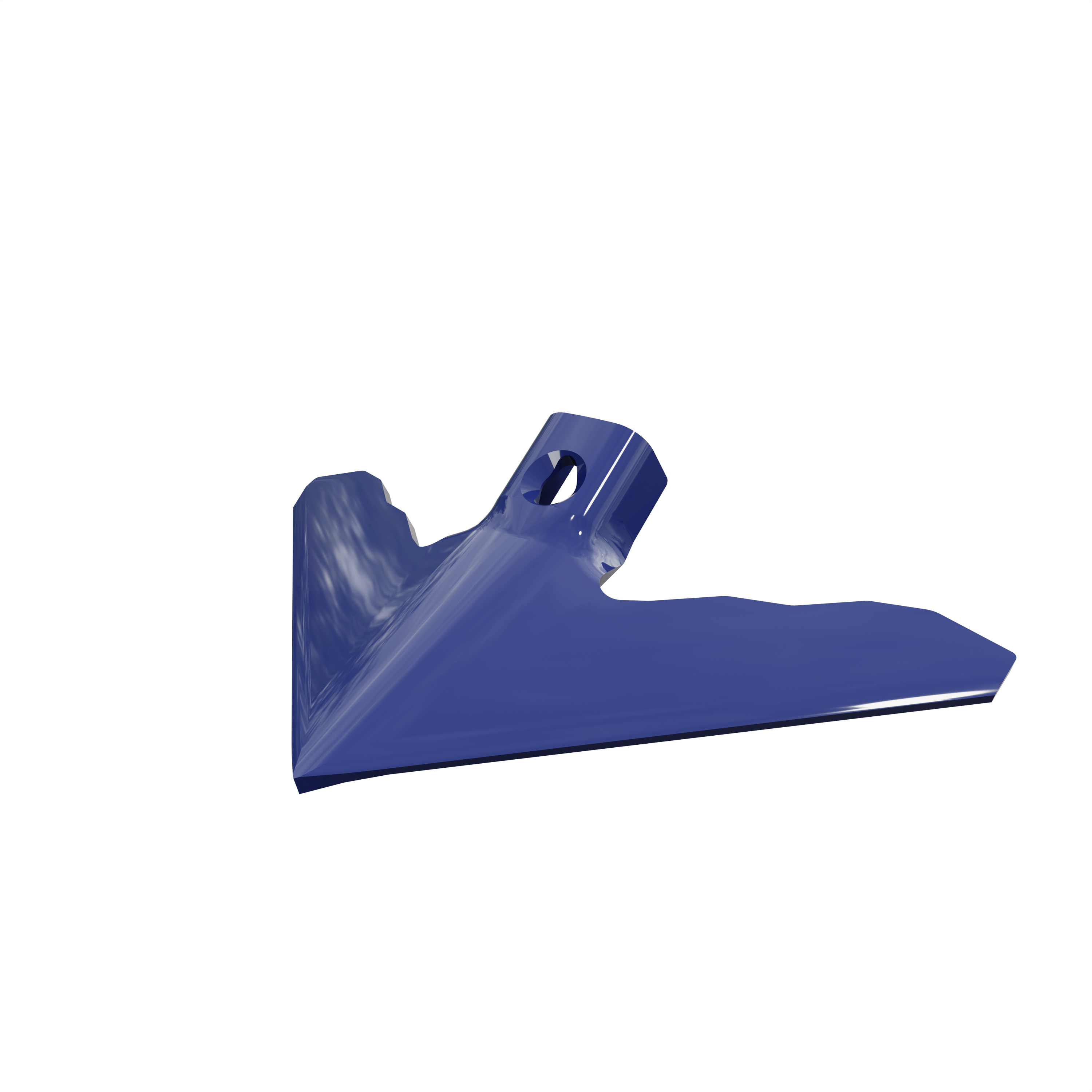

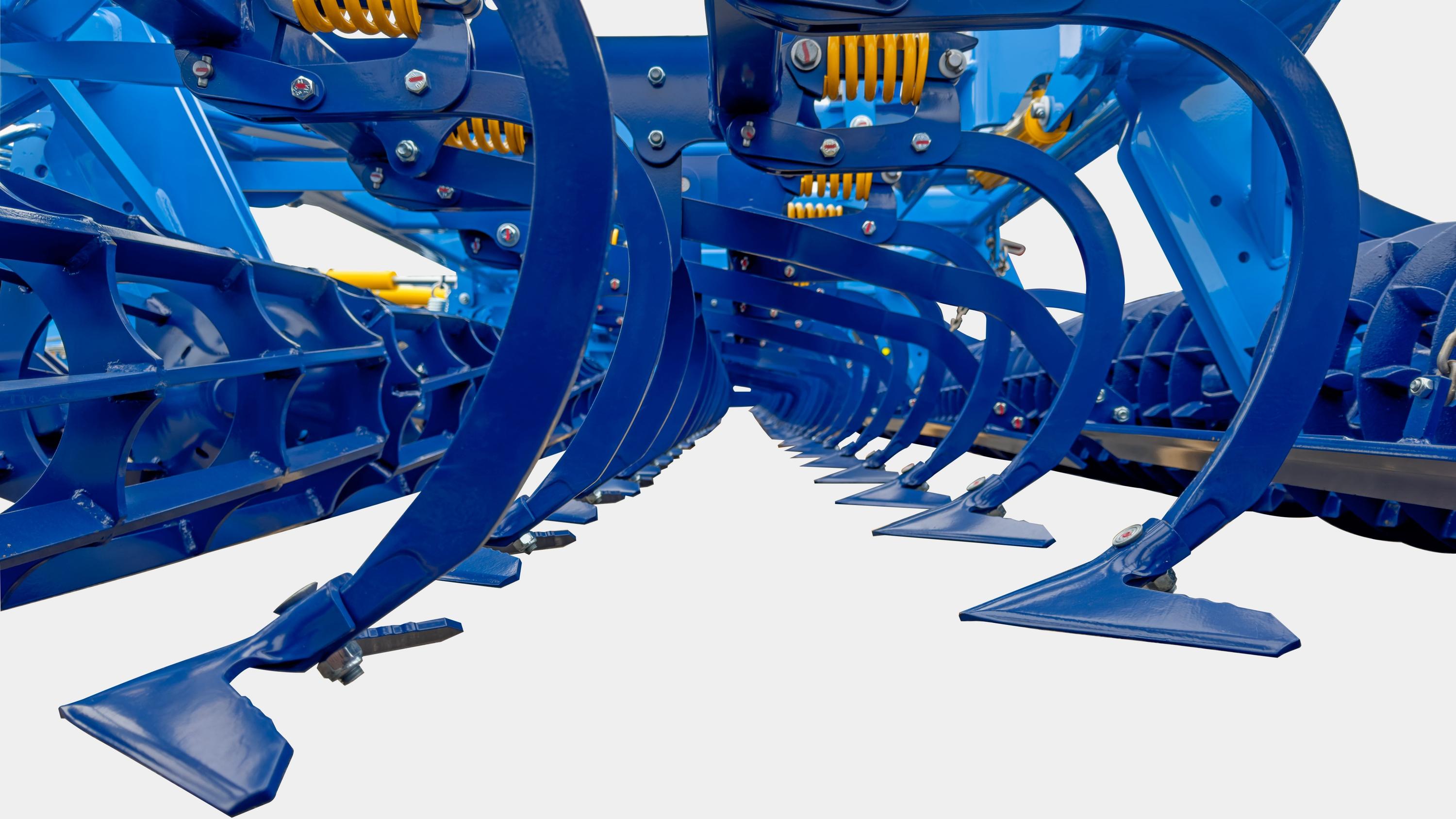

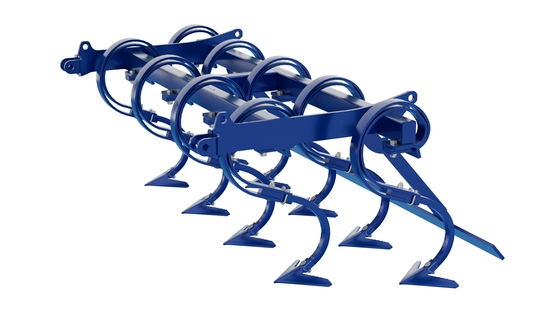

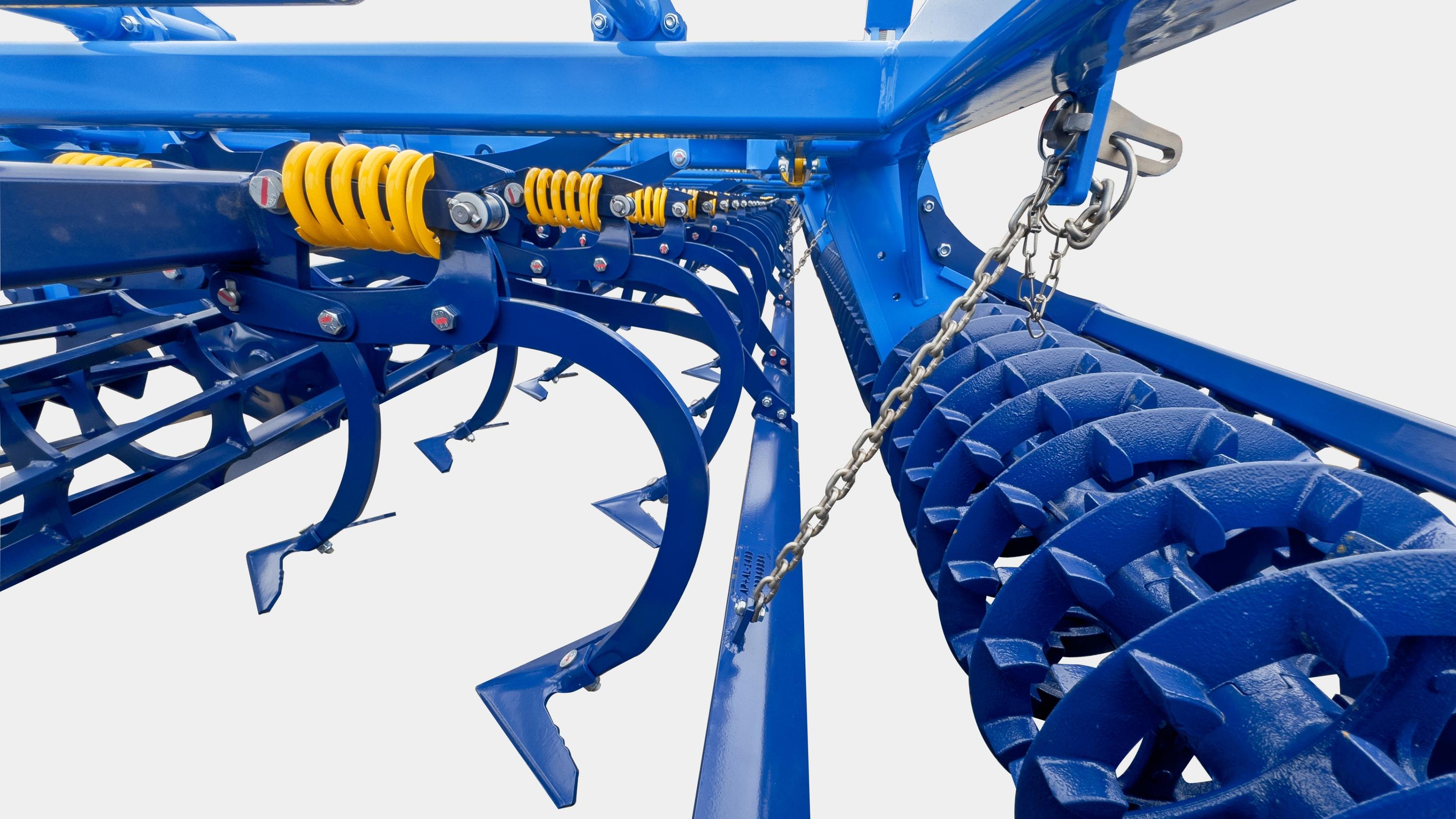

The share section is equipped with duck foot shares of the width 25 cm in two rows. Each of the shares is protected with leaf spring. This share section is suitable for lighter soil conditions without crop residues. By default, the height-adjustable coordination bar is located behind the shares.

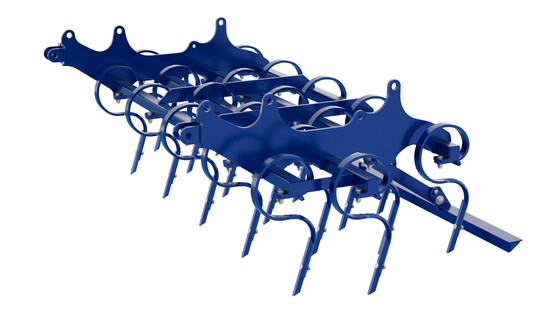

The share section is equipped with narrow shares of the width 3.5 cm in four rows. This share section is suitable for soil tillage in spring when it is not desirable to extract wet soil to the surface, or in heavy soils. Behind the shares, the directing bar is placed as standard.

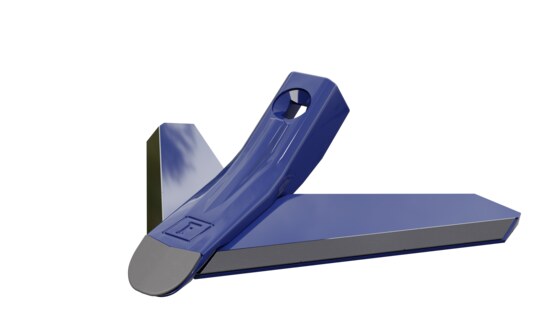

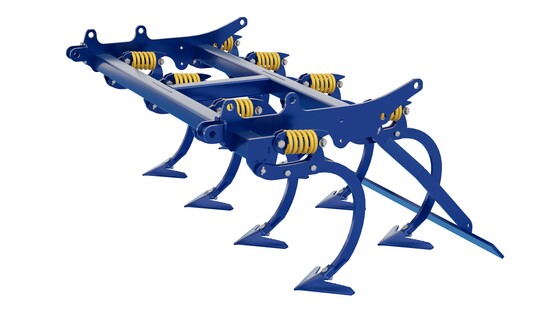

The universal share section is equipped with duck foot shares of the width 25 cm in two rows. The shares are mounted on tine holders with geometry improving the throughflow of crop residues. Therefore, this share section is suitable for land with a higher amount of crushed crop residues and heavy soils. By default, the height-adjustable coordination bar is located behind the shares.
| Section | AL | AL-L 1 | CF | CF-L 1 | AP | AP-L 1 | AL4 1 |
|---|---|---|---|---|---|---|---|
|
Number of rows of shares (pcs) / |
2 / 400 | 2 / 510 | 4 / 240 | 4 / 265 | 2 / 490 | 2 / 600 | 4 / 270 |
| Leveller behind shares | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● |
| Full-area tillage | ●●●● | ●●●● | ●●○○ | ●●○○ | ●●●● | ●●●● | ●●●● |
| Suitability for light soils | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● | ●●●● |
| Suitability for medium soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●● |
| Suitability for heavy soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●● |
| Suitability for stony soils | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●● | ●●●● | ●●●○ |
| Suitability for wet soils | ●●○○ | ●●○○ | ●●●● | ●●●● | ●●○○ | ●●○○ | ●●●○ |
| Resistance against clogging | ●●○○ | ●●○○ | ●●●○ | ●●●○ | ●●●○ | ●●●○ | ●●●○ |
1 The section is designed for Kompaktomat LONG. It provides better throughput due to the extended spacing.
Automatically unprotected tractor track cultivator with the duck foor share. More suitable for lighter soils without the risk of “dragging” of wet clods to the surface.
Automatically unprotected tractor track cultivator with the chisel share. More suitable for heavier soils with the risk of “dragging” of wet clods to the surface.

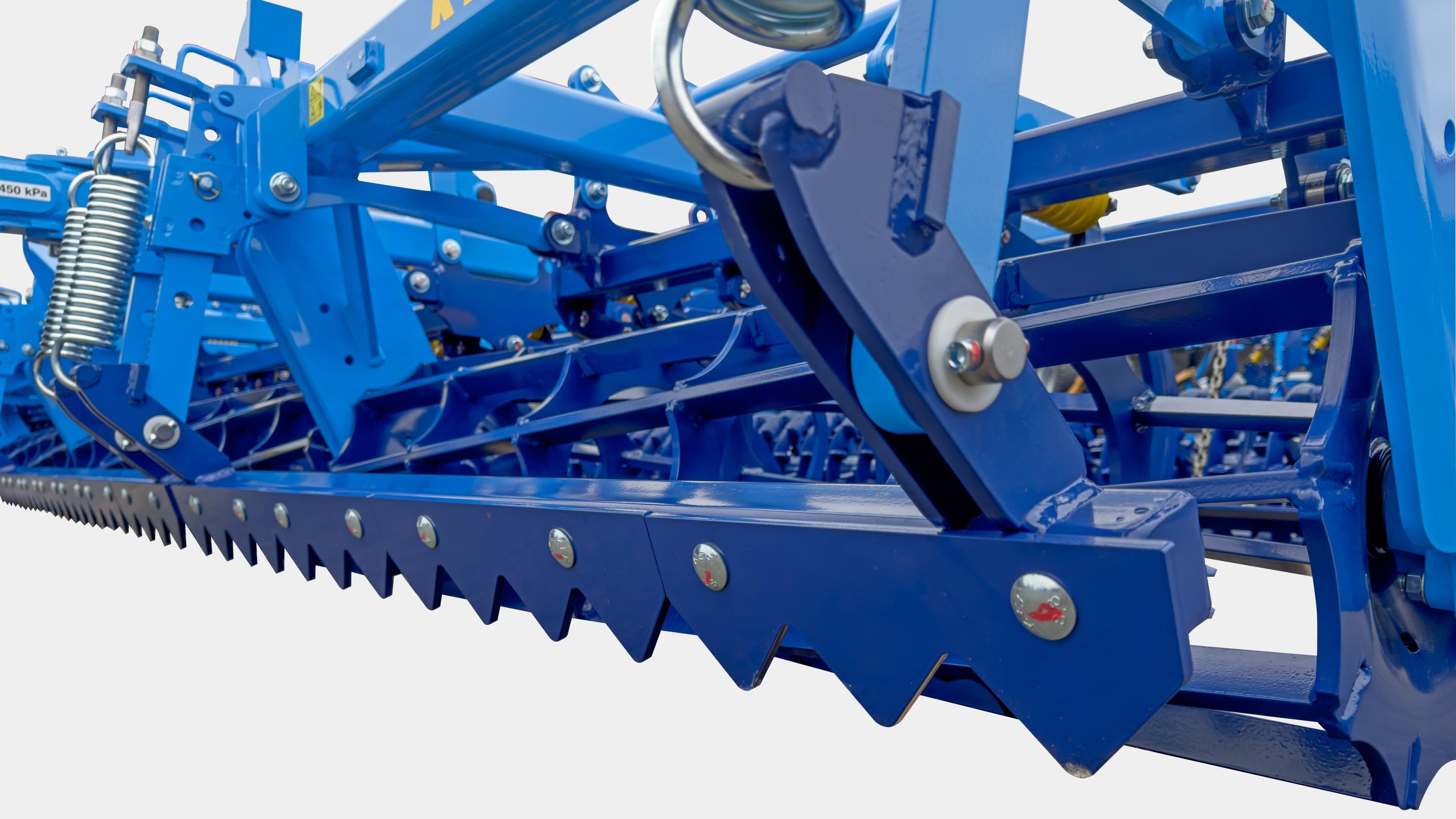

Automatically unprotected leveller in the toothed profile. Massive construction for precise smoothing of the rough furrow.
FL = fixed mechanical skid, FH = fixed hydraulic skid.
Passive levelling of the soil surface behind the rear roller. It can be applied behind all types of rear rollers.
Swing stops for possibility of more aggressive adjustment of the rear leveller.
Active crumbling of remaining clods behind the rear roller.
Active crumbling of remaining clods behind the rear roller.

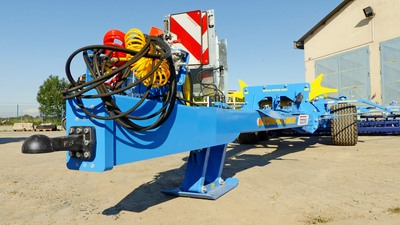

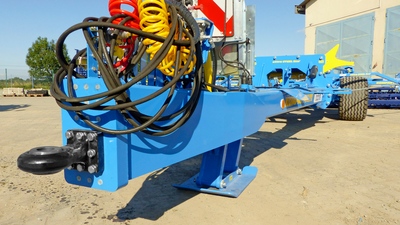

Loop for the lower hitch ø 50 mm or ø 70 mm. Maximum vertical load of the towing eye 3,000 kg.
Loop for the lower hitch K80. Maximum vertical load of the towing eye 3,000 kg.
Increased productivity:
Can also be installed additionally to older machines.
Increased productivity:
Can also be installed additionally to older machines.
