Subsoiler DIGGER

Fertiliser placement

The fertiliser is placed under the surface into processed soil profile in two horizons.

The fertiliser is placed under the surface into processed soil profile in two horizons.

High performance

• The new tine design has a very low pulling requirement and enables a high working speed up to 12 km/h.
• Tines smoothly penetrate the soil and the soil is loosened without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of tines under difficult conditions such as marshes, headlands or when ploughing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use depth wheels. The high frame clearance of 750 mm provides excellent throughflow.

• The new tine design has a very low pulling requirement and enables a high working speed up to 12 km/h.
• Tines smoothly penetrate the soil and the soil is loosened without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of tines under difficult conditions such as marshes, headlands or when ploughing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use depth wheels. The high frame clearance of 750 mm provides excellent throughflow.

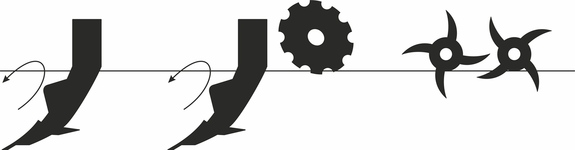

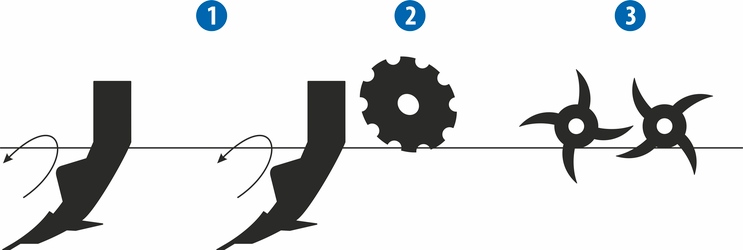

Subsoiler Digger N

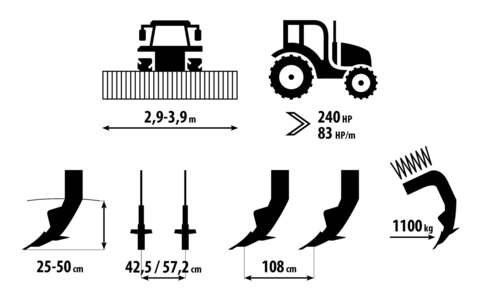

1. Massive tines situated in 2 rows for deep loosening 25–50 cm.
2. The levelling discs for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for clods crumbling.

Subsoiler Digger N

1. Massive tines situated in 2 rows for deep loosening 25–50 cm.
2. The levelling discs for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for clods crumbling.

Subsoiler Digger N

1. Massive tines situated in 2 rows for deep loosening 25–50 cm.
2. The levelling discs for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for clods crumbling.

Subsoiler Digger P

1. Massive tines arranged in 2 rows for deep loosening 25–50 cm.
2. The levelling discs for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for clods crumbling.
4. The back roller provides good re-compaction of the soil, clods crumbling and levelling of the surface.

Digger Versions

Machine versions

Due to different versions, this machine can meet different requirements according to your needs. Have a look at the versions that you can get from us.

Basic versions of the machine

Digger N - Basic version

Machine with hydraulic tines protection, with levelling discs.

Digger N - Without levelling discs

Machine with hydraulic tines protection, without levelling discs.

Digger N - Mechanical tines protection

Machine with mechanical tines protection, with levelling discs.

Digger N – Mechanical tines protection without levelling discs

Machine with mechanical tines protection, without levelling discs

Machine versions with fertilisation in 2 horizons

Digger N Fert+

Machine with a front fertilizser hopper and additional fertilizsation at in 2 horizons

Digger N Fert+ Compact

Machine with an integrated fertilizser hopper and additional fertilizsation at in 2 horizons

Digger P Fert+ Compact

Semi-mounted version equipped with a drawbar and a rear rubber-tiyred roller, with an integrated fertilizser hopper and additional fertilizsation at in 2 horizons

Digger P HW

Semi-mounted version equipped with an additional carrier for the fertilizser hopper with an axle, additional fertilizsation at in 2 horizons

Robust design

• High-strength refined materials used for crucial nodes to ensure long service life.
• Strongly dimensioned compact and carried frame.

• The chisels are equipped with carbide plates for long service life.

Protection of tines

The tines are hydraulically protected by a release force at the tip of 1,100 kg or you can choose the version with mechanical protection.

Mechanical protection of tines

Version with mechanical tine protection – in case of too high resistance, the protection segment will be cut

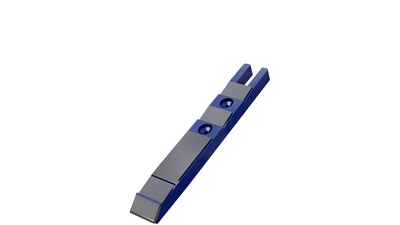

Prolonged service life of chisels

The tips of chisels are equipped with carbide plates for long service life, low wear and to maintain optimum geometry.

Levelling discs

The levelling discs direct the processed soil in front of the rear spiked rollers and at the same time provide precise furrow levelling.

Roller

The rear double spiked roller for fine clods crumbling maintains the quality of the soil as in the pre-sowing preparation in minimizing technologies or as the primary autumn tillage for spring crops.

Chisels

The chisels with wings incorporate crop residues very well and the levelling discs together with the double spiked roller perfectly level furrows.

Easy operation

Due to minimum of adjusting points, the operation and subsequent maintenance are very easy steps that anybody can perform.

Setting the depth

Easy working depth setting by setting washers. In the working position, the machine rests leans against the rear double spiked roller.

Setting the discs’ height

Simple mechanical setting the down pressure of the first row of the double spiked roller. The down pressure regulates the intensity of clods crumbling. The roller is equipped with maintenance-free bearings with high level of covering.

Hydraulic control of discs

To increase comfort of operator, the machine can be equipped with hydraulic control of the levelling discs. (optional)

Setting of the down pressure

Simple mechanical setting of the down pressure of the first row of the double spiked roller. The down pressure regulates the intensity of clods crumbling. The roller is equipped with maintenance-free bearings with high level of covering.

Slight lifting of tines

For locally more compacted soils the front row of tines can be lifted a little bit and thus the machine pulling requirement can be temporarily lowered. The slight lifting of tines is advantageous also for simple cleaning of the space among tines.

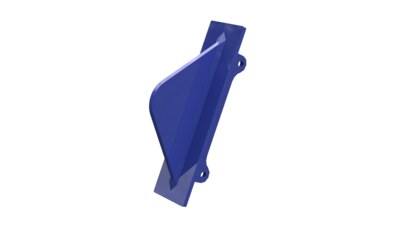

Position of wings

The vertical position of wings can be adjusted in three positions and thus obtain optimum incorporation of crop residues for various depths of loosening..

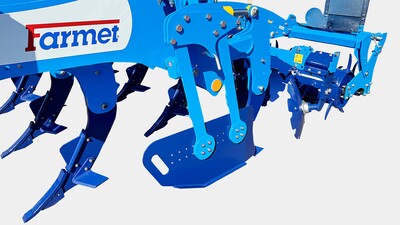

Side deflectors

For more precise connection between each passes the machine can be equipped with side deflectors with adjustable height that automatically follow the contour of the fieldcopy the terrain.

Ball valves

For easier disconnection of hydraulic circuits of tines protection, these circuits are equipped with ball valves when the machine is disconnected and stored.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
