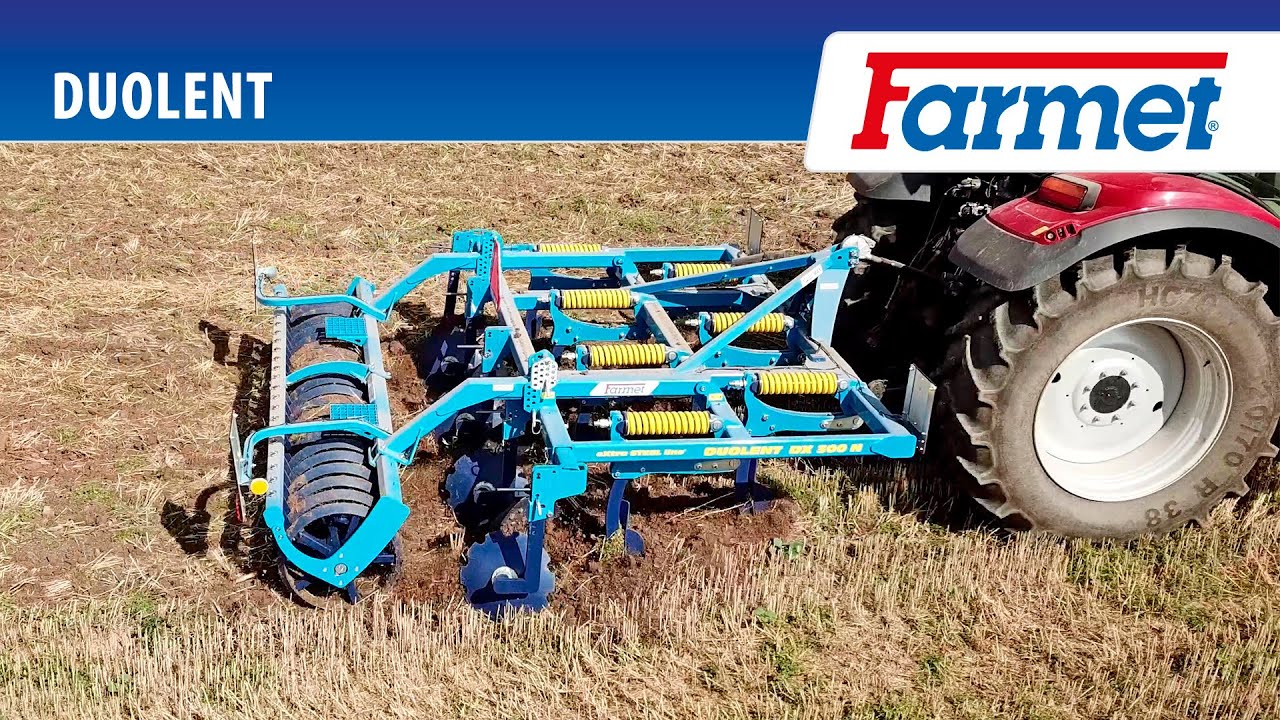

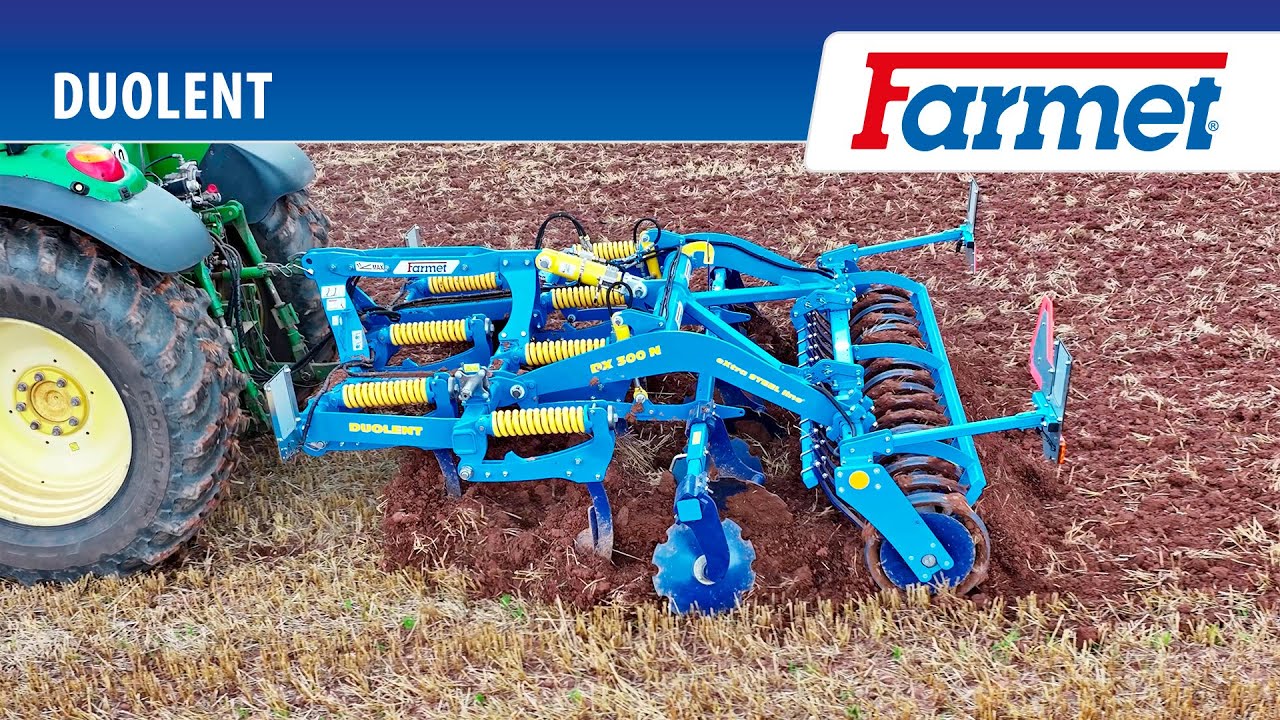

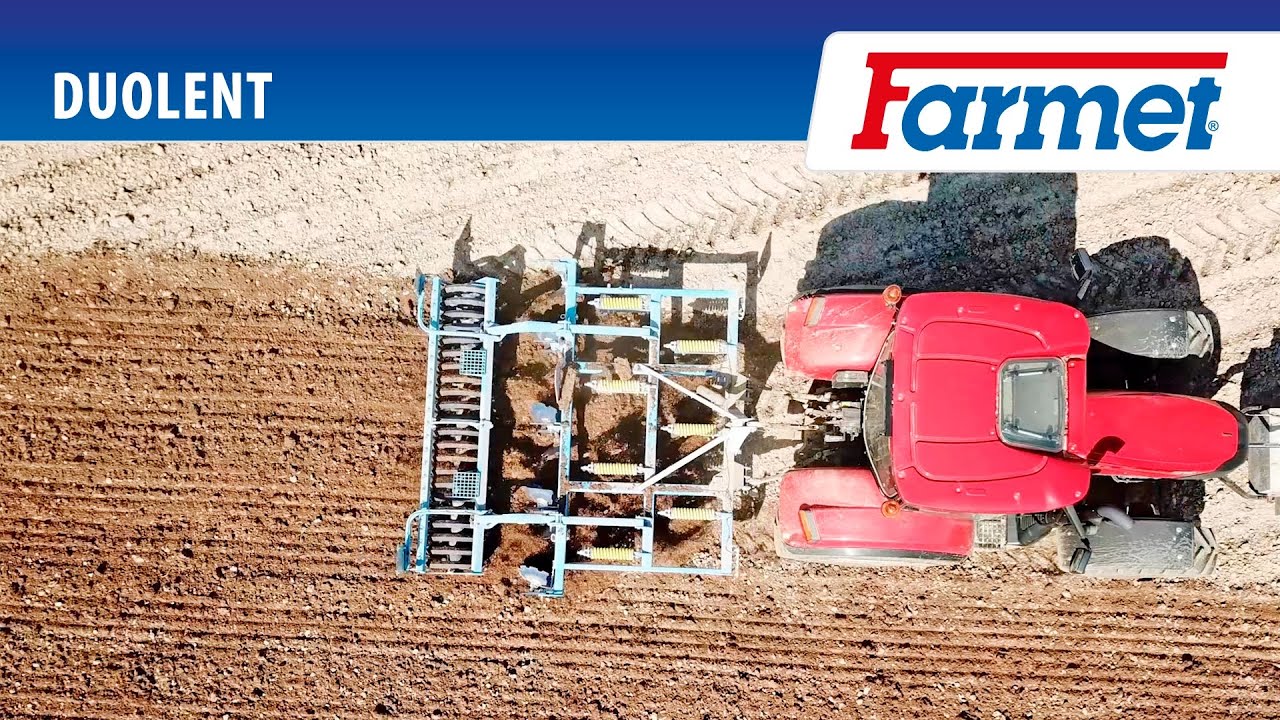

Tine cultivator DUOLENT NS

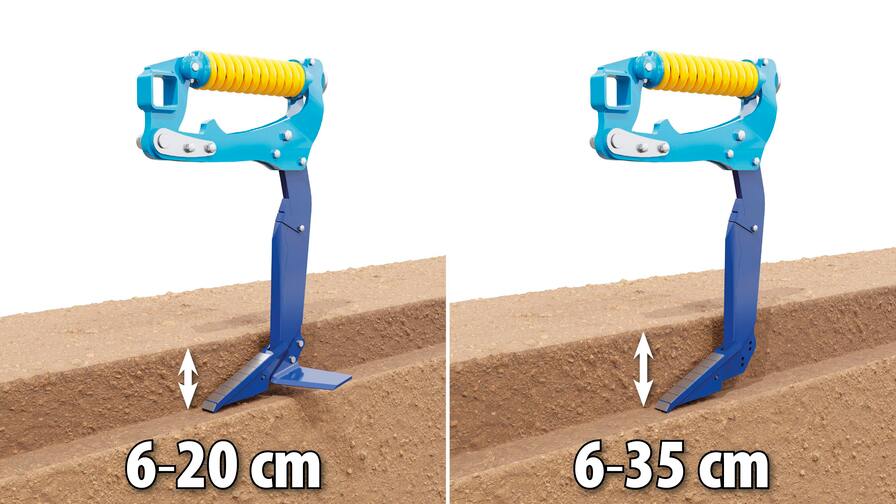

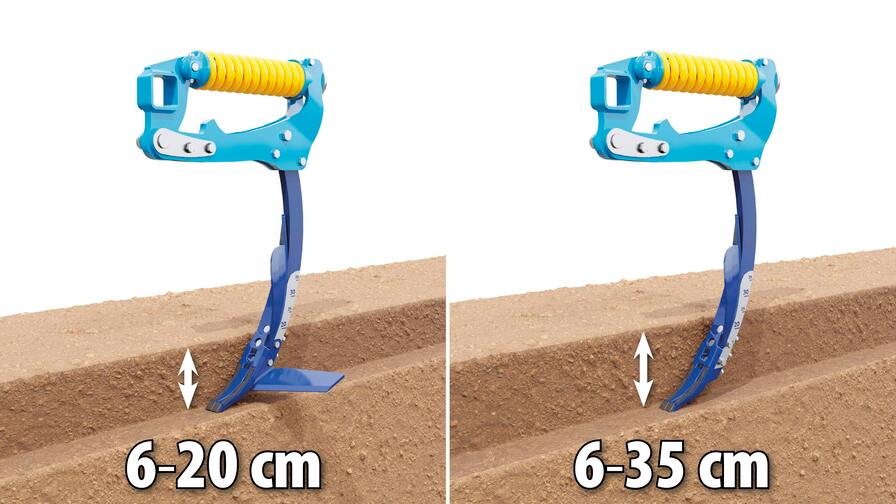

Duolent NS: Stubble cultivation to depth from 6 to 20 cm

Duolent NS: Tillage to depth of 35 cm

Variants of fertiliser placement

The fertiliser is placed under the surface, put in lower part of processed soil profile

One part of the fertiliser is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides

The fertiliser is placed just under the surface + areal to the sides

High performance and quality of work

• High working speed up to 12 km/h.
• Low pulling requirement and excellent mixing of the soil due to the optimized design of tines.
• Excellent throughflow of crop residues due to 420 mm tine spacing.
• The spiral shape of tines upper part  for controlled soil flow.
• Maintenance-free working units fitted with carbide plates for minimal wear.

• High working speed up to 12 km/h.
• Low pulling requirement and excellent mixing of the soil due to the optimized design of tines.
• Excellent throughflow of crop residues due to 420 mm tine spacing.
• The spiral shape of tines upper part  for controlled soil flow.
• Maintenance-free working units fitted with carbide plates for minimal wear.

Tine cultivator Duolent N/NS

1. The massive tines arranged in 2 rows ensure quality soil tillage and incorporation of crop residues.
2. The levelling discs for perfect levelling of surface.
3. The back roller provides optimal soil re-compaction, crumbling clods and levelling surface.

Tine cultivator Duolent N/NS

1. The massive tines arranged in 2 rows ensure quality soil tillage and incorporation of crop residues.
2. The levelling discs for perfect levelling of surface.
3. The back roller provides optimal soil re-compaction, crumbling clods and levelling surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Abrasion-resistant steel

The time-tested tines are made of high-strength abrasion-resistant steels.

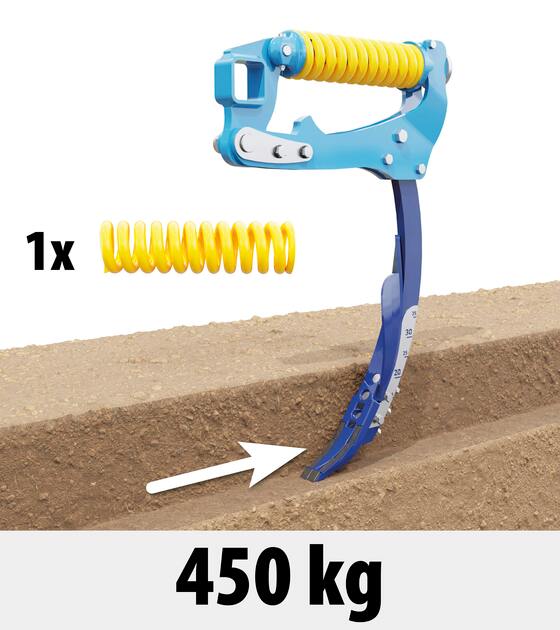

Spring protection

Durable and maintenance-free spring protection with high release force of 450 kg.

Easy operation

Due to minimum adjusting and lubricating points the operation and subsequent maintenance are very easy steps that everybody can perform.

• Minimum adjustment points.
• Minimum lubrication points.

Working depth adjustment

Easy working depth adjustment by the pins on the rollers.

Adjustable levelling discs

Height-adjustable levelling discs with practical handle for better adjusting ergonomics.

Hydraulic setting of levelling discs

Optional equipment. Easy, quick and convenient disc setting from the tractor cabin, also available while working in the field.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high work variability.

Full working width

Working width is 3.8 m.

Possibility to work with folded machine

When tillage the soil in greater working depths, the tine cultivator can be folded and a pulling equipment with lower performance can be used. Working width is 3 m.

Full-surface stubble cultivation

Chisels with wings for full-surface undercut up to 20 cm depth.

Micro Drill Seeding Unit

The sophisticated machine design allows an installation Micro Drill Seeding Unit for sowing catch crop or planting grass directly.

More information about Micro Drill >

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the tilling depth, soil conditions, inclination of land, wear of working units and their adjustment.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - mounted machine
NS - mounted foldable machine
