Combined cultivator TRITON

Full-area tillage with zone loosening to 35 cm

Combined cultivator Triton

Technology

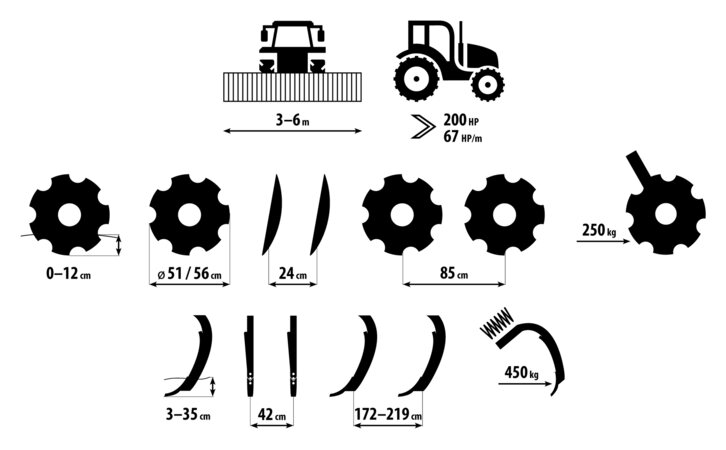

1	Full-area loosening zone. The double-row disc section with aggressive geometry ensures perfect full-area undercut to depth of 0–12 cm with intensive mixing of plant residues. The disc section also spreading well plant residues over the area.
2	Loosening zone. The loosening depth has a wide range of 3–35 cm. Full-area undercut wings can be used for loosening from 6 to 20 cm. Loosening chisels with optimized geometry in two rows ensure deep zone loosening to increase water infiltration.
3	Wave-levelling zone. Levelling discs also increase the effect of incorporating plant residues.
4	Clod crumbling and soil compaction zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

High performance and quality of work

Excellent solution for heavy soils
Quite low pulling resistance
High permeability of soil and crop residue
Efficient cutting and even mixing of crop residue into the processed soil layer
Deep zone loosening with minimal clod formation

Technics

Combined cultivator Triton 300 PS

The discs with Ø 510 / Ø 560 mm mounted in two rows undercut soil.
The massive shares installed in two rows loosen the soil and incorporate any crop residue.
The levelling discs create a fine soil structure on the surface.
The rear roller provides good reverse compaction, crumbles the clods and levels off the field surface.

Combined cultivator Triton 450 PS

The discs with Ø 510 / Ø 560 mm mounted in two rows undercut soil.
The massive shares installed in two rows loosen the soil and incorporate any crop residue.
The levelling discs create a fine soil structure on the surface.
The rear roller provides good reverse compaction, crumbles the clods and levels off the field surface.

Combined cultivator Triton 600 PS

The discs with Ø 510 / Ø 560 mm mounted in two rows undercut soil.
The massive shares installed in two rows loosen the soil and incorporate any crop residue.
The levelling discs create a fine soil structure on the surface.
The rear roller provides good reverse compaction, crumbles the clods and levels off the field surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Abrasion-resistant steel

The time-tested ploughshares are made of high-strength abrasion resistant steels and they are equipped with widia plates at the point of the share. The top part of the share can be supplemented with other widia plates or tungsten carbide weld deposits to extend the durability even more.

Spring protection of chisels

Resistant and maintenance-free protection of loosening chisels with a high release force of 450kg.

Disc protection

Resistant and maintenance-free protection of the cultivating discs.

Quick clamping system of rollers

Simple disconnection and connection of the rear rollers – possibility of working without the rear rollers.

Simple operation

Thanks to the minimum number of points of adjustment and lubrication, both operation and maintenance are a very simple task that anyone can do.

Minimum adjustment points.
Minimum lubrication points.

Setting the chisel working depth

Simple setting of the working depth of the chisels on rollers using tipping plates.

Setting the chisel working depth

Simple setting of the working depth of the chisels on rollers using tipping plates.

Setting the position of the disc rows

Simple setting of the position of the front and rear row of discs. When the front row is lower than the rear row, soil cultivation is more aggressive.

Hydraulic setting of the packing rollers

Parameters

Technical parameters	Units	Triton 300 P	Triton 400 PS	Triton 450 PS	Triton 600 PS
Working width	mm	3 000	3 000	4 500	6 000
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	1 800		3 370	3 950
Total machine length ²	mm	9 450		9 500	9 550
Working depth	mm	30─350	30─350	30─350	30─350
Number of ploughshares	pcs	7	10	11	15
Number of discs	pcs	22		38	50
Disc diameter	mm	510 / 560	510 / 560	510 / 560	510 / 560
Number of ploughshare rows	pcs	2	2	2	2
Distance between ploughshares	mm	420	420	420	420
Tine row spacing	mm	1 720		2 140	2 190
Number of disc rows	pcs	2	2	2	2
Disc spacing	mm	240	240	240	240
Disc row spacing	mm	850	850	850	850
Release force of ploughshares	kg	450	450	450	450
Frame clearance	mm	880	880	880	880
Diameter of levelling discs	mm	460	460	460	460
Working performance	ha/h	2,2─3,4	3,2─4,8	3,6─5,4	4,8─7,2
Towing vehicle ¹	kW HP	150─235 200─315		225─350 300─450	350─460 450─600
Working speed	km/h	8─12	8─12	8─12	8─12
Maximum slope availability	°	6	6	6	6
Dimensions of tyre – transport		19.0/45-17	19.0/45-17	550/45-22,5	550/45-22,5
Brake type / distribution ³		air / two-line	air / two-line	air / two-line	air / two-line
Required pressure ³	kPa	5,5	5,5	5,5	5,5
Number of hydraulic circuits / pressure	bar	4 / 200	5 / 200	5 / 200	5 / 200
Number of hydro-couples / type		8 / ISO 12,5	10 / ISO 12,5	10 / ISO 12,5	10 / ISO 12,5
Tractor hitch requirement		TPH cat. 3; bottom hitch K80; lug Ø 50, 70 mm
Machine weight ²	kg	4 700		8 100	10 200

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² For the machine version with a double roller (DVR).
³ Alternative to hydraulic brake / operating pressure of 130 ± 5 bar
Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - half-carried foldable machine

Optional

Photo gallery

Video

Files

User manual

Combined cultivator Triton

Combined cultivator Triton 450 PS

Combined cultivator Triton 600 PS

Priedai

Rollers

Disk roller SDR

Diameter	580 mm
Weight	220 kg/m

Double ring roller DRR

Diameter	680/680 mm
Weight	340 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

V roller VR

Diameter	680 mm
Weight	175 kg/m

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

Double V-ring DVR

Diameter	680/680 mm
Weight	290 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the processing is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double ring DRR	LTX	Disk SDR
Crumbling	●●○○	●●●○	●●○○	●●●○
Stamping	●●●○	●●●●	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●●	●●●○	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●●●	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●○	●●●○

Roller	VR	Double V-ring DVR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●●	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●●	●●●●

Working tools

Disk Ø 560 mm

Chisel 75 CARBIDE

Share width	75 mm
Share thickness	15 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 100-200 %

Chisel 75 MULTICARBIDE

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 150-400 %

Chisel 75 MULTICARBIDE PRO

Share width	75 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 200-500 %

Disk Ø 510 mm

Left wing

Right wing

Chisel 40 CARBIDE

Share width	40 mm
Share thickness	25 mm
Share body hardness	up to 55 HRC
Widia plate hardness	up to 92 HRA
Share service life	+ 100-200 %
Diesel fuel consumption	- 10 %
