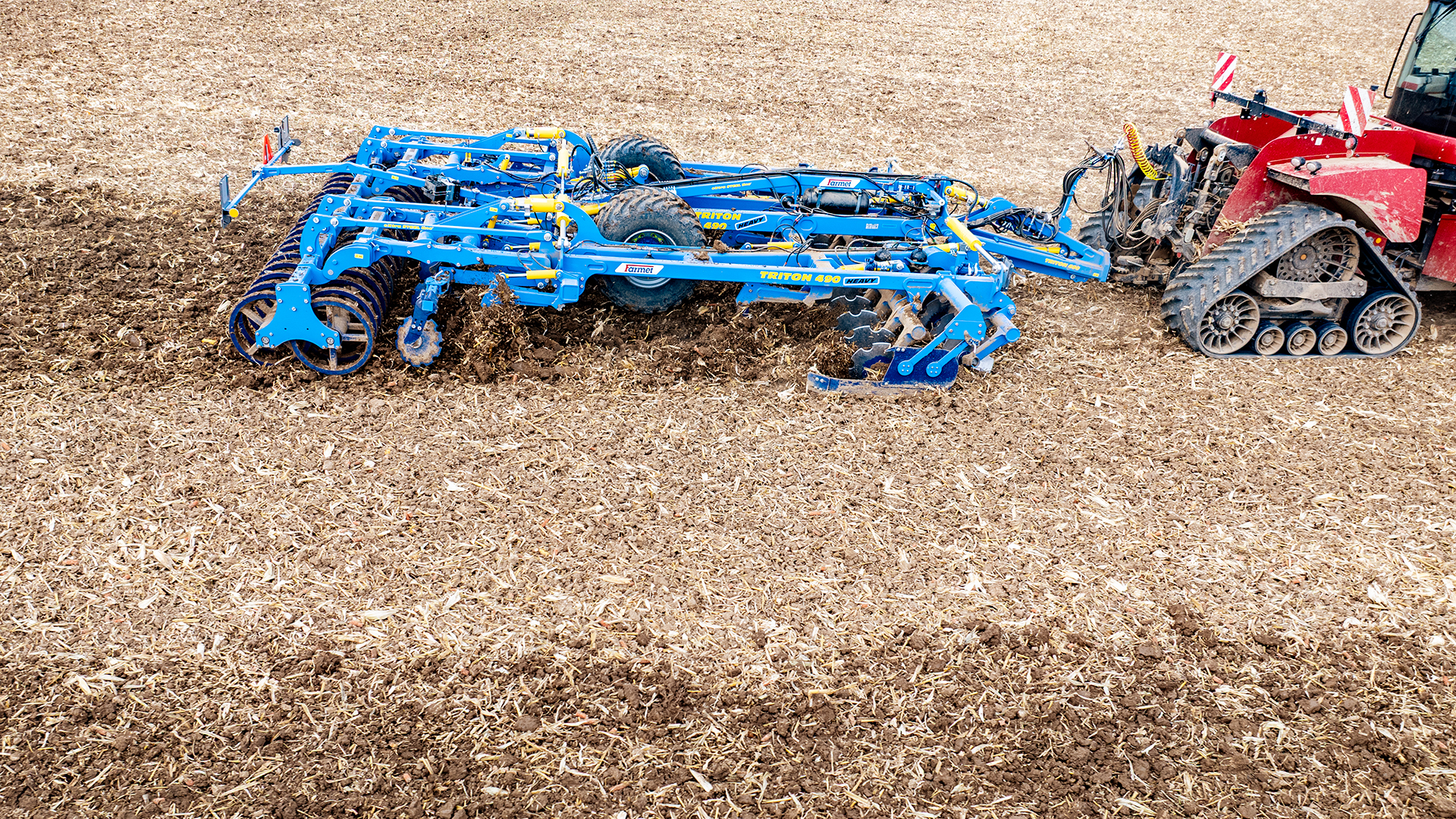

Combined cultivator TRITON HEAVY

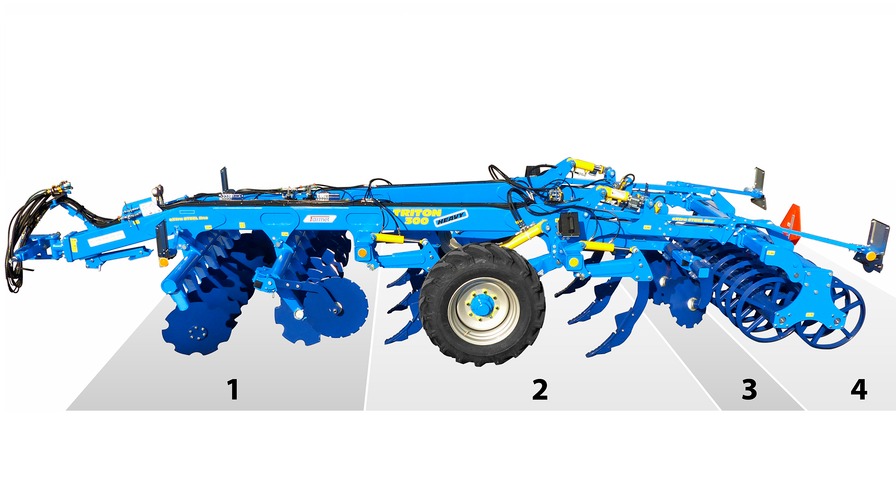

Combined cultivator Triton 300 P HEAVY

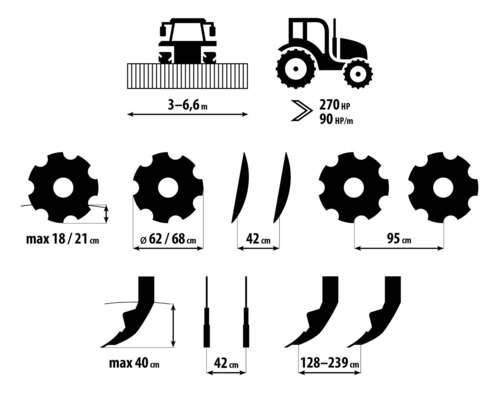

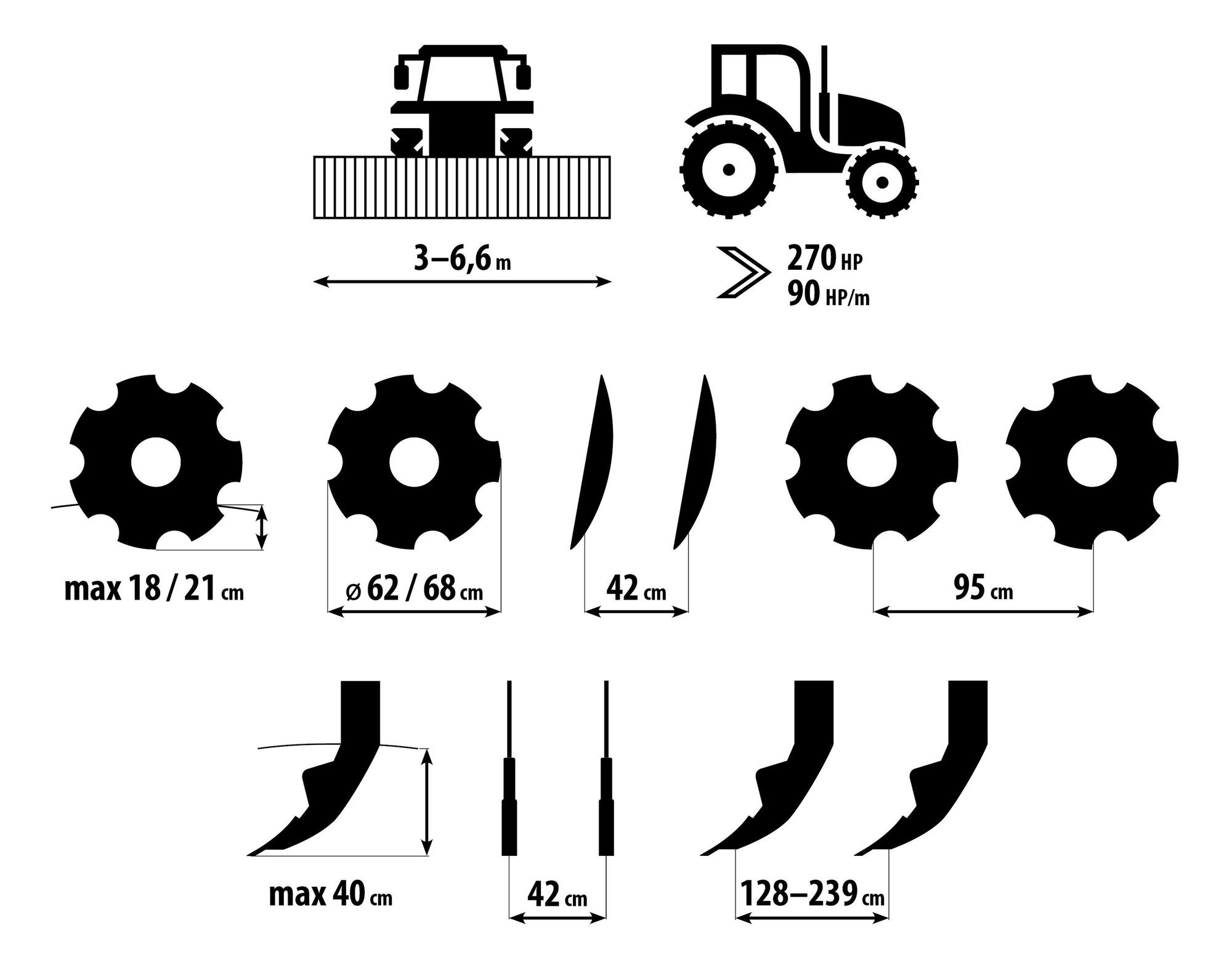

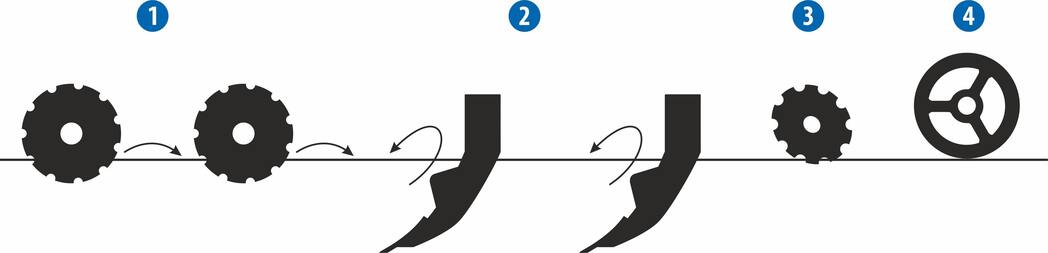

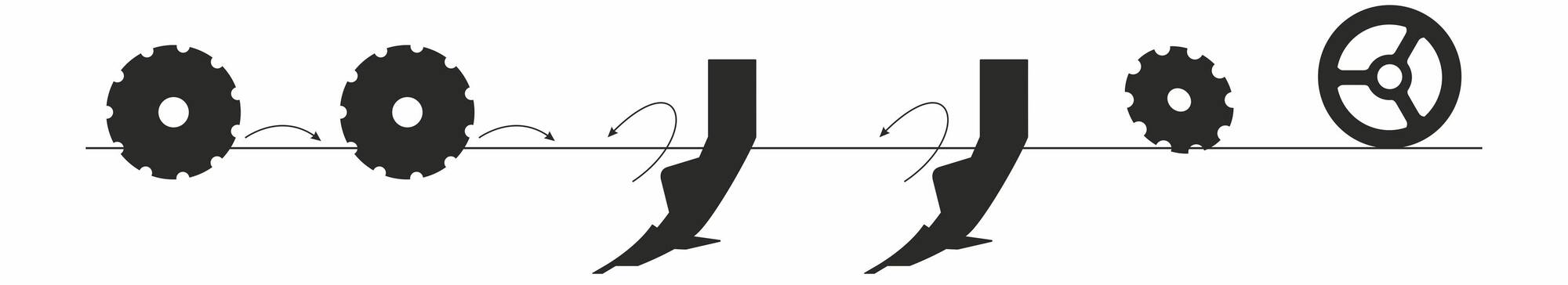

1. The discs with the diameter Ø 620 / 680 mm arranged in two rows undercut soil.
2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
3. The levelling discs for perfect levelling of surface.
4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

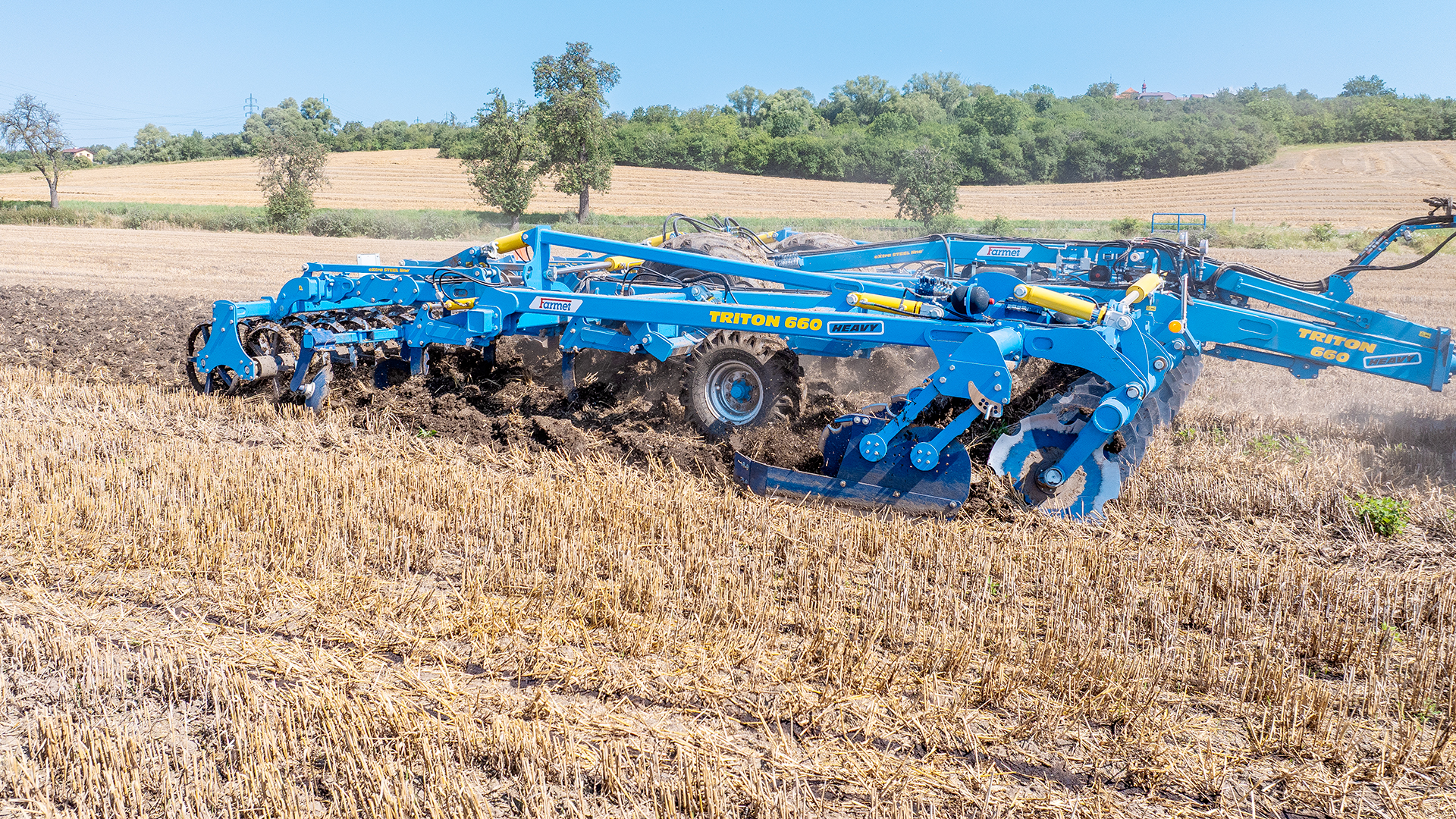

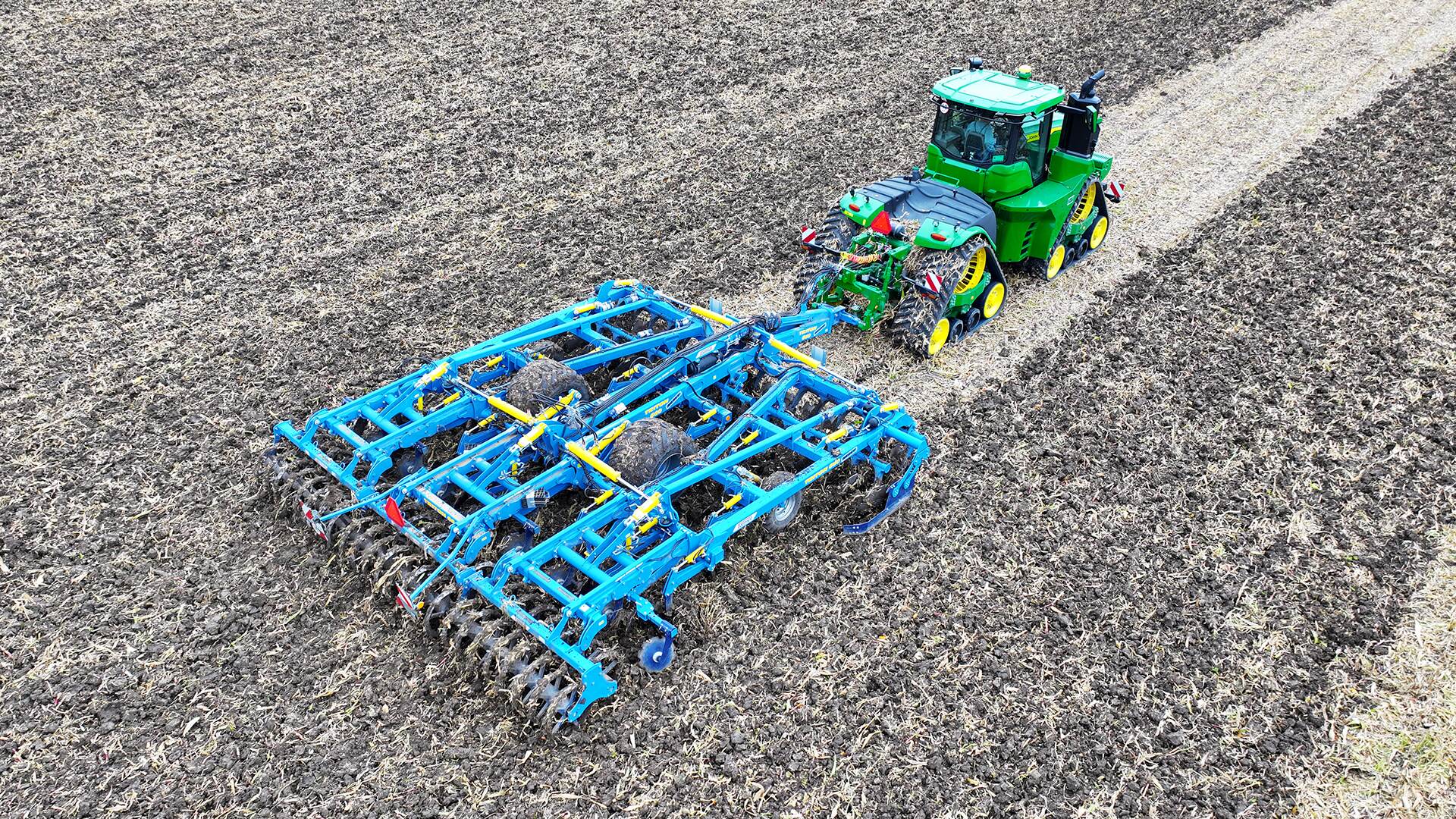

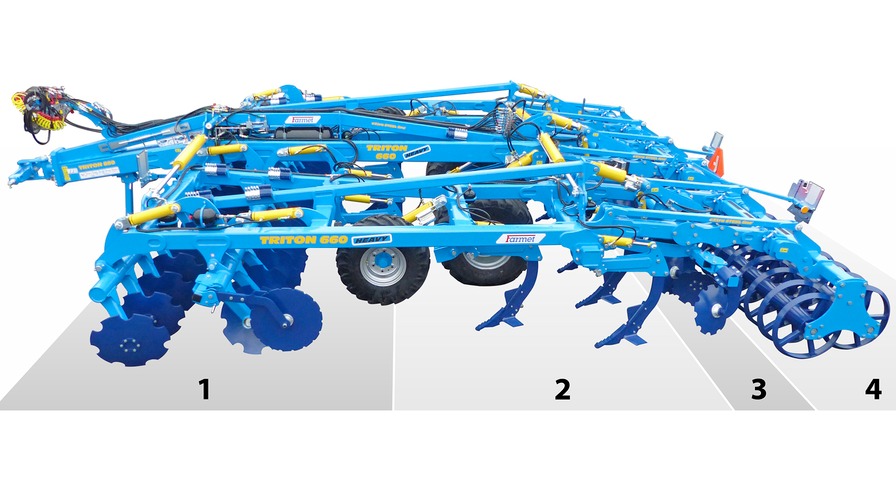

Combined cultivator Triton 660 PS HEAVY

1. The discs with the diameter Ø 620 / 680 mm arranged in two rows undercut soil.
2. The massive tines arranged in two rows tillage the soil and incorporate crop residue.
3. The levelling discs for perfect levelling of surface.
4. The rear roller provides optimal re-compaction, crumbles the clods and levells off the field surface.

Aggressive geometry of discs + all-round sharpened discs → excellent penetration even in hard and overdried soil.

____________________________________________________________________________________________________

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steels.

Massive disc units

Very high release force due to massive disc units.

Extreme durability of working units

The time-tested ploughshares are made of high-strength abrasion resistant steels and they are equipped with widia plates at the point of the share. The top part of the share can be supplemented with other widia plates or tungsten carbide weld deposits to extend the durability even more.

Rubber levelling discs placement

Resistant and maintenance-free protection of the cultivating discs.

Maintenance-free bearings

Maintenance-free discs placement ensuring machine operation without additional lubrication.

Massive transport axle with brakes

For safe and quick machines transport on public roads.

Simple operation

Thanks to the minimum number of points of adjustment and lubrication, both operation and maintenance are a very simple task that anyone can do.

• Minimum adjustment points.
• Minimum lubrication points.

Hydraulic setting the working depth of disc section

Easy and quick setting the working depth of discs by setting washers at hydraulic cylinder.

Adjustment of working depth

Easy working depth setting using the piston rod washers on the rollers.

Hydraulic setting the working depth of tines when working without rear rollers

Easy setting the working depth by setting washers of axle hydraulic cylinder when working without rear rollers.

Hydraulic setting the levelling discs

Easy and quick setting the discs comfortably from tractor cabin even during work in a field.

Setting the left side deflector

Easy setting the side deflector by a pin – for perfect connection between each passes.

Setting the right side deflector

Easy setting the side deflector by a pin – for perfect connection between each passes.

Setting side levelling discs

Side levelling discs are easily adjustable by a pin – for precise connection between each passes.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Micro Drill Seeding Unit

The sophisticated design of the machine allows for an installation of the Micro Drill Seeding Unit for sowing catch crop or for planting grass directly.

More information about Micro Drill >

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² For the machine version with a double roller (DVR).

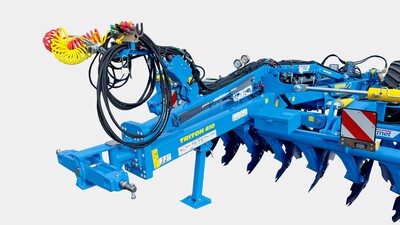

³ Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
⁴ When using the electro-hydraulic circuit distributor Hydrtotronic.
⁵ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
