Compact seed drill FALCON COMPACT

Falcon Compact: Wide tyres for spacing of 125 / 167 mm

Falcon Compact: Narrow tyres for spacing of 150 mm

Compact seed drill Falcon Compact

1. Double-row pre-processing disc section
2. Rubber-tyre roller for optimal soil compaction
3. Double-disc drill coulters with a fixed spacing of 125 / 150 / 167 mm

Falcon Compact is designed for sowing all common crops with spacing of 125 / 150 / 167mm, including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 350kg/ha in a single pass.

Falcon Compact is designed for sowing all common crops with spacing of 125 / 150 / 167mm, including most cereals, legumes, green fertilizers as well as some clover crops and oilseeds in unprepared soil.

Falcon Compact provides pre-sowing preparation of soil, seedbed preparation, soil compaction and reliable sowing with a large seeding range of 0.5 to 350kg/ha in a single pass.

High Output and Labour Quality

• Low pulling resistance thanks to the low weight
• Shorter downtime for filling up hoppers thanks to the large capacity
• Fast turns at headland thanks to the short compact construction
• Precise depth guidance with even soil compaction
• Levelling and compacting surface in front of each seed coulter

• Low pulling resistance thanks to the low weight
• Shorter downtime for filling up hoppers thanks to the large capacity
• Fast turns at headland thanks to the short compact construction
• Precise depth guidance with even soil compaction
• Levelling and compacting surface in front of each seed coulter

Light, but Robust Frame

The frame from the high-strength eXtra STEEL line guarantees a long service life of the machines, even under the most demanding conditions thanks to the high flexibility of the frame and the low weight of the machine.

Massive Compact Frame

A shortened, compact (not foldable), but strong frame.

Maintenance free bearings

The maintenance-free placement of all discs with the diameter of 490m provides operation that does not require lubrication, with rubber protection against overload.

Maintenance-free Placement of Coulters

The resistant and maintenance-free rubber mounting of the drill coulters helps adapt to the terrain and provides protection against overload.

Large Hopper

A single-chamber hopper with the capacity of 2,800─5,000L with comfortable access and a large input opening.

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

• Easy setting of the sowing depth, coulter pressure and seeding amount.

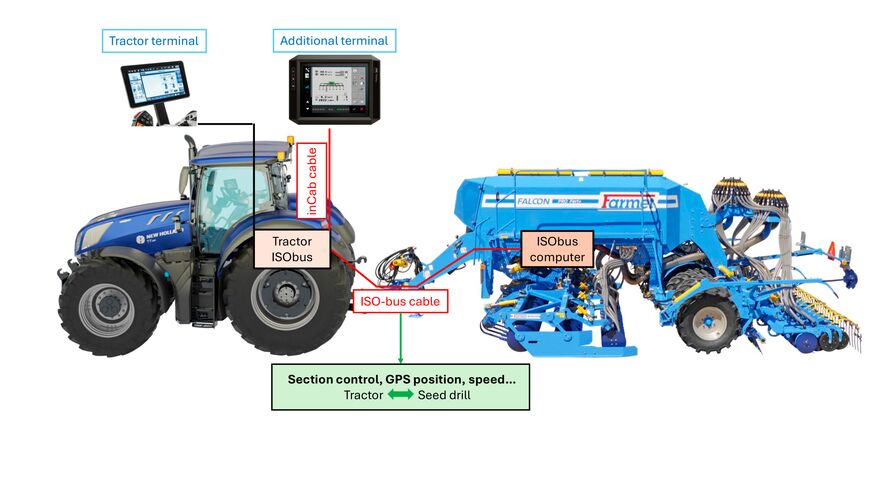

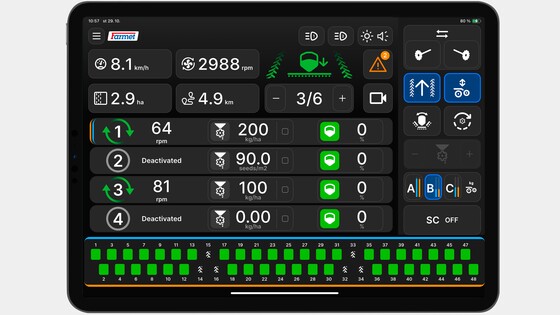

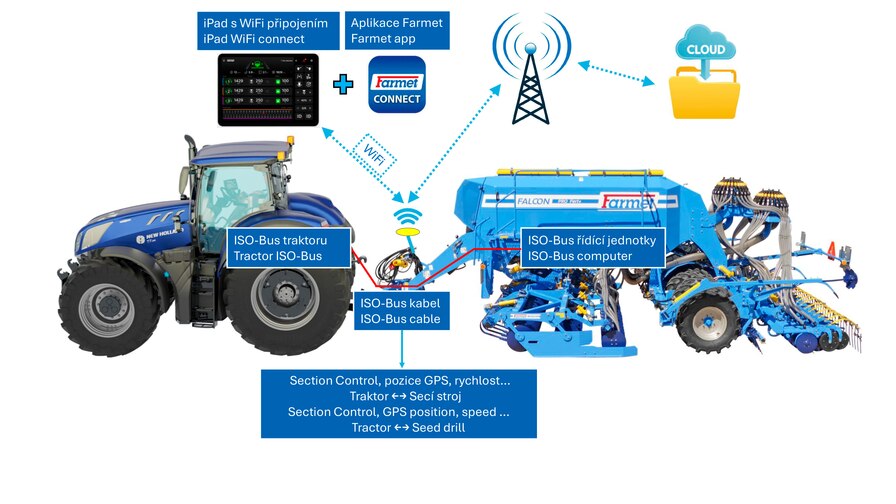

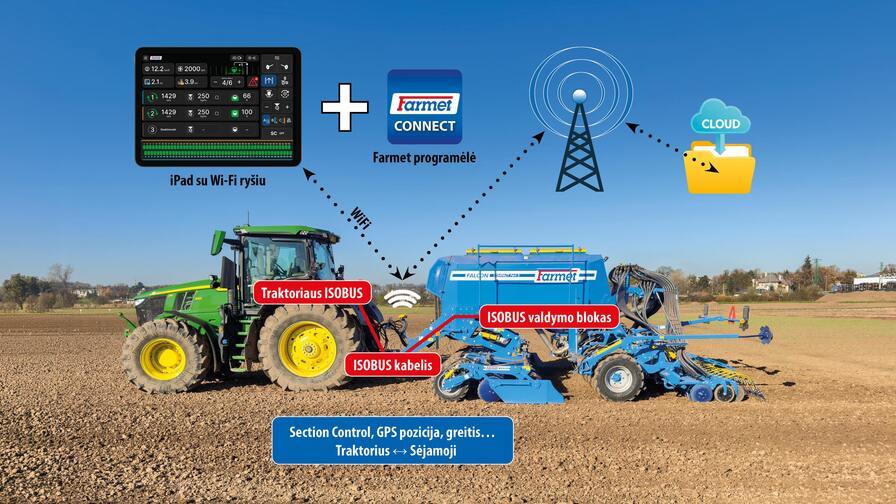

• Simple electronic system with intuitive control.
• Minimum adjustment points.
• Minimum lubrication points.

Adjustment of sowing depth

Very simple and fast adjustment of the required sowing depth.

Setting the working depth of the pre-processing section

Easy setting of the working depth according to a well-arranged chart using distance washers on piston-rods.

Adjustable side deflectors

Height and lengthwise adjustable side deflectors for regulation of the processed soil and for continuous connection of the individual passes.

Adjusting the depth and pressure

Patented depth adjustment and rear leveller pressure adjustment in a single step.

Easy hopper filling with seeds

Wide and long service platform for safe and comfortable filling of the hopper with seeds.

Farmet dispenser

A modern roller dispenser with interchangeable rollers.

Smart Machine Design

Adjustment of sowing depth

Possibility of adjustment of various sowing depths on even and odd coulters.

Seedbed preparation

The double pre-sowing disc section perfectly levels the topsoil crosswise and loosens soil to the depth of the seedbed.

Optimal soil compaction

In front of each coulter there is a tyred roller made from reinforced tyres. The tyres have a special design resistant to wet clay sticking.

Double-disc drill coulters

Thanks to the tested design, they also penetrate soil very well when there is a large content of crop residue, and together with the press-wheel, they place seeds at the set depth.

Tines with two discs

The discs of the pre-sowing section are installed in pairs on the tines. The robust and wide rubber bearing reliably protects the working parts from damage.

Compact design

The compact design is also simpler and lighter while preserving the high requirements for strength and resistance of the machine, even in the most difficult conditions.

Roller metering units of fertiliser

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Row spacing 150 mm is intended only for the version of machines with narrow tires. Row spacing 125/167 mm is intended only for the version of machines with wide tires.
³ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
