Disc cultivator SOFTER NS

Loosening up to 13 cm with full-area undercut and mixing

Disc cultivator Softer

Technology

1	Full-area loosening zone. The double-row disc section with aggressive geometry ensures perfect full-area undercut to depth of 3,5–13 cm with intensive mixing of plant residues. The disc section also spreading well plant residues over the area.
2	Clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

Technics

Disc cultivator Softer N/NS

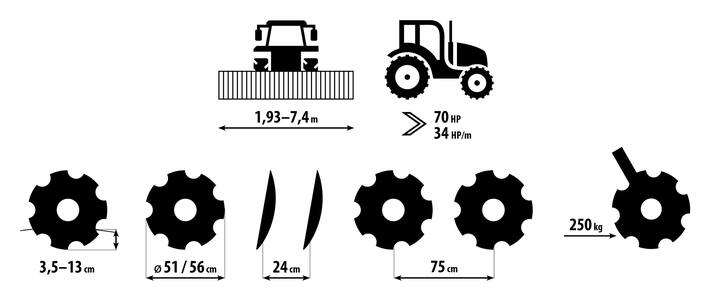

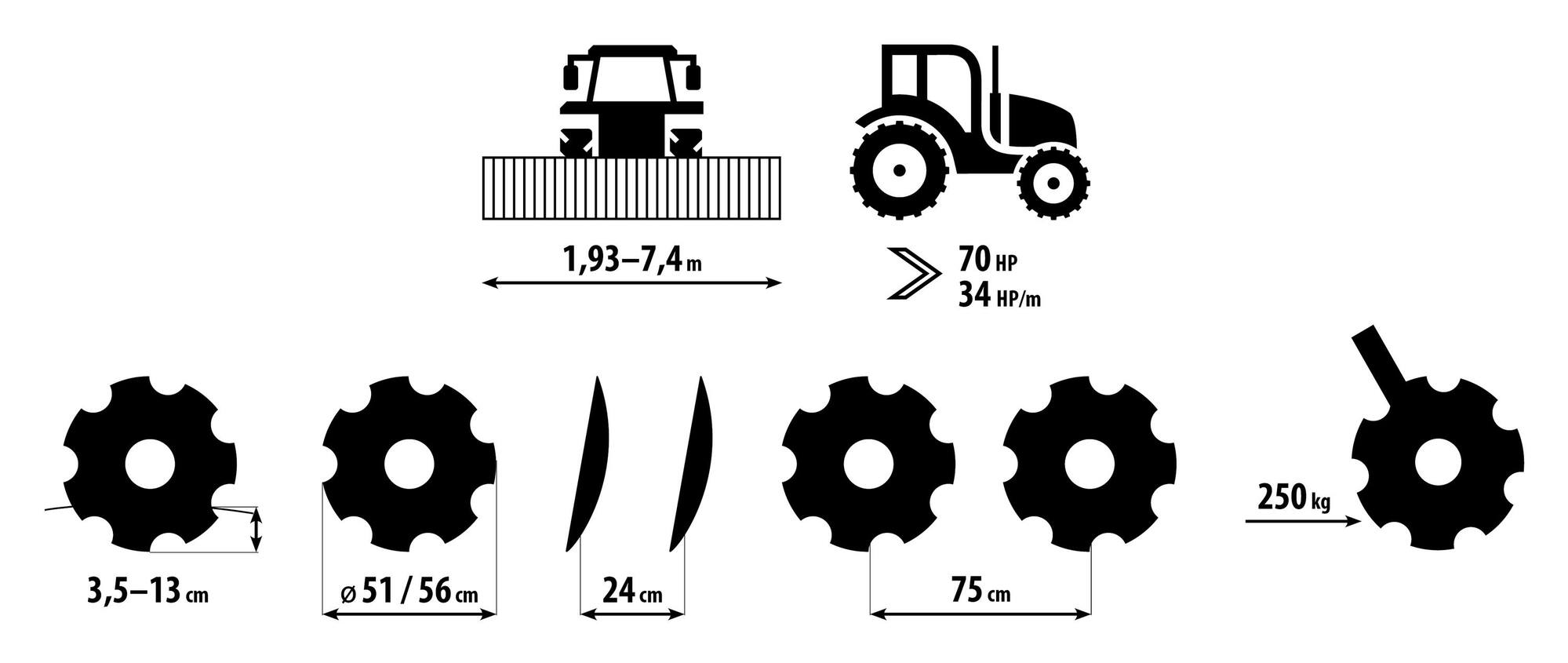

Disks Ø 510 mm / Ø 560 mm located in two rows will undercut the soil. Working depth is 3,5–13 cm.
Clods are crumbled by the rear roller.
The additional Micro Drill machine for planting crops that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

Disc cultivator Softer N/NS

Disks Ø 510 mm / Ø 560 mm located in two rows will undercut the soil. Working depth is 3,5–13 cm.
Clods are crumbled by the rear roller.

Disks with dentate circumference

Disks with the diameter of 510 / 560 mm are located in two rows. For the case of contact with an obstacle, each disk is separately effectively protected by means of rubber mounting.

The disks are placed in maintenance-free bearings with excellent service life. Optimum geometry of disks ensures high-quality work with very good productivity and high percentage of incorporated plant residues. The disks retain ideal working angle even with partially worn geometry of disks. The disk spacing of 24 cm ensures good free flow of plant residues.

Disks with the diameter of 510 / 560 mm are located in two rows. For the case of contact with an obstacle, each disk is separately effectively protected by means of rubber mounting.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

Maintenance-free placement of the disks.
Maintenance-free rubber mounting.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life. Strongly dimensioned frame of high-strength steel.

Maintenance free bearings

Maintenance-free placement of the disks ensuring operation of the machine with no need of additional lubrication.

Maintenance-free rubber mounting

Resistant and maintenance-free rubber mounting for adaptation to terrain with protection against overload.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

Minimum of adjustment points.
Minimum of lubrication points.
No angles adjustments or translation of disks are needed.

Continuous connection of runs

The extreme disk is separately height-adjustable which allows continuous connection of runs.

Direction of the processed soil

The height and longitudinally adjustable side deflector for ideal direction of the processed soil.

Adjustment of working depth

Easy and continuous adjustment of the working depth using the pins on the coupling bars of rollers in disk plough-harrows Softer 4,5 NS and Softer 6 NS. (substitutable by hydraulic control – optional)

Adjustment of working depth

Easy adjustment of the working depth using the pins on the roller beams of Softer 3 N.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

Skilful when working in the field due to a short compact design.
Light construction of the machine with no need of weighing down results in low operating costs.
Very good self-cleaning capabilities of the space between the disc and the tine.

Full-perimeter disc edges

Easier disc soil penetration.

Micro Drill Seeding Unit

The sophisticated design of the machine allows for an installation of the Micro Drill Seeding Unit for sowing catch crop or for planting grass directly.

More information about Micro Drill >

SynCult Manure Applicator

Complete set of additional equipment for the Softer NS Disc Cultivator for all-area application of manure.

More information about the SynCult Manure Applicator >

Parameters

Technical parameters	Units	Softer 2,5 N	Softer 3 N	Softer 3,5 N	Softer 4 N
Working width	mm	2 550	3 000	3 500	3 990
Transport width	mm	2 550	3 000	3 500	4 390
Transport height	mm	1 420	1 420	1 420	1 620
Total machine length	mm	2 750	2 750	2 750	2 800
Working depth	mm	35–130	35–130	35–130	35–130
Number of disks – front row Number of disks – rear row	pcs	10 10	12 12	14 14	17 16
Diameter of disks	mm	510 / 560	510 / 560	510 / 560	510 / 560
Working performance	ha/h	2,5–3,8	3–4,5	3,5–5,3	4─6
Towing vehicle ¹	kW HP	65–100 90–140	80–120 110–165	90–140 120–190	110–160 150–215
Working speed	km/h	10–15	10–15	10–15	10–15
Maximum transport speed ⁴	km/h	25	25	25	25
Maximum slope availability	°	11	11	11	11
Tractor hitch requirement		TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 2 and 3	TPH cat. 3
Machine weight ²	kg	1 800	1 980	2 300	2 700

Technical parameters	Units	Softer 4,5 NS	Softer 5 NS	Softer 6 NS	Softer 8 NS
Working width	mm	4 470	4 950	5 910	7 400
Transport width	mm	3 000	3 000	3 000	3 000
Transport height	mm	2 500	2 750	3 250	4 000
Total machine length	mm	2 750	2 750	2 750	2 750
Working depth	mm	35–130	35–130	35–130	35–130
Number of disks – front row Number of disks – rear row	pcs	19 18	21 20	25 24	31 30
Diameter of disks	mm	510 / 560	510 / 560	510 / 560	510 / 560
Working performance	ha/h	4,5–6,75	5–7,5	6–9	8–12
Towing vehicle ¹	kW HP	120–180 160–240	130–190 175–255	150–225 200–300	200–300 270–405
Working speed	km/h	10–15	10–15	10–15	10–15
Maximum transport speed ⁴	km/h	25	25	25	25
Maximum slope availability	°	11	11	11	11
Number of hydraulic circuits / pressure ³	bar	1(2) / 200	1(2) / 200	1(2) / 200	1(2) / 200
Number of hydrocouples / type ³		2(4) / ISO 12,5	2(4) / ISO 12,5	2(4) / ISO 12,5	2(4) / ISO 12,5
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	kg	3 200	3 450	3 900	4 770

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Machine weight with LTX roller.
³ By default, 1 folding circuit, but optional hydraulic control of rollers, then 2 circuits.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

N - carried machine
NS - carried foldable machine

Optional

Photo gallery

Video

Files

User manual

Disc cultivator Softer

Disc cultivator Softer 3 N

Disc cultivator Softer 4,5 NS

Disc cultivator Softer 4,5 NS & Syncult

Disc cultivator Softer 5 NS & Syncult

Priedai

Rollers

Disk roller SDR

Diameter	580 mm
Weight	220 kg/m

Double roller DR

Diameter	400/300 mm
Weight	135 kg/m

LTX roller

Diameter	586 mm
Weight	200 kg/m

Ring roller RR

Diameter	520 mm
Weight	160 kg/m

Tube roller TRS

Diameter	600 mm
Weight	100 kg/m

V roller VR

Diameter	600 mm
Weight	175 kg/m

Proper selection of the type of the rear roller contributing significantly to the final quality of the processing is very important. The soil is recompacted by the roller and then it is the same way crumbled and levelled. The selection of the type of the roller depends on the soil type and on the manner of use of the machine.

Roller	Tube-shaped TRS	Double DR	Ring RR	LTX
Crumbling	●●○○	●●●○	●●●○	●●○○
Stamping	●●●○	●●●○	●●●●	●●●●
Depth guiding	●●●○	●●●●	●●●●	●●●●
Resistance against clogging	●○○○	●●●○	●●●●	●●●○
Suitability for stony soils	●●●○	●●●○	●●●○	●●●○
Suitability for wet soils	●○○○	●●○○	●●●●	●●●●
Heavy soils	●●○○	●●●●	●●●●	●●●●
Medium soils	●●●○	●●●●	●●●●	●●●●
Light soils	●●●●	●●●●	●●●●	●●●○

Roller	Disk SDR	VR
Crumbling	●●●○	●●●○
Stamping	●●●●	●●●●
Depth guiding	●●●●	●●●●
Resistance against clogging	●●●○	●●●●
Suitability for stony soils	●●●○	●●●○
Suitability for wet soils	●●●●	●●●●
Heavy soils	●●●●	●●●●
Medium soils	●●●●	●●●●
Light soils	●●●○	●●●●
