Disc cultivator SOFTER PRO

High performance and quality of work

• High working speed up to 15 km/h.
• Symmetrically arranged two rows of serrated discs for reliable soil penetration, levelling and intense mixing.
• Working angle of the disks and pressure to each disk ensure uncompromising penetration even to heavy and over-dried soils and perfect undercut of the processed profile.
• High quality rubber mounting for optimal working angles of the disk.
• Precise deep guiding with optimum soil compaction.

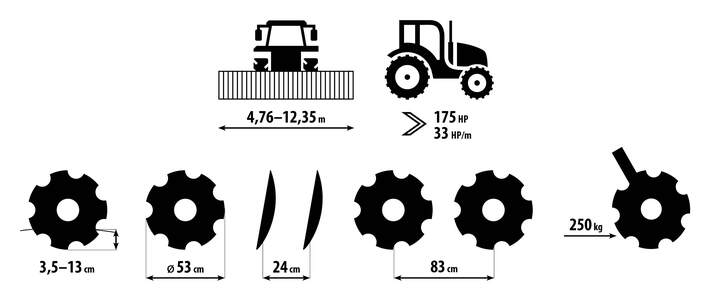

Disc cultivator Softer PRO

1. Possibility to install front tools: Flexi-cut for effective crop residue cutting or Flexi-board for levelling surface, crumbling clods.
2. Discs with Ø 530 mm, symmetrically arranged in two rows, undercut the soil. The working depth is 3.5–13 cm.
3. Clods are crumbled by the rear roller.

Discs with Full Circumference Edge

Disks with the diameter of 530 mm are located in two rows. For the case of contact with an obstacle, each disk is separately effectively protected by means of rubber mounting.

The discs penetrate the soil perfectly and also cut crop residue.

The disks are placed in maintenance-free bearings with excellent service life. Optimum geometry of disks ensures high-quality work with very good productivity and high percentage of incorporated plant residues. The disks retain ideal working angle even with partially worn geometry of disks. The disk spacing of 24 cm ensures good free flow of plant residues.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

• maintenance-free placement of the disks
• maintenance-free rubber mounting

Massive transport axle with brakes

Controlled from the tractor cabin.

Maintenance free bearings SKF

Maintenance-free placement of the disks ensuring operation of the machine with no need of additional lubrication.

Maintenance-free rubber mounting

Resistant and maintenance-free rubber mounting for adaptation to terrain with protection against overload.

One disc - one tine

The individual placement of each disc on a separate tine allows for higher pressure and better penetration into the soil, eliminates clogging and does not transmit shocks to the bearings of adjacent discs.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

• Minimum of adjustment points.
• Minimum of lubrication points.

Hydraulic depth adjustment

The working depth of the discs can be conveniently adjusted hydraulically directly from the tractor cabin.

Safe Machine Control

Intuitive settings and operation.

Easy Side Deflector Settings

Precise pass follow-up.

Flexi-cut / Flexi-board Hydraulic Control

Controlled from the tractor cabin, may be changed during operation.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

• Skilful when working in the field due to a short compact design.
• Light construction of the machine with no need of weighing down results in low operating costs.
• Very good self-cleaning capabilities of the space between the disk and the tine.

Aggressive Disc Angle

Ensures full-area undercutting at any working depth.

Full-perimeter disc edges

Easier disc soil penetration.

Transport Position

A unique folding system enabling the machine with the working span up to 12,35 m to be folded to the transport width of 3 m and height of 4 m and thus complies with the regulations for operation of vehicles on the road network.

Symmetrical arrangement of discs

The symmetrical arrangement of the discs eliminates lateral forces transmitted to the tractor.

Automatic Side Frame Pressure

Side frames with hydraulic pressure perfectly follow uneven terrain.

Depth Gauge

Easy to read during work from the tractor cabin.

Front working tools

Front working tools can be fixed in front of the work discs. Choose between Flexicut cutting rollers or Flexiboard front levelling bar.

High machine throughput

Hook tines increase the machine throughput.

Flipping transport axle

The flipping transport axle increases the pressure of the cultivating discs.

Rollers in one row

Rollers in one row ensure even soil compaction even in the corners and edges of the field and the possibility of fast turning on the headlands directly on the rollers.

Stable when crossing road

The rigid solid construction of the main frame and axle makes the machine very stable during transport. Pneumatic twin-hose brakes ensure a high degree of safety for fast efficient road transport.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Machine weight with LTX roller.
³ According to the machine equipment.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
