Modular seed wagon FALCON SW

Modular seed wagon Falcon SW Fert+ & Double-disc sowing section

1. Tractor trail cultivators
2. Disk section for additional fertilization
3. Transport axle
4. Double-disc sowing section

Modular seed wagon Falcon SW & Double-disc sowing section

1. Tractor trail cultivators
2. Transport axle
3. Double-disc sowing section

Modular seed wagon Falcon SW & Precise sowing of wide-row crops

1. Possibility to install an optional pre-processing section
2. Transport axle
3. Optional rear section via TPH

Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of 4 / 6 m³ (or a two-chamber hopper with the capacity of 6 / 8 m³), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops and.

Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.

Falcon SW is a modular carrier consisting of a single-chamber hopper with the capacity of 4 / 6 m³ (or a two-chamber hopper with the capacity of 6 / 8 m³), a metering device, a fan, a simple transport axle, a control unit and a three-point hitch that allows the connection of various mounted devices. Falcon SW can also be connected to a wide seeding section for sowing narrow-row crops, a mounted seed drill for sowing wide-row crops and.

Falcon SW can also be equipped with an optional pre-processing section, just like the modular Falcon Seed Drill. The sections can be replaced according to the selected technology.

Mounted Equipment

Wide seeding section for sowing narrow-row crops

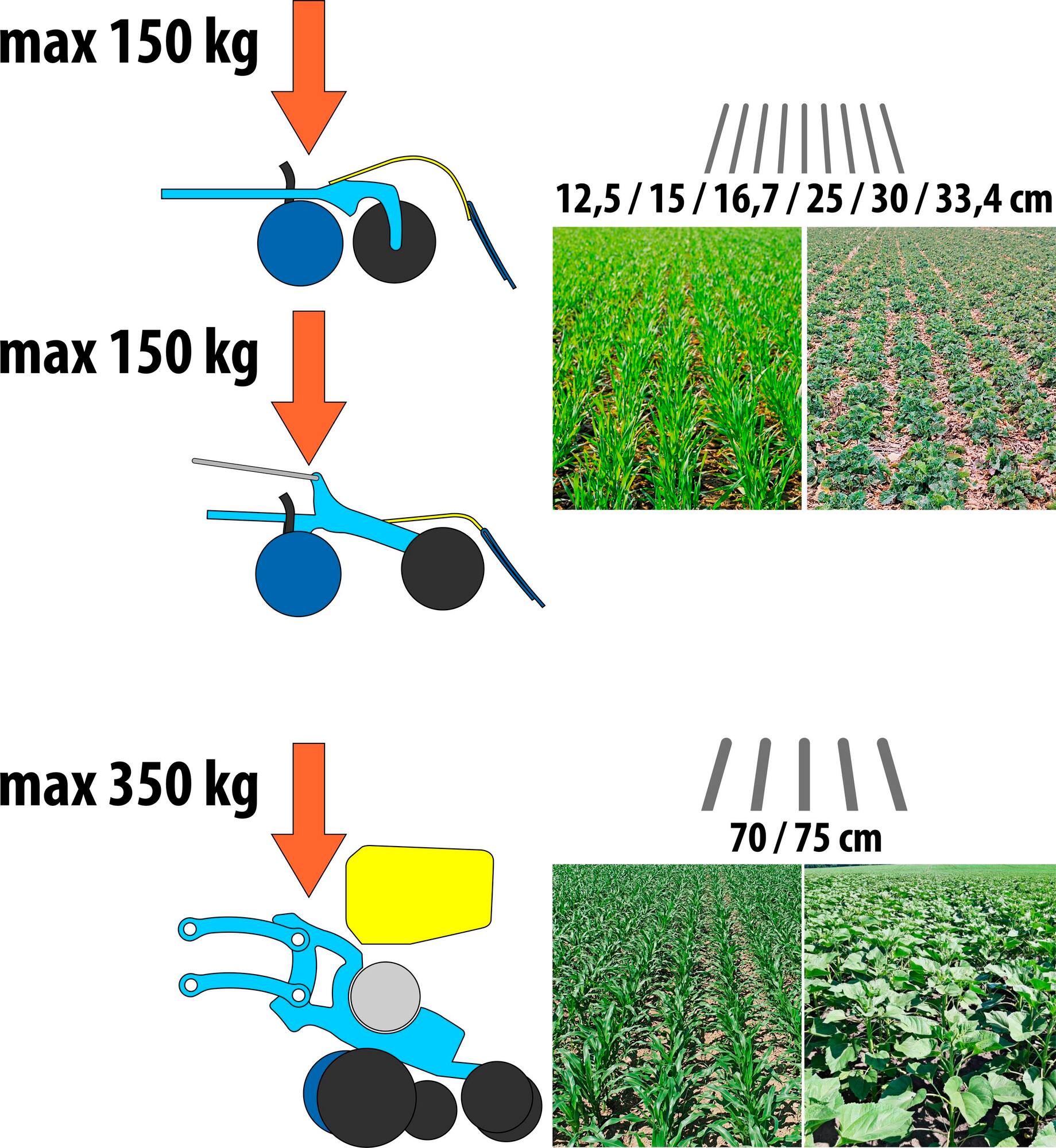

The seeding section is characterised by its simplicity and a wide working width. In connection with Falcon SW, it provides high working capacity for sowing common narrow-row crops (cereals, rape, legumes etc.). At the same time, it allows for independent sowing of two crops. The spacing of the coulters is 12.5 cm with an option to switch to 25 cm, or 15 cm with an option to switch to 30 cm, or 16,7 cm with an option to switch to 33,4 cm.

Mounted sowing machine for sowing wide-row crops

The seeding units for sowing wide-row crops (such as corn and sunflower) together with the application of fertilizer from the Falcon SW modular carrier provide sowing as well as fertilizer application in a single operation. The application of the fertilizer is provided by two fertilizer applicators on both sides of the crop. Versions: 6 / 8 rows

Easy Operation

The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.

• Easy setting of the sowing depth, coulter pressure and seeding amount.
• Simple electronic system with intuitive control.
• Minimum adjustment points.
• Minimum lubrication points.

Excellent terrain tracing

The flexible frame design perfectly absorbs impacts and traces the terrain.

Three-point hitch

An easy aggregation of the rear section via TPH (the sections are easily exchangeable).

Large hopper

Single-chamber hopper

Detail of the front section side fixtures

Possibility to aggregate a front section:

Aggregation with tractor

Aggregation in the bottom arms of TPH.

Two-hose air brakes

Pressurized hopper

Farmet dispenser

A modern roller dispenser with interchangeable rollers.

Auger or roller metering units of fertiliser

Auger metering unit Fert+

Modern auger metering unit. Fertiliser guiding to the fertilisation units.

Auger metering unit Fert+

Roller metering unit FertS

Modern roller metering unit with interchangeable rollers. Fertiliser guiding directly to the seed.

¹ Hydraulic brake alternative / operating pressure 130 ± 5 bar.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

Secí sekce: úzkořádkové setí (obilí, řepka)

Secí sekce: širokozáběrové setí (kukuřice, slunečnice)

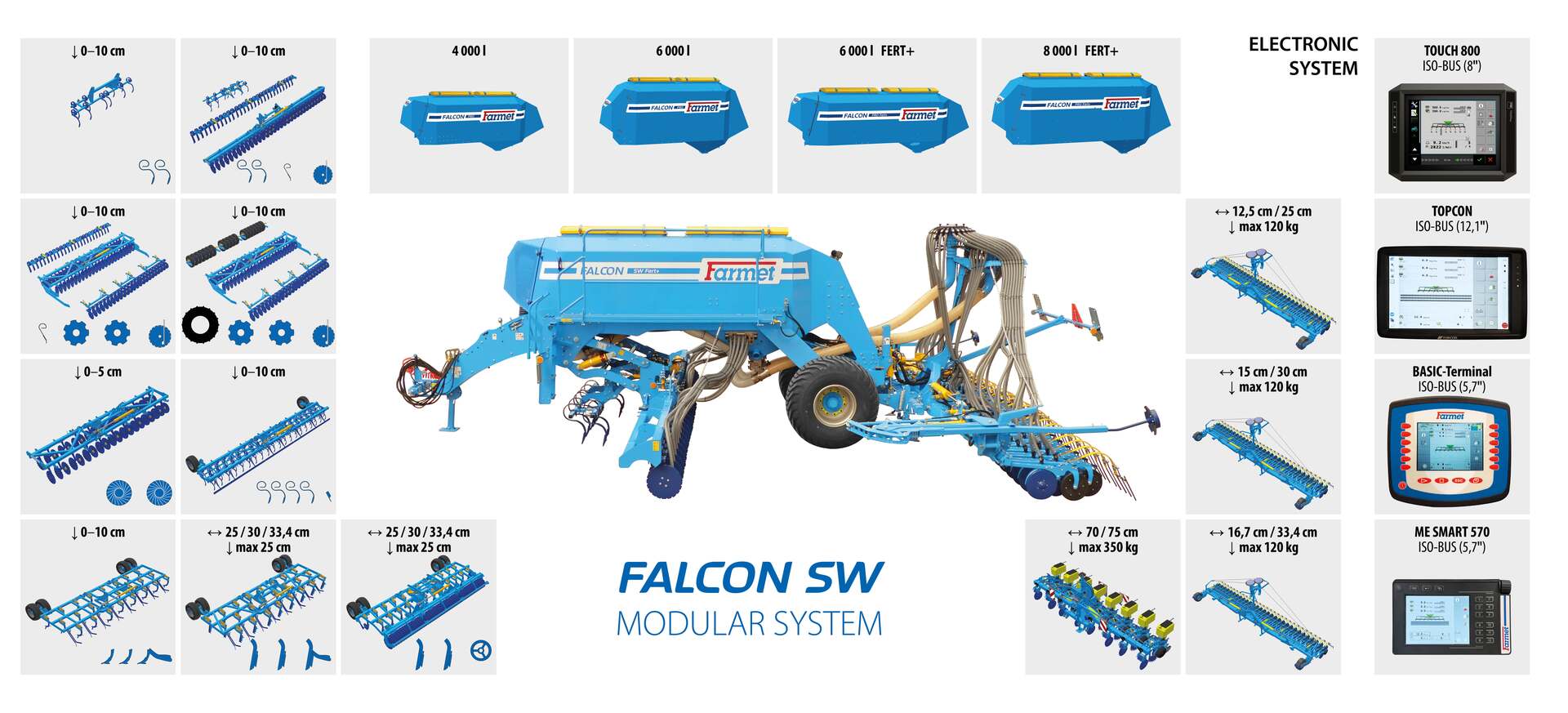

Wide Selection of Working Sections

You can choose from a wide offer of versions in each working section according to the selected sowing or cultivating technology with fertilizer application. You can choose the size of the bin, pre-processing section, sowing section as well as cultivating section.

Hopper

Large hopper
Hopper with capacity of 4 / 6 m³, a two-chamber hopper with capacity of 6 / 8 m³ can be supplied upon request, seeds and fertilizer distribution 60:40.

Rear Section

Connection via three-point hitch, cat. 3.

Double-disc sowing section (spacing 12,5 / 15 / 16,7 cm), up to the width of 9 meters
Spacing 12,5 / 15 / 16,7 cm – suitable for sowing cereals, legumes

Double-disc sowing section (spacing 25 / 30 / 33,4 cm), up to the width of 9 meters
Spacing 25 / 30 / 33,4 cm – in combination with the pre-processing three-row chisel section STRIP TILL, it is suitable for strip soil tillage, sowing with fertilization in a single line up to the depth of 25 cm. Ideal for sowing winter rape.

Precise sowing of wide-row crops, working width 6 / 8 rows at spacing of 70 / 75 cm
For sowing wide-row crops (corn, sunflower). With possibility of fertilization on both sides of the row.

Pre-processing Section

The Falcon SW Modular Seed Drill allows for work without the front pre-processing section. A pre-processing section can be installed upon request.

Pre-processing disc section for full-area soil processing
A universal working section, soil processing up to the seedbed depth, max. 10 cm. Possibility to combine with the front Flexi-board paddle leveller.

Flexi-board – front paddle leveller
For uniform spreading of clods and crop residue along the entire machine width.

Pre-processing 4-row chisel section for full-area soil processing
Mainly suitable for wet conditions – sowing spring crops.

Pre-processing 2- row chisel section (spacing 25 / 30 / 33,4 cm), for STRIP-TILL technology + disk roller, diameter 58 cm
Strip-till loosening with the option of additional fertilization using granulated fertilizers up to the depth of 25 cm.

Recommenced Combinations of Falcon SW Modular Seed Drill

	Main Crops	Front Pre-processing Section	Rear Sowing or Processing Section	Additional Fertilization
	cereals legumes	no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section	double-disc sowing section for sowing narrow-row crops (spacing 12.5 / 15 /  16,7 cm)	YES
	corn sunflower	no pre-processing section disc section disc section + Flexi-board Flexi-board 4-row chisel section	precise sowing of wide-row crops (spacing 70 / 75 cm)	YES
	winter rape	STRIP chisel section (spacing 25 / 30 / 33,4 cm)	double-disc sowing section with sowing in line of soil processing (spacing 25 / 30 / 33.4 cm)	YES
