Strip-till cultivator STRIP-TILL

Strip processing up to 35 cm with fertilizer storage

Strip-till cultivator Strip-Till

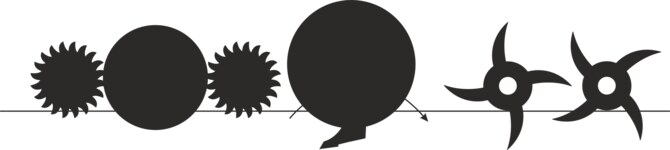

Technology

1	Zone of cutting and uniformly dispersing crop residue. The crop residue is effectively rolled up into inter-rows.
2	Loosening zone. Loosening to a depth of 20–35 cm with chisels with special geometry ensures the creation of wide loosened strips. První řada volitelná výbava.
3	Fertilizer storage zone. Granulated fertilizers are deposited into loosened strips in two horizons.
4	Strip forming zone. Large side discs ensure efficient forming of loose strips while increasing the quality of crumbling clods.
5	Final clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good water infiltration and soil moisture rise.

Technics

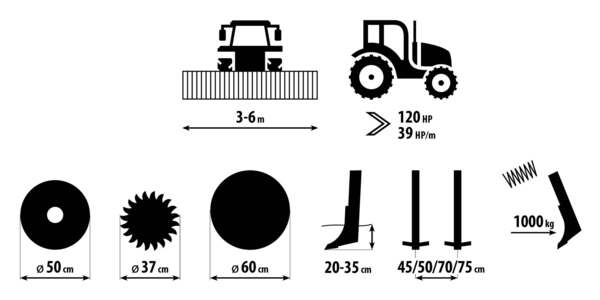

Strip-till cultivator Strip-Till

The row cleaner unit Ø 370 mm places crop residue to inter rows.
The front disk Ø 500 mm with the vertical angle cuts through the layer of crop residue.
Rugged shanks with hydraulic protection tills soil in a strip up to the depth of 35 cm.
The large side discs Ø 600 mm form tilled strips and improve the quality of crushing clods.
The double rear spiked roller crushes clods and compacts the top layer of the tilled row.

Provides various operations in a single pass – places crop residue into inter rows, tills soil up to the depth of 35 cm where fertilizer can be applied at two depth levels, crushes any potential clods and then compacts the tilled strip.

Soil processing up to the depth of 35 cm

The construction of the frame and working parts is designed for processing soil up to the depth of 35 cm. The robust ploughshare enters the depth of soil to loosen it and process it in the form of a strip.

High Performance and Labour Quality

Its design and low tractive resistance allows for high working speed

Its design and low tractive resistance allows for high working speed

Parameters

Technical Parameters	Units	Strip-Till 4	Strip-Till 6	Strip-Till 8	Strip-Till 12 FIX
Working width	mm	3 000 (2 800)	4 500 (4 200)	6 000 (5 600)	6 000 (5 400)
Transport width	mm	3 000 (2 800)	3 000 (2 800)	3 000 (2 800)	6 000 (5 400)
Transport height	mm	2 500	2 600	3 350	2 500
Total length of the machine	mm	3 000	3 050	3 050	3 050
Working depth	mm	200─350	200─350	200─350	200─350
Ploughshare spacing	mm	500 (450) 750 (700)	500 (450) 750 (700)	500 (450) 750 (700)	500 (450)
Number of ploughshare	pieces	4	6	8	12
Working capacity	ha/h	2,4─3,6	3,6─5,4	4,8─7,2	4,8─7,2
Pulling vehicle ¹	kW HP	90─150 120─200	135─225 175─300	180─300 235─400	180─300 235─400
Working speed	km/h	8─12	8─12	8─12	8─12
Maximum transport speed ³	km/h	20	20	20	20
Tractor hitch requirement		TPH cat. 3	TPH cat. 3	TPH cat. 3	TPH cat. 3
Machine weight ²	kg	1 650	2 900	3 700	4 460

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Weight without fertilizer distribution and Microdrill.
³ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
