Subsoiler DIGGER

Fertiliser placement

The fertiliser is placed under the surface into processed soil profile in two horizons.

The fertiliser is placed under the surface into processed soil profile in two horizons.

High performance

• The new tine design has a very low traction resistance and enables a high working speed up to 12 km/h.
• Ploughshares smoothly penetrate the soil and the soil is cultivated without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of the tines under heavy conditions such as marshes, headlands or when ploughing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use tracing wheels. The high frame clearance of 750 mm provides excellent passability.

• The new tine design has a very low traction resistance and enables a high working speed up to 12 km/h.
• Ploughshares smoothly penetrate the soil and the soil is cultivated without mixing it with subsoil layer, so-called biologically inactive soil.
• Possibility of lifting one row of the tines under heavy conditions such as marshes, headlands or when ploughing roads after harvest.
• Two rows of tines provide a very good stability of the machine and precise depth guiding without the need to use tracing wheels. The high frame clearance of 750 mm provides excellent passability.

Subsoiler Digger N

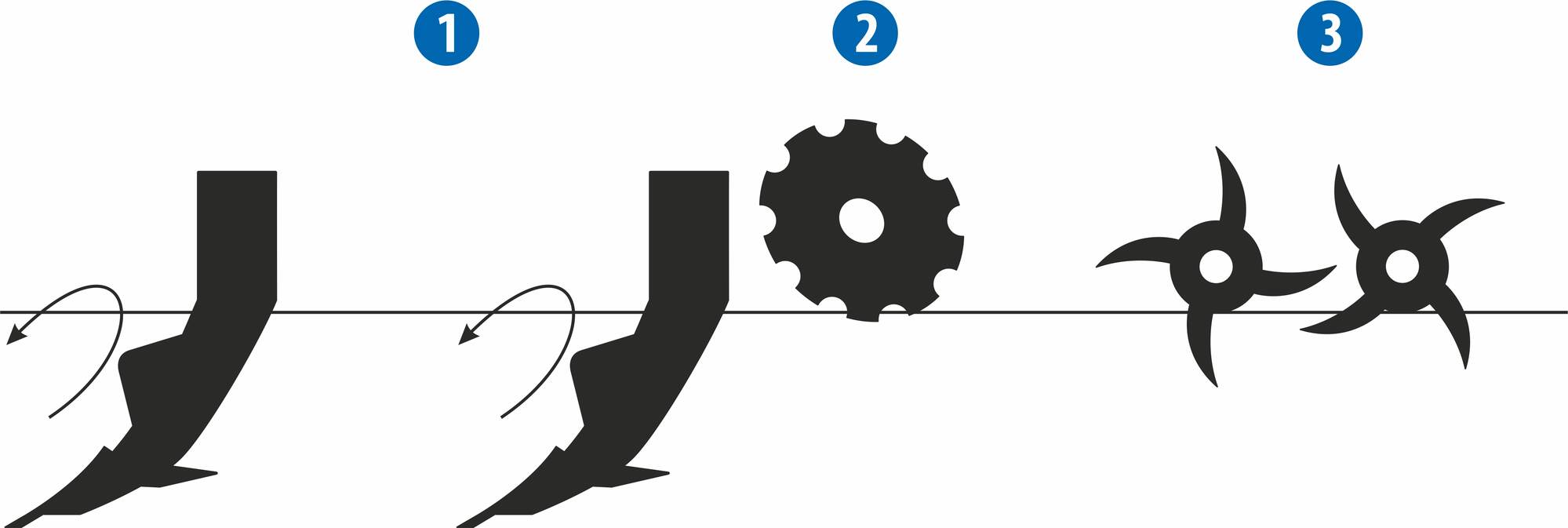

1. Massive ploughshares situated in 2 rows for deep cultivation 25–50 cm.
2. The levelling disks for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for crumbling of clods.

Subsoiler Digger N

1. Massive ploughshares situated in 2 rows for deep cultivation 25–50 cm.
2. The levelling disks for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for crumbling of clods.

Subsoiler Digger N

1. Massive ploughshares situated in 2 rows for deep cultivation 25–50 cm.
2. The levelling disks for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for crumbling of clods.

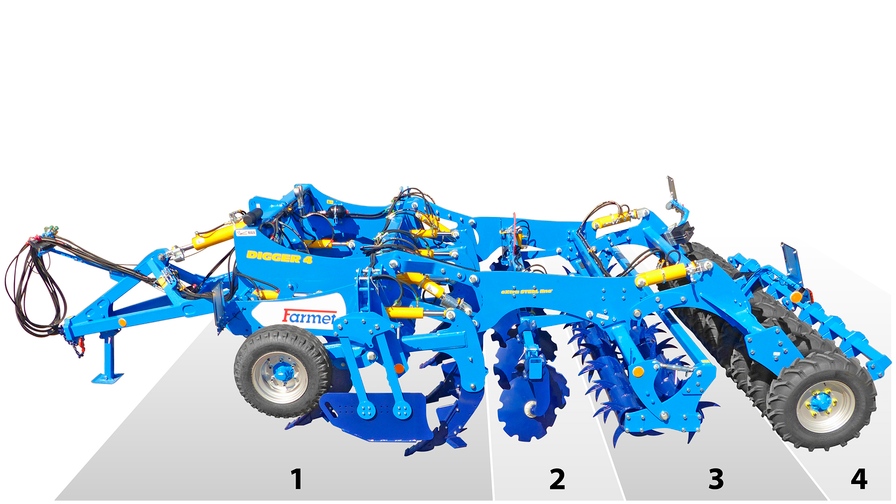

Subsoiler Digger P

1. Massive ploughshares situated in 2 rows for deep cultivation 25–50 cm.
2. The levelling disks for striking down flying clods and partial cutting of clods on the surface.
3. The rear double spiked roller for crumbling of clods.
4. Back roller provides good recompaction of the soil, crumbling of clods and levelling of the area surface.

Digger Versions

Machine variants

Due to various variants this machine is able to fulfill various requirements according to your needs. Have a look at the variants that you can obtain from us.

Basic versions of the machine

Digger N - Basic variant

Machine with hydraulic share protection, with back-filling discs

Digger N - Without levelling discs

Machine with hydraulic share protection, without back-filling discs

Digger N - Mechanical protection

Machine with mechanical share protection, with back-filling discs

Digger N - Mechanical protection without levelling discs

Machine with mechanical share protection, without back-filling discs

Digger N Fert+

Machine with a front fertilizer hopper and additional fertilization at 2 horizons

Digger N Fert+ Compact

Machine with an integrated fertilizer hopper and additional fertilization at 2 horizons

Digger P Fert+ Compact

Semi-mounted version equipped with a drawbar and a rear rubber-tyred roller, with an integrated fertilizer hopper and additional fertilization at 2 horizons

Digger P HW

Semi-mounted version equipped with an additional carrier for the fertilizer hopper with an axle, additional fertilization at 2 horizons

Robust design

• High-strength refined materials used for crucial nodes to ensure long service life.
• Strongly dimensioned compact and carried frame.
• The ploughshares are fitted with plates of cemented carbides for long service life.

Protection of ploughshares

The ploughshares are hydraulically protected by a release force at the tip of 1,100 kg or you can choose the variant with mechanical protection.

Mechanical protection of ploughshares

Version with mechanical tine protection – the safety segment breaks in case of excessive resistance.

Prolonged service life of ploughshares

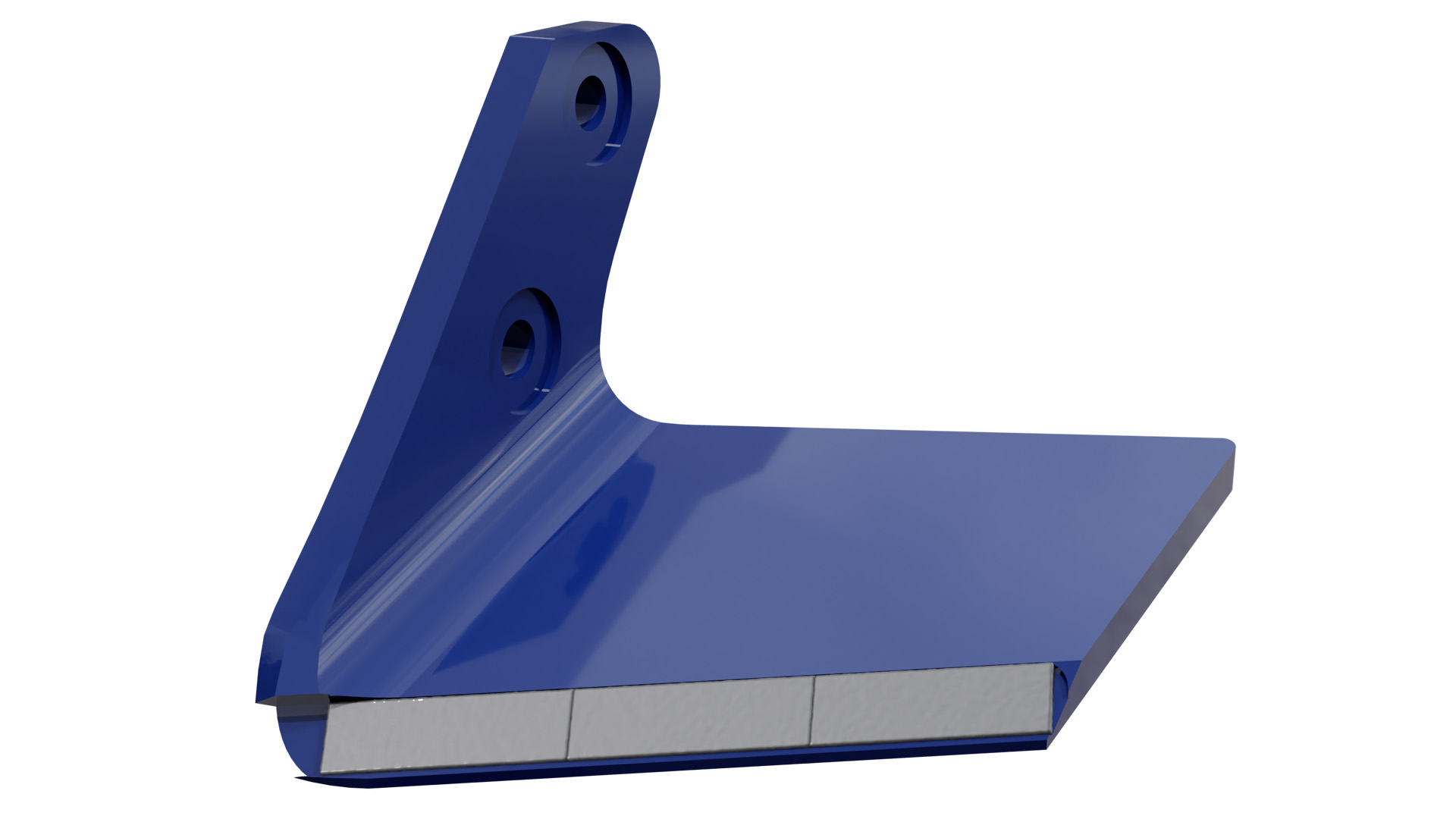

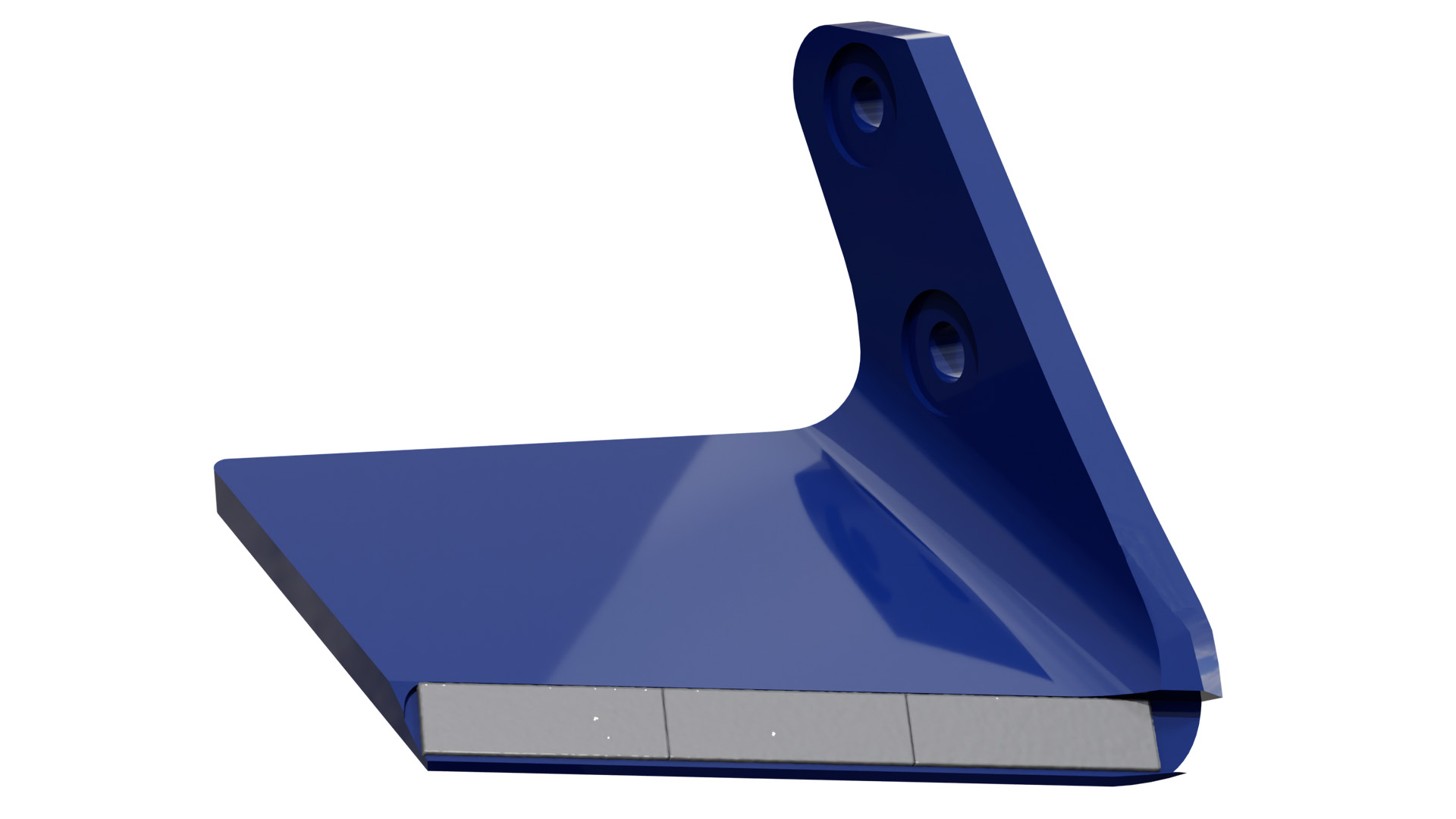

The tips of ploughshares are fitted with plates of cemented carbides for long service life, low wear and to maintain optimum geometry.

Levelling disks

The levelling disks direct the processed soil in front of the rear spiked rollers and at the same time provide precise furrow levelling.

Roller

The rear double spiked roller for fine processing of clods maintains the quality of the soil as in the presowing preparation in minimizing technologies or as the basic autumn soil processing for spring crops.

Ploughshares

The ploughshares with winglets incorporate plant residues very well and the levelling disks together with the double spiked roller perfectly level furrows.

Easy operation

Due to minimum of adjusting points the operation and subsequent maintenance are very easy steps that anybody can perform.

Adjustment of depth

Easy working depth setting using tipping pads. When in the working position, the machine rests against the rear double spiked roller.

Adjustment of the disk height

The height of the levelling disks is set automatically using a parallelogram of the rear roller attachment. The handles for mechanical setting are used for precise tuning.

Hydraulic control of disks

To increase comfort of operator, the machine can be equipped with hydraulic control of the levelling disks. (optional)

Setting of the down pressure

Simple mechanical setting of the down pressure of the first row of the double spiked roller. The down pressure regulates the intensity of clod crumbling. The roller is equipped with maintenance-free bearings with high level of covering.

Slight lifting of ploughshares

For locally more compacted soils the front row of ploughshares can be lifted a little bit and thus the traction resistance of the machine can be temporarily lowered. The slight lifting of ploughshares is advantageous also for simple cleaning of the space among ploughshares.

Position of winglets

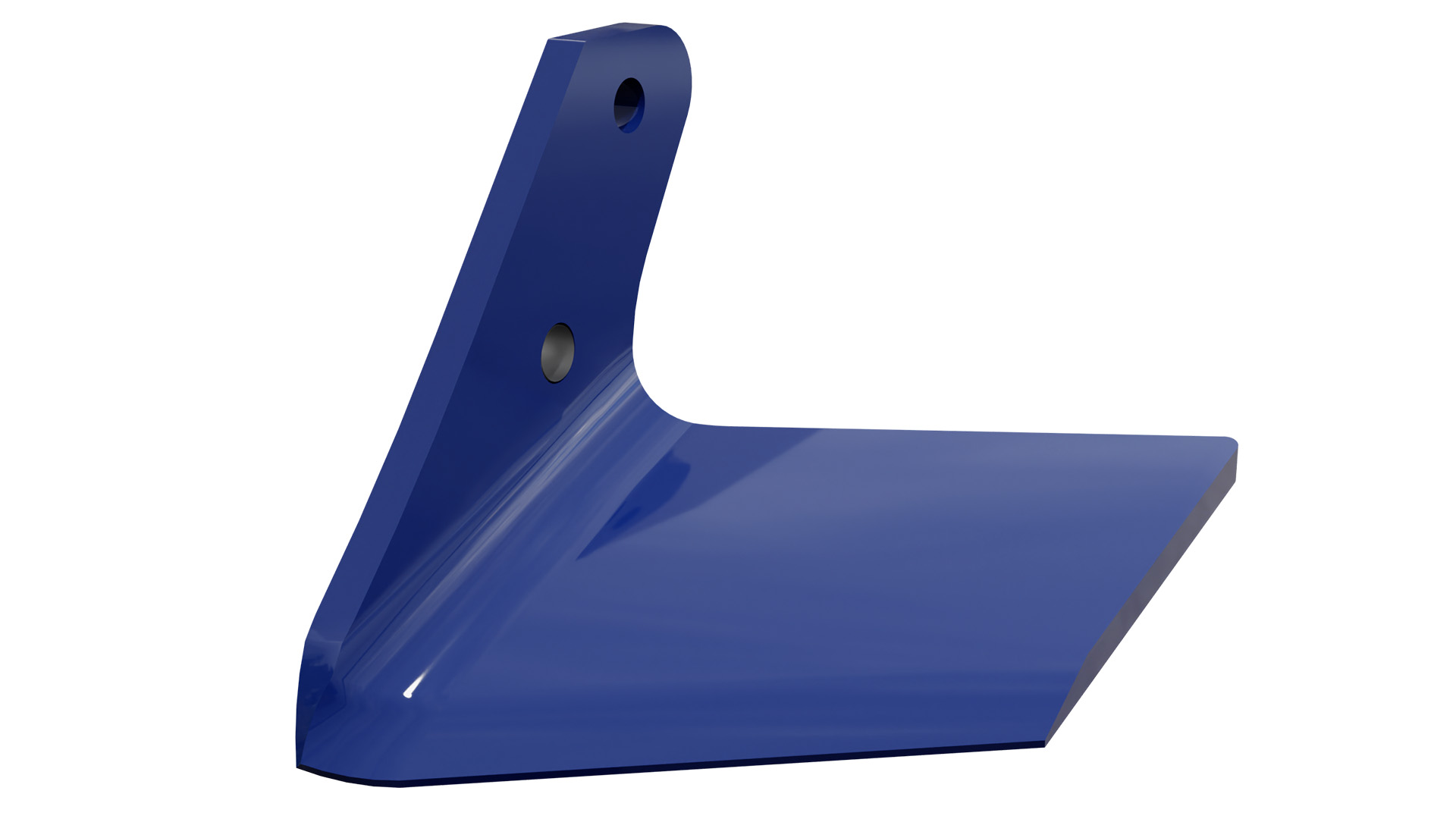

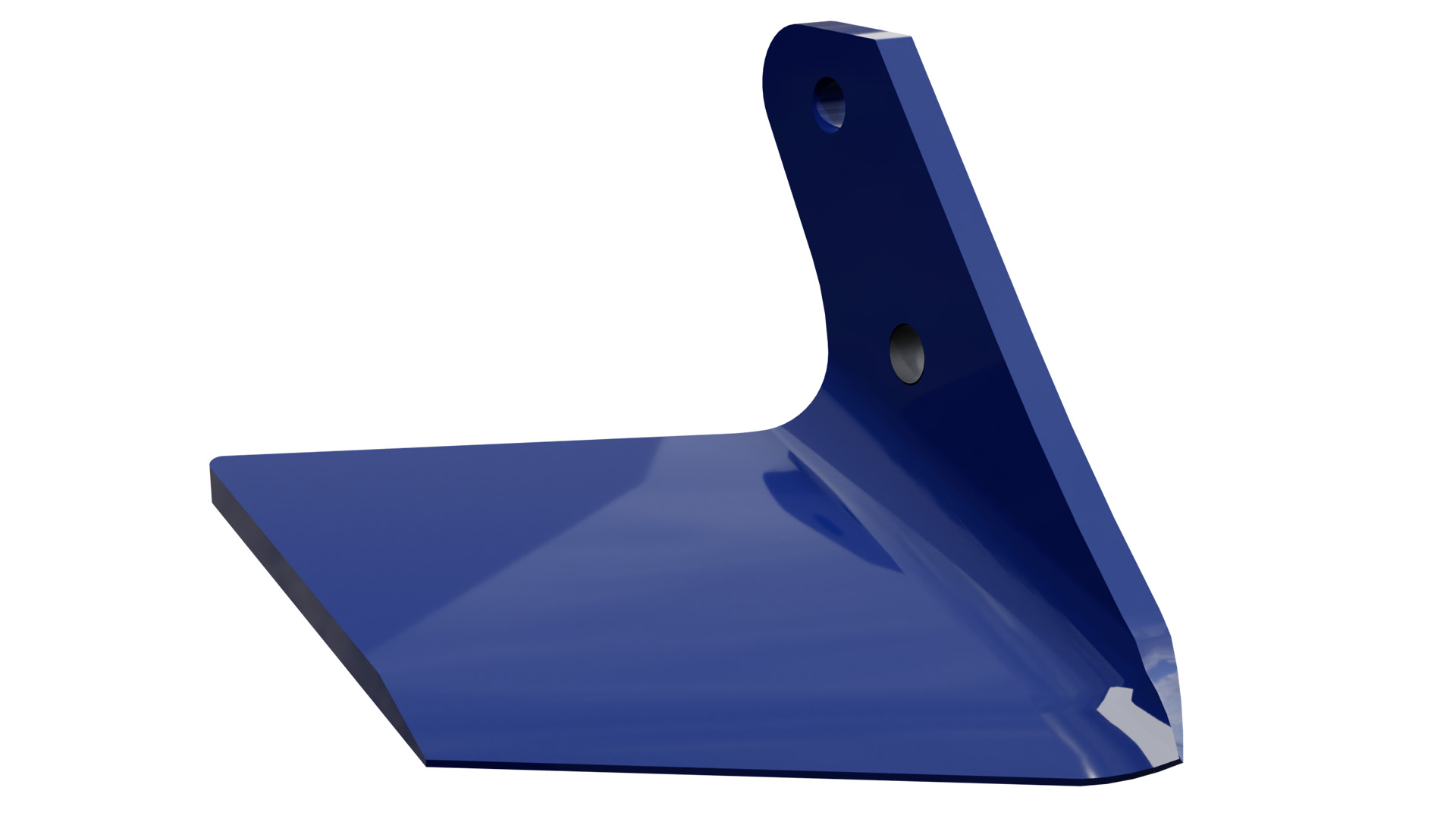

The vertical position of winglets can be adjusted in three positions and thus obtain optimum incorporation of plant residues for various depths of processing.

Side deflectors

For more precise connection of runs the machine can be equipped with side deflectors with adjustable height that automatically copy terrain.

Ball valves

To facilitate disconnection of hydraulic circuits of ploughshare protection, these circuits are during machine shutdown equipped with ball valves.

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
