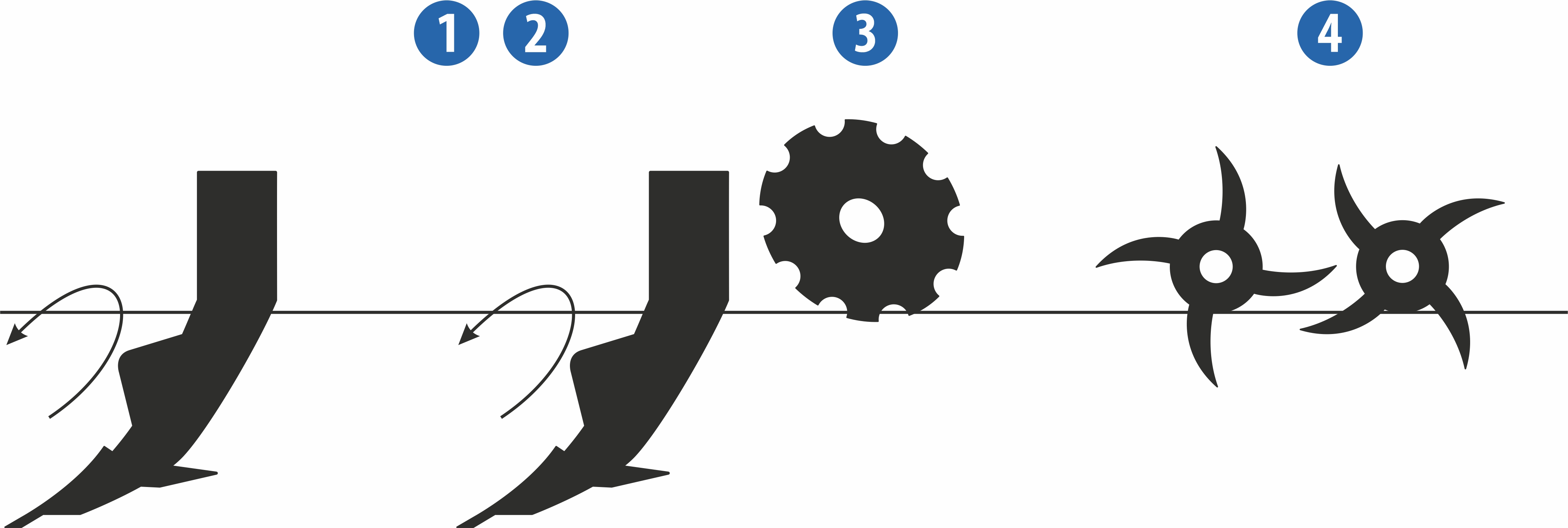

| 1 | Zone of deep loosening and mixing of plant residues. Loosening depth 25–50 cm. The special shape of loosening chisels ensures excellent penetration even in heavily compacted soils with very low traction resistance. The chisels are in two rows. In extreme conditions, it is possible to work with only one row of chisels, thus reducing traction resistance. |
| 2 | Fertilizer storage zone. Granulated fertilizers are deposited into loosened strips in two horizons. |
| 3 | Ridge formation zone. Levelling discs also increase the effect of incorporating plant residues. |
| 4 | Clod crumbling and soil reconsolidation zone. Optimum soil reconsolidation ensures good infiltration and soil moisture rise. |
One part of fertiliser is placed under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides.
 |
 |
3 |
Digger N Fert+front fertilizer hopper, additional fertilization at 2 horizons |
5 |
Digger P Fert+ COMPACTdrawbar and rear roller, integrated fertilizer hopper, additional fertilization at 2 horizons |
4 |
Digger N Fert+ COMPACTintegrated fertilizer hopper, additional fertilization at 2 horizons |
6 |
Digger P HWadditional carrier with an axle, fertilizer hopper, additional fertilization at 2 horizons |
Due to various variants this machine is able to fulfill various requirements according to your needs. Have a look at the variants that you can obtain from us.
Digger Fert+ is based on the Digger Deep Cultivator supplied with a set for the application of granulated fertilizers for the root zone of the soil profile. Digger Fert+ loosens the subsoil layer, incorporates crop residue into the topsoil while applying fertilizer at two levels of the supply zone.
More information about Monsun MF at the product page.
Both machines, Digger Fert+ and Monsun MF, can be used in combination with any other machine. Digger Fert+ can also be used without additional fertilization as the basic Digger type. The application set for an additional installation in Digger machines is supplied upon request.
Digger Fert+ is based on the Digger Deep Cultivator supplied with a set for the application of granulated fertilizers for the root zone of the soil profile. Digger Fert+ loosens the subsoil layer, incorporates crop residue into the topsoil while applying fertilizer at two levels of the supply zone.
More information about Monsun MF at the product page.
Both machines, Digger Fert+ and Monsun MF, can be used in combination with any other machine. Digger Fert+ can also be used without additional fertilization as the basic Digger type. The application set for an additional installation in Digger machines is supplied upon request.
Digger Fert+ Compact is based on the Digger Deep Cultivator supplied with a large integrated hopper with a metering device. Digger Fert+ Compact loosens the subsoil layer in a single pass, incorporates crop residue into the topsoil while applying fertilizer at two levels of the supply zone.
The hopper has the capacity of 2,000L and a massive screen for the protection of the feeding screw that reliably dispenses the fertilizer into the Accord distributor. The feeding screw dispenses all types of fertilizers, even in humid conditions when the fertilizer may stay in the hopper. The fertilizer level can be easily checked through the inspection hole in the hopper. The entire metering device is stainless, with a high resistance to the effects of the fertilizer.
Digger Fert+ Compact is based on the Digger Deep Cultivator supplied with a large integrated hopper with a metering device. Digger Fert+ Compact loosens the subsoil layer in a single pass, incorporates crop residue into the topsoil while applying fertilizer at two levels of the supply zone.
The hopper has the capacity of 2,000L and a massive screen for the protection of the feeding screw that reliably dispenses the fertilizer into the Accord distributor. The feeding screw dispenses all types of fertilizers, even in humid conditions when the fertilizer may stay in the hopper. The fertilizer level can be easily checked through the inspection hole in the hopper. The entire metering device is stainless, with a high resistance to the effects of the fertilizer.
| Technical parameters | Units | Digger 3 Fert+ | Digger 4 Fert+ | Digger 3 Fert+ Compact | Digger 4 Fert+ Compact | Digger 3 P Fert+ Compact | Digger 4 P Fert+ Compact |
|---|---|---|---|---|---|---|---|
| Working width | mm | 2 900 | 3 900 | 2 990 | 3 990 | 2 990 | 3 990 |
| Transport width | mm | 2 990 | 3 990 | 2 990 | 3 990 | 2 990 | 3 990 |
| Transport height | mm | 2 790 | 2 790 | 3 500 | 3 500 | 3 500 | 3 500 |
| Total machine length | mm | 3 520─4 000 | 3 520─4 000 | 3 645─4 125 | 3 645─4 125 | 7 720 | 7 720 |
| Working depth | mm | 250─500 | 250─500 | 250─500 | 250─500 | 250─500 | 250─500 |
| Hopper volume | l | 2 000 | 2 000 | 2 000 | 2 000 | ||
| Fertilizer batch size | kg/ha | 70─300 | 70─300 | 70─300 | 70─300 | ||
| Number of ploughshares | pcs | 7 | 9 | 7 | 9 | 7 | 9 |
| Distance between ploughshares | mm | 425 | 425 | 425 | 425 | 425 | 425 |
| Number of ploughshare rows | pcs | 2 | 2 | 2 | 2 | 2 | 2 |
| Pitch of rows | mm | 950 | 950 | 950 | 950 | 950 | 950 |
| Width of ploughshare with winglets | mm | 75 / 295 | 75 / 295 | 75 / 295 | 75 / 295 | 75 / 295 | 75 / 295 |
| Frame clearance | mm | 750 | 750 | 750 | 750 | 750 | 750 |
| Working performance | ha/h | 2,4─3,6 | 3,1─4,7 | 2,4─3,6 | 3,4─4,7 | 2,4─3,6 | 3,4─4,7 |
| Towing vehicle 1 | kW HP |
180─270 240─360 |
240─360 330─450 |
180─270 240─360 |
240─360 330─450 |
220─330 300─450 |
265─400 360─540 |
| Working speed | km/h | 8─12 | 8─12 | 8─12 | 8─12 | 8─12 | 8─12 |
| Maximum transport speed 2 | km/h | 25 | 25 | 25 | 25 | 20 | 20 |
| Maximum slope availability | ° | 11 | 11 | 11 | 11 | 11 | 11 |
| Tractor hitch requirement | TPH cat. 3 and 4 | TPH cat. 3 and 4 | TPH cat. 3 and 4 | TPH cat. 3 and 4 | TPH cat. 3 and 4; lower hitch K80; eye Ø 50, 70 mm | ||
| Machine weight | kg | 2 250─2 850 | 2 950─3 750 | 2 860─3 460 | 3 800─4 600 | 6 900─7 500 | 7 900─8 700 |
| Technical parameters | Jednotky | Digger 3 P HW | Digger 4 P HW | Falcon HW |
|---|---|---|---|---|
| Working width | mm | 2 900 | 3 900 | |
| Transport width | mm | 2 990 | 3 990 | 2 990 |
| Transport height | mm | 2 790 | 2 790 | 2 600 |
| Total machine length | mm | 10 980 | 10 980 | 7 500 |
| Working depth | mm | 250─500 | 250─500 | |
| Hopper volume | l | 5 000 | 5 000 | 5 000 |
| Fertilizer batch size | kg/ha | 70─300 | 70─300 | 70─300 |
| Number of ploughshares | pcs | 7 | 9 | |
| Distance between ploughshares | mm | 425 | 425 | |
| Number of ploughshare rows | pcs | 2 | 2 | |
| Pitch of rows | mm | 950 | 950 | |
| Width of ploughshare with winglets | mm | 75 / 295 | 75 / 295 | |
| Frame clearance | mm | 750 | 750 | |
| Working performance | ha/h | 2,4─3,6 | 3,1─4,7 | |
| Towing vehicle 1 | kW HP |
220─300 300─450 |
265─400 360─540 |
|
| Working speed | km/h | 8─12 | 8─12 | |
| Maximum transport speed 2 | km/h | 30 | 30 | 30 |
| Maximum slope availability | ° | 11 | 11 | 11 |
| Tyre dimensions – transport | 650/65R-30,5 | 650/65R-30,5 | 650/65R-30,5 | |
| Tractor hitch requirement | TPH cat. 3 and 4 | TPH cat. 3 and 4 | TPH cat. 3 and 4; lower hitch K80; eye Ø 50, 70 mm | |
| Machine weight | kg | 5 150─5 750 | 5 850─6 650 | 2 900 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
2 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 8" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 2 |
| Camera Input | OK |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 12,1" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 5 |
| Camera Input | OK |
| GSM Modem | for a fee |
| x | Not available |
| OK | Included |
