Tine cultivator DUOLENT PS

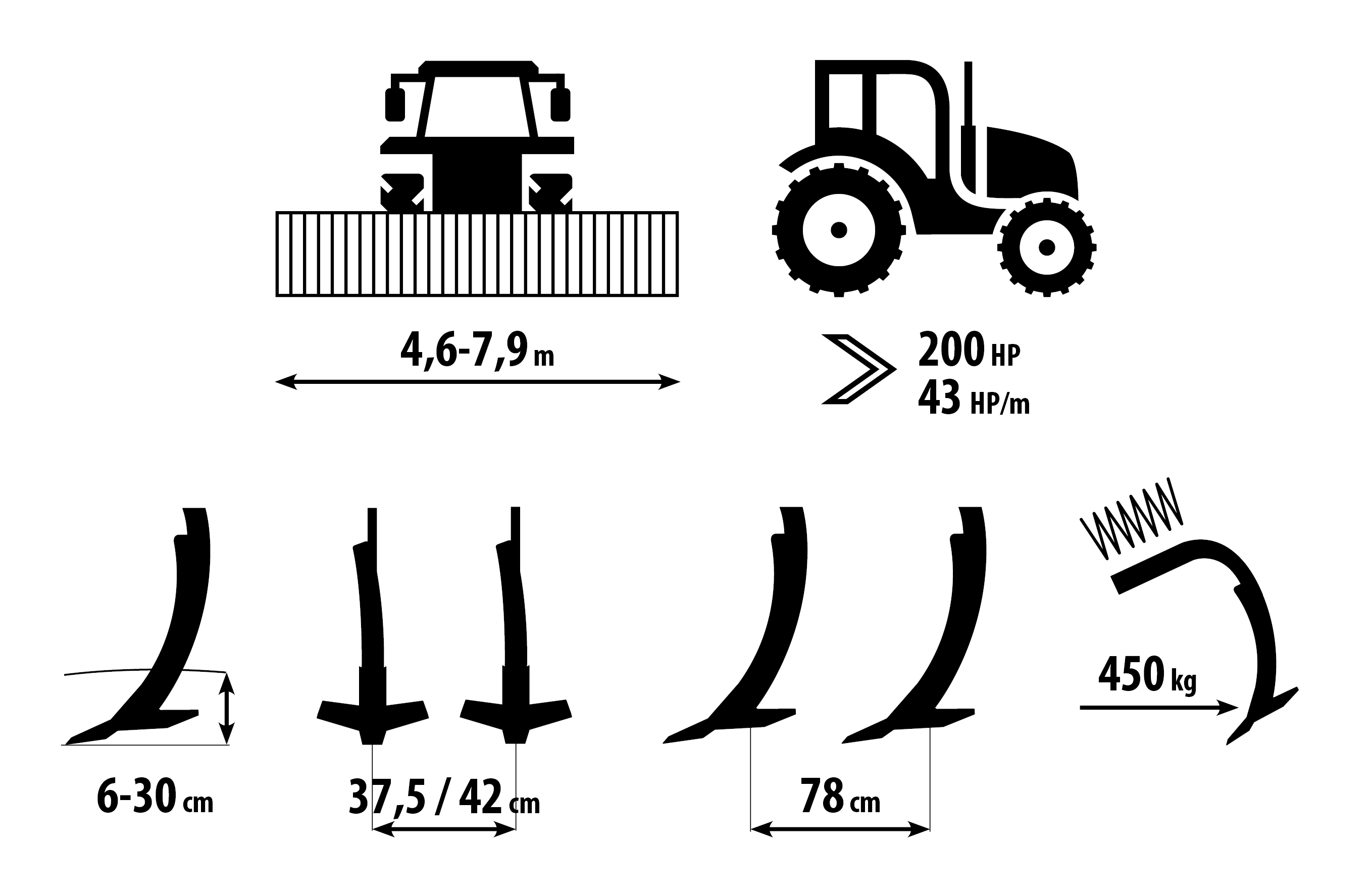

Duolent PS: Stubble breaking up at a depth from 6 to 20 cm

Duolent PS: Loosening to a depth of 30 cm

Variants of fertiliser placement

The fertiliser is placed under the surface, put in lower part of processed soil profile

One part of the fertiliser is place under the surface in lower part of processed soil profile and the second part just under the surface + areal to the sides

The fertiliser is placed just under the surface + areal to the sides

High performance and quality of work

• High working speed up to 12 km/h.
• Low traction resistance and excellent mixing of the soil due to the optimized design of ploughshares.
• Excellent permeability for plant residues due to the share pitch of 420 mm.
• The spiral shape of the upper part of ploughshares for controlled flow of the soil.
• Maintenance-free working members fitted with plates of cemented carbides for minimal wear.

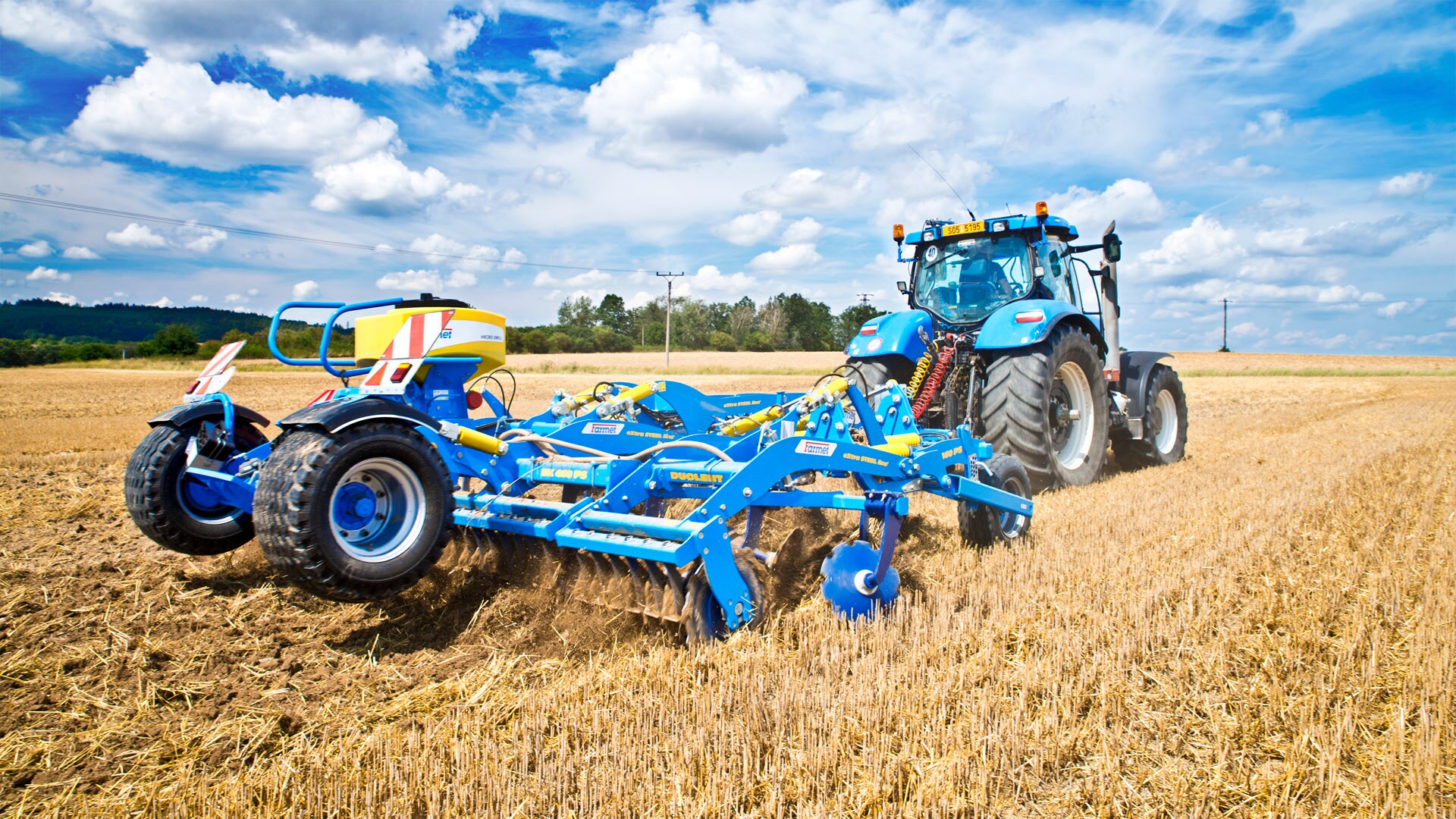

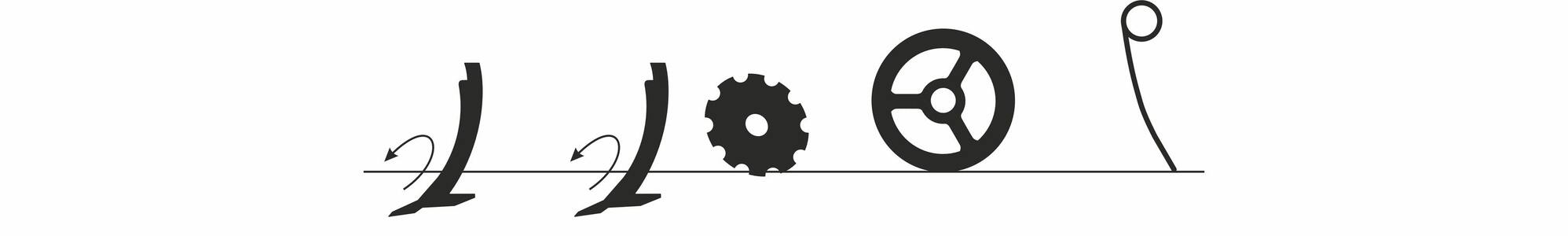

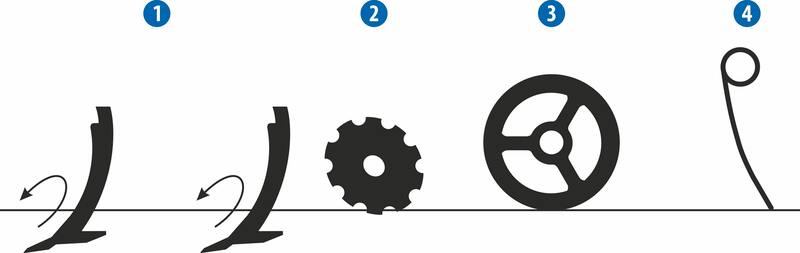

Tine cultivator Duolent PS & Micro Drill Unit

1. Massive ploughshares situated in 2 rows ensure quality loosening of the soil and incorporation of plant residues.
2. Coordination disks for fine structure of the soil on surface.
3. Back roller provides good recompaction of the soil, crumbling of clods and levelling of the area surface.
4. The additional Micro Drill machine for planting crops that can be seeded onto the soil surface. This includes, for example, mustard, phacelia, clover and grass.

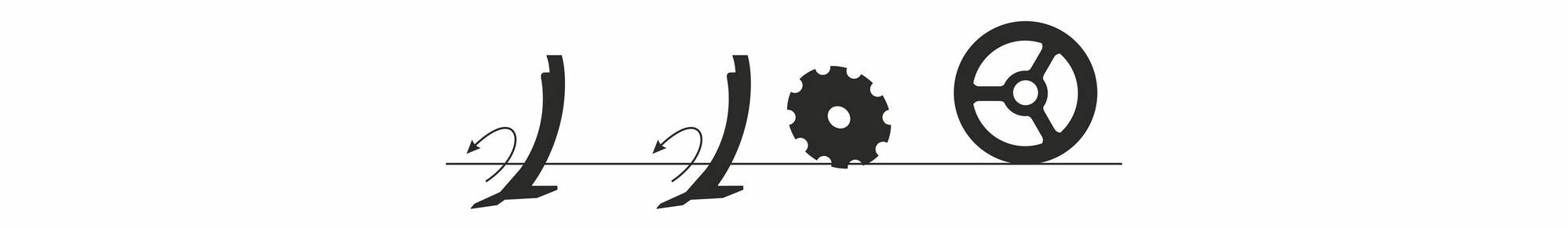

Tine cultivator Duolent PS

1. Massive ploughshares situated in 2 rows ensure quality loosening of the soil and incorporation of plant residues.
2. Coordination disks for fine structure of the soil on surface.
3. Back roller provides good recompaction of the soil, crumbling of clods and levelling of the area surface.

Robust design

High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.

High-strength materials

High-strength refined materials used for crucial nodes to ensure long service life.

Abrasion resistant steel

The time-tested ploughshares are made of high-strength abrasion resistant steels.

Heavily designed frame

Strongly dimensioned frame of high-strength steels.

Spring protection

Resistant and maintenance-free spring protection with high release force of 450 kg.

Easy operation

Due to minimum of adjusting and lubricating points the operation and subsequent maintenance are very easy steps that anybody can perform.

• Minimum of adjustment points.
• Minimum of lubrication points.

Adjustment of working depth

Easy working depth setting using the piston rod washers on the rollers.

Distance washers

Unused distance washers can be placed on the prepared storage place near piston rods and this way they are always at hand.

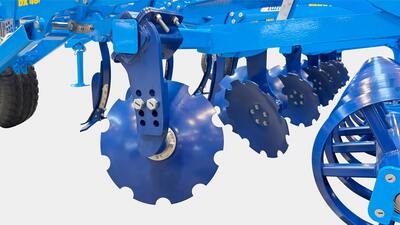

Adjustable levelling disks

Levelling disks with adjustable height and with simple adjustment, suspended with rubber elements.

Hydraulic setting of levelling discs

Optional equipment. Easy, quick and convenient disc setting from the tractor cabin, also available while working in the field.

Smartly performed designed machine

The advantage of this machine is its multipurposeness and adjustability bringing high variability of work.

• Skilful when working in the field due to short compact design.
• Stable due to short design and light axle.

Turning on rollers

Higher stability and quick turning at headlands due to possibility of turning on all rollers.

Sprung levelling disks

Sprung levelling disks for quality levelling of the soil surface.

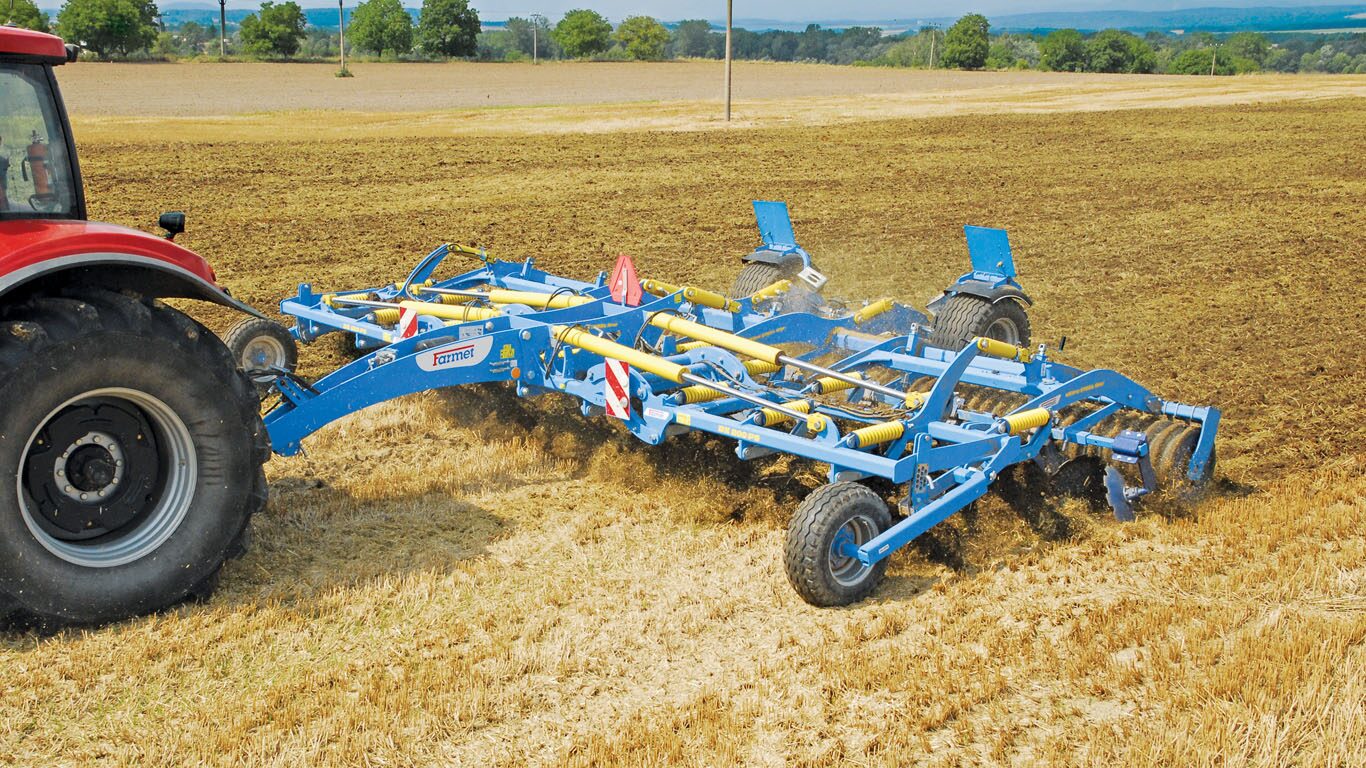

Folding system

Patented folding system enabling the machine with the working span of 7.9 m to be folded to the transport width of 3 m and height of 4 m and thus complies with the regulations for operation of vehicles on the road network.

Full-area stubble-breaking

Chisels with winglets for full-area undercut up to the depth of 20 cm.

Micro Drill Seeding Unit

The sophisticated design of the machine allows for an installation of the Micro Drill Seeding Unit for sowing catch crop or for planting grass directly.

More information about Micro Drill >

¹ Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
² Machine weight with LTX roller.
³ Alternative of the hydraulic brake / operating pressure 130 ± 5 bar.
⁴ Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.

PS - half mounted foldable machine
