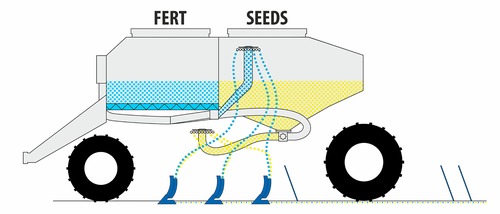

| 1 | Zone of pre-consolidation of soil and crumbling clods. The front tire roller effectively packs the soil and crumbs large clods. |
| 2 | Seed and fertilizer storage zone in one operation. Seed and fertilizer are stored by special seeding coulters. The coulters ensure that the seedbed is created and the seed is placed in strips with a spacing of approx. 12 cm. At the same time the seeding coulters put the granulated fertilizer into the root zone of future plants always between two strips of seed. |
| 3 | Ridge levelling zone and seed cover behind the seeding coulters. Harrow with special double fingers effectively levels the soil surface behind the shares. |
| 4 | Zone of final soil compaction and pressing seed. Large flotation tires ensure a very gentle and even final soil compaction and induce seed creasing. |
| 5 | Zone of final levelling of soil surface and spreading of plant residues. The double row harrow very effectively levels the soil surface and spreading plant residues. |
The Falcon PRO Tandem seed drill uses the modular foundation of Falcon PRO, equipped with the front seeding section with a tyre packer and three rows of special seeding shares. The seeding shares are followed by an effective levelling system, excellent for levelling out the soil surface and for even distribution of crop residue.
The rear roller equipped with large low-pressure tyres provides very low pressure on the soil, even when the seed and fertilizer hoppers are completely full. The robust tyres are highly resistant to penetration and they allow for transport of the machine on low quality roads at high speed, even for greater distances.
The special seeding shares with tandem-configured outputs for seeding and parallel placement of fertilizer into the root zone provide quality seeding, even under the conditions of a high quantity of crop residue in mulch seeding technologies. The precise depth guidance by tyre rollers helps achieve seeding depth precision comparable with disc seed drills.
The robust frame of the machine makes it also suitable for rocky soils.
The Falcon PRO Tandem seed drill uses the modular foundation of Falcon PRO, equipped with the front seeding section with a tyre packer and three rows of special seeding shares. The seeding shares are followed by an effective levelling system, excellent for levelling out the soil surface and for even distribution of crop residue.
The rear roller equipped with large low-pressure tyres provides very low pressure on the soil, even when the seed and fertilizer hoppers are completely full. The robust tyres are highly resistant to penetration and they allow for transport of the machine on low quality roads at high speed, even for greater distances.
The special seeding shares with tandem-configured outputs for seeding and parallel placement of fertilizer into the root zone provide quality seeding, even under the conditions of a high quantity of crop residue in mulch seeding technologies. The precise depth guidance by tyre rollers helps achieve seeding depth precision comparable with disc seed drills.
The robust frame of the machine makes it also suitable for rocky soils.
High-strength refined materials in connection with eXtra STEEL line technology guarantee long service life of our machines even in the most difficult conditions.
The minimum number of adjustment and lubrication points makes the operation, control as well as subsequent maintenance a very simple task that anyone can manage.
| Technical parameters | Units | Falcon 6 PRO Tandem | Falcon 8 PRO Tandem |
|---|---|---|---|
| Working width | mm | 6 000 | 8 000 |
| Transport width | mm | 3 000 | 3 000 |
| Transport height | mm | 3 300 | 4 000 |
| Total machine length | mm | 9 000 | 9 000 |
| Working depth | mm | 0─100 | 0─100 |
| Hopper capacity with fertilization (ratio 40:60) |
l | 6 000 | 6 000 / 8 000 |
| Hopper filling height | mm | 2 930 | 2 930 / 3 400 |
| Dimensions of the filling opening with fertilization | mm | 1 430 x 620 | 1 430 x 620 |
| Number of sowing shares (spacing of 250 mm) |
ks | 24 | 32 |
| Working performance | ha/h | 6─9 | 8─12 |
| Towing vehicle 1 | kW HP |
147 200 |
205 280 |
| Working speed | km/h | 8─15 | 8─15 |
| Maximum transport speed 4 | km/h | 30 | 30 |
| Maximum slope availability | ° | 6 | 6 |
| Dimensions of tyre – transport | 405/70 R20 420/65 R20 |
405/70 R20 420/65 R20 |
|
| Brake type / distribution 3, 4 | air / two-line | air / two-line | |
| Required pressure 3 | kPa | 8,5 | 8,5 |
| Number of hydraulic circuits / pressure | bar | 4 / 200 | 4 / 200 |
| Number of hydro-couples / type | 6 / ISO 12,5 | 6 / ISO 12,5 | |
| Non-pressure return line (max. 5 bar) | 1 / ISO 20 | 1 / ISO 20 | |
| Oil flow of hydraulic fan | l/min | 30─40 | 30─40 |
| Oil flow for machine control | l/min | 50─60 | 50─60 |
| Electric system requirement | 12 V DC / 40 A | 12 V DC / 40 A | |
| Tractor hitch requirement | TBZ cat. 3 | TBZ cat. 3 | |
| Machine weight 2 | kg | 6 500─7 500 | 9 100─10 780 |
1 Recommended towing vehicle, the actual pulling force may significantly change according to the processing depth, soil conditions, inclination of land, wear of working members and their adjustment.
2 Machine weight according to the equipment.
3 Alternative to hydraulic brake / operating pressure of 130 ± 5 bar.
4 Transport / brake system: Follow national provisions valid for transport of machines on public roads. Verify legal provisions valid in the country, regulations on maximum allowable total weights and axle loads and also on necessary possible use of the brake system. If you have any questions, please contact our sales representative.
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 8" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 2 |
| Camera Input | OK |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 5,7" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 1 |
| Camera Input | x |
| GSM Modem | x |
| Equipment | |
|---|---|
| Display Dimensions | 12,1" |
| ISO-BUS | OK |
| Seed Passing Sensor Control | OK |
| Hopper Level Reading | OK |
| Fan Speed Reading | OK |
| Dispenser Speed Reading | OK |
| Motor Speed Reading | OK |
| Number of Motors (Dispensing) | 3 |
| Rail Line Flap Control | OK |
| Seed Drill Position Display | OK |
| Work Lighting Control | OK |
| Hopper Lighting Control | OK |
| Marker Control | OK |
| Pre-emergent Marking Control | OK |
| Adding Seed Batch during Work | OK |
| Micro Seeding | OK |
| Simultaneously Running Screens | 5 |
| Camera Input | OK |
| GSM Modem | for a fee |
| x | Not available |
| OK | Included |
